NVIDIA RTX A1000 Professional Graphics Card User Manual

1. Ifihan

This manual provides essential information for the installation, operation, and maintenance of your NVIDIA RTX A1000 Professional Graphics Card. Please read this manual thoroughly before installing and using the product to ensure optimal performance and safety.

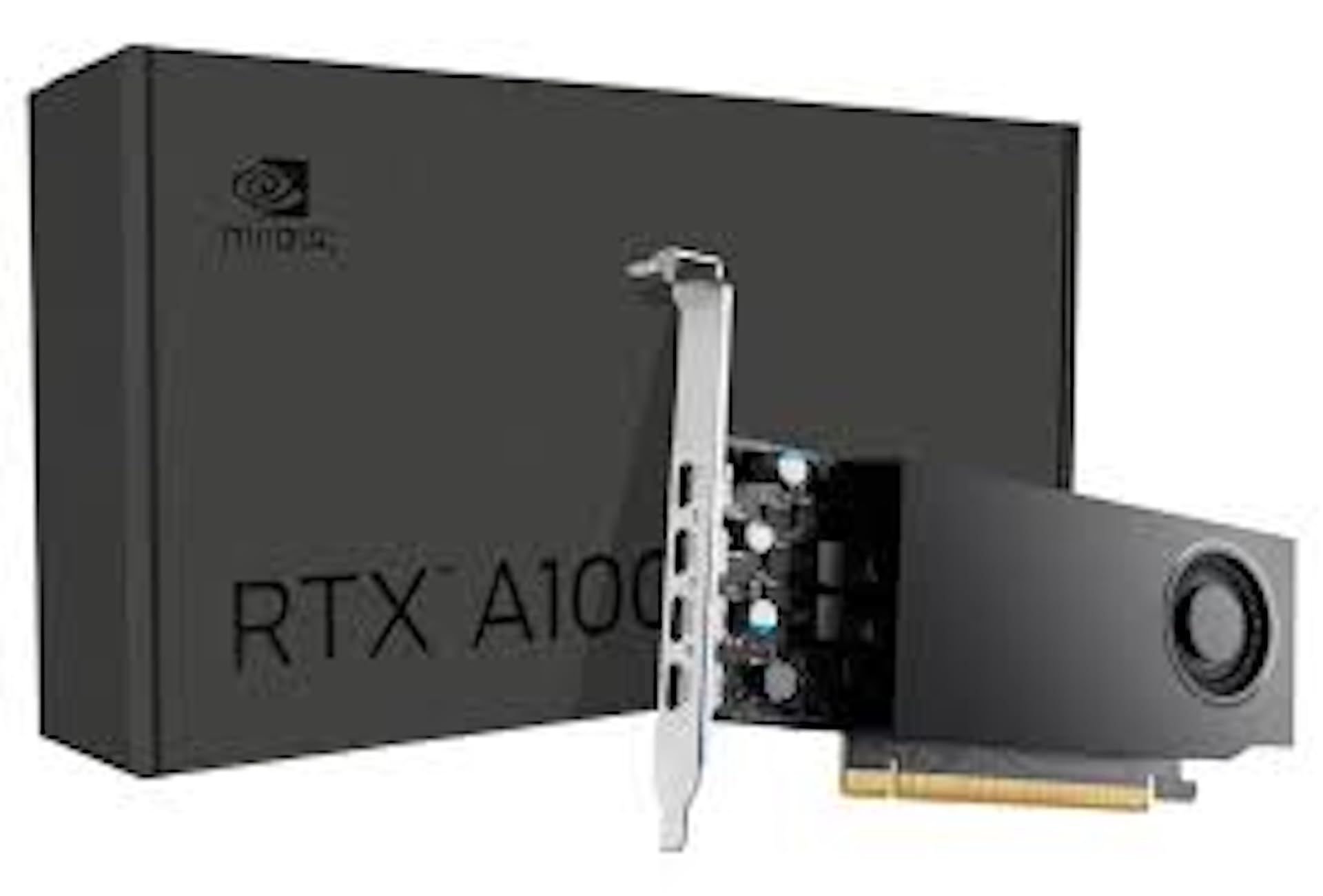

Figure 1: NVIDIA RTX A1000 Professional Graphics Card. This image shows the overall design of the graphics card, highlighting its compact form factor.

2. Ọja Ipariview

The NVIDIA RTX A1000 is a low-profile graphics processing unit (GPU) designed for professional workstations. It integrates NVIDIA's Ampere GPU architecture, featuring 2,304 CUDA Cores, 72 third-generation Tensor Cores, and 18 second-generation RT Cores, along with 8GB of GDDR6 graphics memory. This card is engineered to enhance visual creation, accelerate AI-powered workflows, and boost productivity within a small-form-factor solution.

olusin 2: Angled view of the NVIDIA RTX A1000. This perspective showcases the cooling fan and the sleek design of the card.

3. Key Awọn ẹya ara ẹrọ

• Advanced Core Architecture: Features 3rd generation Tensor Cores and 2nd generation RT Cores, providing enhanced graphic CAD performance and accelerated rendering and AI generation capabilities compared to previous models.
• Real-time Ray Tracing: Delivers up to twice the real-time ray-tracing performance of previous generations, facilitating complex 3D model processing and realistic image rendering.
• Iṣe AI: Offers up to 3.6 times higher generative AI performance, enabling rapid creation of high-quality images, videos, and 3D assets.
• Atilẹyin Ifihan pupọ: Equipped with four Mini DisplayPort connectors, supporting multi-application workflows and up to two 8K displays simultaneously for increased productivity.
• Ìrántí GDDR6 8GB: Pese ample memory for demanding professional applications and complex datasets.
• Kekere-Profile, Single-Slot Design: Optimizes space within workstations, making it suitable for a wide range of system configurations.

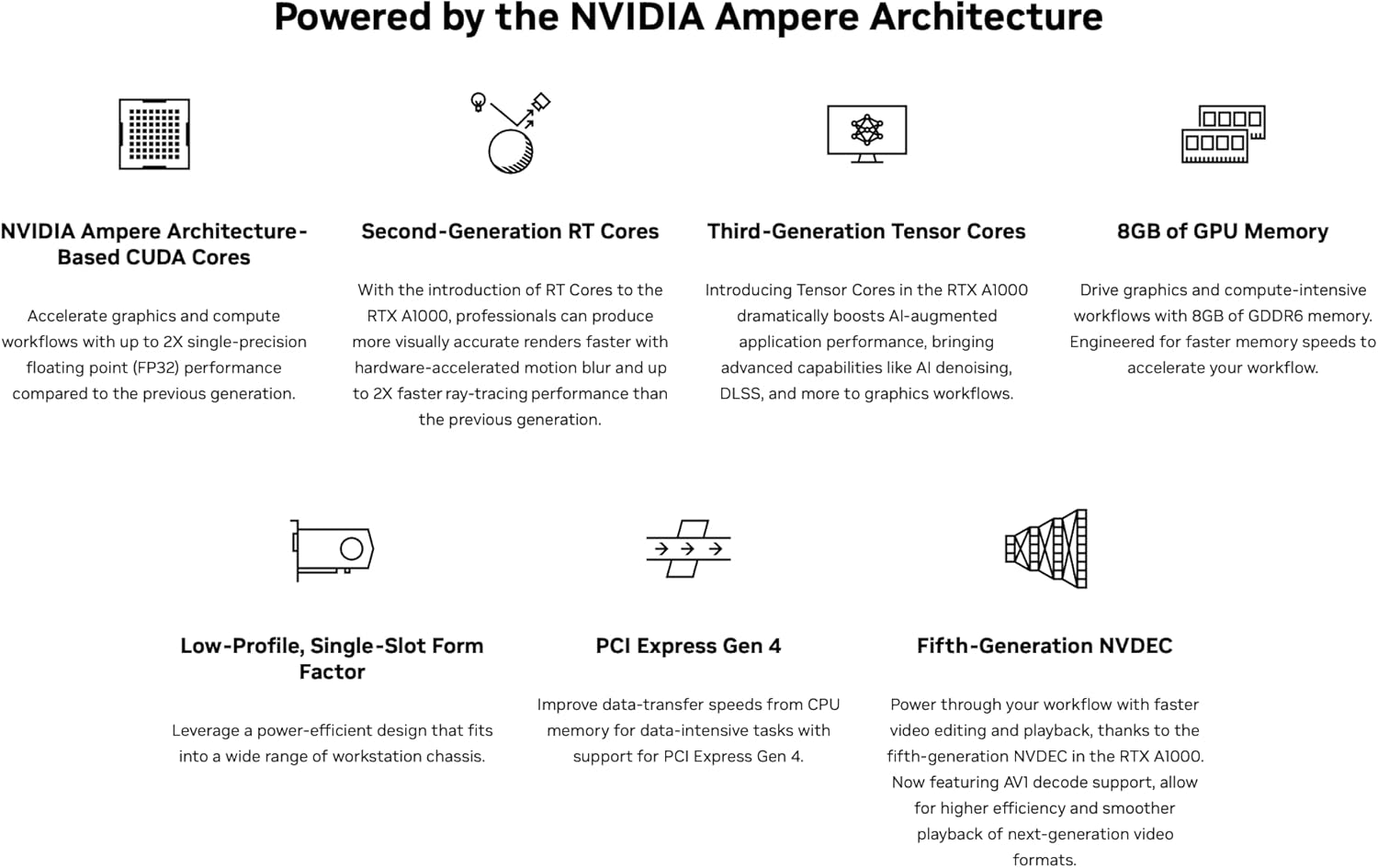

Olusin 3: Pariview of NVIDIA Ampere Architecture features. This graphic details the core components like CUDA Cores, RT Cores, Tensor Cores, and memory, which power the RTX A1000.

Olusin 4: Examples of professional workloads supported by the NVIDIA RTX A1000. This image illustrates applications in design, digital content creation, generative AI, productivity, edge computing, and multi-display environments.

4. Fifi sori ẹrọ ati Oṣo

4.1. System Awọn ibeere

• Available PCI-Express x8 or x16 slot.
• Compatible operating system (Windows 10/11 64-bit, Linux 64-bit).
• Sufficient power supply unit (PSU) with adequate wattage (typically 300W or higher recommended for system stability, as the card itself draws 50W).
• Minimum 8GB system RAM.

4.2. Hardware fifi sori

1. Paa ati Ge asopọ: Rí i dájú pé kọ̀ǹpútà rẹ ti pa pátápátá àti pé ó ti yọ ìsopọ̀ mọ́ ibi tí ó wà ní ògiri.
2. Àpò Kọ̀ǹpútà Ṣíṣí: Yọ ẹgbẹ ẹgbẹ ti ọran kọnputa rẹ lati wọle si modaboudu.
3. Wa PCIe Iho: Identify an available PCI-Express x8 or x16 slot on your motherboard. Remove any slot covers if necessary.
4. Fi Kaadi Awọn aworan sii: Carefully align the NVIDIA RTX A1000 card with the chosen PCIe slot and press down firmly until it is securely seated. Ensure the retention clip clicks into place.
5. Kaadi to ni aabo: Use a screw or the case's retention mechanism to secure the graphics card to the computer case.
6. Ti apoti naa pa ki o si tun so pọ mọ: Replace the computer case side panel, reconnect all cables, and plug the power cord back into the wall outlet.

4.3. Fifi sori awakọ

1. Agbara Lori Kọmputa: Tan kọ̀ǹpútà rẹ. Ẹ̀rọ ìṣiṣẹ́ náà lè ṣàwárí ohun èlò tuntun láìfọwọ́sí.
2. Ṣe igbasilẹ Awọn Awakọ: Ṣabẹwo si NVIDIA osise naa webAaye (www.nvidia.com/drivers) to download the latest professional drivers for the RTX A1000. Select your operating system and product series.
3. Fi Awọn awakọ sii: Ṣiṣe fifi sori ẹrọ awakọ ti a gba lati ayelujara ki o tẹle awọn ilana loju iboju. O le nilo lati tun eto naa bẹrẹ lati pari fifi sori ẹrọ naa.
4. Jẹrisi fifi sori ẹrọ: After restarting, open NVIDIA Control Panel or NVIDIA Settings to verify that the graphics card is recognized and drivers are correctly installed.

5. Isẹ

5.1. Nsopọ Awọn ifihan

The NVIDIA RTX A1000 features four Mini DisplayPort (mDP) outputs. Use appropriate mDP to DisplayPort, HDMI, or DVI adapters/cables to connect your monitors. Ensure your displays are powered on and set to the correct input source.

olusin 5: Isunmọ view of the four Mini DisplayPort outputs on the NVIDIA RTX A1000. These ports allow connection to multiple high-resolution displays.

5.2. NVIDIA Control Panel / Settings

The NVIDIA Control Panel (Windows) or NVIDIA Settings (Linux) provides comprehensive options for configuring your graphics card. Here you can adjust display settings, manage 3D application profiles, set up multiple displays, and monitor GPU performance.

• Ipinnu Ifihan: Adjust screen resolution and refresh rates.
• Awọn ifihan pupọ: Configure display modes (extended desktop, duplicate displays).
• Eto 3D: Optimize graphics settings for specific applications or global performance.
• GPU Monitoring: View GPU temperature, clock speeds, and memory usage.

6. Itọju

• Jeki imudojuiwọn Awakọ: Ṣayẹwo NVIDIA nigbagbogbo website for the latest drivers to ensure optimal performance, stability, and access to new features.
• Yiyọ eruku kuro: Máa fọ eruku láti inú afẹ́fẹ́ káàdì àwòrán àti ooru nígbàkúgbà nípa lílo afẹ́fẹ́ tí a fi ẹ̀rọ mú. Rí i dájú pé kọ̀ǹpútà náà ti pa àti pé ó ti yọ ìsopọ̀ mọ́ kí o tó sọ ọ́ di mímọ́.
• Rii daju pe sisan afẹfẹ to tọ: Maintain good airflow within your computer case to prevent overheating. Ensure case fans are functioning correctly and cables are neatly managed.

7. Laasigbotitusita

7.1. Ko si Abajade Ifihan

• Ensure the monitor is powered on and connected to the correct Mini DisplayPort on the graphics card.
• Daju pe awọn eya kaadi ti wa ni kikun joko ni PCIe Iho.
• Ṣayẹwo boya atẹle rẹ ti ṣeto si orisun titẹ sii to tọ.
• Try connecting to a different display output on the card or a different monitor.

7.2. Driver Installation Issues

• Download the latest drivers directly from the official NVIDIA webojula.
• Má ṣe dáwọ́ sọ́fítíwọ́ọ̀kì àjẹ́sára dúró fún ìgbà díẹ̀ nígbà tí o bá ń fi àwọn awakọ̀ sílò.
• If upgrading from a different GPU brand or older NVIDIA drivers, consider using a display driver uninstaller (DDU) in safe mode to remove old drivers before installing new ones.

7.3. Performance Issues or Crashes

• Rí i dájú pé àwọn awakọ̀ rẹ ti ṣe déédé.
• Monitor GPU temperature using software like NVIDIA Control Panel or third-party tools. Overheating can cause performance degradation or crashes.
• Verify your system meets the recommended power supply requirements.
• Check for conflicting software or background processes that might be consuming resources.

8. Imọ ni pato

Figure 6: Detailed specifications for the NVIDIA RTX A1000. This table provides key technical data such as GPU memory, display ports, power consumption, and form factor.

Figure 7: Performance comparison of NVIDIA RTX A1000 against previous generation. This chart illustrates performance gains in graphics, rendering, and generative AI workloads.

Figure 8: Industry-leading performance highlights of the NVIDIA RTX A1000, including Single-Precision, RT Core, and Tensor Performance metrics.

9. Ohun ti o wa ninu Apoti

Upon opening the product packaging, you should find the following item:

• NVIDIA RTX A1000 Professional Graphics Card

Note: Additional accessories such as Mini DisplayPort adapters or documentation may be included depending on the specific retailer or bundle.

10. Atilẹyin ọja ati Support

10.1. Atilẹyin ọja

NVIDIA products typically come with a limited manufacturer's warranty. The duration and terms of the warranty may vary by region and retailer. Please refer to the warranty information provided with your purchase or visit the official NVIDIA webaaye fun awọn eto imulo atilẹyin ọja alaye.

10.2. Imọ Support

For technical assistance, driver downloads, and frequently asked questions, please visit the official NVIDIA support webojula:

NVIDIA atilẹyin Webojula

You may also contact your retailer or system integrator for support related to your specific purchase.
