Omezizy 247 WiFi Thermal Label Printer 4x6 User Manual

Ọrọ Iṣaaju

The Omezizy 247 WiFi Thermal Label Printer is designed for efficient and reliable label printing for various applications, including shipping, barcode, and mailing labels. This printer offers both wireless (Wi-Fi) and wired (USB) connectivity, making it compatible with a wide range of operating systems and devices. Its advanced thermal technology ensures fast, high-resolution printing without the need for ink or toner.

Package Awọn akoonu

Jọwọ rii daju pe gbogbo awọn ohun ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ. Ti awọn ohun kan ba nsọnu tabi bajẹ, jọwọ kan si atilẹyin alabara.

Image: The package contents, including the Omezizy 247 WiFi Thermal Label Printer, power adapter, power cord, USB cable, Type-C converter, user guide, and a starter pack of 4x6 label paper.

• Omezizy 247 WiFi Thermal Label Printer
• Adapter agbara
• Okun agbara
• Okun USB
• Type-C Converter
• Itọsọna olumulo
• 20 sheets of 4x6 Label Paper

Ti ara Pariview

Familiarize yourself with the main components of your Omezizy thermal label printer.

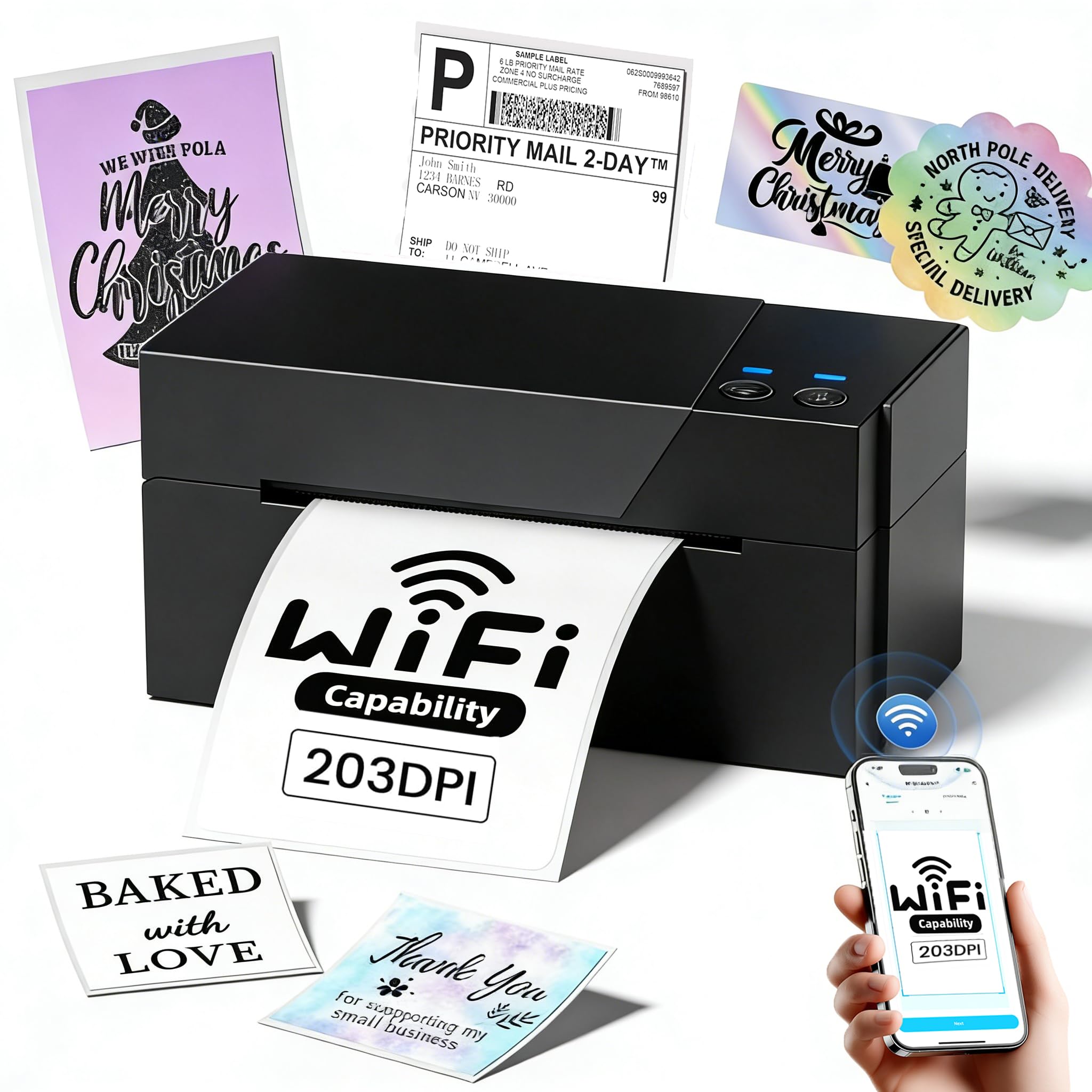

Aworan: Iwaju view of the Omezizy 247 WiFi Thermal Label Printer.

Awọn iwọn itẹwe

• Awọn iwọn ọja: 18.3D x 8.8W x 8.9H
• Ìwọ̀n Nkan: 1360 giramu

Eto Ibẹrẹ

1. Nsopọ Agbara

1. So ohun ti nmu badọgba agbara pọ si ibudo agbara itẹwe.
2. Pulọọgi okun agbara sinu iṣan ogiri kan.
3. Tẹ bọtini agbara lati tan itẹwe.

2. Awọn aami ikojọpọ

The printer supports label widths from 1 to 4.6 inches.

Image: Illustration of loading labels into the printer, demonstrating support for various label widths from 1 to 4.6 inches.

1. Ṣii ideri oke ti itẹwe naa.
2. Ṣàtúnṣe àwọn ìtọ́sọ́nà àmì náà láti bá ìbú àwọn àmì rẹ mu.
3. Insert the labels, ensuring the print side is facing up and the labels feed smoothly into the printer mechanism.
4. Close the top cover. The printer will automatically detect and calibrate the label size.

Asopọmọra

Wi-Fi Asopọ

The Omezizy 247WF printer supports stable 5GHz Wi-Fi for wireless printing from multiple devices.

Image: Multiple devices (smartphone, laptop, tablet) wirelessly connected to the Omezizy printer via Wi-Fi.

1. Ensure your printer is powered on and within range of your Wi-Fi network.
2. Download the dedicated Omezizy printing application from your device's app store (Android/iOS) or install the driver for Mac/Windows/Linux from the official webojula.
3. Follow the in-app or driver instructions to connect the printer to your Wi-Fi network. This typically involves selecting the printer from a list of available devices and entering your Wi-Fi password.
4. Once connected, the printer's Wi-Fi indicator light will confirm the connection.

Asopọ USB

For direct connection to a computer, use the provided USB cable.

Image: The printer connected to a laptop via USB, demonstrating dual connectivity options.

1. Connect one end of the USB cable to the printer and the other end to your computer.
2. If prompted, install the printer drivers. Drivers are available on the official Omezizy website or included on a setup disk (if provided).
3. Your computer should recognize the printer as a connected device.

Awọn ilana Iṣiṣẹ

Using the Mobile App (Wi-Fi)

The Omezizy app provides a user-friendly interface for printing from your smartphone or tablet.

Image: The Omezizy mobile application interface, showcasing its multi-functional capabilities for label design and printing.

1. Open the Omezizy app on your device.
2. Ensure the printer is connected to the same Wi-Fi network as your device.
3. Select the document or image you wish to print. The app supports various functions including text recognition, file printing, custom barcode generation, and image identification.
4. Adjust print settings such as label size and orientation within the app.
5. Tap the print button to send the job to the printer.

Printing from Computer (USB/Wi-Fi)

The printer is compatible with major shipping platforms and operating systems.

Image: Compatibility with various shipping and e-commerce platforms.

1. Open the document or label file lori kọmputa rẹ.
2. Go to 'File' > 'Print' or use the print shortcut (Ctrl+P for Windows, Command+P for Mac).
3. Select the Omezizy 247 WiFi Thermal Label Printer from the list of available printers.
4. Ensure the correct label size (e.g., 4x6 inches) is selected in the print settings.
5. Tẹ 'Tẹjade'.

Itoju

Ninu Print Head

Ninu deede ti ori titẹjade ṣe idaniloju didara titẹ ti aipe ati fa igbesi aye itẹwe naa pọ.

1. Pa ẹrọ itẹwe naa kuro ki o yọọ okun agbara.
2. Ṣii ideri oke lati wọle si ori titẹ.
3. Fi ọtí tàbí aṣọ tí kò ní ìpara nu orí ìtẹ̀wé náà díẹ̀díẹ̀.ampened pẹlu isopropyl oti.
4. Allow the print head to dry completely before closing the cover and turning the printer back on.

Gbogbogbo Itọju

• Jeki itẹwe ni mimọ, agbegbe ti ko ni eruku.
• Avoid exposing the printer to direct sunlight or extreme temperatures.
• Use only high-quality thermal labels to prevent damage to the print head.

Laasigbotitusita

This section addresses common issues you might encounter with your Omezizy thermal label printer.

Ko si Agbara

• Ensure the power cord is securely connected to both the printer and the wall outlet.
• Daju pe iṣan agbara n ṣiṣẹ nipa pilogi sinu ẹrọ miiran.

Didara Print ti ko dara

• Nu ori titẹjade bi a ti ṣalaye ninu apakan Itọju.
• Rii daju pe o nlo awọn aami gbigbona to gaju.
• Check print density settings in your printer preferences or app.

Labels Not Feeding Correctly

• Verify that labels are loaded correctly with the print side up.
• Adjust the label guides to fit the label width snugly but without excessive pressure.
• Ensure there are no obstructions in the label path.

Cannot Connect via Wi-Fi

• Confirm the printer and your device are connected to the same Wi-Fi network.
• Tun bẹrẹ mejeeji itẹwe ati olulana Wi-Fi rẹ.
• Ensure the Omezizy app or drivers are up to date.

Imọ ni pato

Alaye atilẹyin ọja

For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official Omezizy webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun eyikeyi awọn ibeere atilẹyin ọja.

Onibara Support

If you encounter any issues or have questions regarding your Omezizy 247 WiFi Thermal Label Printer, please contact our professional support team:

• Atilẹyin foonu: Available Monday-Friday, 9:00 AM - 5:00 PM EST.
• Imeeli Atilẹyin: Available for general inquiries and technical assistance.
• Iwiregbe Live: Available Monday-Friday, 7:30 PM - 4:30 AM EST.
• Remote Desktop Support: Available when needed for complex issues.

Please refer to the contact information provided in your user guide or on the official Omezizy webojula fun pato olubasọrọ awọn alaye.
