TrustCell 618.010.004 Replacement Battery User Manual

1. Ifihan

Welcome to the user manual for your TrustCell 618.010.004 replacement battery. This manual provides essential information for the safe and effective use of your new battery, ensuring optimal performance with compatible Soehnle scales.

2. Ọja Ipariview

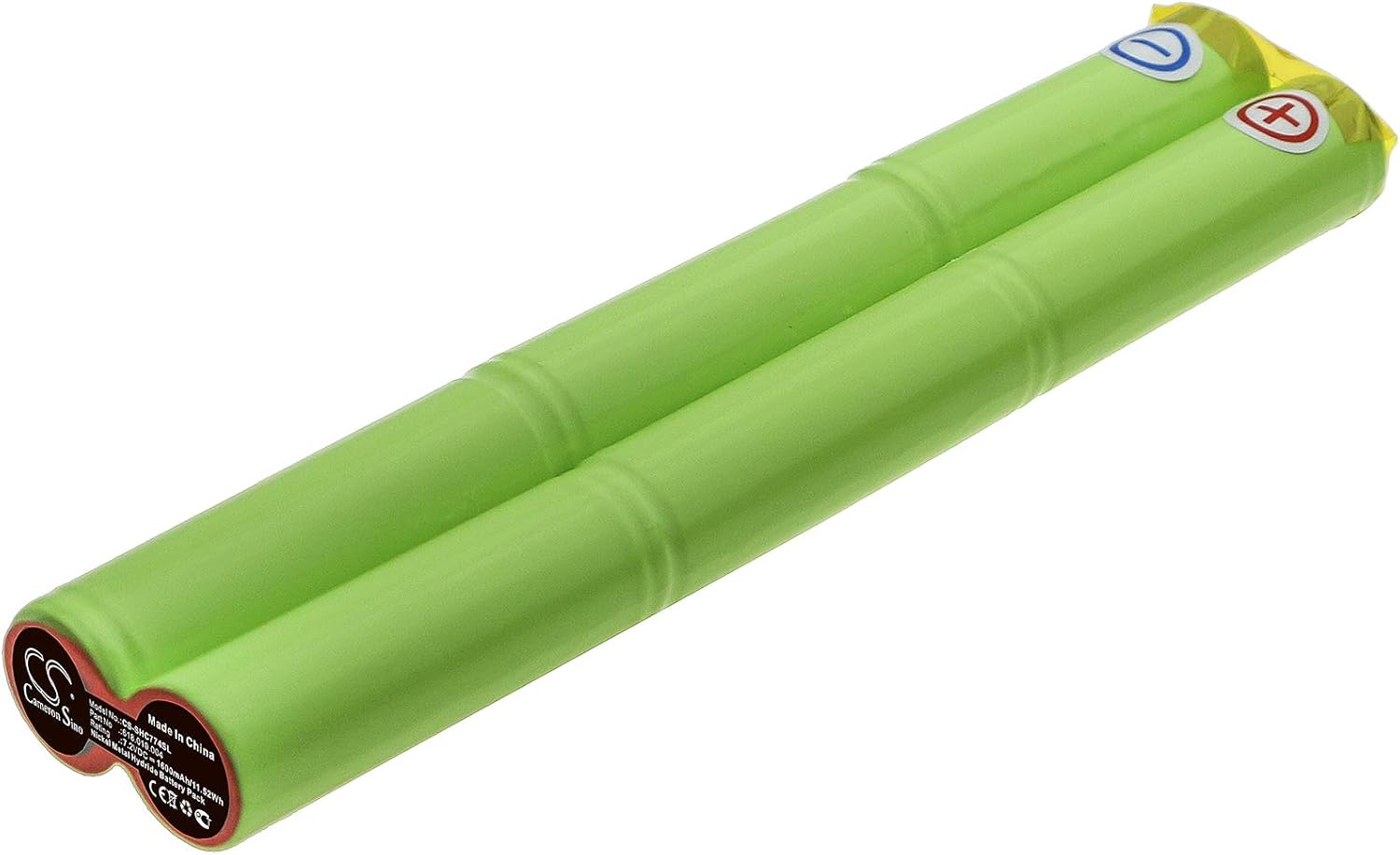

This replacement battery is designed to provide reliable power for compatible Soehnle scales. It features robust construction and protective circuits for enhanced durability.

• Battery Part Number: 618.010.004
• Iru Batiri: Ni-MH
• Agbara: 1600mAh
• Voltage: 7.2V
• Energy Rate: 11.52Wh
• Nọmba awoṣe: CS-SHC774SL

3. Ibamu

This battery is compatible with the following Soehnle scale models:

• Soehnle Scale 7722
• Soehnle Scale 7741
• Soehnle Scale 7742
• Soehnle Scale 7743

Before installation, verify that the part number 618.010.004 matches your original battery.

4. Eto ati fifi sori

Follow these steps to safely install your new battery:

1. Igbaradi: Ensure your device is powered off and disconnected from any power source before attempting battery replacement.
2. Wa Iyẹwu Batiri: Refer to your Soehnle scale's original manual to locate and open the battery compartment.
3. Yọ Batiri atijọ kuro: Carefully disconnect and remove the old battery.
4. Fi Batiri Tuntun sori ẹrọ: Insert the TrustCell replacement battery, ensuring the connector is properly and securely attached to your device.
5. Iyẹwu Timọ: Pa yara batiri naa ni aabo.

5. Awọn ilana Iṣiṣẹ

For optimal performance and longevity of your battery, adhere to the following guidelines:

• Idiyele Ibẹrẹ: A new battery will achieve its best performance after 2 or 3 complete cycles of charge and discharge. Fully charge the battery before its first use.
• Gbigba agbara: Use only the original or a high-quality, compatible charger designed for your Soehnle scale. Using low-quality third-party chargers can shorten the battery's life.
• Àwọn Ìrìn Àjò: For the first few cycles, allow the battery to fully discharge before recharging to condition it properly.

6. Itọju ati Itọju

Itọju to peye mu ki batiri rẹ pẹ si:

• Ibi ipamọ: If storing the battery for an extended period, keep it in a cool, dry place. Avoid extreme temperatures.
• Ninu: Keep battery contacts clean and free from dust or debris.
• Lilo deede: For best battery health, avoid leaving the battery fully discharged or fully charged for very long periods.

This battery is designed with over-charge, over-discharge, over-voltage, and short-circuit protection for enhanced durability and safety.

7. Awọn iṣọra aabo

IKILO: Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to the product or property.

• Maṣe Tu: Maṣe gbiyanju lati ṣajọpọ idii batiri naa.
• Avoid Fire/Water: Ma ṣe sọ batiri naa sinu ina tabi omi.
• Awọn idiwọn iwọn otutu: Do not store the battery above 60 ℃ (140 ℉).
• Ipa: Yẹra fún jíjá tàbí fífi agbára mú kí bátírì náà gbóná sí i.
• Circuit kukuru: Ma ṣe kukuru-yika awọn ebute batiri.
• Awọn ọmọde: Jeki awọn batiri kuro ni arọwọto awọn ọmọde.

8. Laasigbotitusita

Tí o bá ní ìṣòro pẹ̀lú bátìrì rẹ, wo àwọn ìṣòro àti ìdáhùn tó wọ́pọ̀ wọ̀nyí:

Batiri Ko Ngba agbara

• Ensure the battery is correctly installed and the connector is secure.
• Verify the charger is functioning correctly and is compatible with your scale.
• Ṣayẹwo eyikeyi ibajẹ ti o han si batiri tabi ṣaja.

Igbesi aye batiri kukuru

• Ensure the battery has completed 2-3 full charge/discharge cycles for optimal performance.
• Avoid using low-quality third-party chargers.
• Check if the device itself has high power consumption or other issues.

If issues persist after following these steps, please contact customer support for further assistance.

9. Imọ ni pato

10. Atilẹyin ọja ati Support

TrustCell provides a 1-year refund or replacement warranty for this product, ensuring your satisfaction and peace of mind.

For any questions, concerns, or support needs, please contact our customer service team. We aim to reply within 24 hours to assist you promptly.

Olubasọrọ: Refer to your purchase platform or the manufacturer's webojula fun pato olubasọrọ awọn alaye.
