Devoko 3x4m LED Garden Gazebo Instruction Manual

1. Ifihan

Thank you for choosing the Devoko 3x4m LED Garden Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read these instructions carefully before beginning assembly and retain them for future reference.

This gazebo features a robust metal frame, a waterproof and UV-resistant canopy, and integrated LED lighting for enhanced outdoor enjoyment. It is designed to provide a comfortable and shaded area for gatherings of 6-8 people.

2. Alaye Aabo

• Fifi sori ni aabo: Always ensure the gazebo is properly anchored to the ground using the provided stakes and ropes to prevent collapse, especially in windy or adverse weather conditions.
• Awọn iṣọra oju ojo: While the canopy is waterproof, it is recommended to remove the canopy during heavy rain, strong winds, or snow to prevent damage to the structure.
• Aabo Ina: Keep all heat sources, open flames, and flammable materials away from the gazebo fabric.
• Apejọ: Assembly typically requires two or more adults. Follow all steps in the correct order.
• Ayẹwo igbagbogbo: Máa ṣàyẹ̀wò gbogbo àwọn ìsopọ̀ àti àwọn ohun tí a so mọ́ ara wọn láti rí i dájú pé wọ́n wà ní ìdúróṣinṣin àti ní ààbò nígbà gbogbo.

3. Package Awọn akoonu

Before assembly, verify that all parts listed below are present. Refer to the diagram for visual identification of components.

Image: All components and hardware included in the Devoko 3x4m LED Garden Gazebo package.

Ni igbagbogbo package naa pẹlu:

• Metal frame components (legs, beams, connectors)
• Main canopy and top canopy
• Side curtains (4 pieces)
• LED lighting system (solar panel, central spotlights, tube lights)
• Isakoṣo latọna jijin fun awọn imọlẹ LED
• Ground stakes and ropes
• Awọn irinṣẹ apejọ (fun apẹẹrẹ, Allen wrench)
• Àwọn ohun tí a so mọ́ ara wọn (skru, àwọn ẹ̀rọ fifọ, àti èso)

Image: The gazebo is shipped in two separate boxes, which may arrive with a 1-2 day interval.

4. Apejọ Awọn ilana

Please watch the assembly video for a visual guide. Ensure you have ample space and assistance for assembly.

Itọsọna Igbesẹ-Igbese:

1. Mura ipilẹ: Lay out the main base frame components (A, A2, B) on a flat, level surface. Connect them using the specified bolts (H, H1). Ensure all connections are finger-tight at this stage.
2. Assemble Side Sections: Attach the decorative side sections (B, B1) to the base frame using bolts (H, H1, H4).
3. Connect Corner Posts: Erect the corner posts and connect them to the assembled base sections. Secure with bolts (H, H4).
4. Install Upper Beams: Attach the upper horizontal beams (A, A2, B, B1) to the top of the corner posts, forming the upper perimeter of the gazebo. Use bolts (H, H1, H4) as indicated.
5. Add Corner Braces: Install the diagonal corner braces (F) to reinforce the upper frame structure. Secure with bolts (H). Repeat for all four corners.
6. Central Roof Support: Assemble the central roof support structure (C, D, E) and attach it to the top of the upper frame using bolts (H3).
7. Attach Roof Rafters: Connect the roof rafters (C1, J) to the central support and the upper frame. Secure with bolts (H5, H2).
8. Install Central Cap: Place the central cap (M) onto the top of the roof structure (E).
9. Mount Canopies: First, place the small top canopy (N2) onto the upper roof structure. Then, carefully spread the main canopy (N) over the entire roof frame, ensuring it is taut and evenly distributed.
10. Fi sori ẹrọ Igbimọ oorun: Attach the solar panel unit (G) to the designated spot on the top canopy.
11. Àwọn Aṣọ Ìbòrí Tí A Fi Sórí: Hang the side curtains (N1) onto the curtain rails.
12. Ìpamọ́ Ìkẹyìn: Once the frame is fully assembled and canopies are in place, tighten all bolts securely. Use the provided ground stakes (O) and ropes (Z) to anchor the gazebo firmly to the ground.

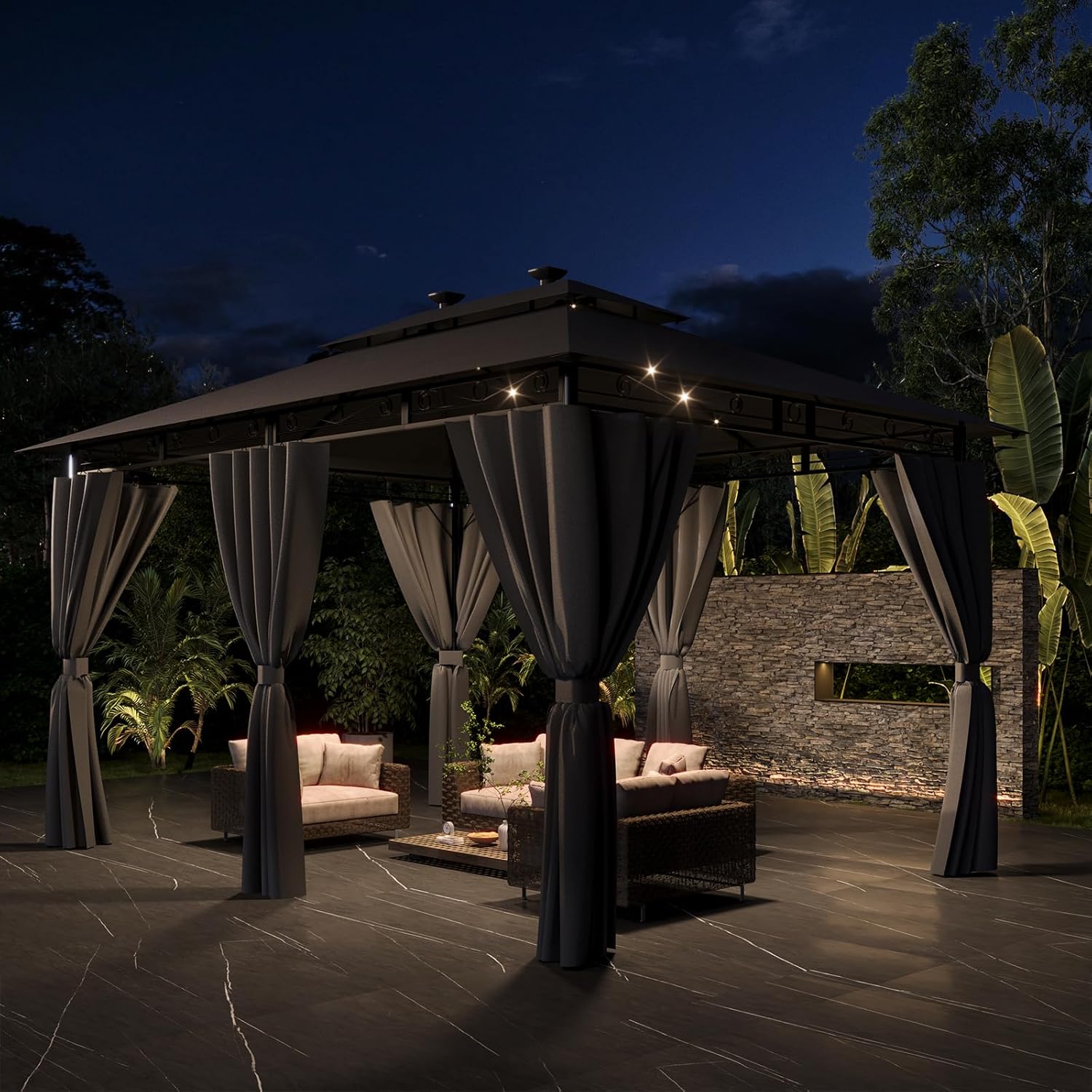

Image: The Devoko gazebo with its integrated LED lighting system, providing ambient light for evening use.

5. Operating Instructions for LED Lights

Your Devoko gazebo is equipped with an integrated LED lighting system that can be powered by solar energy or USB charging.

Gbigba agbara awọn imọlẹ LED:

• Gbigba agbara Oorun: The solar panel on the top canopy charges the internal battery during daylight hours. For optimal charging, ensure the solar panel is exposed to direct sunlight for 6-9 hours.
• Ngba agbara USB: For faster charging or during periods of low sunlight, the LED system can be charged via USB. A full USB charge typically takes 5-7 hours. The green indicator light will illuminate when the battery is fully charged.
• Iwọn otutu: The battery will not function below -15°C.

Lilo Iṣakoso Latọna jijin:

The included remote control allows you to manage the LED lights:

• Tan/Pa: Use the dedicated buttons to turn the lights on or off.
• Dimming: Adjust the brightness with 5-level dimming settings.
• Aago: Set the lights to automatically turn off after 30 or 60 minutes.
• Pa a Aifọwọyi: The system features a 4-hour automatic shut-off function to conserve battery life.

Image: Solar panel and remote control details, showing charging times and usage information for the LED lighting system.

6. Itọju

• Ṣiṣeto ibori naa: Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this may damage the UV coating. Allow to air dry completely before storage.
• Itọju fireemu: The metal frame is made of galvanized alloy with an anti-rust coating. Clean with a damp cloth and mild detergent. Inspect for any signs of rust or damage periodically.
• Ṣayẹwo Fastener: Regularly check all bolts and connections to ensure they are tight. Re-tighten as necessary.
• Ibi ipamọ igba otutu: For prolonged product life, especially in harsh winter conditions, it is recommended to disassemble and store the canopy and curtains indoors. The metal frame can remain outdoors if properly secured, but indoor storage is ideal.

Image: The gazebo's alloy steel frame with anti-rust coating and 180G/m² waterproof, UV-resistant fabric.

7. Laasigbotitusita

• Aiduro Gazebo: Ensure all frame connections are securely tightened. Verify that the ground stakes are fully inserted and ropes are taut. Consider adding additional weights to the legs in very windy conditions.
• Awọn imọlẹ LED ko ṣiṣẹ: Check if the battery is charged (via solar or USB). Ensure the remote control has working batteries and is pointed correctly. If issues persist, contact customer support.
• Canopy Fit Issues: During assembly, ensure the frame is perfectly square before attempting to fit the canopy. It may require two people to stretch the canopy evenly over the frame.

8. Awọn pato

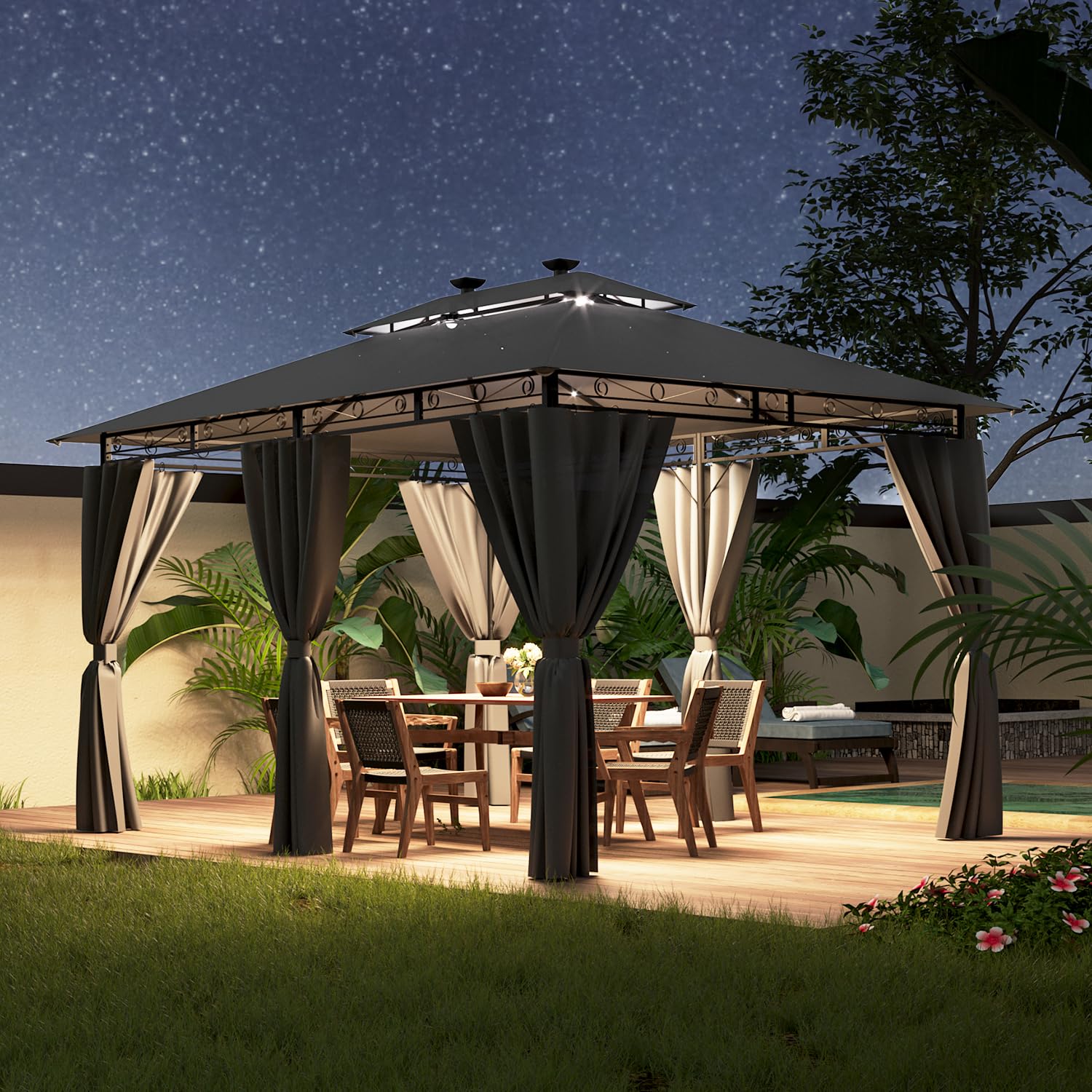

Image: The Devoko 3x4m LED Garden Gazebo, illustrating its overall dimensions and capacity.

9. Atilẹyin ọja ati Support

For any installation or usage issues, please do not hesitate to contact the seller. They are committed to resolving any quality problems within 24 hours.

Olurannileti Ọrẹ: Gazebo colors may vary slightly depending on monitor settings or lighting conditions.
