OCID Phonak 6.0 Hearing Aid Receiver Wire Instruction Manual

1. Ifihan

This manual provides instructions for the proper installation, maintenance, and use of the OCID Phonak 6.0 Hearing Aid Receiver Wire. This receiver is designed to deliver clear sound and is compatible with specific Phonak Infinio hearing aid models. Please read these instructions carefully before use to ensure optimal performance and longevity of your device.

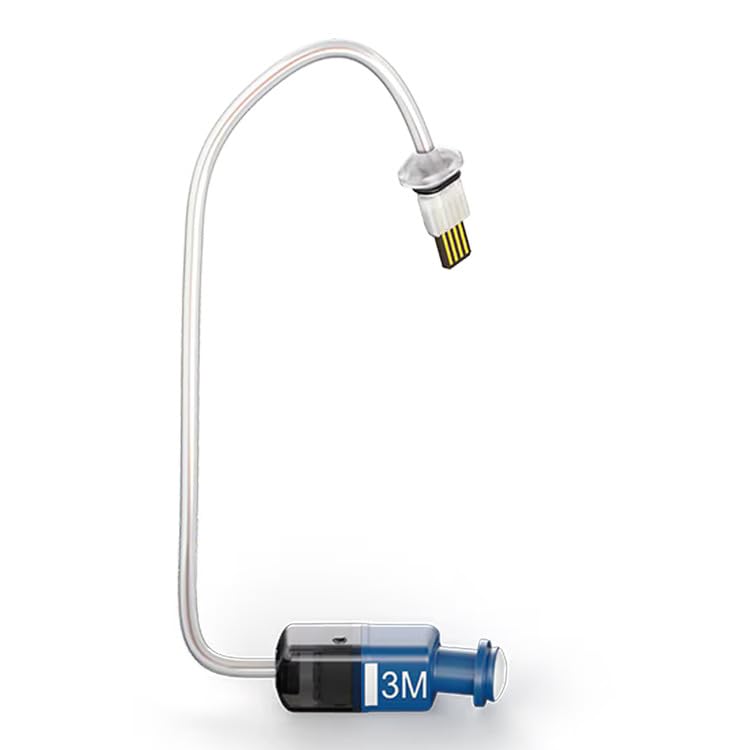

Image 1: OCID Phonak 6.0 Hearing Aid Receiver Wire. This image displays the receiver wire, which connects to the hearing aid and extends into the ear canal. It features a small, curved wire with a receiver unit at one end and a connector at the other.

Awọn akoonu idii:

• 1 x OCID Phonak 6.0 Hearing Aid Receiver Wire (Specific size and power level as ordered)

2. Ibamu

The OCID Phonak 6.0 Receiver Wire is exclusively designed for use with the following Phonak hearing aid models:

• Phonak Audeo Infinio I90-R
• Phonak Audeo Infinio I70-R
• Phonak Audeo Infinio I50-R
• Phonak Audeo Infinio I30-R
• Phonak Audeo Infinio I90-Sphere
• Phonak Audeo Infinio I70-Sphere

This receiver wire is also fully compatible with Phonak 4.0 Domes and Retention Locks, which are essential for a secure and comfortable fit within the ear canal.

3. Choosing the Correct Receiver

Phonak 6.0 Receivers are available in various power levels and lengths to suit individual hearing needs and ear canal anatomy. It is crucial to use the correct receiver as prescribed by your audiologist.

Awọn ipele Agbara:

• Standard (S): For mild to moderate hearing loss.
• Alabọde (M): For moderate to severe hearing loss.
• Agbara (P): For severe to profound hearing loss.

Awọn aṣayan Gigun:

Receivers are available in sizes 00, 0, 1, 2, and 3, designated for both left (blue marking) and right (red marking) ears. The length ensures the receiver sits correctly and comfortably in your ear canal.

Pataki: Always consult your audiologist to determine the appropriate power level and length for your specific hearing aid and hearing loss profile. Using an incorrect receiver can lead to suboptimal sound quality or discomfort.

4. Eto ati fifi sori

Follow these steps to safely replace or install your Phonak 6.0 Receiver Wire. Handle the receiver wire with care to avoid damage.

1. Igbaradi: Ensure your hearing aid is turned off. Gently remove the dome and any retention lock from the old receiver.
2. Disconnect Old Receiver: Locate the small release lever or button on the hearing aid where the receiver wire connects. Press or lift it to release the old receiver wire. Carefully pull the old receiver wire straight out from the hearing aid body.
3. So olugba tuntun pọ: Align the new receiver wire's connector with the port on the hearing aid. Ensure the correct left (blue) or right (red) receiver is being used for the corresponding hearing aid. Gently push the connector into the port until it clicks securely into place. Do not force it.
4. Attach Dome and Retention Lock: Carefully attach a clean, compatible Phonak 4.0 Dome to the tip of the new receiver. If using a retention lock, slide it onto the receiver wire before attaching the dome, ensuring it is positioned correctly to help secure the hearing aid in your ear.
5. Idanwo: Turn on your hearing aid and perform a sound check to ensure the receiver is functioning correctly.

If you encounter any difficulty or are unsure about the installation process, please consult your audiologist or a qualified hearing aid professional.

5. Lilo

Once installed, the receiver wire should sit comfortably in your ear canal, with the hearing aid resting securely behind your ear. Ensure the wire is not twisted or kinked, as this can affect sound transmission or cause discomfort. Adjust the hearing aid and receiver placement as needed for optimal sound and comfort throughout the day.

6. Itọju

Regular maintenance is essential to ensure the longevity and optimal performance of your Phonak 6.0 Receiver Wire.

Cerustop Wax Filters:

The receiver is equipped with a Cerustop wax filter to protect it from earwax and moisture. These filters need to be replaced regularly, typically every few weeks or when you notice a decrease in sound quality or blockage.

1. Yiyọ: Use the tool provided with new Cerustop filters. Insert the empty end of the tool into the old wax filter and pull it straight out.
2. Fi sii: Flip the tool to the side with the new filter. Insert the new filter straight into the receiver opening until it is flush.
3. Idasonu: Dispose of the used filter and tool responsibly.

Ninu:

• Wipe the receiver wire and dome daily with a soft, dry cloth.
• Do not use water, alcohol, or cleaning solvents directly on the receiver or hearing aid, as this can cause damage.
• Ensure the dome is clean and free of earwax. Replace domes regularly as recommended by your audiologist.

7. Laasigbotitusita

If you experience issues with your hearing aid after installing the new receiver wire, consider the following common troubleshooting steps:

• Kò sí ohùn tàbí ohùn aláìlera:
  • Check if the hearing aid is turned on and has a charged battery.
  • Inspect the receiver wire for any visible damage or kinks.
  • Check the Cerustop wax filter for blockage and replace it if necessary.
  • Ensure the receiver wire is securely connected to the hearing aid.
• Ohun Daru tabi Esi:
  • Ensure the dome is properly seated on the receiver and fits snugly in your ear canal.
  • Check if the dome is the correct size and type for your ear.
  • Verify the receiver wire is the correct length and power level for your hearing aid and prescription.
• Ibanujẹ:
  • Ensure the receiver wire is not twisted or pulling on your ear.
  • Confirm the dome size is appropriate and not causing pressure.

If these steps do not resolve the issue, contact your audiologist or hearing aid professional for further assistance.

8. Awọn pato

9. Atilẹyin ọja ati Support

This OCID product is manufactured to high-quality standards. For any questions regarding product performance, compatibility, or if you require technical assistance, please contact the seller or the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For professional advice on hearing aid fitting, adjustments, or specific issues related to your hearing loss, always consult a certified audiologist or hearing aid specialist.
