1. Ọja Ipariview
This manual provides essential information for the safe and effective use of your DTK 2.5Ah Lithium-Ion 24V Battery, model FX0111-1. This battery is designed as a high-quality replacement for Flex 24V power tools, offering reliable performance and extended runtime.
Image 1.1: The DTK 2.5Ah Lithium-Ion 24V Battery, model FX0111-1.
Awọn ẹya pataki:
- Iru Batiri: Litiumu-Iwọn
- Agbara: 2.5Ah (2500mAh)
- Voltage: 24V
- Ibamu: Designed for Flex 24V tools and original 24V chargers.
- Integrated LED Indicator: Ṣe afihan ipele gbigba agbara batiri lọwọlọwọ.
- Multi-Protection Technology: Includes safeguards against over-charging, over-discharging, over-current, short-circuit, over-voltage, ati lori-alapapo.
- Ikole ti o tọ: Battery case made from ABS+PC materials for sturdiness and fire resistance.
2. Alaye Aabo
Read all safety warnings and instructions before using this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always use the battery with compatible Flex 24V tools and original 24V chargers.
- Do not expose the battery to water, rain, or extreme temperatures.
- Do not store the battery in direct sunlight or near heat sources.
- Avoid dropping, puncturing, or disassembling the battery.
- Ma ṣe kukuru-yika awọn ebute batiri.
- If the battery shows signs of damage, leakage, or overheating, discontinue use immediately and dispose of it properly.
- Jeki batiri kuro ni arọwọto awọn ọmọde.
- Sọ awọn batiri ti a lo ni ibamu si awọn ilana agbegbe. Ma ṣe sọ sinu egbin ile.
Image 2.1: The DTK battery features multiple protection technologies and a durable ABS+PC case for enhanced safety.
3. Installation and Charging
3.1 Fifi Batiri naa sii
- Rí i dájú pé ẹ̀rọ agbára náà ti pa, ó sì ti ge asopọ̀ kúrò láti orísun agbára èyíkéyìí.
- Align the battery with the battery slot on your Flex 24V tool.
- Slide the battery into the slot until it clicks securely into place. Do not force the battery.
- Láti yọ batiri náà kúrò, tẹ bọ́tìnì ìtújáde batiri náà (tí ó bá wà lórí irinṣẹ́ rẹ) kí o sì yọ batiri náà kúrò.
3.2 Ngba agbara si Batiri naa
The DTK 2.5Ah Lithium-Ion 24V battery is compatible with original 24V chargers. Always use a charger specifically designed for 24V Lithium-Ion batteries.
- So ṣaja pọ si iṣan agbara kan.
- Slide the battery onto the charger until it is securely seated.
- Awọn ina atọka ṣaja yoo fi ipo gbigba agbara han. Tọkasi itọnisọna ṣaja rẹ fun awọn ilana ina kan pato.
- The battery features an LED indicator that shows its charge level. Press the button on the battery to activate the indicator lights.
- Ni kete ti o ti gba agbara ni kikun, yọ batiri kuro lati ṣaja.

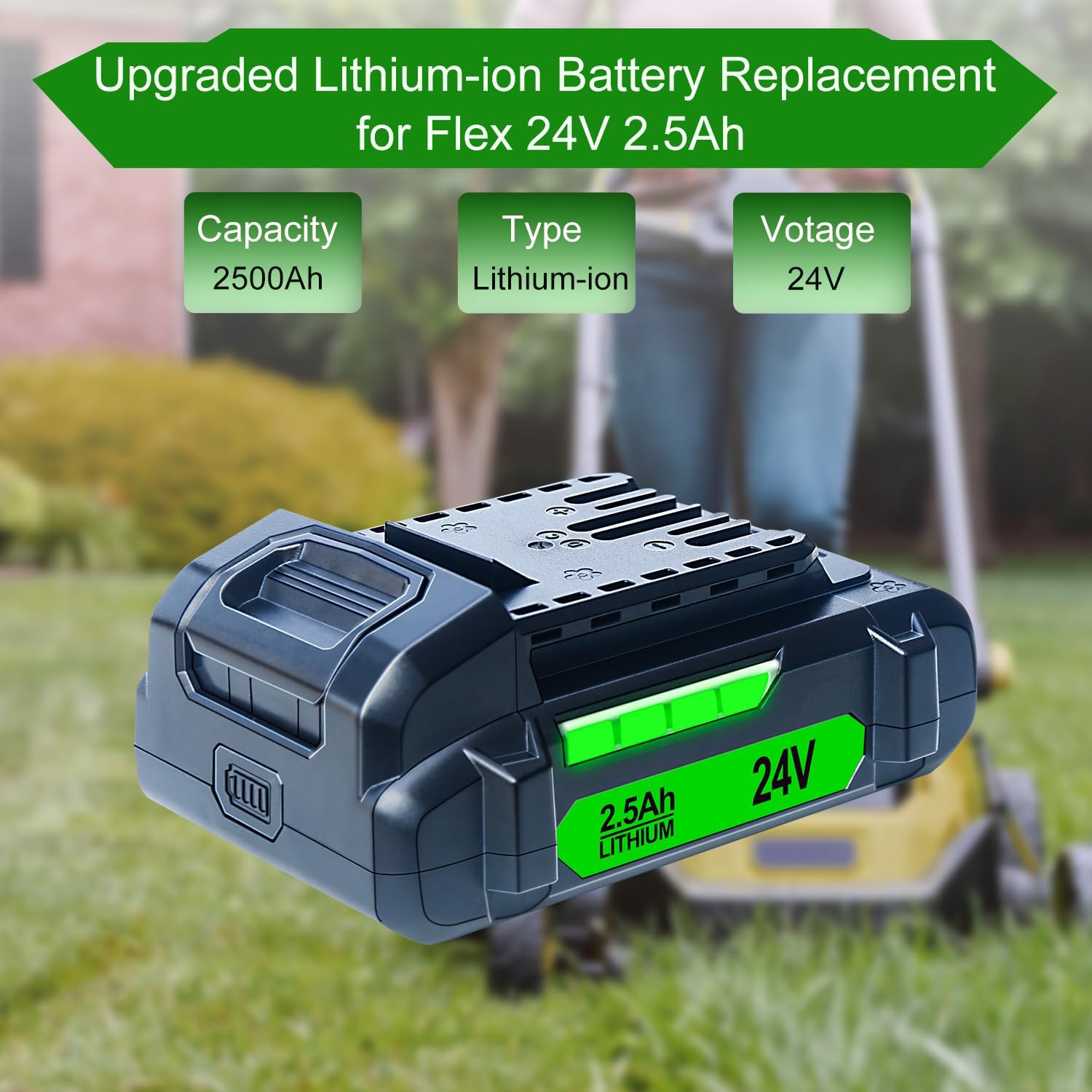

Image 3.1: The battery's LED indicator provides real-time feedback on the charge level.
Image 3.2: Visual representation of the battery life indicator lights.
4. Isẹ
The DTK 2.5Ah Lithium-Ion 24V battery provides consistent power for your Flex 24V tools. Its 2.5Ah capacity ensures a longer runtime, allowing for more efficient work.
- Ensure the battery is fully charged before starting any task to maximize performance.
- Monitor the battery's LED indicator during use to anticipate when a recharge is needed.
- Fun igbesi aye batiri to dara julọ, yago fun gbigbe batiri naa patapata ṣaaju gbigba agbara.
Image 4.1: The DTK battery is perfectly compatible with a wide range of Flex 24V tools.
Image 4.2: The DTK battery powers various outdoor tools for efficient operation.
Video 4.1: A 32-second video showcasing the DTK 2.5Ah Lithium-Ion 24V Battery, model FX0111-1, from various angles.
5. Itọju ati Ipamọ
Proper maintenance and storage will extend the life of your DTK battery.
- Ninu: Keep the battery terminals clean and free of debris. Use a dry cloth to wipe the battery exterior. Do not use liquids or solvents.
- Awọn aṣa gbigba agbara: This Lithium-Ion battery has no memory effect, meaning it can be charged or discharged as needed without capacity reduction. However, for long-term health, avoid leaving it fully discharged for extended periods.
- Ibi ipamọ: Store the battery in a cool, dry place, away from direct sunlight, moisture, and extreme temperatures. Ideally, store it at a partial charge (around 50%) if not used for an extended period.
- Iwọn otutu: Do not store or charge the battery in temperatures below 0°C (32°F) or above 40°C (104°F).
6. Laasigbotitusita
If you encounter issues with your DTK battery, refer to the following common solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Batiri ko ngba agbara | Ṣaja ko edidi ni; ṣaja ti ko tọ; batiri ju gbona/tutu; batiri ti bajẹ. | Check charger connection; try a different outlet/charger; allow battery to reach room temperature; inspect battery for damage. |
| Akoko asiko kukuru | Battery not fully charged; heavy tool usage; battery nearing end of life; extreme operating temperatures. | Ensure full charge; reduce load if possible; consider battery replacement if old; operate within recommended temperature range. |
| Battery not fitting tool/charger | Incorrect model; debris in slot. | Verify battery model FX0111-1 is compatible with your Flex 24V tool/charger; clear any debris from slots. |
| Batiri gbigbona | Overuse; faulty battery/charger. | Allow battery to cool down; discontinue use if overheating persists; contact support if issue continues. |
7. Awọn pato
| Sipesifikesonu | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | DTK |
| Nọmba awoṣe | FX0111-1 |
| Batiri Iru | Litiumu-Iwọn |
| Voltage | 24 Volts (DC) |
| Agbara | 2.5Ah (2500 Milliamp Awọn wakati) |
| Iwọn Nkan | 2.2 iwon |
| Package Mefa | 7.68 x 5.55 x 2.91 inches |
| Awọn Idaabobo Aabo | Over-charging, Over-discharging, Over-current, Short-circuit, Over-voltage, Over-heating |
| Ohun elo ọran | ABS + PC |
| Niyanju Lilo | Indoor/Outdoor power tools |
8. Atilẹyin ọja ati Support
Your DTK 2.5Ah Lithium-Ion 24V Battery comes with a commitment to quality and customer satisfaction.
- Atilẹyin ọja: This product includes a 12-month limited warranty from the date of purchase.
- Ẹri Owo-pada: A 30-day money-back guarantee is provided for your peace of mind.
- Iṣẹ onibara: For any questions, concerns, or support needs, please contact us through the "Your Orders" tab in your Amazon account. We aim to provide a satisfactory solution within 24 hours.
