Casio G-Shock G-LIDE GBX-100 Series Digital Watch User Manual

1. Ọja Ipariview

The Casio G-Shock G-LIDE GBX-100 Series is a robust digital watch designed for active lifestyles, particularly surfing and outdoor activities. It combines G-SHOCK's renowned toughness with advanced digital functionality, featuring a high-definition MIP LCD for clear visibility and smartphone connectivity for enhanced data management.

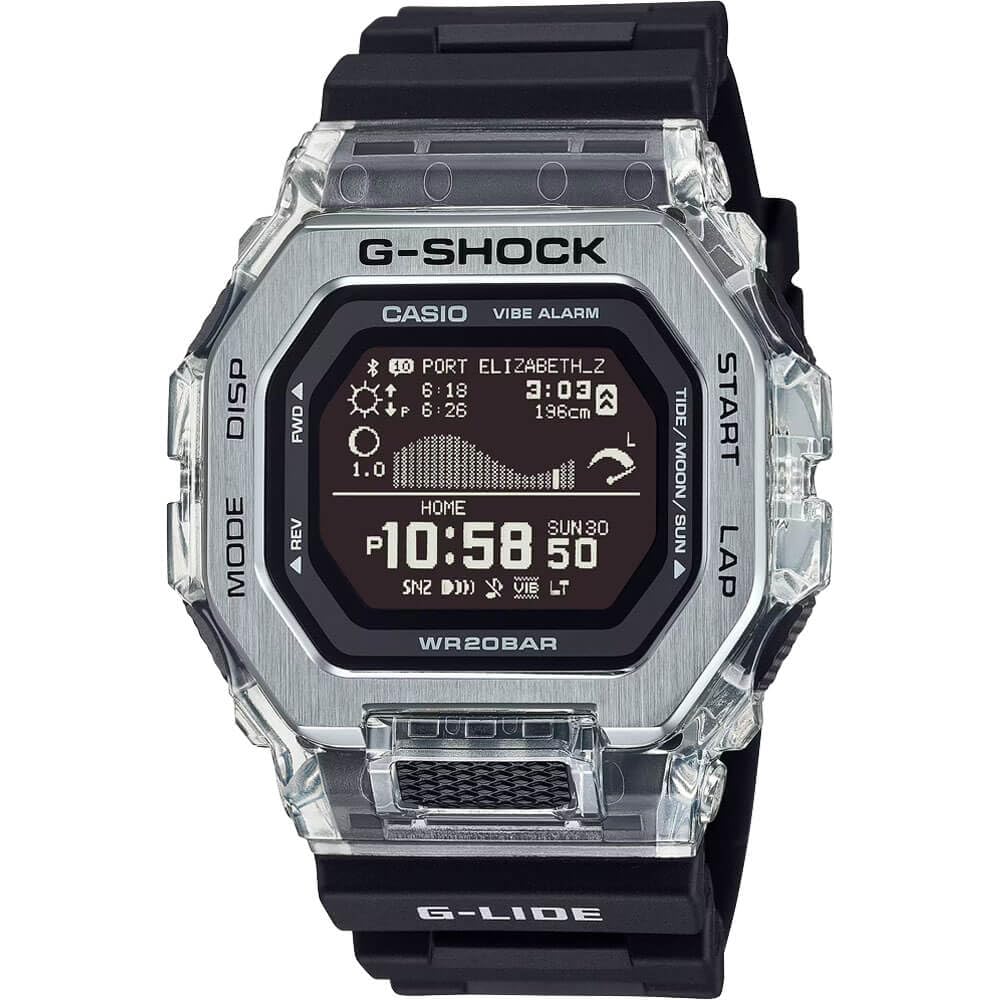

olusin 1: Iwaju view of the Casio G-Shock G-LIDE GBX-100 Series Digital Watch.

2. Eto

2.1 Aago Ibẹrẹ

The GBX-100 watch can automatically adjust its time by linking with a smartphone via Bluetooth. Download the dedicated G-SHOCK Connected app to your smartphone to utilize this feature. Follow the in-app instructions for pairing and initial setup.

2.2 Band Atunṣe

The watch features a bio-based urethane band designed for comfort and water/sweat runoff. If the band is too long, it can be carefully trimmed to achieve a better fit. Ensure precise measurement before cutting to avoid over-shortening.

Figure 2: The watch worn on a wrist, showcasing its fit and design.

3. Awọn ilana Iṣiṣẹ

3.1 Ifihan ati kika

The watch features a high-definition MIP LCD (Memory-in-Pixel Liquid Crystal Display) which offers excellent visibility, even in bright sunlight. The display provides clear readouts of time, date, and various data points.

olusin 3: Isunmọ view of the watch's MIP LCD display, showing detailed information.

3.2 bọtini Awọn iṣẹ

• Bọtini MODE: Cycles through different watch modes (Timekeeping, Tide/Moon Data, Training Function, Stopwatch, Timer, Alarm).
• Bọtini DISP: Changes the display content within certain modes.
• FWD/REV Buttons: Used for navigating menus and adjusting settings (forward/reverse).
• START/LAP Buttons: Initiates or stops functions like the stopwatch or training timer, and records lap times.

3.3 Key Awọn ẹya ara ẹrọ

• Tide Graph & Moon Age: Displays tide patterns, high/low tide times and levels, and moon age for approximately 3,300 major surf spots worldwide when linked to the app.
• Awọn akoko Ilaorun/Ilaorun: Provides local sunrise and sunset times.
• Iṣẹ ikẹkọ: Utilizes an accelerometer to display and record distance, speed, pace, auto/manual lap times, Auto Pause, and target alerts (time, calories burned). Training display customization is available via the app.
• Asopọmọra Bluetooth: Enables automatic time adjustment and data transfer to the G-SHOCK Connected app for detailed analysis of training logs and tide data.
• Aago Meji: Allows tracking of a second time zone.
• Aago iṣẹju-aaya & Aago: Standard stopwatch and countdown timer functions are included.

4. Itọju

4.1 Omi Resistance

The watch is rated for 200-meter water resistance, making it suitable for swimming, snorkeling, and diving (excluding saturation diving). Ensure all buttons are not operated while submerged to maintain water resistance.

4.2 mọnamọna Resistance

As a G-Shock model, the GBX-100 is built with a shock-resistant structure to withstand impacts and vibrations from daily use and extreme sports.

4.3 batiri Life

The watch operates on a standard battery with an average life of approximately 2 years. Battery replacement should be performed by a qualified technician to ensure proper sealing and water resistance.

4.4 Ninu

Regularly clean the watch case and band with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by rinsing with fresh water and thorough drying. Avoid using harsh chemicals or solvents.

5. Laasigbotitusita

5.1 Awọn iṣoro Amuṣiṣẹpọ Akoko

If the watch fails to synchronize time with your smartphone, ensure Bluetooth is enabled on both devices and the G-SHOCK Connected app is running. Check the app for any pending updates or connection errors. Move the watch closer to the smartphone to improve signal strength.

5.2 Display Readability

While the MIP LCD offers excellent readability, extreme angles or very low light conditions might affect clarity. Utilize the built-in backlight function by pressing the appropriate button (refer to the detailed manual for button location) for improved visibility in dark environments.

5.3 Batiri Sisan

Frequent use of Bluetooth connectivity, backlight, or vibration alarms can reduce battery life. If you experience unusually fast battery drain, consider reducing the frequency of these features or disabling Bluetooth when not needed.

6. Awọn pato

7. Atilẹyin ọja ati Support

7.1 Olupese ká atilẹyin ọja

This Casio G-Shock watch comes with a 1-Year Manufacturer's Warranty. Please refer to the warranty card included with your product for full terms and conditions.

7.2 Afikun Resources

For detailed operational guides, advanced feature tutorials, and frequently asked questions, please visit the official Casio G-Shock support website or consult the comprehensive digital manual available through the G-SHOCK Connected app.
