SUNBA P625 V1 5MP Outdoor POE+ PTZ Surveillance Camera Instruction Manual

1. Ìfihàn àti Àwọn Àmì Pàtàkì

This manual provides detailed instructions for the installation, operation, and maintenance of your SUNBA P625 V1 5MP Outdoor POE+ PTZ Surveillance Camera. This camera is part of the Performance Series, offering advanced smart features and a renovated user interface for enhanced surveillance experiences.

• 5MP Resolution & 60FPS: Delivers clear 5-megapixel video at 60 frames per second.
• 25X Sisun Opitika: Capture distant details with powerful optical zoom capabilities.
• Titele Aifọwọyi: Automatically follows moving objects within the designated view.
• 1000ft Color Night Vision: Provides clear, colored images even in low-light conditions up to 1000 feet.
• Ohun 2-Ọna: Gbohungbohun ti a ṣe sinu rẹ ati agbọrọsọ fun ibaraẹnisọrọ ọna meji.
• IP66 Oju ojo: Designed for outdoor use, resistant to extreme weather conditions.
• Ibi ipamọ kaadi TF: Supports up to 256GB TF card for local recording.
• Web Access & ONVIF: View and configure via web browser (Firefox/Chrome) and compatible with mainstream 3rd party NVR/Client software.

2. Ọja Ipariview ati irinše

Figure 2.1: Camera Components. This image highlights the key external parts of the SUNBA P625 V1 camera, including the wall bracket, speaker, long-range infrared LED (high beam), low-range infrared LED (low beam), light sensor, built-in mic, DC12V female port, and RJ45 network port.

The SUNBA P625 V1 camera features a robust design suitable for outdoor surveillance. Key components include:

• Odi Biraketi: Fun fifi sori ẹrọ ti o ni aabo.
• Speaker & Built-in Mic: Fun ibaraẹnisọrọ ohun afetigbọ ọna meji.
• Long Range & Low Range Infrared LEDs: Pese awọn agbara lati riran ni alẹ.
• Sensọ Imọlẹ: Automatically adjusts camera settings based on ambient light.
• DC12V Female Port: For power input (if not using PoE+).
• Ibudo Nẹtiwọọki RJ45: For Ethernet connection and Power over Ethernet (PoE+).

Àwòrán 2.2: Àwòrán IP66 tí kò ní ojú ọjọ́. The camera is built with an industrial-level waterproof shell, TVS 4000V thunder-proof protection, and operates in temperatures from -4°F to 140°F.

3. Eto ati fifi sori

3.1 Agbara ati Asopọ nẹtiwọki

Figure 3.1: Typical Installation Diagram. This diagram illustrates how the camera can be integrated into a home network setup using a PoE+ adapter and router.

The SUNBA P625 V1 camera supports Power over Ethernet Plus (PoE+). This means both power and data can be transmitted over a single Ethernet cable, simplifying installation.

• PoE+ Connection: Connect an Ethernet cable from a PoE+ switch or PoE+ injector to the camera's RJ45 network port. Ensure your PoE+ source provides sufficient power (at least 25W).
• Standard Power (Optional): If PoE+ is not available, connect a 12V DC power adapter (not included) to the DC12V female port and an Ethernet cable to the RJ45 port for data.

3.2 Iṣeto akọkọ (Web Wiwọle)

The camera can be viewed and configured via a web browser without requiring plugins (Firefox/Chrome on Mac & Windows).

1. Ensure the camera is connected to your network.
2. Ṣii a web browser (Firefox or Chrome) and enter the camera's IP address in the address bar.
3. Log in using the default credentials (refer to your quick start guide for default username/password).
4. Navigate to the 'Setup' section to configure various camera settings.

4. Ṣiṣẹ kamẹra

4.1 Pan, Pulọọgi, ati Sun (PTZ) Iṣakoso

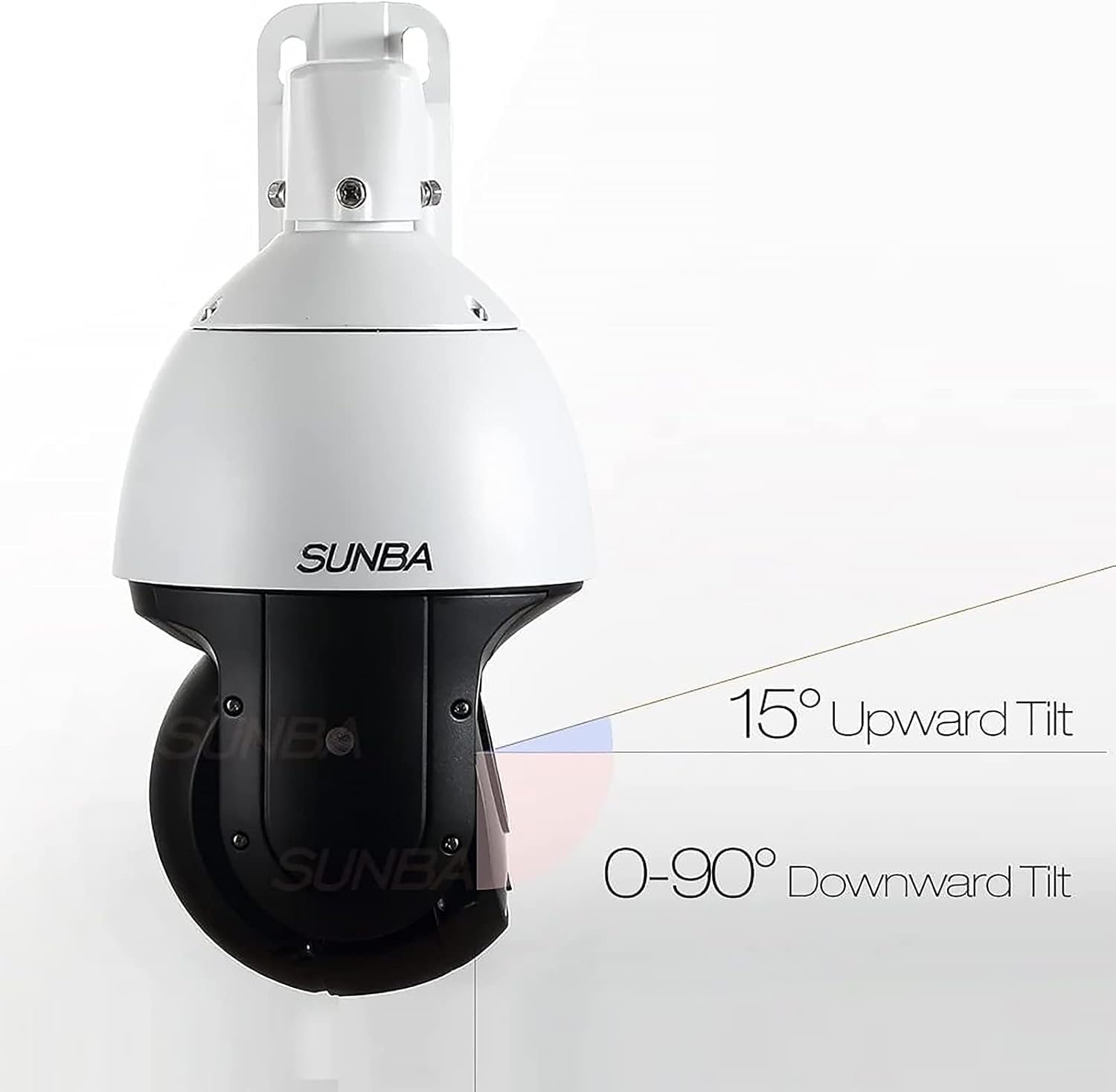

Figure 4.1: PTZ Movement Range. The camera supports 360° horizontal rotation, 15° upward tilt, and 0-90° downward tilt.

The camera offers extensive pan, tilt, and zoom capabilities:

• Akara: 360° continuous horizontal rotation.
• Tẹ: 15° upward to 90° downward vertical movement.
• Sun-un: 25X optical zoom to magnify distant objects.

4.2 Auto Tracking Features

The P625 V1 camera supports advanced auto-tracking modes:

• Normal Tracking Mode: The camera tracks objects within the full pre-designated view.
• Smart Tracking Mode: Allows setting different rules (e.g., Cross Line, Enter Area, Leave Area, Intrusion) to trigger tracking.

4.3 Meji-Ona Audio

Figure 4.3: Two-Way Audio in Use. The camera's built-in microphone and speaker allow for real-time two-way communication with individuals near the camera.

The integrated microphone and speaker enable two-way audio communication. This feature allows you to listen to the environment and speak through the camera, which is useful for deterrence or direct interaction.

4.4 Night Vision

Figure 4.4: Color Night Vision. The camera provides 1000ft color night vision, ensuring clear and detailed images even in very low light conditions.

The camera is equipped with advanced night vision technology:

• Oju Alẹ Awọ: Utilizes specialized sensors and lighting to capture colored images in low-light environments up to 1000 feet.
• Infurarẹẹdi (IR) Iran Alẹ: For complete darkness, the camera switches to IR mode for clear black and white footage.

5. Itọju

Regular maintenance ensures optimal performance and longevity of your SUNBA P625 V1 camera.

• Ninu: Lokọọkan nu awọn lẹnsi kamẹra ati ile pẹlu asọ, damp asọ. Yago fun abrasive ose.
• Awọn imudojuiwọn famuwia: Ṣayẹwo awọn olupese ká website for firmware updates to ensure your camera has the latest features and security patches.
• Isakoso Ibi ipamọ: Nigbagbogbo tunview and manage recordings on the TF card to prevent it from filling up. Back up important footage bi o ti nilo.

6. Laasigbotitusita

6.1 Asopọmọra Oran

If you experience connectivity problems:

• PoE+ Power: Ensure your PoE+ switch or injector provides at least 25W of power. Standard PoE (15.4W) is insufficient for this camera.
• Ṣayẹwo USB: Verify that the Ethernet cable is securely connected at both ends and is not damaged.
• Iṣeto Nẹtiwọọki: Confirm the camera's IP address and network settings are correct and compatible with your network.

6.2 Ibamu

Figure 6.1: Cross-System Compatibility. The camera is compatible with various 3rd party NVR/Client software and supports ONVIF.

The SUNBA P625 V1 camera is designed for broad compatibility:

• Atilẹyin ONVIF: The camera supports ONVIF, allowing integration with a wide range of network video recorders (NVRs) and client software from different manufacturers.
• 3rd Party Software: It works with popular 3rd party NVR/Client software such as Blue Iris, Security Spy, Milestone, Geovision, and QNAP.

7. Awọn pato

8. Atilẹyin ọja ati Support

Your SUNBA P625 V1 camera comes with a 2-Year US warranty, aridaju alafia ti okan nipa didara ọja ati iṣẹ.

For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official SUNBA webojula.
