Giantex Folding Sewing Table with Charging Station User Manual

1. Alaye Aabo

Jọwọ ka ati loye gbogbo awọn ilana aabo ṣaaju ki o to pejọ tabi lilo ọja yii. Ikuna lati tẹle awọn ilana wọnyi le ja si ipalara tabi ibajẹ ọja naa.

• Always follow the assembly instructions provided in the user manual.
• Do not exceed the weight capacity of the tabletop and drop leaf (45 lbs each) and shelf (22 lbs).
• Secure the table to the wall or other stable furniture when using it as a sewing table or craft station to prevent tipping.
• Keep fingers and loose clothing away from moving parts and pinch points.
• Unplug the power cord when not in use or when moving the table.
• Rii daju pe gbogbo awọn isopọ wa ni aabo ṣaaju lilo.

2. Ọja Ipariview

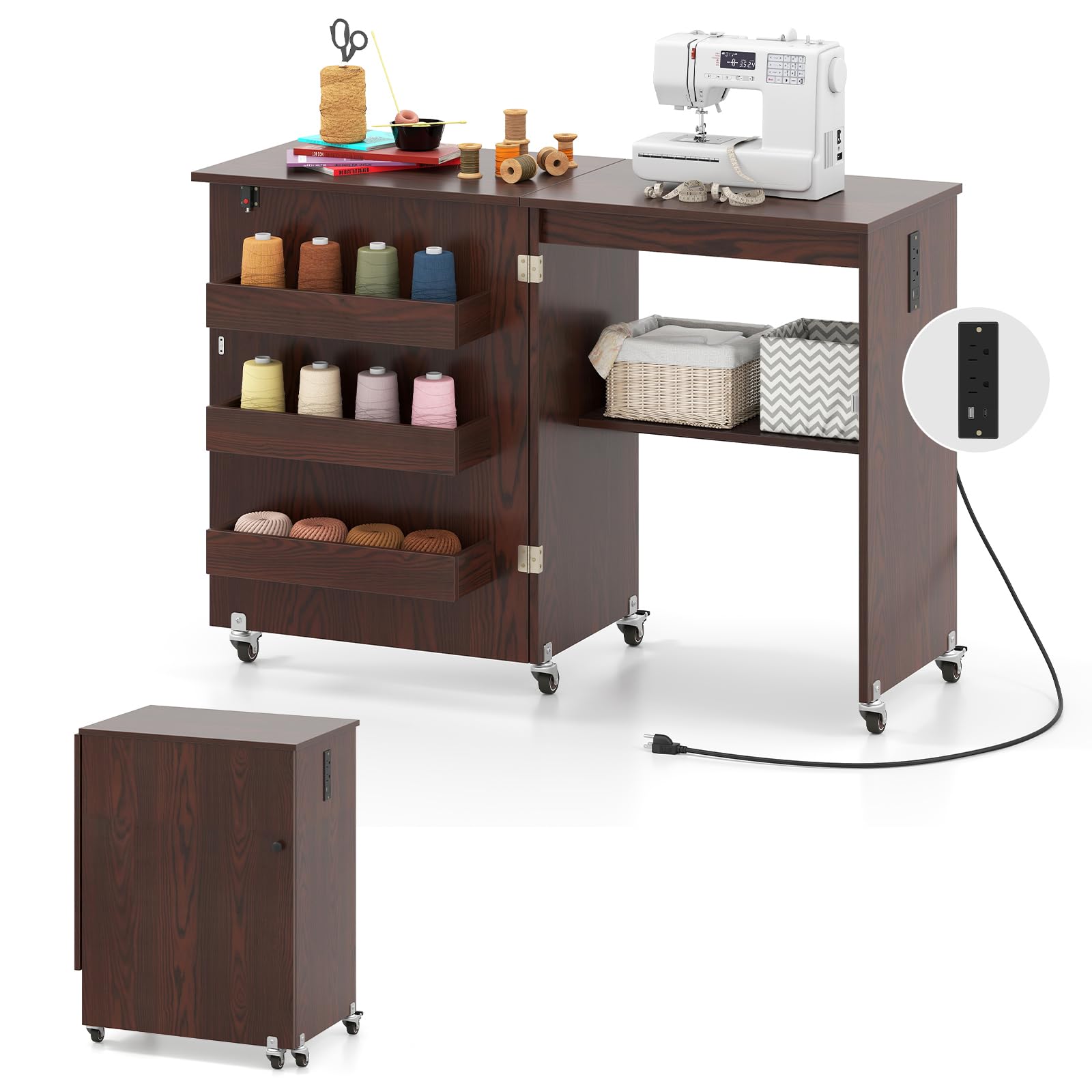

The Giantex Folding Sewing Table is designed to provide a versatile and organized workspace for sewing, crafting, or general desk use. It features a foldable design for space-saving, integrated storage, and a built-in charging station.

3. Awọn iwọn

Understanding the dimensions of your sewing table is crucial for proper placement and use. The table offers both expanded and folded dimensions to suit various space requirements.

• Overall Dimensions (Expanded): 45.5"L x 16"W x 31"H
• Awọn iwọn ti a ṣe pọ: 23"L x 16"W x 31"H
• Iwon Atẹ: 14.5"W x 4.5"D x 2"H
• Iwon selifu: 21"L x 8.5"W x 16"H

4. Apejọ Awọn ilana

Assembly is required for this product. Please refer to the separate assembly guide included in your package for detailed, step-by-step instructions and a list of all hardware components. Ensure all parts are present before beginning assembly.

1. Yọọ gbogbo awọn paati ati rii daju lodi si atokọ awọn ẹya ninu itọsọna apejọ.
2. Da gbogbo ohun elo mọ ki o si ya wọn sọtọ.
3. Follow the numbered steps in the assembly guide carefully.
4. Use the recommended tools (e.g., screwdriver) for assembly.
5. Ma ṣe tẹ awọn skru pọ ju lati yago fun ibajẹ igi ti a ṣe.
6. Rí i dájú pé gbogbo àwọn ìsopọ̀ náà dúró ṣinṣin kí wọ́n tó lò ó.

5. Awọn ilana Iṣiṣẹ

5.1 Títẹ̀ àti Ṣíṣí Tábìlì náà

The table is designed for easy transformation between an expanded workspace and a compact cabinet.

• Lati Ṣafihan: Gently pull the drop leaf tabletop outwards until it is fully extended and rests securely on its support. Ensure the spring lock engages to hold it in place.
• Lati agbo: Disengage the spring lock and carefully lower the drop leaf tabletop. Secure it against the main cabinet using the magnetic catch.

5.2 Lilo Ibudo Gbigba agbara

The built-in charging station provides convenient power access for your devices.

• Locate the power strip on the side panel of the table.
• Plug the table's power cord (4.8 ft) into a standard 125V/12A AC wall outlet.
• Use the 2 AC outlets for larger electronics.
• Use the 1 USB port (5V/2.4A) or 1 Type-C port (5V/2.4A) for charging compatible mobile devices.
• Always unplug the table from the wall outlet when not in use.

5.3 Ìrìn àti Ìdúróṣinṣin

The table is equipped with casters for easy movement and brakes for stability.

• The table features 5 universal caster wheels for smooth mobility.
• Three of the casters are lockable. To secure the table in place, press down on the locking lever of these three casters.
• To move the table, ensure all three lockable casters are unlocked by lifting their levers.
• Anti-collision pads are installed to prevent sudden tabletop drops when folding.

5.4 Ibi Awọn ẹya ara ẹrọ

The table offers integrated storage solutions to keep your workspace organized.

• 3 Side Storage Trays: Ideal for threads, scissors, and small tools.
• Large Open Shelf: Suitable for larger items like storage boxes, fabric, or a mini iron.

6. Itọju

Proper care and maintenance will extend the life of your Giantex Folding Sewing Table.

• Ninu: Mu awọn oju ilẹ pẹlu asọ, damp asọ. Yẹra fun awọn kẹmika lile tabi awọn olutọpa abrasive ti o le ba ipari jẹ.
• Idasonu: Nu awọn itunnu kuro lẹsẹkẹsẹ lati yago fun idoti tabi ibajẹ si igi ti a ṣe.
• Hardware: Lorekore ṣayẹwo gbogbo awọn skru ati awọn fasteners lati rii daju pe wọn ṣinṣin. Retighten ti o ba wulo.
• Awọn Casters: Keep caster wheels free of debris (threads, dust, hair) to ensure smooth movement.
• Okun Agbara: Ensure the power strip is kept dry and free from dust. Do not attempt to disassemble or repair the power strip.

7. Laasigbotitusita

If you encounter issues with your sewing table, refer to the following common troubleshooting tips:

• Tabili Wobbles: Ensure all assembly screws are tightened. Check that the table is on a level surface and that the lockable casters are engaged when stationary.
• Iṣoro kika/Ṣiṣafihan: Check for any obstructions. Ensure the spring lock mechanism is functioning correctly and not jammed.
• Ibùdó Gbigba agbara ko ṣiṣẹ: Verify the table's power cord is securely plugged into a functional wall outlet. Check if the wall outlet itself is receiving power. Ensure devices are properly connected to the AC, USB, or Type-C ports.
• Awọn Casters Ko Yiyi Lara: Inspect wheels for tangled threads, hair, or debris. Clean as necessary. Ensure casters are unlocked for movement.

Ti awọn iṣoro ba wa, jọwọ kan si atilẹyin alabara fun iranlọwọ.

8. Awọn pato

9. atilẹyin ọja Information

This product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and claims process, please refer to the warranty card included in your product packaging or contact Giantex customer support directly. Keep your proof of purchase for warranty validation.

10. Onibara Support

For any questions, concerns, or assistance with your Giantex Folding Sewing Table, please contact Giantex customer support through the following channels:

• Webojula: Ṣabẹwo si Giantex osise naa webojú òpó wẹ́ẹ̀bù fún àwọn ìbéèrè tó ń fa ìbéèrè, àwọn ohun èlò ìrànlọ́wọ́, àti àwọn fọ́ọ̀mù ìbánisọ̀rọ̀.
• Imeeli: Refer to your product packaging or the Giantex webojula fun awọn onibara iṣẹ adirẹsi imeeli.
• Foonu: Refer to your product packaging or the Giantex webojula fun onibara iṣẹ awọn nọmba foonu.

When contacting support, please have your model number (GX73607US-WH) and proof of purchase readily available.
