ElecMoga 5400Mbps WiFi 6 USB Adapter Instruction Manual

1. Ọja Ipariview

This manual provides instructions for the installation, operation, and maintenance of your ElecMoga 5400Mbps WiFi 6 USB Adapter, Model M-30V-AX5400. This device is designed to enhance your computer's wireless connectivity, offering high-speed tri-band WiFi 6 capabilities for seamless internet access on compatible Windows 10/11 systems.

Image 1.1: The ElecMoga WiFi 6 USB Adapter, highlighting its 5400Mbps speed capability and USB 3.0 interface. The image also illustrates the speed difference between WiFi 6 (2402Mbps) and WiFi 5 (867Mbps) on the 5GHz/6GHz band.

2. Key Awọn ẹya ara ẹrọ

• WiFi 6 Tri-Band Technology: Supports speeds up to 5400 Mbps across 2.4 GHz, 5 GHz, and 6 GHz bands. The 2.4 GHz band is suitable for long-distance transmission, while 5 GHz and 6 GHz bands are ideal for high-speed, short-distance data transfer.
• Wide Wireless Protocol Compatibility: Compatible with IEEE 802.11ax, 802.11ac, 802.11a/n/b/g wireless protocols, ensuring stable connections with various router types.
• Gbigba ifihan agbara ti o ni ilọsiwaju: Equipped with a 2 dBi gain antenna to improve signal coverage and strength. The antenna's angle can be adjusted for optimal signal reception.
• Stable USB 3.0 Transmission: Utilizes a USB 3.0 interface for faster data transfer rates and reduced interference. Features advanced WPA2 encryption for secure connections.
• Pulọọgi ati Ṣiṣẹ fifi sori ẹrọ: Optimized for Windows 10 and Windows 11 systems, allowing for driver-free installation.

Image 2.1: A visual summary of the adapter's features, including 5400Mbps speed, Wi-Fi 6, USB 3.0, 2.4GHz and 5GHz/6GHz bands, Wi-Fi Access Point and Reception modes, and a 2dBi antenna.

3. Eto ati fifi sori

The ElecMoga WiFi 6 USB Adapter is designed for easy, driver-free installation on Windows 10 and Windows 11 operating systems. Follow these steps to set up your adapter:

1. Fi Adapter sii: Plug the USB 3.0 end of the WiFi adapter into an available USB 3.0 port on your desktop or laptop computer. Ensure it is securely connected.
2. Fifi sori ẹrọ Awakọ Aifọwọyi: For Windows 10/11 users, the system should automatically detect the device and install the necessary drivers. No manual driver download or CD installation is typically required.
3. Jẹrisi fifi sori ẹrọ: Once installed, the adapter will appear in your computer's network settings. You can then proceed to connect to a wireless network.

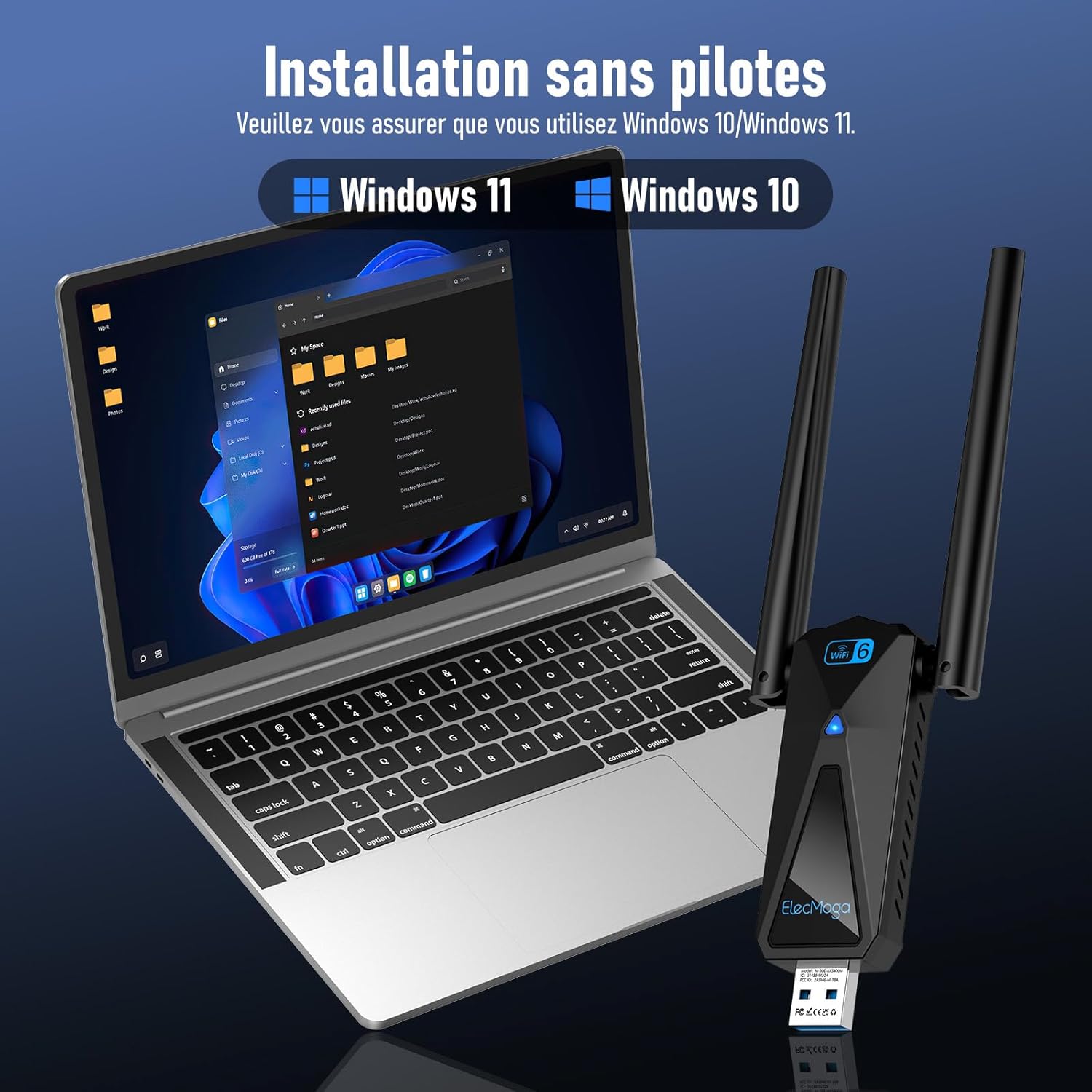

Image 3.1: The adapter connected to a laptop, illustrating the driver-free installation process for Windows 10 and Windows 11.

4. Awọn ilana Iṣiṣẹ

After successful installation, you can use your ElecMoga WiFi 6 USB Adapter in two primary modes: Wi-Fi Reception and Wi-Fi Access Point.

4.1. Wi-Fi Reception Mode

This is the standard mode for connecting your computer to an existing wireless network.

1. Ensure the adapter is plugged into your computer.
2. Open your computer's network settings (e.g., click the Wi-Fi icon in the taskbar).
3. Yan nẹtiwọki Wi-Fi ti o fẹ lati atokọ ti awọn nẹtiwọki ti o wa.
4. Tẹ ọrọ igbaniwọle nẹtiwọọki sii ti o ba beere ki o tẹ 'Sopọ'.
5. Adjust the adapter's antennas to optimize signal strength. The antennas can be rotated 90 degrees and 180 degrees to find the best position.

4.2. Wi-Fi Access Point Mode

This mode allows your computer to create a Wi-Fi hotspot, sharing its wired internet connection with other wireless devices.

1. Ensure your computer has a stable wired internet connection.
2. Plug the WiFi adapter into your computer.
3. Navigate to your computer's network settings and locate the 'Mobile hotspot' or 'Access Point' feature.
4. Ṣètò orúkọ nẹ́tíwọ́ọ̀kì (SSID) àti ọ̀rọ̀ìpamọ́ fún hotspot tuntun rẹ.
5. Enable the mobile hotspot feature. Other devices can now connect to your computer's shared internet connection.

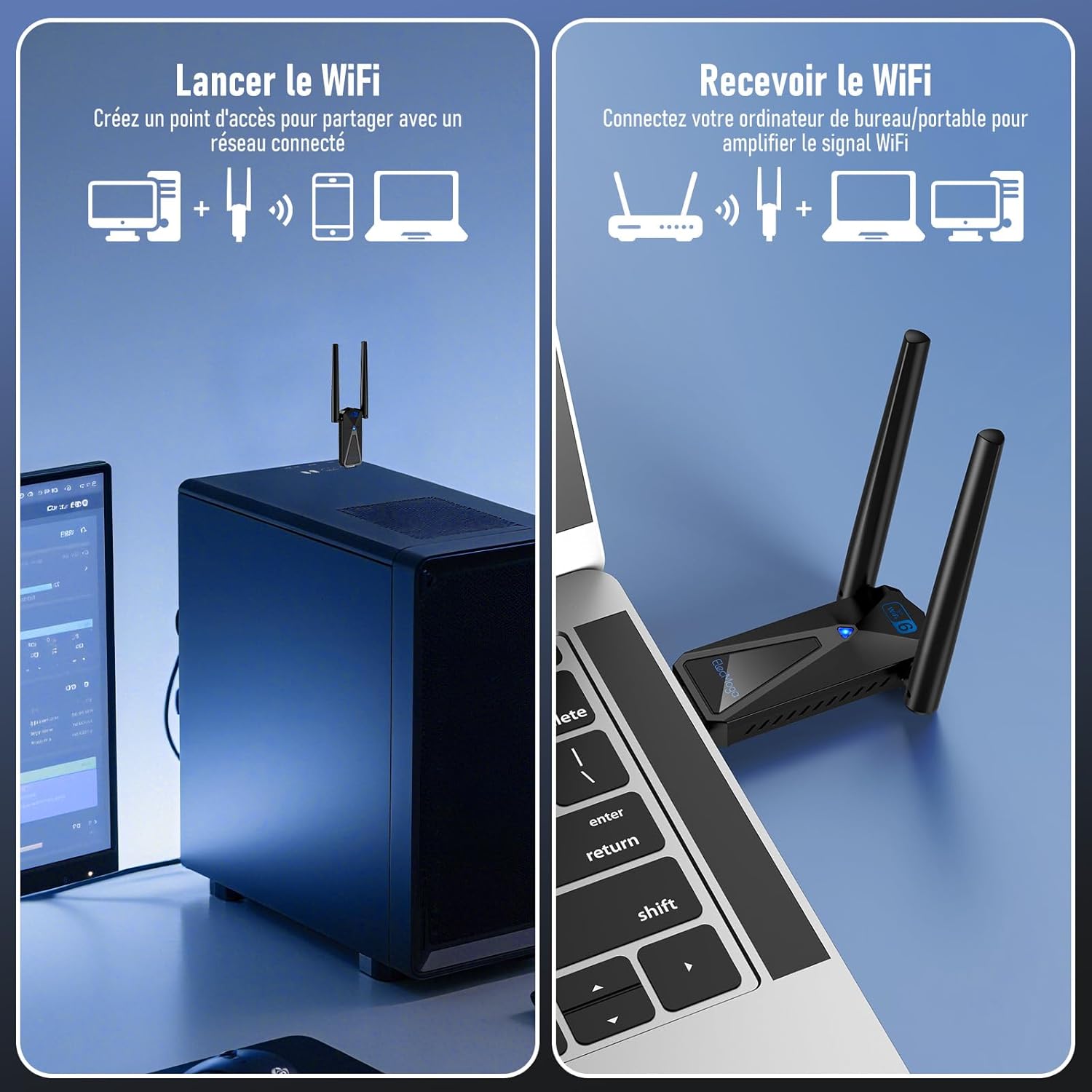

Image 4.1: The adapter demonstrating its dual functionality: creating a Wi-Fi access point to share a connected network and receiving Wi-Fi to amplify the signal for a desktop or laptop.

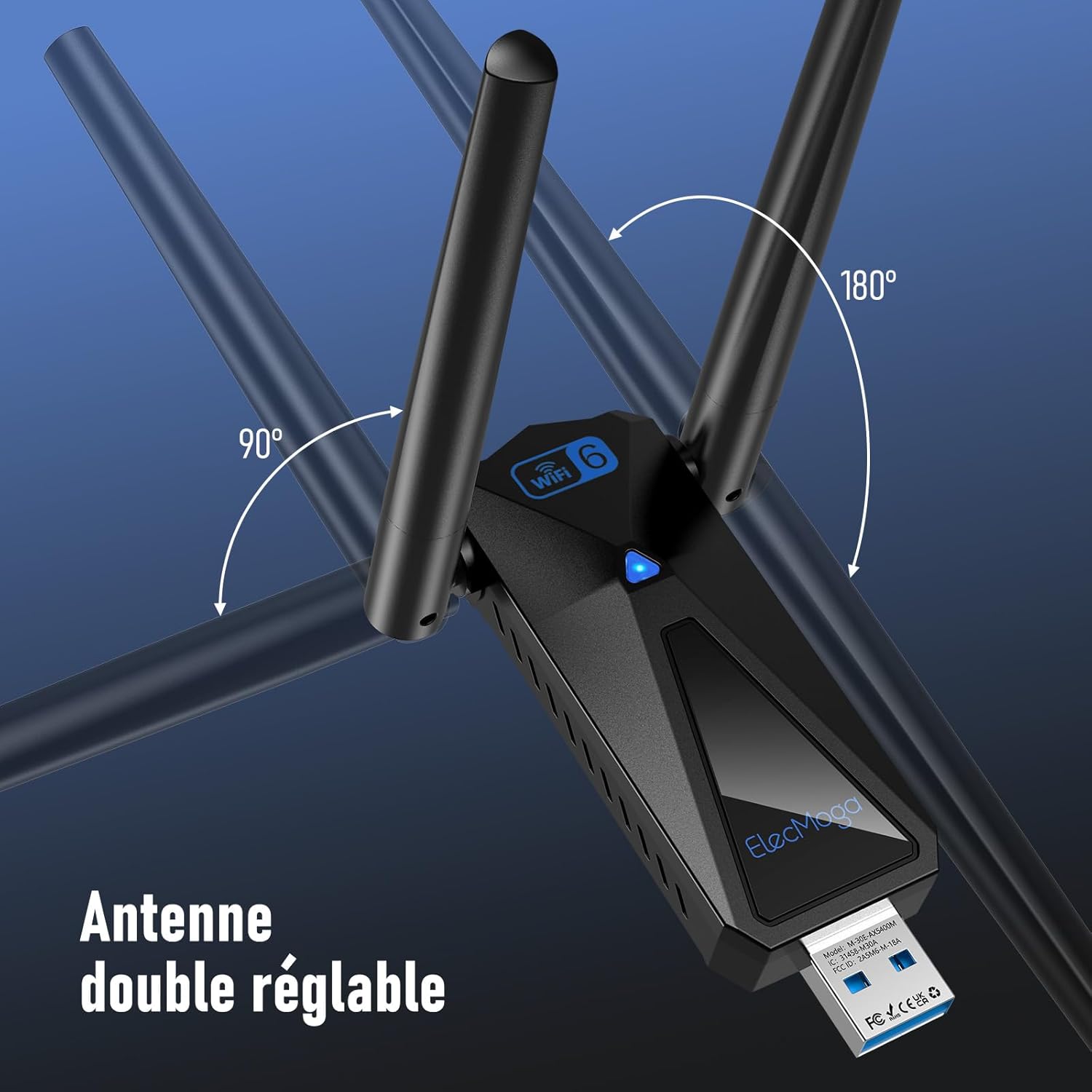

Image 4.2: The adapter's adjustable dual antennas, illustrating their ability to rotate 90 and 180 degrees for optimal signal positioning.

5. Itọju

To ensure the longevity and optimal performance of your ElecMoga WiFi 6 USB Adapter, follow these maintenance guidelines:

• Jeki mimọ: Nigbagbogbo mu ese ohun ti nmu badọgba pẹlu asọ, asọ ti o gbẹ lati yọ eruku ati idoti kuro. Yago fun lilo olomi ose.
• Mimu to tọ: Avoid dropping or subjecting the adapter to strong impacts. Handle the antennas gently when adjusting their position.
• Ibi ipamọ: Nigbati o ko ba wa ni lilo fun awọn akoko ti o gbooro sii, tọju ohun ti nmu badọgba ni itura, aye gbigbẹ kuro lati orun taara ati awọn iwọn otutu to gaju.
• Itọju ibudo USB: Ensure the USB port on your computer is clean and free of obstructions before inserting the adapter.

6. Laasigbotitusita

If you encounter issues with your ElecMoga WiFi 6 USB Adapter, refer to the following troubleshooting tips:

• Ko si Wi-Fi Asopọmọra:
  • Ensure the adapter is firmly plugged into a functioning USB 3.0 port.
  • Check if Wi-Fi is enabled in your computer's settings.
  • Restart your computer and your Wi-Fi router.
  • Verify that the correct Wi-Fi network is selected and the password is entered accurately.
• Iyara Asopọmọra:
  • Adjust the adapter's antennas to find an optimal signal position.
  • Ensure your computer is within a reasonable range of your Wi-Fi router.
  • Ṣàyẹ̀wò bóyá àwọn ẹ̀rọ itanna míràn lè dí ọ lọ́wọ́.
  • Confirm that your router supports Wi-Fi 6 for maximum performance.
  • Ensure your computer's USB port is USB 3.0, as USB 2.0 ports will limit speed.
• Adapter Ko Ti idanimọ:
  • Gbìyànjú láti so ohun tí a fi ń ṣe àgbékalẹ̀ náà mọ́ ibudo USB mìíràn.
  • If using Windows 10/11, ensure your operating system is up to date.
  • Check Device Manager for any unrecognized devices or driver issues.

If problems persist, please contact ElecMoga customer support for further assistance.

7. Awọn pato

8. Atilẹyin ọja ati Support

The ElecMoga WiFi 6 USB Adapter comes with a 2-year availability of spare parts in the EU. For any questions, technical support, or warranty claims, please contact ElecMoga customer service through the retailer where you purchased the product or visit the official ElecMoga webojula fun alaye olubasọrọ.
