Ọrọ Iṣaaju
Thank you for choosing the 1Mii R3 White Noise Sound Machine with Alarm Clock. This device is designed to enhance your sleep and relaxation experience with 30 soothing sounds, a smart app control feature, a dimmable 7-color night light, and a customizable alarm clock. This manual provides detailed instructions to help you set up, operate, and maintain your device for optimal performance.
Alaye Aabo
Please read and follow all safety instructions carefully before using this product. Failure to do so may result in injury or damage to the device.
- Always keep the power cord out of reach of children. This product is not a toy.
- To avoid the risk of electric shock, do not immerse the power cord in water or other liquids.
- Yọọ ẹrọ naa kuro ni orisun agbara ṣaaju ṣiṣe mimọ.
- Do not use the device with a damaged power cord or plug.
- Always follow the instructions in this user manual for safe operation.
Package Awọn akoonu
Upon unboxing your 1Mii R3 White Noise Sound Machine, please ensure all items are present:
- 1Mii R3 White Noise Sound Machine
- USB-C Power Cable
- Adaparọ Agbara AC
- Afowoyi Olumulo (iwe-ipamọ yii)
Image: The 1Mii R3 White Noise Sound Machine, its USB-C power cable, and AC adapter neatly packaged in its box, alongside the user manual.
Ọja Pariview: Controls and Display
The 1Mii R3 features intuitive controls located on the top panel and a clear digital display on the front. Familiarize yourself with these controls for easy operation.
Image: A detailed diagram of the 1Mii R3's top panel, highlighting the functions of each button including Timer, Alarm, Clock, Night Light, Volume Down, Previous Sound, Display Brightness, Play/Pause, Next Sound, Volume Up, and White Noise buttons.
Ṣeto
1. Agbara Lori
Connect the provided USB-C power cable to the device and the AC adapter, then plug the adapter into a power outlet. The device display will light up.
2. Ṣiṣeto Agogo naa
- Press the 'Clock' button once to enter clock setting mode.
- Lo awọn bọtini '+' ati '-' lati ṣatunṣe wakati naa.
- Press the 'Clock' button again to set the minutes.
- Lo awọn bọtini '+' ati '-' lati ṣatunṣe awọn iṣẹju.
- Press the 'Clock' button a third time to save and exit.
3. Connecting to the YeeMall App
For enhanced control and customization, connect your 1Mii R3 to the YeeMall app.
- Download the 'YeeMall' app from your smartphone's app store (available on Android and iOS).
- Ensure your R3 device is powered on.
- In the app, navigate to 'Bluetooth' > 'Add Device' > 'Health Series' > Select 'R3'.
- Wa fun and connect to 'R3 BLE'.
Image: A smartphone screen showing the YeeMall app interface, connected to the 1Mii R3 device, demonstrating app control over settings like night light color and display brightness.
Video: This video demonstrates how to connect the 1Mii R3 to the YeeMall app, showcasing the process of adding the device and accessing its various functions through the app interface.
Awọn ilana Iṣiṣẹ
1. White Noise Playback
The 1Mii R3 offers 30 soothing sounds to help you relax and sleep. You can control playback and volume directly on the device or via the app.
- Ṣiṣẹ/Daduro: Press the 'Play/Pause' button (music note icon) to start or stop the sound.
- Yi ohun pada: Use the 'Previous Track' (left arrow) or 'Next Track' (right arrow) buttons to cycle through the 30 available sounds.
- Ṣatunṣe Iwọn didun: Use the '+' and '-' buttons to increase or decrease the volume (30 levels available).
Image: A baby sleeping peacefully in a crib, with the 1Mii R3 sound machine on a nearby table, highlighting the product's 30 soothing sounds feature for sleep.
Video: This video demonstrates how to play and switch between the 30 soothing sounds, and how to adjust the volume on the 1Mii R3 device.
2. Ṣiṣeto Itaniji
The 1Mii R3 functions as an alarm clock with 8 ringtone options and a 10-minute snooze.
- Press the 'Alarm' button once to enter alarm settings.
- Use the '+' and '-' buttons to select which of the 5 available alarms you wish to set (01-05).
- Press 'Alarm' again to turn the selected alarm ON or OFF.
- Press 'Alarm' again to set the hour. Use '+' and '-' to adjust.
- Press 'Alarm' again to set the minutes. Use '+' and '-' to adjust.
- Press 'Alarm' again to select one of the 8 alarm ringtones. Use '+' and '-' to choose.
- Press 'Alarm' a final time to save and exit.
- To snooze, when the alarm rings, press either the 'Brightness' or 'Play/Pause' button for a 10-minute snooze.
- To turn the alarm function on/off without entering settings, long press the 'Alarm' button.
Image: A person stretching in bed, indicating a refreshed wake-up, with the 1Mii R3 alarm clock displaying 8:00 AM on a nightstand.
Video: This video illustrates the steps to set an alarm on the 1Mii R3, including selecting the alarm number, setting the time, choosing a ringtone, and using the snooze function.
3. Alẹ Light
The 1Mii R3 features a dimmable 7-color night light to create a cozy atmosphere.
- Yi Awọ: Short press the 'Night Light' button (sun icon) to cycle through the 7 light colors.
- Tan/Pa: Long press the 'Night Light' button for 2 seconds to turn the night light directly on or off.
- Dimming: Note that light dimming is app-controlled only.
Image: A person relaxing on a couch, with the 1Mii R3 sound machine on a coffee table, showcasing its 7-color night light feature.
Video: This video demonstrates how to cycle through the night light colors and turn the night light on or off using the dedicated button on the 1Mii R3.
4. Aago oorun
The R3 noise machine can automatically turn off after a set period, ensuring it won't disturb your restful sleep.
- Press the 'Timer' button (hourglass icon) to cycle through the available sleep timer options: 15min, 30min, 1h (60 min), 1.5h (90 min), 2h (120 min), or continuous play (OFF).

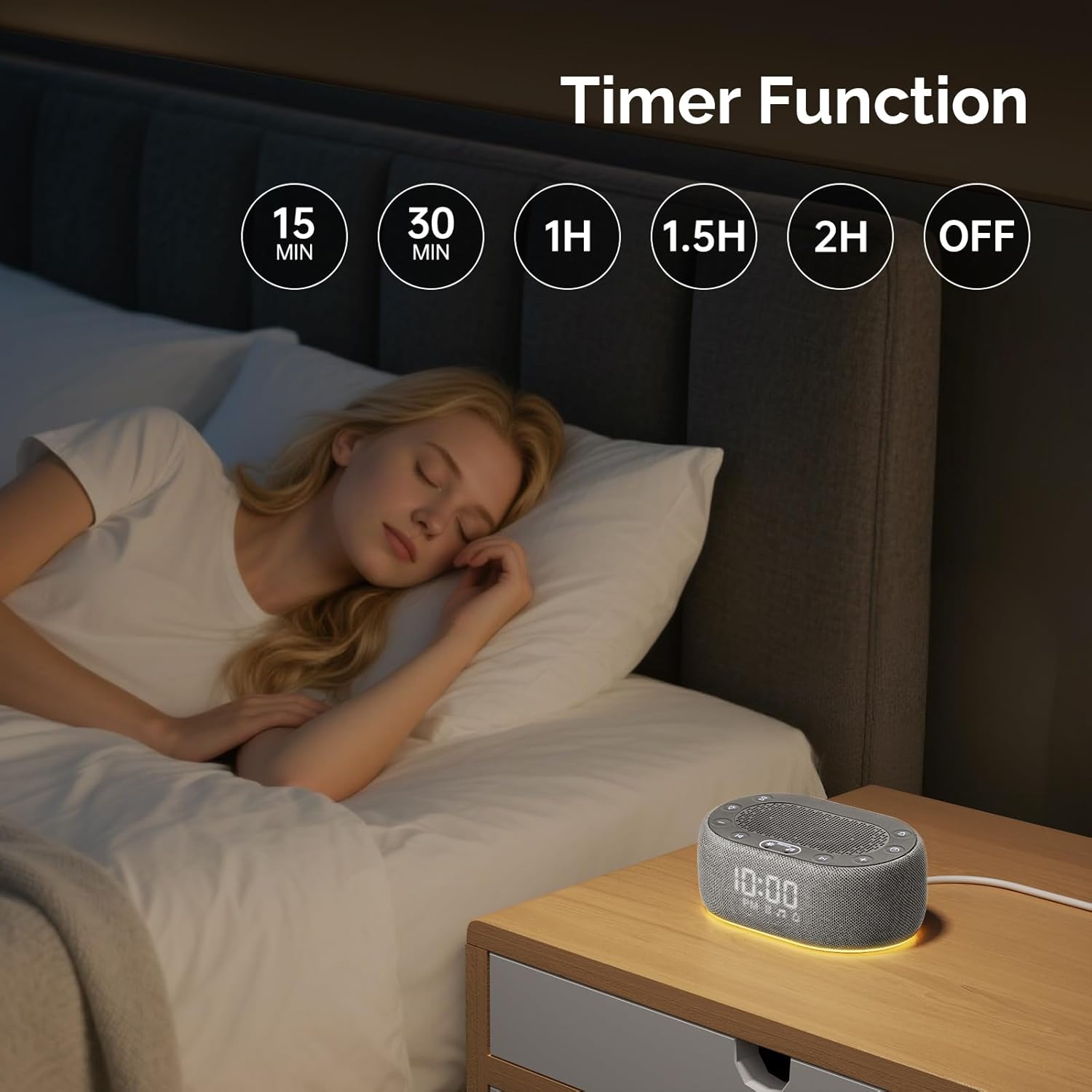

Image: A person sleeping soundly in bed, with the 1Mii R3 sound machine on a nightstand, highlighting the customizable sleep timer function.
Video: This video demonstrates how to set the sleep timer on the 1Mii R3, cycling through various duration options for automatic shut-off.
5. Ifihan Imọlẹ
Adjust the brightness of the time display to your preference.
- Short press the 'Brightness' button (sun icon with rays) to adjust brightness in a cycle (0%, 5%, 10%, 30%, 50%, 70%, 100%).
- Long press the 'Brightness' button for 2 seconds to turn off the screen directly.
Image: The 1Mii R3 on a nightstand, illustrating the different display brightness levels from 0% to 100% for optimal viewing ni orisirisi awọn ipo ina.
Video: This video demonstrates how to adjust the time display brightness on the 1Mii R3, cycling through various levels and showing how to turn the display off completely.
Itoju
To ensure the longevity and optimal performance of your 1Mii R3, follow these simple maintenance guidelines:
- Ninu: Gently wipe the device with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Ibi ipamọ: Tọju ẹrọ naa ni itura, aye gbigbẹ nigbati o ko ba wa ni lilo.
- Mimu: Yago fun sisọ ẹrọ naa silẹ tabi fifisilẹ si awọn ipa to lagbara.
Laasigbotitusita
If you encounter any issues with your 1Mii R3, please refer to the following common solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ẹrọ naa ko ṣiṣẹ | Power cable not connected or faulty outlet | Ensure power cable is securely connected and try a different power outlet. |
| Ko si ohun tabi iwọn didun kekere | Volume too low or sound paused | Increase volume using '+' button or unpause sound. |
| App asopọ oran | Bluetooth not enabled or device not discoverable | Ensure Bluetooth is enabled on your smartphone and the R3 is in pairing mode. Restart both devices if necessary. |
| Itaniji ko dun | Alarm not set or turned off | Verify alarm settings and ensure the alarm is activated. |
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Ọja Mefa | 5 x 3.24 x 1.94 inches |
| Iwọn Nkan | 10.42 iwon |
| Orisun agbara | Okun Itanna |
| Asopọmọra Iru | USB Iru-C |
| Àwọ̀ | Grẹy |
| Ohun elo Iru | Ṣiṣu |
| Ohun Aw | 30 Soothing Sounds (White Noise, Pink Noise, Brown Noise, Nature Sounds) |
| Awọn ipele iwọn didun | 30 Awọn ipele |
| Imọlẹ alẹ | 7-Color Dimmable (App Controlled Dimming) |
| Awọn ohun orin ipe itaniji | 8 Awọn aṣayan |
| Išẹ lẹẹkọọkan | 10 Iṣẹju |
| Awọn aṣayan Aago oorun | 15min, 30min, 1h, 1.5h, 2h, Continuous |
| Ifihan Imọlẹ | 7-Ipele Adijositabulu |
| Iranti Išė | Remembers Last Settings |
Atilẹyin ọja ati Support
The 1Mii R3 White Noise Sound Machine with Alarm Clock comes with a 1-odun olupese atilẹyin ọja.
For technical support, warranty claims, or any questions regarding your product, please contact 1Mii customer service:
- Imeeli: support@1mii.com
- Webojula: www.1mii.com
