1. Ifihan
This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMCOM 180cm TV Unit. Please read this manual thoroughly before assembly and use to ensure proper function and safety. This TV unit is designed to accommodate televisions up to 82 inches and features four pressure-opening doors for storage.
Image: The HOMCOM 180cm TV Unit, featuring a natural wood effect finish and black metal legs, supporting a large television in a modern living room environment.
2. Alaye Aabo
Jọwọ ṣe akiyesi awọn iṣọra ailewu atẹle lakoko apejọ ati lilo:
- Iṣọra: Pay attention to sharp edges during unpacking and assembly to prevent injury.
- Ensure all screws and fasteners are securely tightened before use. Periodically check and retighten as necessary.
- Do not exceed the maximum weight capacities specified in the 'Specifications' section.
- Place the TV unit on a flat, stable, and level surface to prevent tipping. Use the adjustable feet to stabilize the unit on uneven floors.
- Pa awọn ẹya kekere ati awọn ohun elo apoti kuro lọdọ awọn ọmọde.
3. Eto (Awọn ilana Apejọ)
Assembly of the HOMCOM TV Unit is required. Please follow these general steps. Refer to the included assembly diagram for specific part identification and fastening details.
- Yọ awọn ohun elo kuro: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Verify all components are present according to the parts list in your separate assembly diagram.
- Ṣe akojọpọ fireemu akọkọ: Connect the side panels, bottom panel, and any internal dividers using the provided hardware (dowels, screws, cam locks). Ensure all connections are snug.
- So Panel Pada: Secure the back panel to the main frame using small nails or screws. This adds stability to the unit.
- Fi sori ẹrọ Awọn ẹsẹ: Attach the five metal legs to the bottom of the TV unit using the designated screws. Ensure they are firmly secured.
- Fi Ẹsẹ Atunṣe sori ẹrọ: Screw the adjustable feet into the bottom of each metal leg. These will be used to level the unit.
- So awọn ìdè ilẹ̀kùn mọ́: Install the hinges onto the doors and the corresponding positions on the TV unit frame.
- Àwọn Ìlẹ̀kùn Gbé Kalẹ̀: Carefully attach the doors to the hinges. Adjust the hinges as needed to ensure the doors align properly and close smoothly.
- Install Press-Open Mechanisms: Insert the press-open mechanisms into their designated holes behind each door. Test the mechanism to ensure doors open and close with a gentle push.

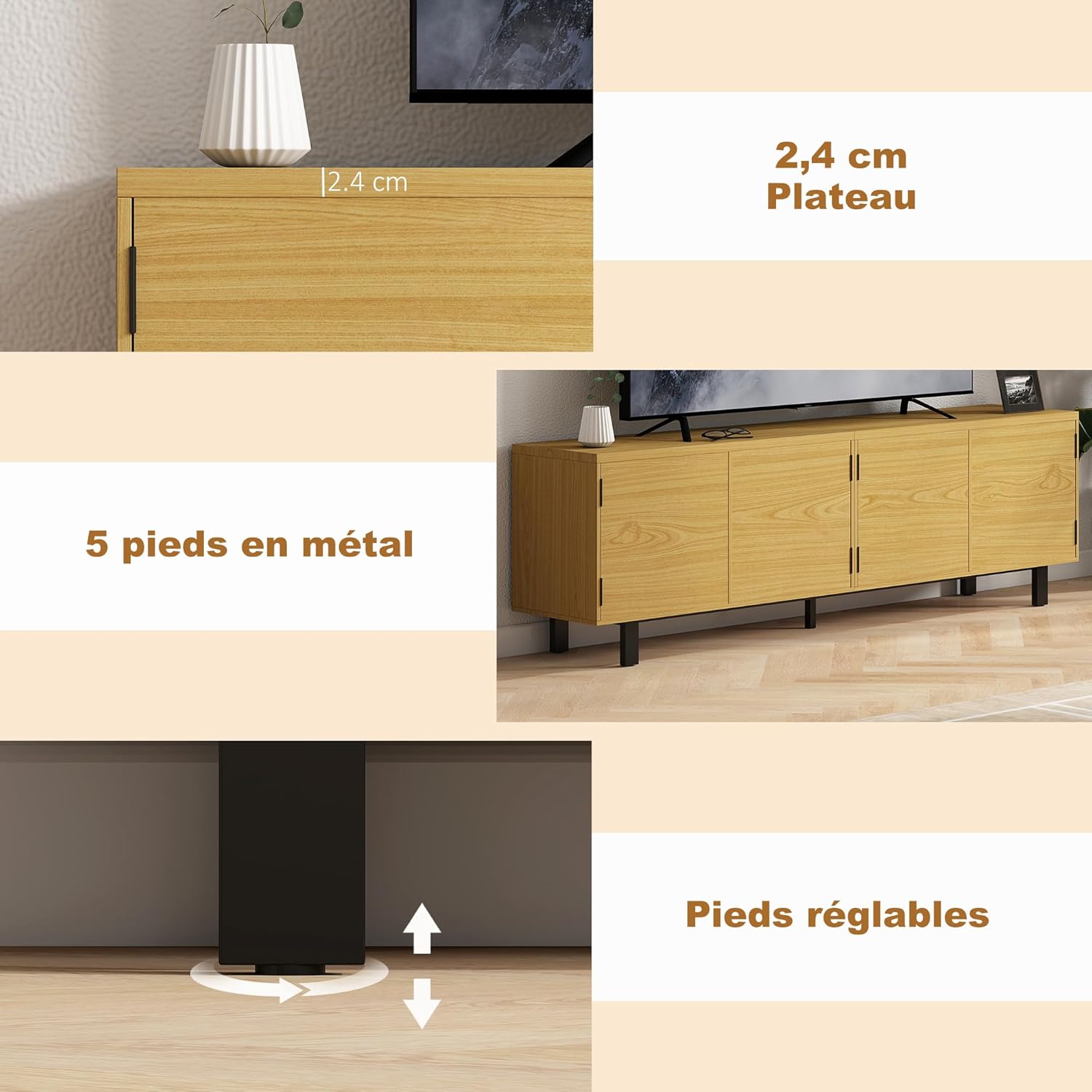

Image: Detail of the TV unit's construction, highlighting the 2.4 cm thick top panel, the robust metal feet, and the adjustable feet designed for leveling on uneven surfaces.

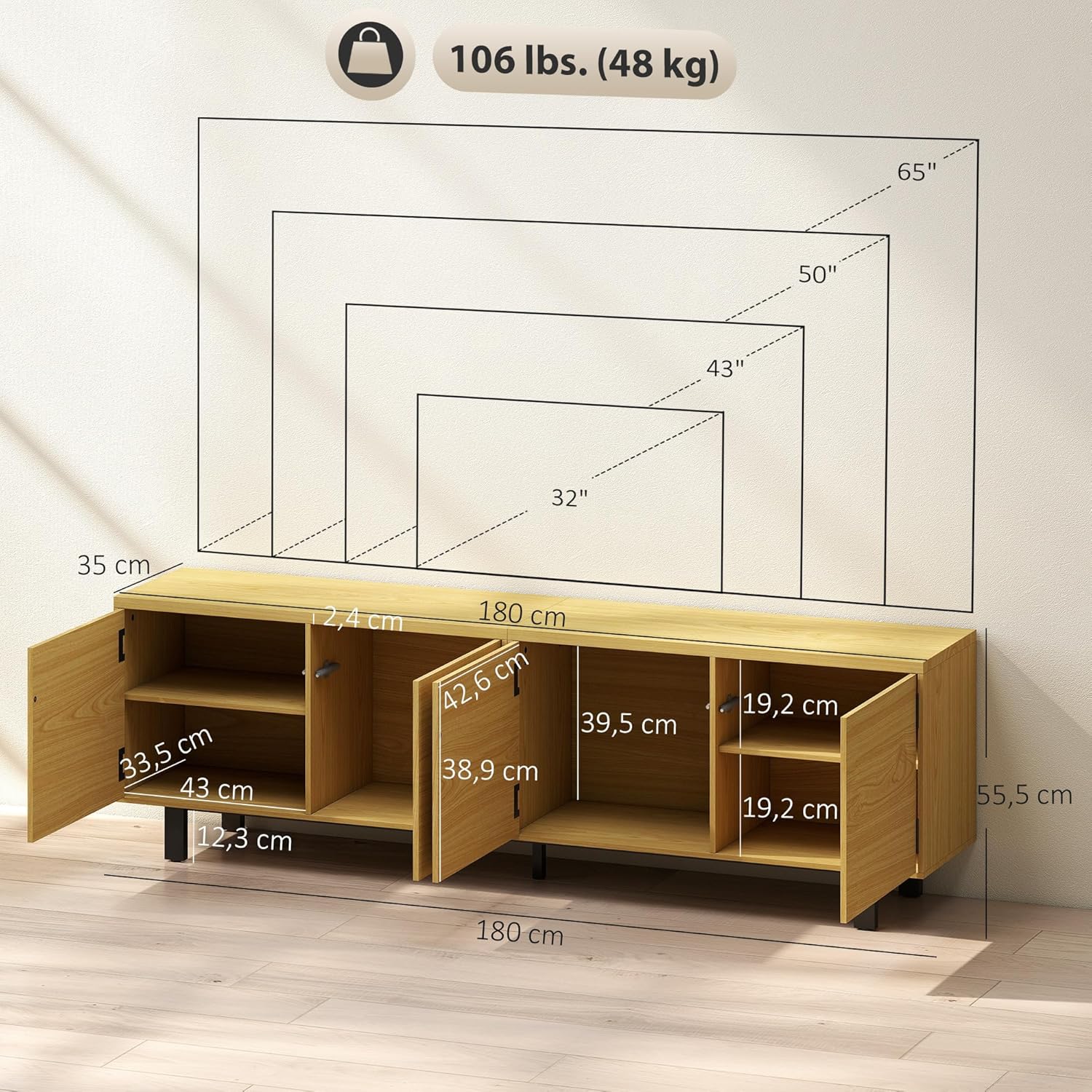

Image: A detailed diagram illustrating the overall dimensions (180 cm length, 35 cm depth, 55.5 cm height) and internal cabinet measurements of the TV unit, along with maximum weight capacity.
4. Awọn ilana Iṣiṣẹ
4.1 Using the Storage Cabinets
The HOMCOM TV unit features four spacious cabinets for organized storage of your media devices, books, and other items.
- Awọn ilẹkun ṣiṣi: The doors are equipped with a press-open mechanism. Gently push the center of the door panel to release the latch, and the door will spring open slightly. Pull the door open fully.
- Closing Doors: Push the door firmly until you hear a click, indicating the press-open latch has engaged and the door is securely closed.
- Agbara Ibi ipamọ: The unit includes two side cupboards with shelves suitable for consoles and accessories, and two central cupboards without shelves, ideal for larger items or decorations.

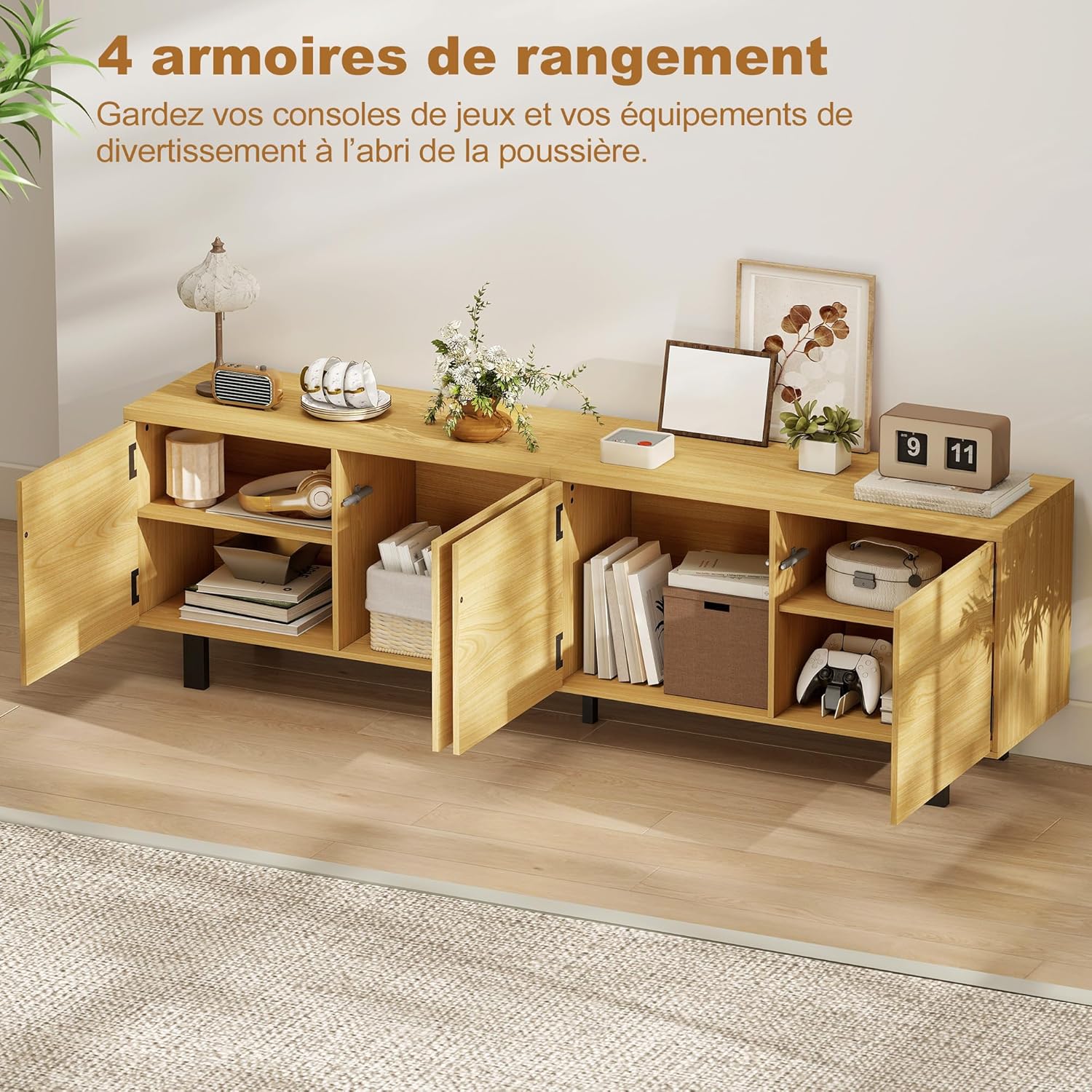

Image: The TV unit with all four doors open, showcasing the internal storage layout. The image highlights the two side compartments with shelves and the two central, larger compartments.
Aworan: A sunmọ-soke view illustrating the press-open door feature. A hand gently pushes the door, causing it to open without the need for external handles.
4.2 Leveling the TV Unit
The TV unit is equipped with adjustable feet to ensure stability on uneven floors.
- Awọn Ẹsẹ ti n ṣatunṣe: Gently lift or tilt the unit slightly to access the adjustable feet located at the bottom of each metal leg.
- Rotate the feet clockwise to raise that corner of the unit, or counter-clockwise to lower it.
- Use a spirit level to ensure the top surface of the TV unit is perfectly horizontal. Adjust as needed until the unit is stable and level.
5. Itọju
Proper care will extend the life and appearance of your HOMCOM TV Unit:
- Ninu: Pa awọn oju ilẹ pẹlu ipolowoamp asọ. Yẹra fun lilo awọn kẹmika lile, awọn olutọpa abrasive, tabi ọrinrin pupọ, nitori iwọnyi le ba ipari jẹ.
- Eruku: Regularly dust the unit with a soft, dry cloth.
- Ṣiṣayẹwo ohun elo: Periodically inspect all screws and fasteners to ensure they remain tight. Retighten any loose hardware to maintain structural integrity.
- Yago fun Imọlẹ Oorun Taara: Prolonged exposure to direct sunlight can cause fading or discoloration of the wood effect finish.
- Dabobo Awọn oju-aye: Lo awọn ohun elo tabi awọn paadi aabo labẹ awọn ohun ti a gbe si oke lati yago fun awọn gige tabi awọn ami omi.
6. Laasigbotitusita
If you encounter issues with your TV unit, refer to the following common solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Unit is wobbly or unstable | Uneven floor surface; loose leg connections | Adjust the leveling feet on each leg until the unit is stable. Ensure all leg screws are tightened. |
| Doors do not close properly or are misaligned | Hinges are loose or improperly adjusted; press-open mechanism is not engaging | Check and tighten hinge screws. Adjust hinge settings to align doors. Ensure the press-open mechanism is correctly installed and functioning. |
| Press-open mechanism not working | Mechanism is stuck or damaged; door is too heavy or misaligned | Ensure the mechanism is clean and free of obstructions. Check door alignment. If damaged, contact customer support for replacement parts. |
| Àwọn ìkọ́ tàbí ìbàjẹ́ díẹ̀ sí ojú ilẹ̀ | Accidental impact; abrasive cleaning | For minor scratches, consider using a furniture repair pen or wood filler matching the natural wood effect. Avoid abrasive materials for cleaning. |
7. Awọn pato
Detailed specifications for the HOMCOM 180cm TV Unit:
- Awoṣe: 83B-663V00ND
- Àwọ̀: Natural Wood Effect
- Ohun elo: Particle Board, Metal
- Apapọ Awọn iwọn (L x D x H): 180 cm x 35 cm x 55.5 cm (70.87 ni x 13.78 ni x 21.85 in)
- Top Panel Thickness: 2.4 cm
- Internal Cabinet Dimensions (L x D x H): 43 cm x 33.5 cm x 39.5 cm (for side cabinets)
- Height from Bottom to Floor: 12.2 cm
- Maximum Recommended Load Capacity:
- Total: 48 kg (106 lbs)
- Top Tray: 20 kg
- Shelf: 3 kg
- Apejọ: Ti beere fun
- Ìwọ̀n Nkan: 31 kg
8. Atilẹyin ọja ati Support
For warranty information, missing parts, or technical assistance, please contact HOMCOM customer support. Refer to your purchase documentation or the HOMCOM official webaaye fun awọn alaye olubasọrọ.
Please have your model number (83B-663V00ND) and purchase date available when contacting support.
