1. Ọja Ipariview
The NovaStar TB20 Plus is a high-performance, cost-effective asynchronous LED controller designed for managing full-color LED displays. It offers smart features such as Wi-Fi connectivity, remote management, and mobile app control, making it suitable for various applications including storefront signs, retail displays, and promotional screens.
Awọn ẹya pataki pẹlu:
- High Pixel Load Capacity: Supports up to 650,000 pixels with resolutions up to approximately 1920x1080, compatible with various LED module scan configurations.
- Asopọmọra Nẹtiwọọki Meji: Built-in 2.4GHz Wi-Fi and 10/100M Ethernet for remote content updates and device monitoring.
- Alagbeka App Isakoso: Free iOS and Android app for managing multiple devices, scheduling playlists, and performing OTA firmware updates.
- Rich Multimedia Support: Plays MP4, AVI, MOV (H.264), JPG, PNG, BMP formats, scrolling text, live clock, and real-time weather. Supports multi-zone layouts.
- Fifi sori ẹrọ Plug-ati-Play: Compact design, powered by standard DC 5V/2A, with content loading via USB drive.
- Ibi ipamọ ti o gbooro: 8GB internal storage with microSD/TF card expansion capability.
- Ibi-iṣiṣẹ ti o gbooro: Functions reliably in temperatures from -20°C to +60°C.
2. Kini To wa
Jọwọ rii daju pe gbogbo awọn nkan wa ninu package:
- NovaStar TB20 Plus Playback Controller ×1
- DC 5V / 2A Power Adapter ×1
- Quick Start Guide ×1 (includes English instructions)

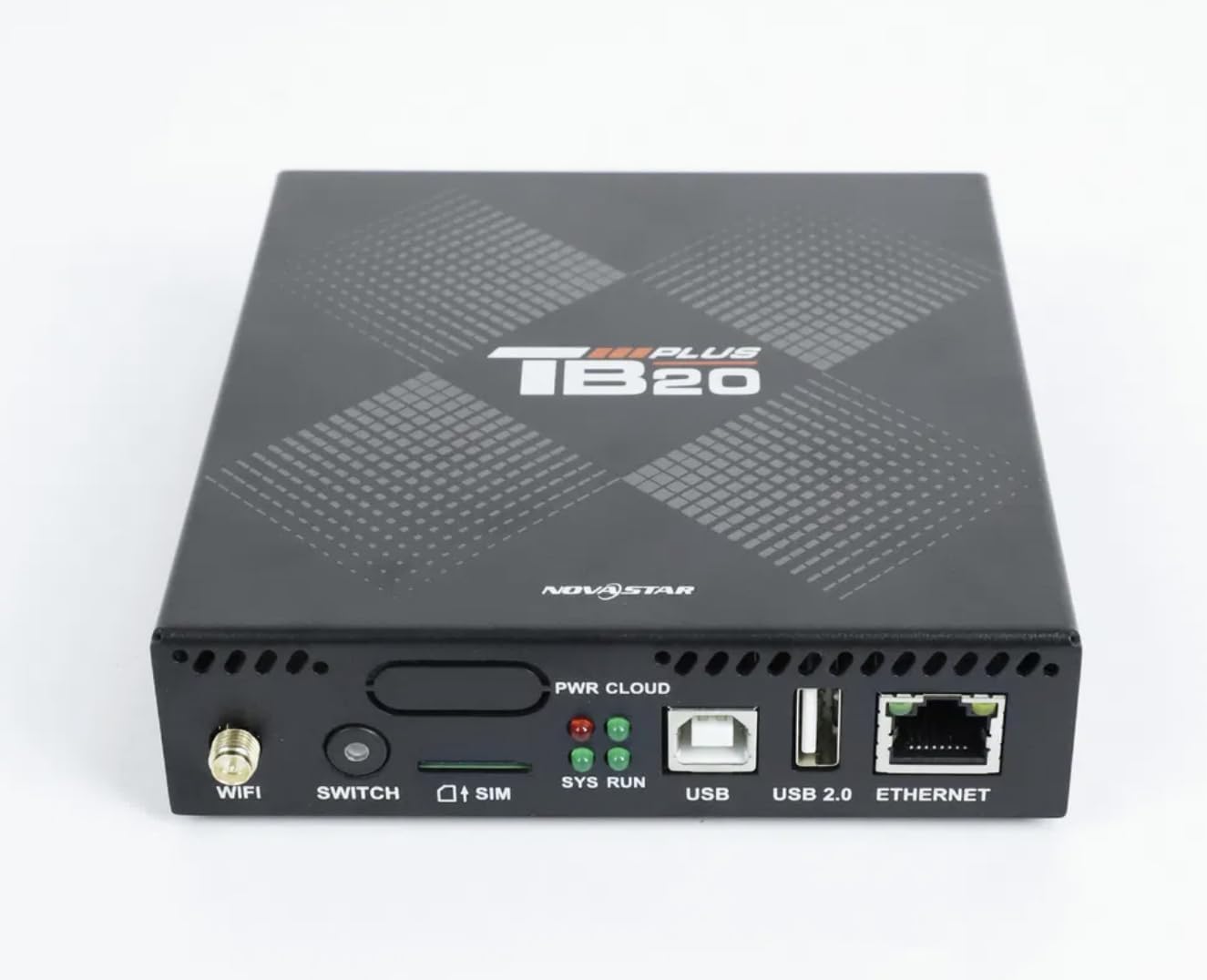

Image: The NovaStar TB20 Plus controller with its Wi-Fi antenna connected, showing the various ports and indicator lights.
3. Eto Itọsọna
Follow these steps for initial setup of your NovaStar TB20 Plus controller:
- Connect to LED Display: Connect the TB20 Plus to your LED display using an Ethernet cable from the controller's Ethernet output port to the receiving card of the LED display.
- So agbara: Plug the DC 5V / 2A power adapter into the controller's power input port and then into a power outlet. The PWR indicator light should illuminate.
- Isopọ nẹtiwọki:
- Wi-Fi: Attach the provided Wi-Fi antenna to the designated port. You can configure Wi-Fi settings later via the mobile app or web ni wiwo.
- Àjọlò: For a wired connection, connect an Ethernet cable from your network router or switch to the controller's Ethernet input port.
- Initial Content Loading (Optional): To load content directly, insert a USB drive containing your media files into the USB port. The controller can automatically play content from the USB drive after setup.
- Fifi sori ẹrọ Alagbeka: Download the official NovaStar mobile application from the iOS App Store or Google Play Store on your smartphone or tablet.
Aworan: A sunmọ-soke iwaju view of the NovaStar TB20 Plus, highlighting the Wi-Fi antenna port, SIM card slot, USB ports, and Ethernet port.
4. Awọn ilana Iṣiṣẹ
The NovaStar TB20 Plus offers flexible content management and control options:
4.1. Mobile App Iṣakoso
Use the dedicated mobile app for comprehensive control:
- Ohun elo Pipọ: Open the app and follow the on-screen instructions to discover and pair with your TB20 Plus controller via Wi-Fi or Ethernet.
- Gbigbe akoonu: Ṣe igbasilẹ media files (videos, images, text) from your mobile device or cloud storage to the controller.
- Iṣakoso akojọ orin: Create and manage playlists, schedule playback times, and set display effects.
- Abojuto latọna jijin: Monitor the status of your LED display and controller, receive fault alerts, and adjust settings remotely.
- OTA Firmware Updates: Perform over-the-air firmware updates to ensure your device has the latest features and improvements.
4.2. USB Content Playback
For quick content updates without a network connection:
- Save your media files (MP4, JPG, etc.) to a USB drive.
- Insert the USB drive into the USB port on the TB20 Plus.
- The controller will detect the new content and can be configured to automatically play it or add it to the device's internal storage.
4.3. Multimedia Support
The TB20 Plus supports a wide range of media types and display features:
- Awọn ọna kika fidio: MP4, AVI, MOV (H.264).
- Awọn ọna kika aworan: JPG, PNG, BMP.
- Dynamic Content: Scrolling text, live clock, real-time weather.
- Awọn iṣeto: Multi-zone layouts for professional visual effects, allowing different content to be displayed simultaneously in various areas of the screen.
5. Itọju
Proper maintenance ensures the longevity and optimal performance of your NovaStar TB20 Plus:
- Ninu: Keep the device clean and free from dust. Use a soft, dry cloth for cleaning. Avoid liquid cleaners.
- Afẹfẹ: Ensure adequate airflow around the device to prevent overheating. Do not block ventilation holes.
- Awọn imudojuiwọn famuwia: Regularly check for and apply firmware updates via the mobile app or web interface. Updates often include performance improvements and bug fixes.
- Ibi ipamọ: Ti o ba tọju ẹrọ naa fun akoko ti o gbooro sii, ge asopọ kuro ni agbara ki o tọju rẹ si ibi ti o tutu, ti o gbẹ.
6. Laasigbotitusita
Tọkasi awọn ọran ti o wọpọ ati awọn solusan:
| Oro | Owun to le Fa | Ojutu |
|---|---|---|
| Ko si ifihan loju iboju LED | Power issue, incorrect cable connection, display settings. | Check power adapter connection. Verify Ethernet cable connection to LED display. Ensure display is powered on and configured correctly. |
| Cannot connect via Wi-Fi/Ethernet | Incorrect network settings, weak signal, network interference. | Ensure Wi-Fi antenna is attached. Verify network cable is securely connected. Check Wi-Fi password. Restart the controller and router. |
| Akoonu ko dun | Ti ko ni atilẹyin file format, empty playlist, USB drive issue. | Check if media files are in supported formats (MP4, JPG, etc.). Verify playlist configuration in the app. Ensure USB drive is formatted correctly and contains valid files. |
| Ẹrọ ko dahun | Software glitch, power fluctuation. | Perform a power cycle: disconnect power, wait 10 seconds, then reconnect. If issue persists, contact support. |
7. Imọ ni pato
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Orukọ awoṣe | TB20 Plus |
| O pọju fifuye Agbara | ~650,000 pixels (up to 1920x1080 resolution) |
| Ibi ipamọ inu | 8GB (expandable via microSD/TF card) |
| Asopọmọra nẹtiwọki | Wi-Fi 2.4GHz, 10/100M Ethernet |
| Agbara Input | DC 5V / 2A |
| Awọn iwọn otutu ti nṣiṣẹ | -20°C si +60°C |
| Awọn iru ẹrọ ibaramu | iOS, Android, Windows |
| Ọja Mefa | 8"L x 5"W x 2"H (approximately 20.3 x 12.7 x 5.1 cm) |
| Asopọmọra Iru | HDMI (output for display, not for input) |
| Atilẹyin ipinnu | 1080p |
8. atilẹyin ọja Information
Warranty details for the NovaStar TB20 Plus LED Playback Controller are typically provided at the time of purchase or can be found on the manufacturer's official website. Please retain your proof of purchase for warranty claims. The warranty generally covers manufacturing defects under normal use conditions.
9. Onibara Support
For further assistance with installation, configuration, technical guidance, or any other inquiries regarding your NovaStar TB20 Plus, please contact the professional support team of your vendor or the manufacturer. Refer to the contact information provided with your purchase or on the official NovaStar webojula.
