JATRHG K1 S1 22kW 32A 8M EV Wallbox Kit Instruction Manual

1. Alaye Aabo ati Ikilọ

Jọwọ ka gbogbo awọn ilana aabo ni pẹkipẹki ṣaaju fifi sori ẹrọ ati lilo. Ikuna lati tẹle awọn ilana wọnyi le ja si mọnamọna, ina, tabi ipalara nla.

1.1 Gbogbogbo Awọn Itọsọna Aabo

• Fifi sori ẹrọ ti o peye: Onímọ̀ ẹ̀rọ iná mànàmáná tó mọṣẹ́ gbọ́dọ̀ ṣe iṣẹ́ rẹ̀ ní ìbámu pẹ̀lú gbogbo àwọn òfin àti ìlànà iná mànàmáná ìbílẹ̀ àti ti orílẹ̀-èdè.
• Ijeri Agbara: Rii daju pe voltage and power supply match the product specifications (380V AC, 32A, 22kW).
• Ayẹwo ibajẹ: Do not use the device if it is damaged. Inspect the wallbox, cable, and connectors for any signs of damage before each use.
• Ko si Iyipada: Do not disassemble or modify the charging terminal. Unauthorized modifications will void the warranty and may pose safety risks.
• Aabo ọmọde: Jeki ẹrọ naa kuro ni arọwọto awọn ọmọde.
• Aṣiṣe: In case of malfunction, immediately discontinue use and contact technical service.

1.2 Manufacturer's Responsibility

The manufacturer cannot be held responsible for any material or personal damage resulting from incorrect installation, non-compliant use, unauthorized modification of the device, or non-compliance with safety regulations. Any intervention performed by an unqualified person voids the warranty.

2. Ọja Ipariview

The JATRHG K1 S1 EV Wallbox Kit is a robust and secure charging solution designed for electric vehicles, particularly suitable for outdoor public parking lots and similar high-traffic, weather-exposed environments. It features a 22kW, 32A three-phase charging terminal integrated into a support pole, along with a reinforced waterproof socket.

2.1 Key Awọn ẹya ara ẹrọ

• Apẹrẹ Iṣọkan: Charging terminal integrated into a durable support pole for simplified installation and future expansion.
• Ijade Agbara giga: 22kW, 32A three-phase charging for fast and efficient EV charging.
• USB ti o gbooro sii: 8-meter charging cable for convenient reach.
• Reinforced Waterproof Socket: Provides an additional power outlet for outdoor electricity needs (e.g., garden tools, second EV charging).
• Iṣakoso Smart: Wi-Fi app connectivity for managing charging sessions, tracking history, and customizing settings.
• Ikole ti o tọ: Designed for outdoor use with features like key lock, elasticity, waterproofing, LED indicators, and UV protection.

2.2 Ọja irinše

The kit includes the wallbox charging terminal, support pole, 8-meter charging cable, and a reinforced waterproof auxiliary socket.

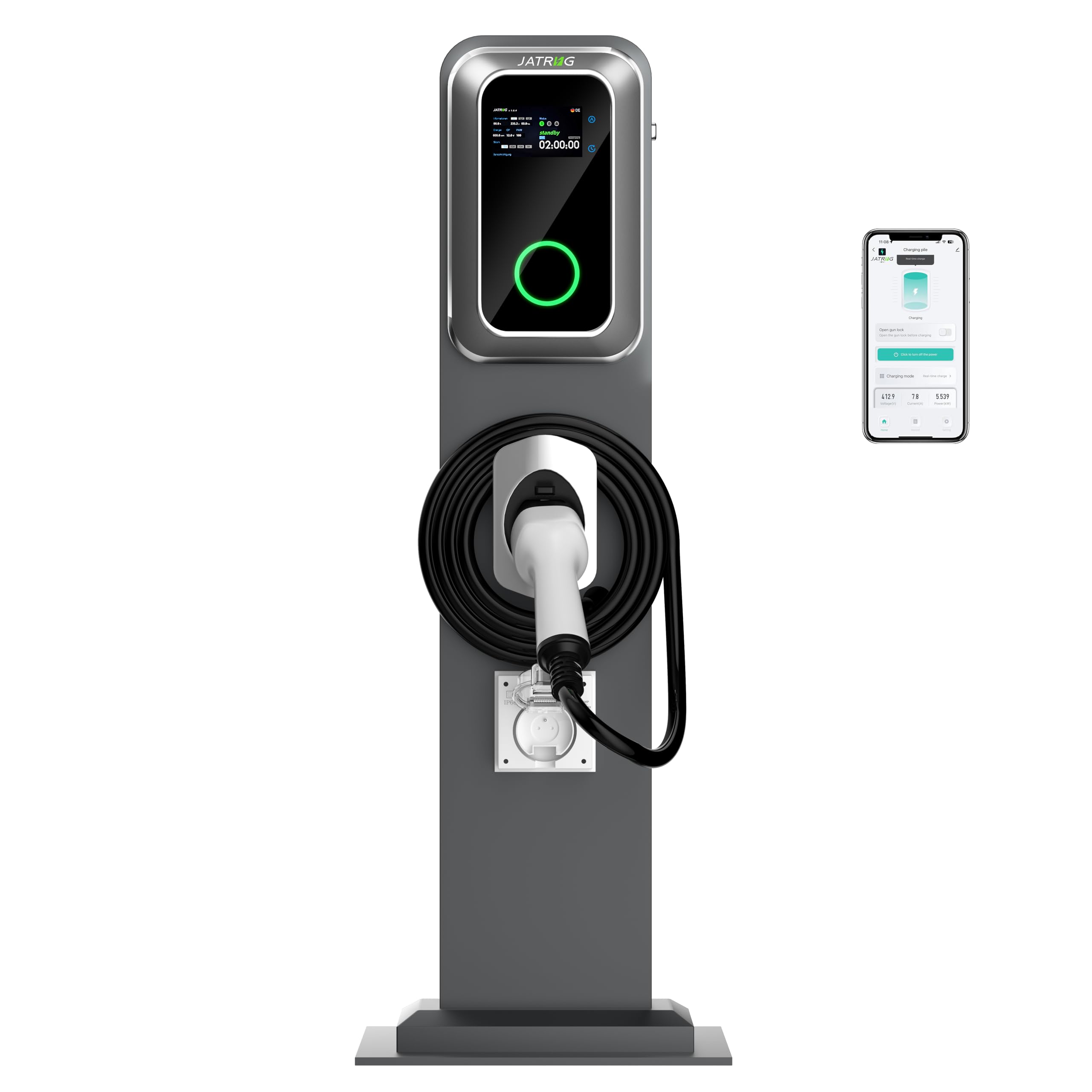

Image: The JATRHG K1 S1 EV Wallbox Kit, showing the integrated charging terminal, coiled 8-meter cable, and the auxiliary waterproof socket mounted on the support pole.

Image: The JATRHG K1 S1 EV Wallbox Kit installed in a residential driveway, demonstrating its aesthetic integration and practical use for home charging.

3. Eto ati fifi sori

Installation of the JATRHG K1 S1 EV Wallbox Kit requires professional expertise. It must be carried out by a qualified electrician to ensure safety and compliance with electrical standards.

3.1 Akojọ aṣyn fifi sori ẹrọ tẹlẹ

• Ensure the installation site is suitable for outdoor use and has adequate space.
• Verify that the electrical supply meets the 380V AC, 32A, 22kW three-phase requirements.
• Confirm all necessary tools and safety equipment are available.
• Review local building and electrical codes.

3.2 Installation Steps (Summary for Qualified Electricians)

1. Mounting the Support Pole: Securely anchor the support pole to a stable surface using appropriate fasteners. Ensure it is level and plumb.
2. Asopọmọra onirin: Open the access panel on the wallbox. Connect the three-phase power supply (L1, L2, L3, Neutral, Ground) to the designated terminals inside the wallbox. Ensure all connections are tight and secure.
3. Iṣakoso USB: Route the power cables and charging cable neatly within the pole structure.
4. Auxiliary Socket Wiring: Connect the reinforced waterproof auxiliary socket to the internal wiring as per the electrical diagram.
5. Idanwo: Before closing the panel, perform continuity and insulation resistance tests. Once confirmed safe, restore power and test the charging functionality.
6. Apejọ ipari: Close and secure all access panels.

Aworan: Alaye view of the internal wiring and cable management within the wallbox and support pole, illustrating the connection points for power input and the charging cable.

4. Awọn ilana Iṣiṣẹ

The JATRHG K1 S1 EV Wallbox is designed for user-friendly operation, primarily controlled via its integrated display and a dedicated Wi-Fi app.

4.1 Starting a Charging Session

1. Connect Vehicle: Plug the charging cable into your electric vehicle's charging port. Ensure a secure connection.
2. Bibẹrẹ Gbigba agbara: The wallbox display will show charging status. You can initiate or schedule charging via the Wi-Fi app or, if available, directly from the wallbox interface.
3. Bojuto Ilọsiwaju: The display and app will show real-time charging information, including voltage, current, power, and session duration.

4.2 Using the Wi-Fi App

The dedicated Wi-Fi app allows for comprehensive management of your charging terminal.

• Ṣe igbasilẹ ati Sopọ: Download the app (refer to product packaging for QR code or app store name) and follow the in-app instructions to connect to your wallbox via Wi-Fi.
• Manage Sessions: Start, stop, or schedule charging sessions remotely.
• Track History: View detailed charging session history, including dates, times, duration, and energy consumed (kWh).
• Ṣe akanṣe Eto: Adjust charging modes, current limits, and other preferences.
• Data-akoko gidi: Access live electrical information such as voltage, lọwọlọwọ, ati agbara.

Image: Screenshots of the JATRHG Wi-Fi app interface, demonstrating features like real-time charging status, voltage, current, power display, and a detailed record of past charging sessions.

4.3 Using the Reinforced Waterproof Socket

The auxiliary socket can be used independently for other outdoor electrical needs or to charge a second electric vehicle with a compatible portable charger.

• Ensure the socket cover is securely closed when not in use to maintain its waterproof rating.
• Only use appliances or chargers that are compatible with the socket's electrical specifications.

5. Itọju

Regular maintenance ensures the longevity and safe operation of your JATRHG EV Wallbox Kit.

• Ninu: Clean the exterior of the wallbox and pole with a soft, damp asọ. Ma ṣe lo abrasive ose tabi epo.
• Ayẹwo USB: Periodically inspect the charging cable and connectors for any signs of wear, cuts, or damage. Replace immediately if damage is found.
• Socket Cover: Ensure the waterproof cover for the auxiliary socket is always properly closed when not in use.
• Ayẹwo Ọjọgbọn: It is recommended to have a qualified electrician inspect the installation annually to ensure all electrical connections remain secure and the system operates safely.

6. Laasigbotitusita

This section provides solutions to common issues you might encounter. For problems not listed here, or if issues persist, contact technical support.

6.1 Wọpọ Oran ati Solusan

• No Power to Wallbox:
  • Check the circuit breaker in your main electrical panel.
  • Ensure the wallbox is properly connected to the power supply.
• Gbigba agbara ko bẹrẹ:
  • Ensure the charging cable is securely plugged into both the wallbox and the vehicle.
  • Check the vehicle's charging settings.
  • Verify there are no error messages on the wallbox display or in the app.
• Gbigba agbara lọra:
  • Check the charging mode settings in the app; ensure it's not set to a lower power mode.
  • Verify the vehicle's charging capacity and settings.
  • Ensure the electrical supply is stable and providing the expected voltage ati lọwọlọwọ.
• Awọn ọran Asopọmọra App:
  • Rii daju pe ẹrọ alagbeka rẹ ti sopọ si nẹtiwọki Wi-Fi iduroṣinṣin.
  • Tun app ati/tabi ẹrọ alagbeka rẹ bẹrẹ.
  • Check if the wallbox's Wi-Fi module is active.

7. Awọn pato

Detailed technical specifications for the JATRHG K1 S1 EV Wallbox Kit.

Image: Diagram showing the key dimensions of the JATRHG K1 S1 EV Wallbox Kit, including the wallbox unit, support pole, and cable length.

8. Atilẹyin ọja ati Support

The JATRHG K1 S1 EV Wallbox Kit comes with a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and duration.

8.1 atilẹyin ọja Alaye

• Atilẹyin ọja ni wiwa awọn abawọn ninu awọn ohun elo ati iṣẹ-ṣiṣe labẹ lilo deede.
• Any intervention or repair performed by an unqualified person will void the warranty.
• Damage resulting from incorrect installation, non-compliant use, or unauthorized modification is not covered by the warranty.

8.2 Imọ Support

For technical assistance, warranty claims, or any questions regarding the operation or maintenance of your JATRHG EV Wallbox Kit, please contact the technical service department of JATRHG or your authorized dealer.

When contacting support, please have your product model number (K1_220_8M) and proof of purchase readily available.
