1. Ọja Ipariview
The DATOUBOSS 12V 100Ah LiFePO4 Battery is a high-performance lithium iron phosphate battery designed for deep cycle applications. It features a built-in 100A Battery Management System (BMS) for enhanced safety and longevity, making it suitable for various uses including RVs, camping, solar energy systems, off-grid power, and marine applications.

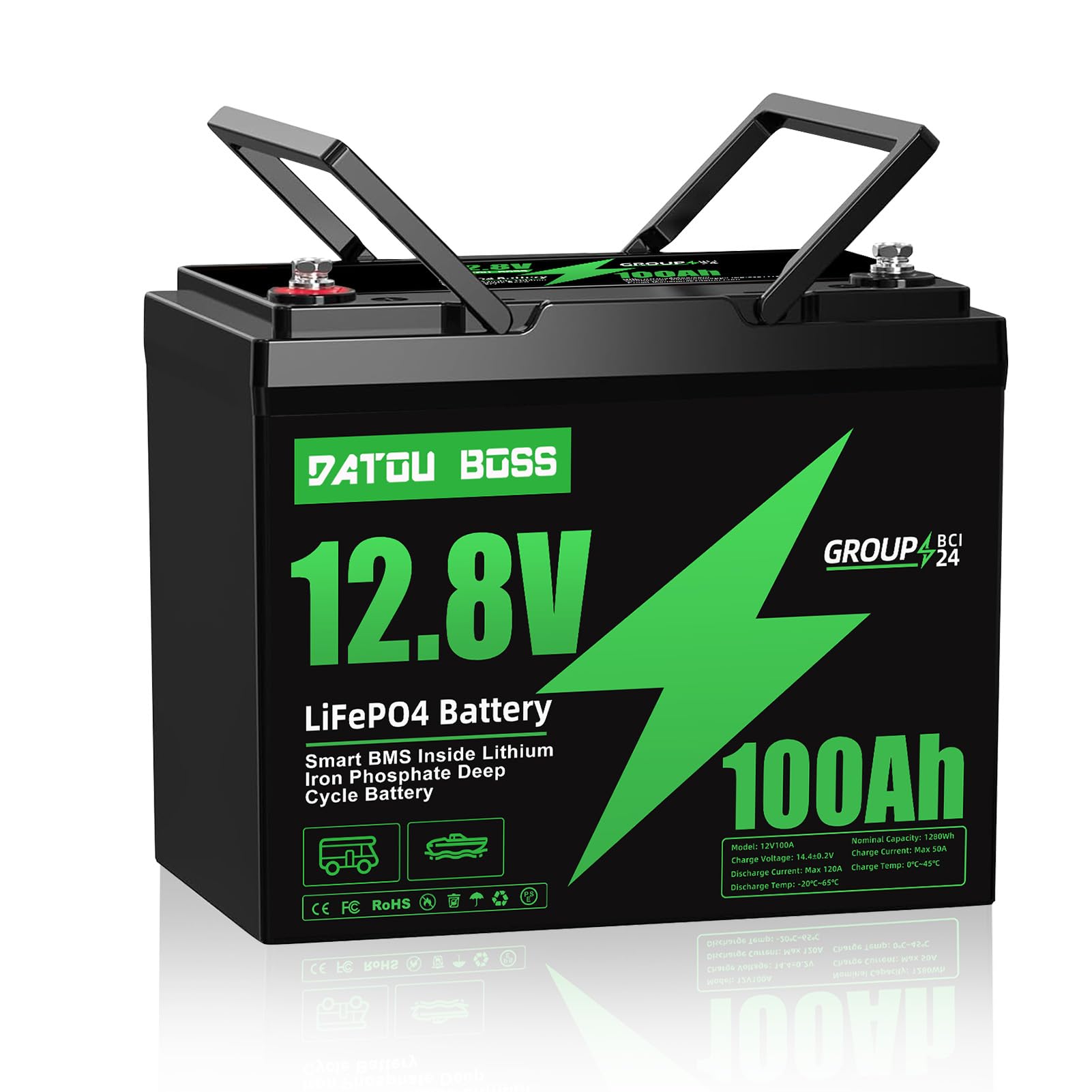

Figure 1: DATOUBOSS 12V 100Ah LiFePO4 Battery.
Awọn ẹya pataki:
- Superior Performance and Safety: Utilizes solid-state electrolyte technology and UL2054 safety certification. Features a built-in 100A BMS with multiple protections including short-circuit, over-voltage, over-heating, and over-charging protection.
- Igbesi aye ti o gbooro sii: Offers a service life of up to 10 years and 4,000-15,000 deep cycles, significantly outperforming lead-acid batteries.
- Imugboroosi Agbara Rọrun: Supports series and parallel connections for increased capacity and voltage, allowing configurations up to 4P4S (16 batteries) for power outputs from 1.28 kW to 20.48 kW.
- Ibi iwọn otutu Iṣiṣẹ jakejado: Designed to adapt to extreme temperatures, ensuring reliable discharge performance from -4°F to 140°F.
- Ìwọ̀n Ìwọ̀n àti Iwapọ: Smaller and lighter than traditional lead-acid batteries, facilitating easier installation and portability.
2. Alaye Aabo
Adhering to these safety guidelines is crucial for preventing damage to the battery and ensuring user safety. Improper handling can lead to serious injury or equipment malfunction.
Figure 2: Important safety warnings for battery handling.
Awọn Itọsọna Aabo Gbogbogbo:
- Do NOT reverse polarity: Ensure positive and negative terminals are connected correctly.
- Avoid physical impact: Do not hit, drop, or throw objects at the battery, or step on it.
- Prevent short circuits: Do not use metal objects to connect the positive and negative terminals directly.
- No welding or piercing: Do not weld the battery directly or pierce it with nails or other sharp objects.
- Jeki gbẹ: Do not immerse the battery in seawater or any other liquid.
- Not for engine starting: This battery is not designed for use as a car starter battery, trip starter battery, or engine starter battery.
- Awọn opin iwọn otutu: Do not use the battery at high temperatures. Exceeding temperature limits may cause overheating, fire, or permanent damage, shortening its service life.
3. Eto
Ayẹwo akọkọ:
Upon receiving your DATOUBOSS LiFePO4 battery, carefully inspect the packaging and the battery for any signs of damage. Ensure all terminals are secure and free from debris. If any damage is found, contact customer support immediately.
Battery Connection (Series and Parallel):
The DATOUBOSS 12V 100Ah LiFePO4 battery supports both series and parallel connections to achieve desired voltage and capacity. Always ensure all batteries are of the same model and capacity when connecting in series or parallel.
- Isopọ ti o jọra: Connect positive terminals together and negative terminals together to increase total capacity while maintaining the same voltage.
- Asopọmọra jara: Connect the positive terminal of one battery to the negative terminal of the next battery to increase total voltage. Ensure all batteries are at a similar state of charge before connecting in series.
- Iṣeto ti o pọ julọ: The battery supports up to 4 series and 4 parallel connections (4S4P) for a maximum load power of 20.48 kW.
Figure 3: Diagram illustrating flexible capacity expansion through series and parallel connections.
4. Awọn ilana Iṣiṣẹ
Gbigba agbara:
The DATOUBOSS LiFePO4 battery can be charged using various methods. Always use a charger compatible with LiFePO4 batteries to ensure optimal performance and safety.
- Igbimọ oorun: Connect to a solar panel system with an appropriate MPPT (Maximum Power Point Tracking) charge controller.
- Ṣaja batiri: Use a dedicated LiFePO4 battery charger.
- Olupilẹṣẹ: Connect to a generator with a compatible charging output.
Figure 4: Various charging methods for the LiFePO4 battery.
Sisọ silẹ:
The battery provides a stable discharge curve above 12.8V and can deliver 95% of its capacity. Ensure your inverter and connected devices are compatible with the battery's voltage ati lọwọlọwọ ni pato.
Awọn akiyesi iwọn otutu:
The battery is designed for excellent discharge performance ranging from -4°F to 140°F (-20°C to 60°C). Operating outside this range may affect performance and lifespan. The built-in BMS includes low-temperature protection.

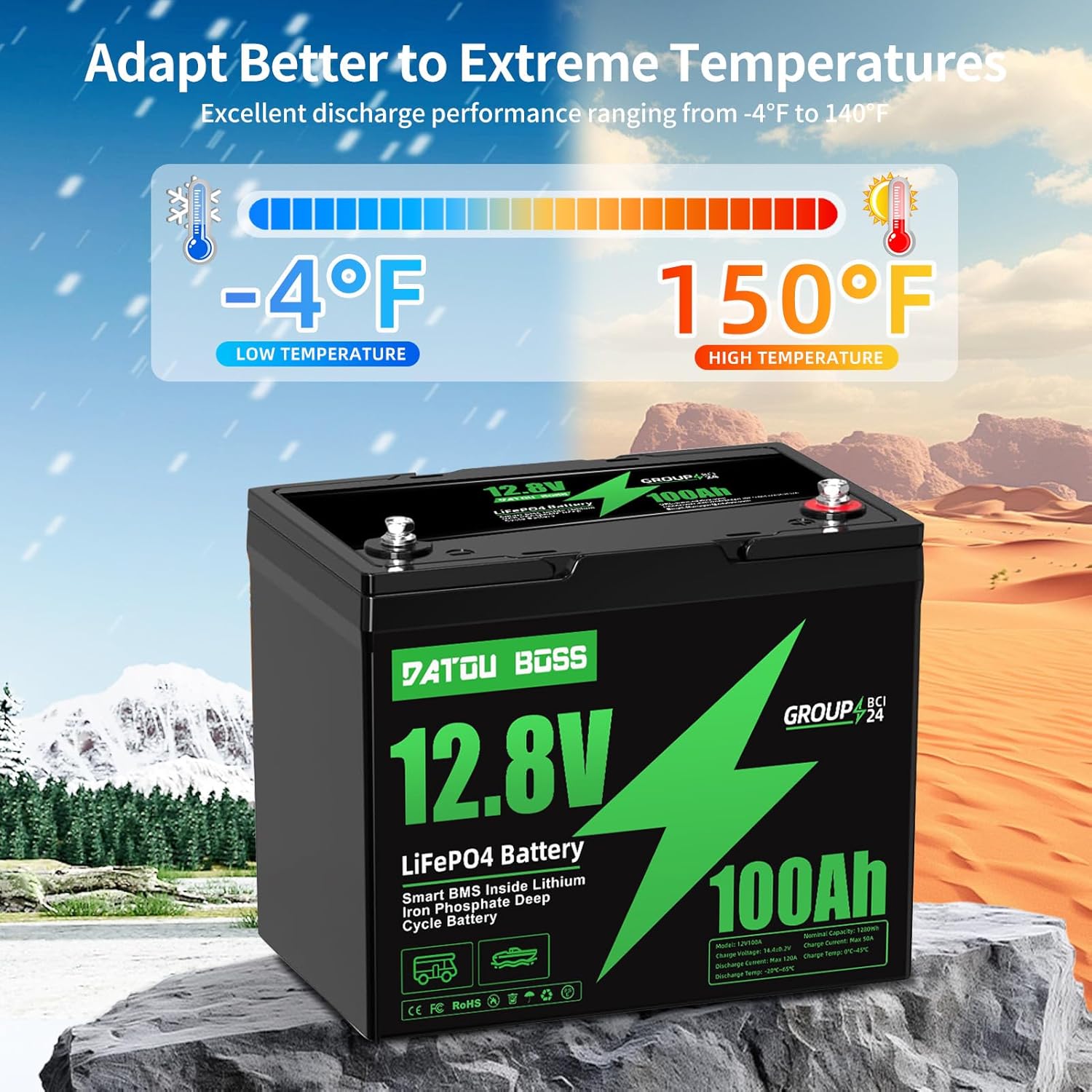

Figure 5: The battery's ability to adapt to extreme temperatures.
5. Itọju
Ninu:
- Regularly inspect the battery terminals for corrosion or loose connections.
- Nu batiri naa mọ casing with a dry, soft cloth. Do not use solvents or abrasive cleaners.
Ibi ipamọ:
- Ti o ba tọju batiri naa fun igba pipẹ, rii daju pe o ti gba agbara si isunmọ 50-70% ti agbara rẹ.
- Tọju batiri naa ni itura, aaye gbigbẹ, kuro lati orun taara ati awọn iwọn otutu to gaju.
- Disconnect the battery from all loads during storage.
6. Laasigbotitusita
This section provides solutions for common issues you might encounter with your DATOUBOSS LiFePO4 battery.
| Oro | Owun to le Fa | Ojutu |
|---|---|---|
| Batiri ko ngba agbara | Incorrect charger type; loose connections; BMS protection activated (over-discharge, over-voltage, low temperature) | Ensure LiFePO4 compatible charger is used; check all cable connections; allow battery to warm up if in cold conditions; consult BMS status indicators if available. |
| Iwọn agbara kekere | Battery not fully charged; excessive load; loose connections | Fully charge the battery; reduce the load on the battery; check and tighten all connections. |
| Batiri gbigbona | Operating in high ambient temperatures; excessive charge/discharge current | Move battery to a cooler environment; ensure charge/discharge currents are within specified limits. The BMS will activate over-temperature protection. |
7. Awọn alaye ọja
| Sipesifikesonu | Iye |
|---|---|
| Brand | DATOUBOSS |
| Awoṣe | DT-12V100AH |
| Nọmba Awoṣe Nkan | 12V 100Ah LiFePO4 Litiumu Batiri |
| Voltage | 12.8 Volts (DC) |
| Agbara | 100 Ah |
| Iwọn Nkan | 24 poun (isunmọ 10.9 kg) |
| Package Mefa | 10.2 x 8.5 x 6.6 inches |
| BMS | Built-in 100A BMS with low-temp protection |
| Igbesi aye iyipo | 4000-15000 waye |
| Igbesi aye Iṣẹ | Titi di ọdun 10 |
| UPC | 740684063402 |
8. Atilẹyin ọja ati Support
Alaye Atilẹyin ọja:
Batiri DATOUBOSS 12V 100Ah LiFePO4 wa pẹlu 5-odun atilẹyin ọja, ibora awọn abawọn ninu awọn ohun elo ati iṣẹ-ṣiṣe labẹ lilo deede. Jọwọ ṣe idaduro ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.
Atilẹyin Onibara:
For any questions, technical assistance, or warranty claims, please contact DATOUBOSS customer service. We provide 24-hour online service to ensure timely and efficient support.
Even if Amazon indicates an item is not returnable, please reach out to us directly for assistance with product defects, damage, or usage concerns. We offer free return and replacement services to ensure your satisfaction.
