Audiovox CE-122 Personal CD Player with Car Kit

Ọrọ Iṣaaju

This manual provides detailed instructions for the setup, operation, and maintenance of your Audiovox CE-122 Personal CD Player with Car Kit. Please read this manual thoroughly before using your device to ensure proper functionality and to maximize your listening experience.

The Audiovox CE-122 is a portable CD player designed for versatile use, featuring a Digital Anti-Shock System (DASS) for uninterrupted playback during movement, a 22-track programmable memory, and a bass boost function. It includes a complete car kit for in-vehicle use.

Package Awọn akoonu

Daju pe gbogbo awọn nkan ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ:

• Audiovox CE-122 Portable CD Player
• Awọn agbekọri
• AC Adapter
• Ọkọ ayọkẹlẹ Adapter
• Kasẹti Adapter
• Iwe afọwọkọ olumulo (iwe yii)

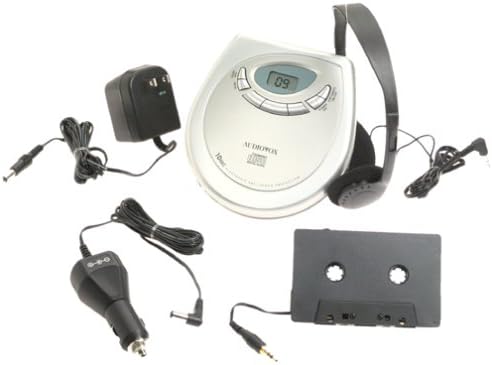

Aworan: The Audiovox CE-122 portable CD player shown with all its accessories, including headphones, AC adapter, car adapter, and cassette adapter.

Ọja Awọn ẹya ara ẹrọ

• Plays audio CD and CD-R/RW discs.
• AC/DC operation for home and portable use.
• Complete car kit included for in-vehicle audio.
• Digital Anti-Shock System (DASS) provides up to 20 seconds of skip protection.
• 22-track programmable memory for custom playback sequences.
• Bass boost feature for enhanced audio.
• Forward and reverse search functions.
• Repeat and pause functions.
• Key hold switch to prevent accidental button presses.
• Line out jack for connecting to external audio systems.
• Auto power off function to conserve battery life.
• Dual stereo headphone jack for shared listening.
• Built-in charger for rechargeable batteries (rechargeable batteries not included).

Ṣeto

1. Fifi awọn batiri sii

The CD player operates on 4 AA batteries (included). For rechargeable batteries (not included), ensure they are inserted correctly for charging.

1. Ṣii ideri aporo batiri ti o wa ni isalẹ ẹya naa.
2. Fi awọn batiri AA mẹrin sii, ki o si kiyesi polarity ti o tọ (+/-) gẹgẹ bi a ti fihan ninu yara naa.
3. Pa ideri batiri naa ni aabo.

2. Connecting Power (AC Adapter)

For home use or to charge rechargeable batteries:

1. Plug the small end of the AC adapter into the DC IN 4.5V jack on the CD player.
2. Pulọọgi awọn miiran opin AC ohun ti nmu badọgba sinu kan boṣewa iṣan iṣan.
3. If using rechargeable batteries, select the 'charge' function (if available on your model) to begin charging.

3. Nsopọ Awọn agbekọri

Plug the headphones into one of the two headphone jacks on the side of the CD player.

Aworan: A sunmọ-soke view of the headphones included with the Audiovox CE-122 CD player.

4. Car Kit Setup

To use the CD player in your vehicle:

1. Plug the car adapter into your vehicle's cigarette lighter or 12V power outlet.
2. Connect the small end of the car adapter to the DC IN 4.5V jack on the CD player.
3. Insert the cassette adapter into your vehicle's cassette player.
4. Connect the audio cable from the cassette adapter to the LINE OUT jack on the CD player.
5. Ensure your car stereo is set to the cassette function to hear the CD player's audio.

Awọn ilana Iṣiṣẹ

1. Inserting a CD

1. Press the OPEN button to open the CD compartment lid.
2. Place a CD (audio CD or CD-R/RW) onto the center spindle with the label side facing up.
3. Rọra tẹ CD naa si isalẹ titi ti o fi tẹ sinu aaye.
4. Pa ideri CD CD duro ṣinṣin titi yoo fi di.

Aworan: The Audiovox CE-122 portable CD player with its lid open, revealing the disc compartment where a CD is placed.

2. ipilẹ Sisisẹsẹhin

• Ṣiṣẹ: Tẹ awọn ERE/SINMI button to start playback. The track number will appear on the display.
• Duro: Tẹ awọn ERE/SINMI button during playback to pause. Press again to resume.
• Duro: Tẹ awọn DURO bọtini lati da sẹhin duro.

3. Track Lilọ kiri

• Rekọja Orin: Tẹ awọn FOJU IWAJU (►►) tàbí FO Sẹhin (◄◄) buttons to move to the next or previous track.
• Wa Tẹ mọlẹ FOJU IWAJU (►►) tàbí FO Sẹhin (◄◄) buttons during playback to fast forward or rewind within a track.

4. Tun Iṣẹ

Tẹ awọn Tun button to cycle through repeat modes:

• Tun 1: Tun orin ti o wa lọwọlọwọ ṣe.
• Tun Gbogbo: Tun gbogbo awọn orin lori disiki naa ṣe.
• Tun Paa: Disables repeat function.

5. Programmable Memory

You can program up to 22 tracks to play in a specific order:

1. With the CD stopped, press the ETO bọtini.
2. Lo awọn FOJU IWAJU (►►) tàbí FO Sẹhin (◄◄) buttons to select the desired track.
3. Tẹ ETO again to add the track to the memory.
4. Repeat steps 2 and 3 for up to 22 tracks.
5. Tẹ ERE/SINMI to start playback of the programmed sequence.

6. Bass didn

Tẹ awọn BASS didn button to activate or deactivate the bass enhancement feature.

7. Key Hold Switch

Gbe awọn DIMU switch to the ON position to disable all buttons, preventing accidental operation during transport.

8. Digital Anti-Shock System (DASS)

The DASS provides up to 20 seconds of skip protection. This feature is automatically active during playback to ensure smooth audio even during movement.

9. Agbara Aifọwọyi

The unit will automatically power off after a period of inactivity or when a CD finishes playing to conserve battery life.

Aworan: The Audiovox CE-122 portable CD player, a silver-colored device with a digital display and control buttons, shown alongside its black over-ear headphones.

Itoju

1. Cleaning the CD Player

• Mu ese ita kuro pẹlu asọ ti o gbẹ. Ma ṣe lo abrasive ose tabi epo.
• To clean the lens, use a specialized CD lens cleaner disc. Do not touch the lens directly.

2. Itọju batiri

• Yọ awọn batiri kuro ti ẹyọ naa ko ba ni lo fun akoko ti o gbooro sii lati ṣe idiwọ jijo.
• Replace all batteries at the same time; do not mix old and new batteries or different types of batteries.

3. Ibi ipamọ

Store the CD player in a cool, dry place away from direct sunlight and extreme temperatures.

Laasigbotitusita

If you encounter issues with your Audiovox CE-122, please refer to the following common problems and solutions:

• Ko si Agbara:
  • Check if batteries are inserted correctly and are not depleted. Replace if necessary.
  • Ensure the AC adapter or car adapter is securely connected and the power source is active.
• CD Not Playing / Disc Error:
  • Ensure the CD is inserted correctly with the label side up.
  • Check if the CD is scratched or dirty. Clean the CD with a soft, lint-free cloth.
  • Make sure the CD compartment lid is fully closed.
  • The disc format may not be supported (e.g., data CD instead of audio CD or CD-R/RW).
• Skipping During Playback:
  • While the DASS provides protection, severe shocks or vibrations can still cause skipping. Try to keep the player stable.
  • Ensure the CD is clean and free of scratches.
  • Low battery power can sometimes affect anti-shock performance. Replace or recharge batteries.
• Ko si Ohun:
  • Check headphone connection and ensure they are fully plugged in.
  • Satunṣe ipele iwọn didun.
  • If using the car kit, ensure the car stereo is set to the correct input (cassette function) and volume is up.
• Awọn bọtini Ko Dahun:
  Ṣayẹwo boya naa DIMU switch is in the ON position. Slide it to OFF to enable buttons.

Awọn pato

Atilẹyin ọja ati Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact Audiovox customer service. Keep your proof of purchase for warranty claims.
