1. Ọja Ipariview

The Dimplex CADIZ Oil Heater ROF14ECCJ is an advanced electric oil heater designed to provide comfortable and consistent warmth for your living space. Featuring a unique dual-sump oil heater system combined with a boost heater, it offers efficient and rapid heating. This model includes a digital timer, child lock, and remote control for convenient operation.

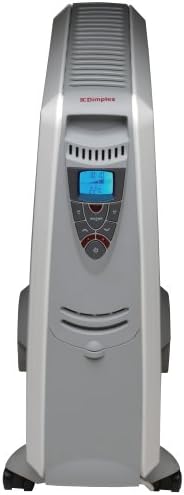

olusin 1: Iwaju view of the Dimplex CADIZ Oil Heater ROF14ECCJ, showing the control panel and sleek design.

The CADIZ heater is engineered for optimal heat distribution, utilizing both radiant heat and convection to warm the room effectively. Its design prioritizes safety and ease of use, making it suitable for various indoor environments.

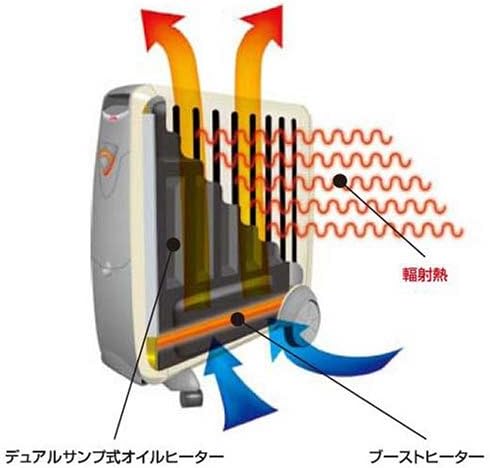

Figure 2: Diagram showing the internal heating mechanism, including the dual-sump oil heater and boost heater, and the emission of radiant heat.

2. Alaye Aabo pataki

Jọ̀wọ́ ka gbogbo ìlànà ààbò dáadáa kí o tó lo ohun èlò yìí. Àìtẹ̀lé àwọn ìlànà wọ̀nyí lè fa ìkọlù iná mànàmáná, iná, tàbí ìpalára.

• Máa so ẹ̀rọ ìgbóná náà mọ́ ibi tí a lè gbé e sí ní ògiri. Má ṣe lò ó pẹ̀lú okùn ìfàgùn tàbí ẹ̀rọ ìtúpalẹ̀ agbára tí a lè gbé lọ.
• Ma ṣe ṣiṣẹ ẹrọ igbona eyikeyi pẹlu okun tabi pulọọgi ti o bajẹ, tabi lẹhin ti ẹrọ ti ngbona ba ṣiṣẹ tabi ti lọ silẹ tabi bajẹ ni eyikeyi ọna.
• Pa awọn ohun elo ti o le jo bi aga, irọri, aṣọ ibusun, iwe, aṣọ, ati awọn aṣọ-ikele ni o kere ju mita kan (ẹsẹ mẹta) lati iwaju ati ẹgbẹ ti ẹrọ itanna naa.
• Maṣe lo ni ita. Olugbona yii jẹ ipinnu fun lilo inu ile nikan.
• Ma ṣe lo ni awọn balùwẹ, awọn agbegbe ifọṣọ, tabi iru awọn ipo inu ile nibiti omi le wa.
• Išọra to gaju jẹ dandan nigbati ẹrọ igbona eyikeyi ba nlo nipasẹ tabi sunmọ awọn ọmọde tabi awọn alaiṣe ati nigbakugba ti ẹrọ igbona ba ṣiṣẹ ati laini abojuto.
• Never block air openings or place on a soft surface where openings may become blocked.
• Ma ṣe fi sii tabi gba awọn ohun ajeji laaye lati wọ inu afẹfẹ eyikeyi tabi ṣiṣi eefin nitori eyi le fa ina mọnamọna tabi ina, tabi ba ẹrọ igbona jẹ.
• Lati ṣe idiwọ ina ti o ṣeeṣe, maṣe dina awọn gbigbe afẹfẹ tabi eefi ni eyikeyi ọna. Ma ṣe lo lori awọn aaye rirọ, bii ibusun, nibiti awọn ṣiṣi le di dina.
• Awọn ti ngbona ni o ni gbona ati arcing tabi sparking awọn ẹya ara inu. Ma ṣe lo ni awọn agbegbe nibiti a ti lo epo epo, awọ, tabi awọn olomi flammable tabi ti o ti fipamọ.

3. Awọn ẹya ara ati irinše

Familiarize yourself with the main components of your Dimplex CADIZ Oil Heater:

• Ara Ohun Èlò Ìgbóná: The main unit containing the oil-filled fins and heating elements.
• Ibi iwaju alabujuto: Located on the front, featuring a digital display, temperature controls, timer settings, and function buttons.
• Awọn kẹkẹ: Fun irọrun gbigbe ti ẹrọ naa.
• Okun Agbara: Fun asopọ si itanna iṣan.
• Ideri owu: Provided for dust protection during storage.
• Isakoṣo latọna jijin: Fun iṣẹ ti o rọrun lati ọna jijin.

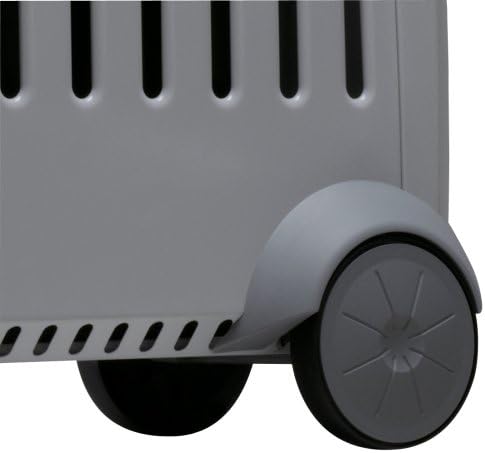

Figure 3: Detail of the sturdy wheels, designed for easy movement of the heater.

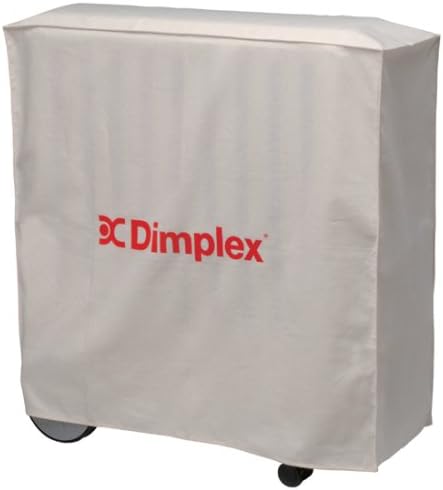

Figure 4: The heater shown with its included cotton cover, ideal for protecting the unit when not in use.

4. Eto ati fifi sori

4.1 Ṣiṣii silẹ

Carefully remove the heater from its packaging. Retain the packaging for future storage or transport. Inspect the heater for any signs of damage. If damaged, do not operate and contact customer support.

4.2 Àwọn Kẹ̀kẹ́ Tí A So Mọ́

The wheels are typically pre-assembled or require minimal attachment. Refer to the quick start guide included in the box for specific instructions on attaching the wheels if they are not already installed. Ensure all wheels are securely fastened before moving the unit.

4.3 Ibi

Place the heater on a firm, level surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from walls, furniture, and other objects to allow for proper air circulation and prevent fire hazards. Do not place the heater directly below a power outlet. Avoid placing it in high-traffic areas where it could be easily knocked over.

Olusin 5: Example of proper heater placement in a room, ensuring adequate clearance from surrounding objects.

5. Awọn ilana Iṣiṣẹ

5.1 Iṣakoso igbimo Loriview

The control panel features a digital display and several buttons for adjusting settings. Refer to Figure 1 for a visual representation.

• Bọtini agbara: Ó máa ń tan tàbí pa ẹ̀rọ ìgbóná.
• Awọn bọtini Soke/Isalẹ iwọn otutu: Ṣe atunṣe iwọn otutu yara ti o fẹ.
• Bọtini Ipo: Cycles through heating modes or power levels.
• Bọtini Aago: Activates and sets the programmable timer.
• Bọtini Titiipa Ọmọ: Engages or disengages the child lock feature.

5.2 Agbara Tan / Pa

1. Plug the power cord into a suitable AC100V electrical outlet.
2. Tẹ awọn Bọtini agbara on the control panel or remote control to turn the heater on. The display will illuminate.
3. Lati paa, tẹ awọn Bọtini agbara again. The heater will enter standby mode.

5.3 Eto iwọn otutu

1. With the heater on, use the Temperature Up (+) or Isalẹ (-) awọn bọtini lati ṣeto iwọn otutu yara ti o fẹ.
2. The display will show the set temperature, then revert to showing the current room temperature.

5.4 Aago Išė

The integrated timer allows you to program the heater to turn on or off at specific times. Consult the full manual for detailed timer programming steps, as this typically involves setting start and end times for each day.

5.5 Boost Heater Function

The boost heater provides additional rapid heating when activated. This function works in conjunction with the main oil heating elements to quickly bring the room to the desired temperature. Activate it via the control panel or remote control as indicated by a specific button or mode setting.

5.6 Ọmọ Titiipa

To prevent accidental changes to settings, activate the child lock by pressing and holding the Bọtini Titiipa Ọmọ for a few seconds. An indicator will appear on the display. Repeat the action to deactivate.

5.7 Iṣakoso latọna jijin

The remote control duplicates most functions available on the main control panel, offering convenience. Ensure the remote control has working batteries and is pointed towards the heater's receiver.

6. Itọju ati Itọju

6.1 Ninu

Yọọ ẹrọ ti ngbona nigbagbogbo ki o jẹ ki o tutu patapata ṣaaju ṣiṣe mimọ.

• Òde: Mu ese ita gbangba pẹlu asọ, damp cloth. Do not use abrasive cleaners, waxes, or polishes as these may damage the finish.
• Eruku: Use a soft brush or vacuum cleaner to remove dust from the air intake and exhaust openings.
• Má ṣe tẹ ohun èlò ìgbóná náà sínú omi tàbí kí omi má ṣe rọ̀ sínú ilé.

6.2 Ibi ipamọ

When not in use, especially during off-season, store the heater in a cool, dry place. Use the provided cotton cover to protect it from dust and dirt. Ensure the power cord is neatly wrapped and secured to prevent damage.

7. Laasigbotitusita

If you experience issues with your heater, consult the following common troubleshooting steps:

• Alagbona ko tan:
  • Rii daju pe okun agbara ti wa ni edidi ni aabo sinu iṣan itanna ti n ṣiṣẹ.
  • Ṣayẹwo ti o ba ti Circuit fifọ ti tripped.
  • Verify the power button has been pressed.
• Heater is on but not heating:
  • Ṣayẹwo eto iwọn otutu; rii daju pe o ti ṣeto ga ju iwọn otutu yara lọwọlọwọ lọ.
  • Ensure no objects are blocking the air vents.
  • Allow some time for the oil to heat up and radiate warmth, especially during initial use.
• Awọn ariwo ti ko wọpọ tabi awọn oorun:
  • A slight odor may occur during the first few uses as manufacturing residues burn off. This is normal.
  • If loud or persistent noises or strong, burning odors occur, immediately turn off and unplug the heater and contact customer support.

If the problem persists after trying these steps, please contact Dimplex customer support.

8. Imọ ni pato

Figure 6: Performance graph illustrating the faster heating capability of the Cadiz Oil Heater compared to a standard oil heater.

9. Atilẹyin ọja ati Onibara Support

Your Dimplex CADIZ Oil Heater ROF14ECCJ comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Dimplex customer support. Contact information can typically be found on the Dimplex official webaaye tabi lori apoti ọja.

When contacting support, please have your model number (ROF14ECCJ) and purchase date readily available.
