Waring DF250B 1800-Watt Deep Fryer Instruction Manual

1. Ifihan

The Waring DF250B 1800-Watt Deep Fryer is designed for efficient and consistent frying results. Featuring an immersion-style heating element, it ensures fast heat-up and quick temperature recovery. This manual provides essential information for the safe and effective operation, maintenance, and care of your deep fryer.

Image 1: The Waring DF250B Deep Fryer in a kitchen environment, ready for use.

2. Alaye Aabo

Máa tẹ̀lé àwọn ìlànà ààbò pàtàkì nígbà tí o bá ń lo àwọn ohun èlò iná láti dín ewu iná, ìkọlù iná mànàmáná àti ìpalára kù. Ohun èlò yìí wà fún lílo ilé nìkan.

• Read all instructions before operating the deep fryer.
• Maṣe fi ọwọ kan awọn aaye ti o gbona. Lo awọn ọwọ ati awọn koko.
• To protect against electrical hazards, do not immerse the control panel, cord, or plug in water or other liquids.
• Abojuto sunmọ jẹ pataki nigbati eyikeyi ohun elo ba lo nipasẹ tabi sunmọ awọn ọmọde.
• Yọọ kuro lati inu iṣan nigbati ko si ni lilo ati ṣaaju ṣiṣe mimọ. Gba laaye lati tutu ṣaaju fifi sii tabi mu awọn ẹya kuro, ati ṣaaju ki o to nu ohun elo naa.
• Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun tabi pulọọgi ti o bajẹ, tabi lẹhin aiṣe ohun elo tabi ti bajẹ ni eyikeyi ọna.
• The 3-foot breakaway cord is designed for safety; ensure it is properly connected but can detach if pulled to prevent tipping.
• Overload auto-shutoff protection and a safety interlock system prevent operation until the control panel is properly mounted.
• Maṣe lo ni ita.
• Ma ṣe jẹ ki okun duro lori eti tabili tabi counter, tabi fi ọwọ kan awọn aaye ti o gbona.
• Ma ṣe gbe sori tabi sunmọ gaasi ti o gbona tabi ina ina, tabi ni adiro ti o gbona.
• Išọra to gaju gbọdọ ṣee lo nigba gbigbe ohun elo ti o ni epo gbona tabi awọn olomi gbona miiran.
• Nigbagbogbo so plug to ohun elo akọkọ, ki o si pulọọgi okun sinu ogiri iṣan. Lati ge asopọ, tan eyikeyi iṣakoso si “pa”, lẹhinna yọ plug kuro ni iṣan ogiri.
• Maṣe lo ohun elo miiran ju lilo ile ti a pinnu lọ.

3. Ọja Ipariview ati irinše

The Waring DF250B Deep Fryer is constructed with brushed stainless steel for durability and easy cleaning. Key components include:

• Ibi iwaju alabujuto: Features temperature and timer controls, along with power and ready indicator lights. This panel is detachable for cleaning.
• Immersion-Style Heating Element: Provides 1800 watts of power for rapid heating and temperature recovery.
• Removable Enamel-Coated Oil Container: A 1-gallon capacity container for cooking oil, designed for easy removal and cleaning.
• Heavy-Duty Mesh Basket: Holds up to 2-1/5 pounds of food. Features a collapsible cool-touch handle for safe handling.
• Domed Lid with ViewFerese: Helps contain splattering and channels condensation away. The viewing window allows monitoring of food without opening the lid.
• Àlẹmọ pípẹ́ títí: Integrated into the lid to help reduce odors.
• Awọn ẹya Aabo: Includes a 3-foot breakaway cord, overload auto-shutoff, and a safety interlock system.

Fidio 1: Ipariview of the Waring DF250B Deep Fryer, demonstrating its features and components.

4. Eto

1. Ṣii silẹ: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti. Ṣe idaduro apoti fun ibi ipamọ iwaju tabi gbigbe.
2. Ìfọ̀mọ́ àkọ́kọ́: Before first use, wash the lid, mesh basket, and oil container in warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the fryer body with a damp cloth. Ensure the control panel and heating element are never immersed in water.
3. Apejọ: Place the enamel-coated oil container securely into the fryer body. Insert the heating element into the designated slots on the control panel, ensuring it clicks into place. Mount the control panel onto the back of the fryer body.
4. Fi Epo kun: Fill the oil container with 1 gallon of suitable frying oil. Ensure the oil level is between the MIN and MAX indicators inside the container.
5. Asopọ agbara: Connect the 3-foot breakaway power cord to the control panel, then plug it into a standard North American electrical outlet.

5. Awọn ilana Iṣiṣẹ

1. Gbigbona ṣaaju: Turn the temperature dial to your desired frying temperature (e.g., 375°F for most items). The red 'Power' light will illuminate. The green 'Ready' light will turn on once the oil reaches the set temperature.
2. Ngba ounjẹ silẹ: Place food into the mesh basket. Do not overload the basket; fry in small batches for best results. For safety, ensure food is as dry as possible to minimize splattering.
3. Dindin: Carefully lower the mesh basket into the hot oil. Close the domed lid. Use the 30-minute mechanical timer to track frying time. Monitor cooking progress through the viewwindow window.
4. Yiyọ Ounjẹ kuro: Once food is cooked to desired crispness, carefully lift the mesh basket and hook it onto the side of the oil container to allow excess oil to drain.
5. Ṣiṣẹ: Gbé oúnjẹ dídín sínú àwo tí a fi aṣọ ìnuwọ́ bò láti fa epo tí ó kù.
6. Fara bale: After use, turn the temperature dial to 'OFF' and unplug the fryer. Allow the oil and fryer components to cool completely before handling or cleaning.

6. Itọju ati Cleaning

Regular cleaning ensures optimal performance and longevity of your deep fryer. Most parts are dishwasher-safe for convenience.

• Itutu: Always ensure the fryer and oil are completely cool before attempting any cleaning.
• Disas Karo: Remove the control panel and heating element. Carefully lift out the mesh basket and the enamel-coated oil container.
• Ìpamọ́/Ìpamọ́ Epo: Once cool, the oil can be carefully poured out using the pouring spout on the container. For reuse, filter the oil through a fine-mesh sieve or cheesecloth and store in an airtight container in a cool, dark place.
• Apoti-Ailewu Awọn ẹya: The lid, mesh basket, and enamel-coated oil container are dishwasher-safe.
• Fifọ ọwọ: For best results, hand wash these components with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
• Control Panel & Heating Element: Wipe the control panel and heating element with a damp cloth. Never immerse these parts in water or any other liquid. Ensure they are completely dry before reassembly.
• Òde: Wipe the brushed stainless steel exterior with a damp cloth and mild detergent if necessary. Dry with a soft cloth to prevent water spots.

7. Laasigbotitusita

If you encounter issues with your deep fryer, refer to the following common solutions:

• Fryer Kò Tan: Ensure the power cord is securely connected to both the fryer's control panel and the wall outlet. Verify that the safety interlock system is engaged (control panel properly mounted). Check the circuit breaker.
• Epo ti ko gbona: Confirm the temperature dial is set to a desired temperature above 'OFF'. Ensure the 'Power' light is on. If the 'Ready' light does not illuminate after a reasonable time, the heating element may be faulty or the safety interlock is not fully engaged.
• Oúnjẹ tí kò ní ìgbẹ́: Ensure the oil is at the correct temperature before adding food. Do not overload the basket; fry in smaller batches. Ensure food is patted dry before frying.
• Excessive Splattering: Always ensure food is as dry as possible before placing it in hot oil. Do not overfill the oil container beyond the MAX line.
• Àpọ̀jù epo: Do not fill the oil container above the MAX fill line. Reduce the amount of food per batch if overflow occurs.

8. Awọn pato

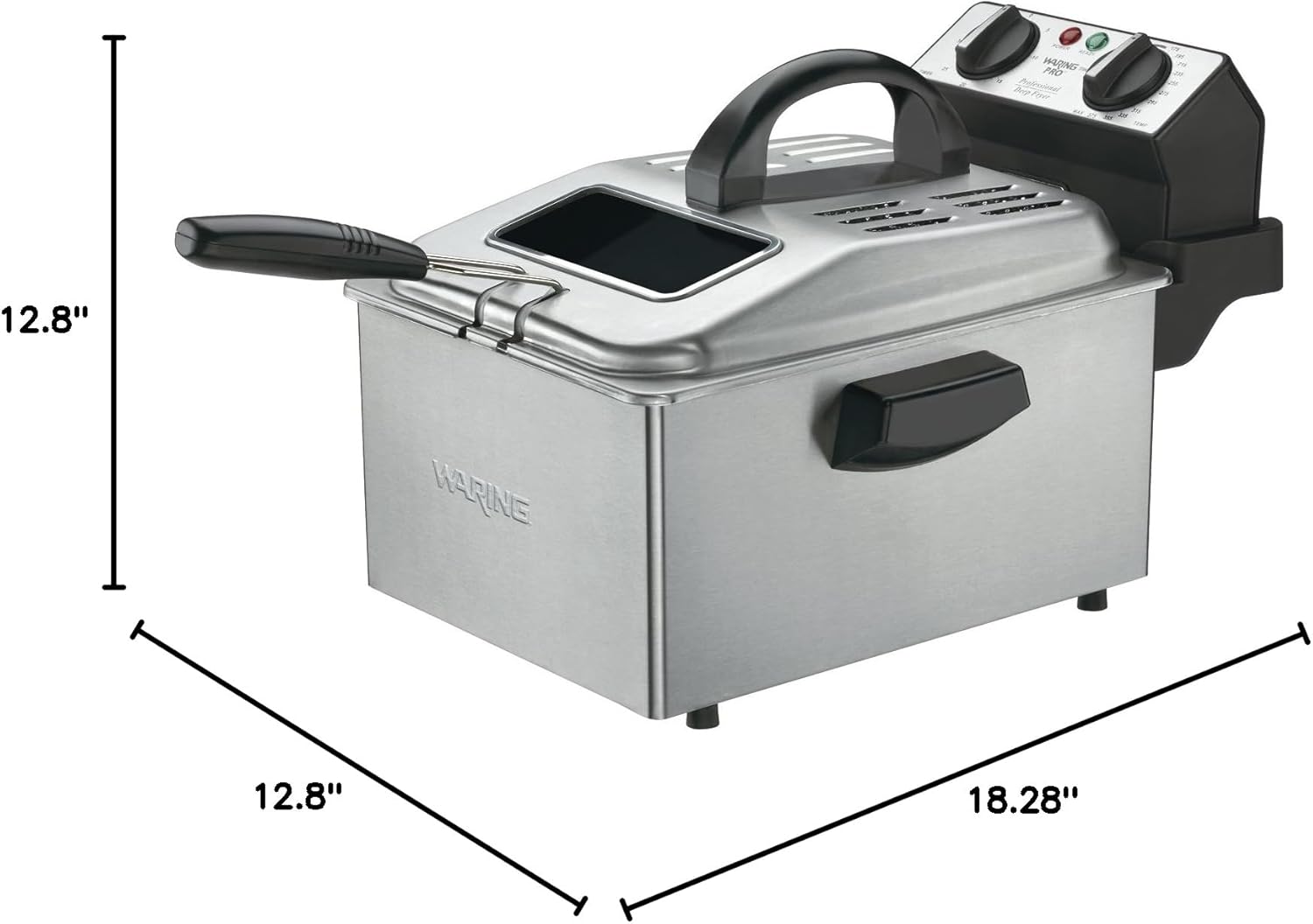

Image 2: The Waring DF250B Deep Fryer showing its product dimensions.

9. Atilẹyin ọja ati Support

The Waring DF250B 1800-Watt Deep Fryer carries a ọkan-odun lopin atilẹyin ọja from the date of purchase. This warranty covers defects in materials and workmanship under normal household use. For warranty claims, technical support, or replacement parts, please contact Waring customer service. Keep your proof of purchase for warranty validation.
