1. Ifihan
This manual provides detailed instructions for the installation, operation, and maintenance of the LiftMaster Chamberlain 41A5021-1H-315 Garage Door Opener Circuit Board. This circuit board is a replacement component designed for compatible LiftMaster and Chamberlain garage door opener models. Proper installation and adherence to safety guidelines are essential for safe and reliable operation.

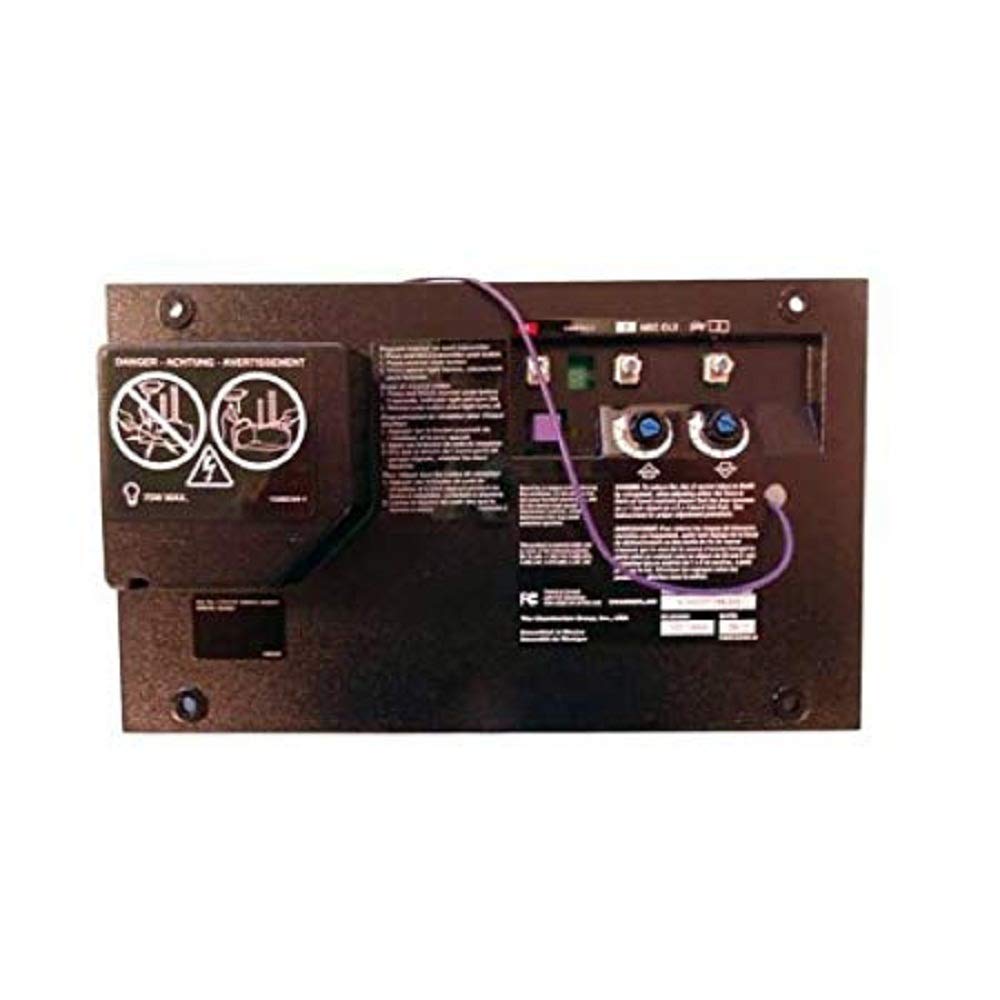

Figure 1: LiftMaster Chamberlain 41A5021-1H-315 Garage Door Opener Circuit Board. This image displays the main circuit board with various connectors and electronic components.
2. Alaye Aabo
WARNING: ELECTRIC SHOCK HAZARD. Disconnect power to the garage door opener before performing any installation, maintenance, or troubleshooting. Failure to do so can result in serious injury or death.
- Always disconnect the electrical power to the garage door opener at the circuit breaker or by unplugging the unit before beginning any work.
- Wọ ohun elo aabo ti ara ẹni ti o yẹ, gẹgẹbi awọn gilaasi ailewu ati awọn ibọwọ.
- Ensure all wiring connections are secure and correctly matched according to the original setup.
- Keep hands and clothing clear of moving parts of the garage door opener.
- This circuit board is intended for replacement purposes only. Do not attempt to modify or alter the board.
- Ti o ko ba ni idaniloju nipa igbesẹ eyikeyi, kan si onimọ-ẹrọ ti o peye.
3. Package Awọn akoonu
Daju pe gbogbo awọn paati wa ati ti ko bajẹ ṣaaju tẹsiwaju pẹlu fifi sori ẹrọ.
- LiftMaster Chamberlain 41A5021-1H-315 Garage Door Opener Circuit Board (1)
- Instruction Sheet (1) (Note: This digital manual serves as a comprehensive guide.)
4. Eto & Fifi sori
This section outlines the steps for replacing the circuit board in your garage door opener. It is recommended to take photos of existing wiring before disconnection for reference.
4.1 Awọn irinṣẹ ti a beere
- Screwdriver (Phillips and/or Flathead, depending on your opener model)
- Needle-nose pliers (optional, for wire handling)
- Digital camera or smartphone (for documenting wiring)
4.2 fifi sori Igbesẹ
- Ge Agbara: Locate the circuit breaker for your garage or unplug the garage door opener from the electrical outlet. Ensure power is completely off before proceeding.
- Wọle si Igbimọ Iṣakoso: Open the light cover or control panel housing on your garage door opener unit. This usually involves removing a few screws.
- Ìsopọ̀mọ́ ìwé: Before disconnecting any wires, take clear photographs of all existing wiring connections to the old circuit board. Pay close attention to the color and position of each wire.
- Ge asopọ Awọn onirin: Carefully disconnect all wires from the old circuit board. These typically include wires for the wall control, safety sensors, and external accessories. Note their positions or refer to your photographs.
- Remove Old Circuit Board: Unscrew the mounting screws holding the old circuit board in place. Gently disconnect any ribbon cables or larger connectors that attach the board to other components within the opener unit. Remove the old board.
- Install New Circuit Board: Carefully position the new LiftMaster Chamberlain 41A5021-1H-315 circuit board into the housing. Secure it with the mounting screws. Reconnect any ribbon cables or larger connectors.
- Tun awọn onirin pọ: Using your photographs as a guide, reconnect all wires to their corresponding terminals on the new circuit board. Ensure each connection is secure.
- Ti Pánẹ́lì Ìṣàkóso Pa: Replace the control panel housing or light cover and secure it with its screws.
- Pada Agbara pada: Restore electrical power to the garage door opener by flipping the circuit breaker back on or plugging the unit back in.
- Program Remotes and Accessories: The new circuit board will require reprogramming of all remote controls, wireless keypads, and any other accessories (e.g., MyQ hub). Refer to your garage door opener's main instruction manual for specific programming steps. Typically, this involves pressing a "Learn" button on the opener unit and then activating the remote.
- Adjust Travel Limits: After programming, test the door's operation. You may need to adjust the up and down travel limits to ensure the door opens fully and closes completely without excessive force. Consult your garage door opener's main manual for instructions on setting travel limits.
- Idanwo Eto Yipada Aabo: Place an object (e.g., a 2x4 board) flat on the floor in the path of the closing door. The door must reverse upon contact with the object. If it does not, adjust the force settings or consult a professional.
5. Awọn ilana Iṣiṣẹ
Once the circuit board is installed and all accessories are programmed, the garage door opener should function as intended. Operation is typically performed via:
- Awọn iṣakoso latọna jijin: Press the designated button on your remote to open or close the garage door.
- Igbimọ Iṣakoso Odi: Use the wall-mounted button to operate the door. Some wall panels also include a light control button.
- Bọtini Alailowaya: Enter your personal identification number (PIN) and press the appropriate button to operate the door from outside the garage.
- MyQ Smart Home System (if applicable): Control and monitor your garage door from your smartphone or other smart devices.
Ensure the path of the garage door is clear before activation. The safety reversal system should always be functional.
6. Itọju
The 41A5021-1H-315 circuit board itself requires no specific maintenance beyond ensuring its connections remain secure. However, regular maintenance of the overall garage door opener system is crucial for longevity and safety.
- Ayewo Ọdọọdun: Periodically inspect all wiring connections to the circuit board to ensure they are tight and free from corrosion.
- Safety Sensor Check: Regularly test the safety reversal system and ensure the safety sensors are clean and properly aligned.
- General Opener Maintenance: Refer to your garage door opener's main manual for recommended maintenance, such as lubricating moving parts and checking spring tension.
- Awọn iwọn agbara: Consider using a surge protector for your garage door opener to protect electronic components, including the circuit board, from electrical spikes.
7. Laasigbotitusita
If you encounter issues after installing the new circuit board, refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Remote controls do not work. | Remotes not programmed to the new board. | Reprogram all remote controls and wireless keypads. Refer to your opener's manual for specific steps. |
| Door does not open or close fully. | Travel limits need adjustment. | Adjust the up and down travel limits. Consult your opener's manual. |
| Door reverses immediately after touching the floor. | Down travel limit set too low or force adjustment needed. | Increase the down travel limit slightly or adjust the down force. |
| Door does not close, and opener lights flash. | Safety sensors are obstructed, misaligned, or faulty. | Check for obstructions in the sensor path. Clean sensor lenses. Align sensors so their indicator lights are steady. |
| Opener light stays on or flashes erratically. | Possible wiring issue or internal fault. | Verify all wiring connections are secure. If the problem persists, consult a qualified technician. |
| No power to the opener. | Circuit breaker tripped or unit unplugged. | Check the circuit breaker and ensure the opener is securely plugged in. |
If these troubleshooting steps do not resolve the issue, it is recommended to contact LiftMaster/Chamberlain customer support or a professional garage door technician.
8. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | 41A5021-1H-315 |
| Brand | LiftMaster / Chamberlain |
| Ohun elo | Ṣiṣu, Itanna irinše |
| Àwọ̀ | Dudu |
| Apejọ ti a beere | Yes (installation into existing opener) |
| UPC | 688931409651 |
| Ibamu | Designed for specific LiftMaster and Chamberlain garage door opener models (verify compatibility with your opener's model number). |
9. Atilẹyin ọja & Atilẹyin
9.1 atilẹyin ọja Alaye
Specific warranty details for the LiftMaster Chamberlain 41A5021-1H-315 Circuit Board are typically provided by the manufacturer at the time of purchase or can be found on the official LiftMaster or Chamberlain website. Please retain your proof of purchase for warranty claims. Warranty coverage usually applies to defects in materials and workmanship under normal use.
9.2 Onibara Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact LiftMaster or Chamberlain customer support directly. Their official websites provide contact information, FAQs, and additional resources.
- Osise LiftMaster Webojula: www.liftmaster.com
- Chamberlain Official Webojula: www.olabi.com
When contacting support, have your product model number (41A5021-1H-315) and the model number of your garage door opener unit readily available.
