1. Ọja Ipariview
The Teka Stainless Steel Single Bowl Sink 390 is a high-quality, durable kitchen sink designed for undermount installation. Crafted from stainless steel, it offers excellent resistance to corrosion and is easy to clean, making it a practical addition to any modern kitchen. This manual provides detailed instructions for its installation, operation, and maintenance to ensure long-lasting performance.
Aworan 1.1: Oke-isalẹ view of the Teka Stainless Steel Single Bowl Sink 390, showcasing its round shape and central drain.
Awọn ẹya pataki:
- Single bowl design for efficient use of space.
- Constructed from high-quality stainless steel for durability and corrosion resistance.
- Designed for undermount installation, providing a seamless countertop appearance.
- Features a 9.5 cm manual basket waste with overflow for effective drainage and spill prevention.
- Deep 180 mm bowl accommodates larger kitchen items.
- Compatible with a 45 cm base unit.
- Compact dimensions: 390mm diameter x 180mm depth.
2. Alaye Aabo
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in property damage or personal injury.
- Nigbagbogbo wọ ohun elo aabo ti ara ẹni ti o yẹ (PPE) gẹgẹbi awọn ibọwọ ati aabo oju lakoko fifi sori ẹrọ.
- Ensure all water supply lines are shut off before beginning installation.
- Fi ọwọ́ mú fìríìsì náà dáadáa kí o má baà jẹ́ kí o gé tàbí kí o ba gbogbo rẹ̀ jẹ́.
- If you are unsure about any step of the installation process, consult a qualified plumber or professional installer.
- Pa awọn ọmọde ati awọn ohun ọsin kuro ni agbegbe iṣẹ lakoko fifi sori ẹrọ.
3. Package Awọn akoonu
Before beginning installation, verify that all components are present and undamaged.
- Teka Stainless Steel Single Bowl Sink 390
- Manual basket waste with overflow
- Installation clips and accessories
- Installation template (if included)
Image 3.1: The sink highlighting its fixing accessories and the 180 mm bowl depth, which facilitates installation.
4. Eto ati fifi sori
This sink is designed for undermount installation. Professional installation is recommended.
4.1 Preparing the Countertop
- Ensure the countertop material is suitable for undermount sink installation.
- Use the provided template to mark the cutout area on the underside of the countertop.
- Carefully cut the opening in the countertop according to the template. Ensure smooth edges.
4.2 Mounting the Sink
- Apply a continuous bead of silicone sealant around the rim of the sink where it will meet the countertop.
- Position the sink under the countertop cutout, ensuring proper alignment.
- Secure the sink to the countertop using the provided installation clips. Tighten the clips evenly to create a strong seal.
- Wipe away any excess sealant immediately.
4.3 Connecting Plumbing
- Install the manual basket waste and overflow assembly into the sink drain opening according to the manufacturer's instructions for the waste kit.
- Connect the sink drain to your household plumbing system. Ensure all connections are tight and leak-free.
- Install the faucet (not included) onto the countertop or wall, and connect its water supply lines to your hot and cold water feeds.
- Once all connections are made, slowly turn on the water supply and check for any leaks.

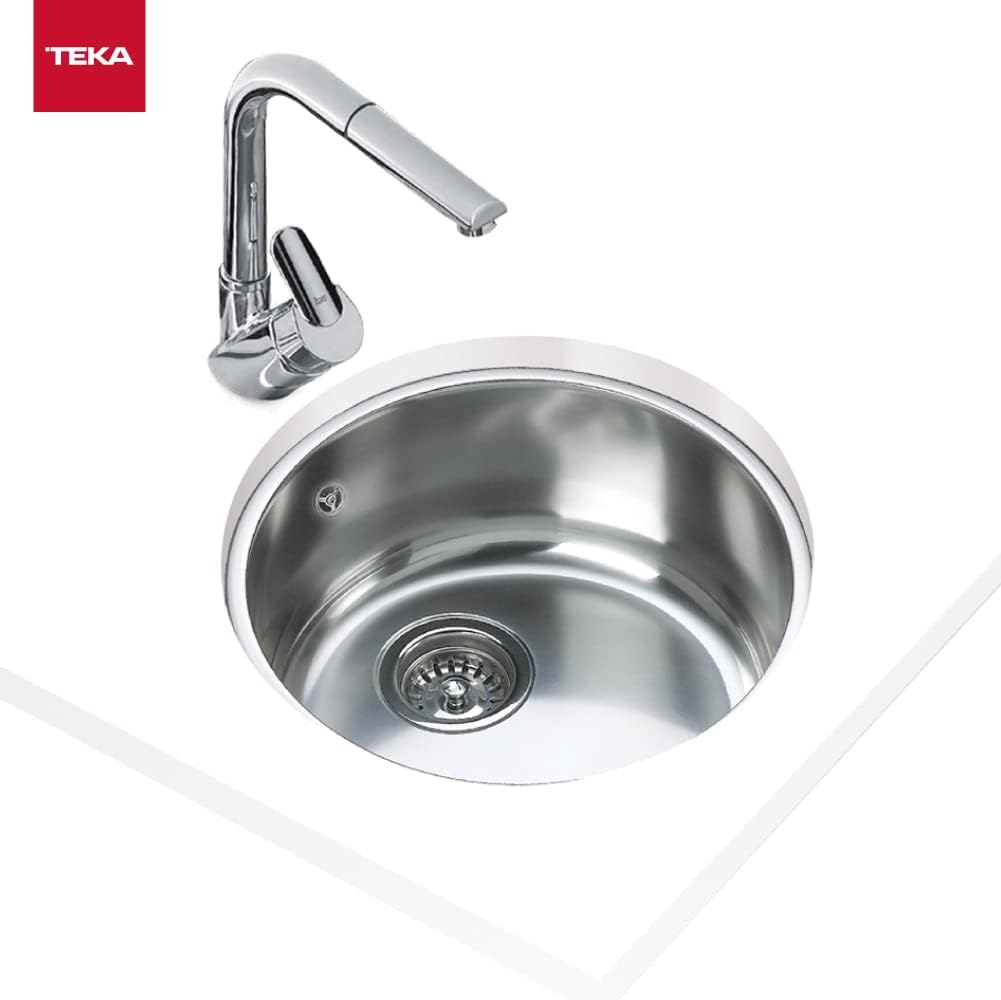

Image 4.1: The Teka sink seamlessly installed into a countertop, demonstrating its undermount design and compatibility with modern kitchen faucets.
Image 4.2: This image illustrates the sink's design for undermount installation and the aesthetic overflow trim.
5. Awọn ilana Iṣiṣẹ
The Teka Stainless Steel Single Bowl Sink 390 operates like any standard kitchen sink. Simply turn on your faucet to use water for washing, rinsing, or filling. The manual basket waste allows for easy removal of food debris and prevents clogging.
5.1 Using the Basket Waste
- To collect food debris, ensure the basket is in place in the drain opening.
- To drain water, lift the basket slightly or remove it completely.
- To seal the drain and fill the sink with water, press the basket firmly into the drain opening.
6. Itọju ati Cleaning
Ìtọ́jú tó tọ́ yóò ran ọ́ lọ́wọ́ láti rí i àti láti pẹ́ títí tí fìtílà irin alagbara rẹ yóò fi wà níbẹ̀.
6.1 Daily Cleaning
- After each use, rinse the sink thoroughly with warm water to remove any food particles or residue.
- Wipe the sink dry with a soft cloth to prevent water spots and mineral buildup, especially in hard water areas.
6.2 Deede Cleaning
- Use a mild dish soap and a soft sponge or cloth for general cleaning.
- For stubborn stains, use a non-abrasive stainless steel cleaner. Always rub in the direction of the grain.
- Never use steel wool, abrasive cleaners, bleach, or cleaners containing chlorides, as these can damage the stainless steel finish.
- Clean the basket waste regularly to prevent odors and blockages.
6.3 Preventing Scratches and Damage
- Avoid dropping heavy or sharp objects into the sink.
- Do not leave acidic foods (e.g., citrus fruits, tomatoes) or corrosive chemicals in contact with the sink surface for extended periods.
- Consider using a sink grid to protect the bottom of the sink from scratches.
7. Laasigbotitusita
Eyi ni diẹ ninu awọn ọran ti o wọpọ ati awọn ọna abayọ wọn:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Water spots or streaks | Hard water minerals; not drying sink after use | Wipe sink dry after each use. Use a stainless steel cleaner for existing spots. |
| Slow drainage | Food debris or grease buildup in drain | Clean the basket waste. Use a drain cleaner suitable for kitchen sinks if necessary. |
| Dull finish | Lack of regular cleaning; use of abrasive cleaners | Clean regularly with mild soap and water. Use a stainless steel polish to restore shine. Avoid abrasive cleaners. |
| Leaks around sink rim | Improper sealant application; loose mounting clips | Check and tighten mounting clips. Reapply silicone sealant if necessary. |
8. Awọn pato
Detailed technical specifications for the Teka Stainless Steel Single Bowl Sink 390.
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Brand | Teka |
| Nọmba awoṣe | inox bajo encimera (Part No. 10125006) |
| Ohun elo | Irin ti ko njepata |
| Àwọ̀ | Fadaka |
| Apẹrẹ | Yika |
| Pari Iru | Didan |
| Iṣagbesori Iru | L’orukoju |
| Overall Dimensions (Depth x Width x Height) | 39 cm x 39 cm x 18 cm |
| Ekan Ijinle | 180 mm |
| Base Unit Compatibility | 45 cm |
| Sisan Iru | Basket Grid |
| Nọmba ti Iho | 1 |
| Iwọn Nkan | 2.5 kilo |

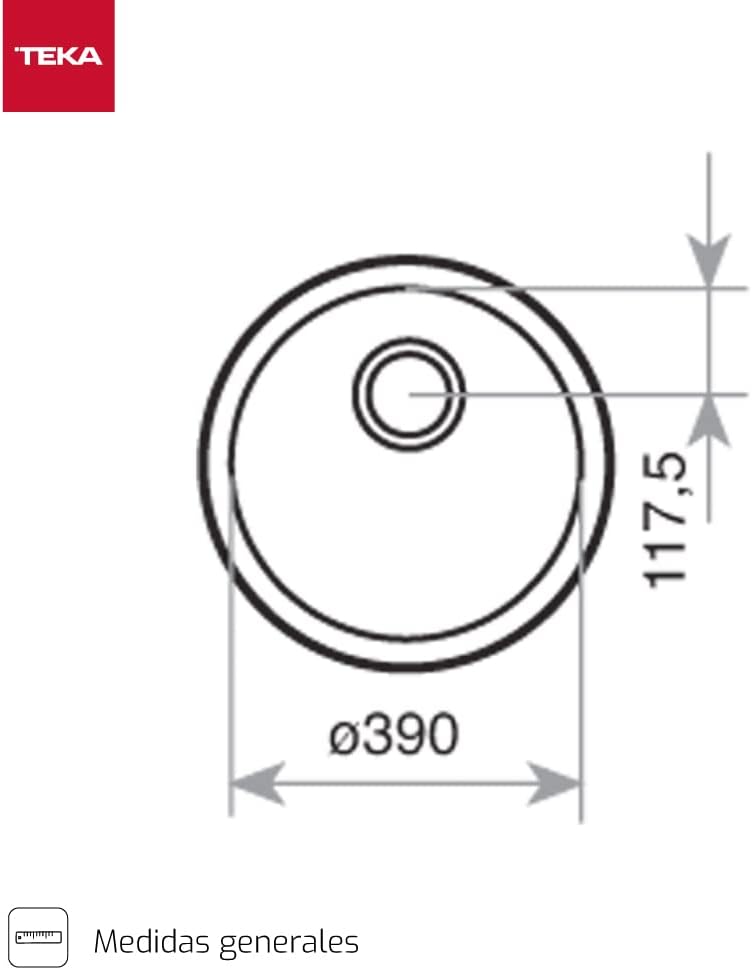

Image 8.1: Technical drawing showing the general measurements of the sink, including its 390mm diameter.
9. Atilẹyin ọja ati Support
Teka offers a lifetime warranty for this stainless steel sink, ensuring peace of mind regarding its quality and durability.
For any product-related inquiries, installation assistance, or support, please do not hesitate to contact Teka customer service. You can reach us via WhatsApp at: +971 4 3883770.
Jọwọ ṣe idaduro ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.
