Logitech G300 Awọn ere Awọn Asin olumulo Afowoyi

1. Ifihan

This manual provides instructions for the Logitech G300 Gaming Mouse. The G300 is designed to offer enhanced control and customization for various applications, featuring nine programmable controls, onboard memory for profiles, and customizable lighting.

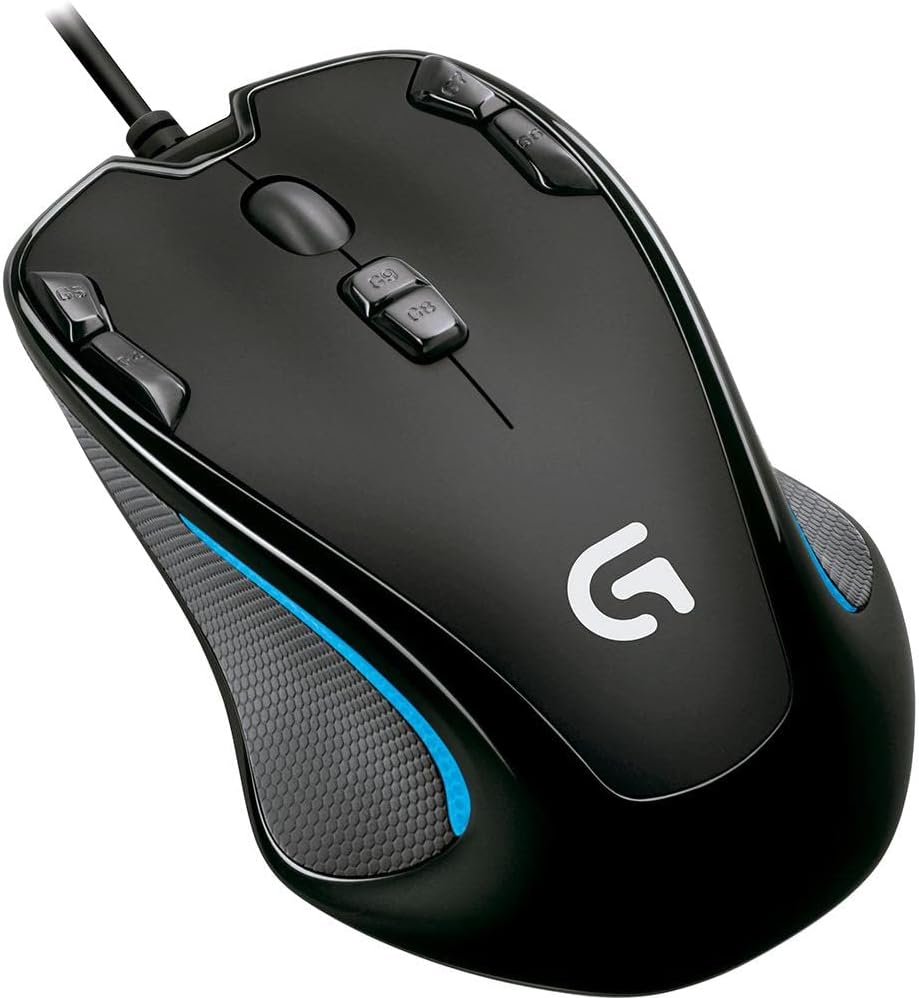

Figure 1: Logitech G300 Gaming Mouse. This image shows the top-down view of the black mouse with blue accents, highlighting its symmetrical design and the placement of its primary buttons and scroll wheel.

2. Package Awọn akoonu

The Logitech G300 Gaming Mouse package includes the following items:

• Logitech G300 Gaming Mouse
• Akosile olumulo

3. Eto

3.1 Nsopọ Asin

To connect your Logitech G300 Gaming Mouse:

1. Wa ibudo USB ti o wa lori kọnputa rẹ.
2. Insert the USB connector of the G300 mouse into the USB port.
3. Your operating system should automatically detect the mouse.

olusin 2: Iwaju view of the Logitech G300 Gaming Mouse, showing the integrated USB cable for connection to a computer.

3.2 Fifi sori ẹrọ sọfitiwia (aṣayan)

For full functionality, including programmable controls and profile management, it is recommended to install the Logitech Gaming Software.

• Download the latest Logitech Gaming Software from logitech.com/downloads.
• Tẹle awọn ilana loju iboju lati pari fifi sori ẹrọ.
• Note: Some profile settings require Logitech Gaming Software to be enabled and are not supported on Linux and earlier Windows-based operating systems.

4. Awọn ilana Iṣiṣẹ

4.1 Programmable Controls

The Logitech G300 features nine programmable controls, allowing you to assign keyboard commands or macros to buttons for quick access. These controls are strategically placed for easy reach during use.

olusin 3: Top view of the Logitech G300 Gaming Mouse, illustrating the placement of the nine programmable buttons (G4, G5, G6, G7, G8, G9, and the standard left, right, and middle click).

4.2 Onboard Memory Profiles

The mouse can store up to three game or player profiles directly on its onboard memory. This allows you to use your customized settings on different computers without needing to reconfigure them, provided the Logitech Gaming Software is installed on the host system for full functionality.

4.3 Assignable Color Lighting

Each stored profile can be assigned a unique color. This visual indicator helps you quickly identify which profile lọwọlọwọ lọwọ.

4.4 Apẹrẹ Ambidextrous

The G300 features a symmetrical, sculpted shape designed for comfort in either hand, accommodating both left and right-handed users for extended periods of use.

olusin 4: Apa view of the Logitech G300 Gaming Mouse, illustrating its ergonomic and ambidextrous design, with textured grip areas.

4.5 Gaming-Grade Optical Sensor

The mouse is equipped with a 2500 DPI optical sensor that accurately tracks both slow and fast hand movements across various surfaces, providing responsive and precise cursor control.

5. Software iṣeto ni

The Logitech Gaming Software provides an intuitive interface for customizing your G300 mouse:

• Easy Configuration: Simply drag and drop commands onto the mouse buttons displayed on the software screen to assign functions.
• Automatic Game Detection: The software can automatically detect the game you are playing and apply custom configurations specific to that game.

6. Awọn pato

Figure 5: Dimensions of the Logitech G300 Gaming Mouse, showing a length of 4.88 inches and a width of 3.03 inches.

olusin 6: Isalẹ view of the Logitech G300 Gaming Mouse, displaying regulatory marks and model information, including the optical sensor.

7. Ibamu

The Logitech G300 Gaming Mouse is compatible with:

• Windows-based PC: Windows XP, Windows Vista, or Windows 7
• USB ibudo
• Asopọ ayelujara fun iyan software download

8. Laasigbotitusita

If you encounter issues with your Logitech G300 Gaming Mouse, consider the following basic troubleshooting steps:

• Ko si Idahun: Ensure the USB cable is securely connected to a functioning USB port on your computer. Try a different USB port.
• Awọn ọrọ sọfitiwia: If programmable buttons or profiles are not working as expected, ensure the Logitech Gaming Software is installed correctly and is up to date. Restart your computer after software installation or updates.
• Inconsistent Tracking: Ensure the mouse sensor is clean and free of debris. Use the mouse on a suitable surface (e.g., a mouse pad).
• Profile Not Loading: Verify that the Logitech Gaming Software is running in the background, as some profile settings require it.

9. Atilẹyin ọja ati Support

9.1 atilẹyin ọja Alaye

The Logitech G300 Gaming Mouse comes with a 3-odun lopin atilẹyin ọja hardware. For detailed terms and conditions, please refer to the warranty documentation included with your product or visit the official Logitech webojula.

9.2 Onibara Support

Fun iranlọwọ siwaju, atilẹyin imọ-ẹrọ, tabi lati wọle si awọn orisun afikun, jọwọ ṣabẹwo si atilẹyin Logitech osise webojula:

https://support.logi.com/
