Ọrọ Iṣaaju
Thank you for choosing the Jet Tech F-16DP High Temp Undercounter Dishwasher. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new commercial dishwasher. Please read this manual thoroughly before operating the appliance and retain it for future reference.
The F-16DP is a high-performance, undercounter dishwasher designed for commercial environments, featuring durable stainless steel construction and high-temperature washing capabilities to ensure optimal hygiene and cleaning results.
Alaye Aabo
IKILO: To reduce the risk of fire, electric shock, or injury, read all instructions before operating this appliance.
- Rii daju pe ẹrọ fifọ ti wa ni ilẹ daradara ni ibamu si awọn koodu itanna agbegbe.
- Má ṣe lo ẹ̀rọ fifọ ẹ̀rọ tí ó bá bàjẹ́ tàbí tí kò bá ṣiṣẹ́ dáadáa. Kan sí àwọn òṣìṣẹ́ iṣẹ́ tó mọ̀ nípa ẹ̀rọ náà.
- Keep all detergents and rinse aids out of reach of children and pets. Use only commercial-grade detergents suitable for high-temperature dishwashers.
- Exercise caution when opening the door during or after a wash cycle, as hot steam may escape.
- Má ṣe jẹ́ kí àwọn ọmọdé máa ṣeré pẹ̀lú tàbí kí wọ́n máa fi ẹ̀rọ ìfọṣọ ṣeré.
- Ohun elo yii jẹ ipinnu fun lilo iṣowo nikan.
- Awọn olugbe California: Ọjà yìí lè fi ọ́ hàn sí àwọn kẹ́míkà tí Ìpínlẹ̀ California mọ̀ pé ó lè fa àrùn jẹjẹrẹ àti àbùkù ìbímọ tàbí àwọn ìpalára mìíràn fún ìbímọ. Fún ìwífún síi, ṣèbẹ̀wò sí i. www.P65Warnings.ca.gov.
Ọja Pariview
The Jet Tech F-16DP is an efficient and robust undercounter dishwasher designed for demanding commercial kitchen environments.

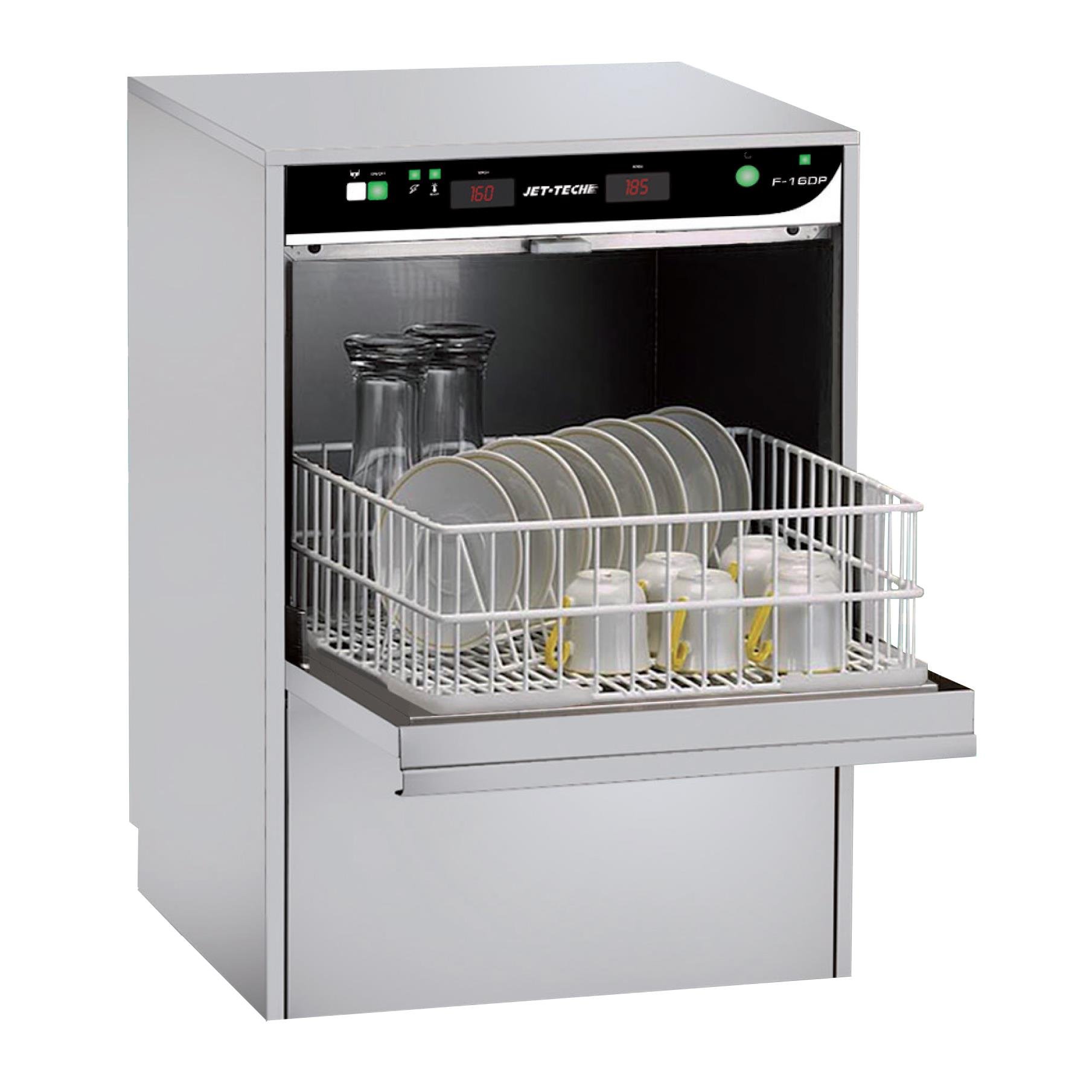

olusin 1: Iwaju view of the Jet Tech F-16DP High Temp Undercounter Dishwasher. This image displays the stainless steel exterior and front-loading door design.
Awọn ẹya pataki:
- Ikole: Stainless steel double wall construction for durability and insulation.
- Apẹrẹ: Front loading door type with an undercounter design.
- Idabobo: Insulated top and side panels for energy efficiency.
- Agbara: Capable of washing up to 24 racks per hour.
- Racks Included: One (1) flat 16" x 16" rack and one (1) 16" x 16" (16)-compartment angled glassware rack (fits glasses up to 10" high).
- Iwọn otutu: High temperature wash with a built-in electric booster heater.
- Isẹ: Fully automatic with an integrated front control panel featuring analog temperature gauges.
- Awọn ifasoke: Built-in detergent and rinse additive pumps, and a built-in auto-drain pump.
- Lilo Agbara: ENERGY STAR certified.
Kini o wa ninu apoti:
- Jet Tech F-16DP Dishwasher Unit
- One (1) flat 16" x 16" rack
- One (1) 16" x 16" (16)-compartment angled glassware rack
Eto ati fifi sori
Fifi sori daradara jẹ pataki fun iṣẹ ṣiṣe ati gigun ti ẹrọ ifoso rẹ. O ti wa ni niyanju wipe fifi sori wa ni nipasẹ ošišẹ ti a oṣiṣẹ Onimọn ẹrọ.
- Ibi: Choose a suitable undercounter location with adequate space for the unit (Dimensions: 20.25"D x 20.25"W x 29.5"H). Ensure proper ventilation and access for maintenance.
- Asopọmọra itanna: The unit requires a 208-240V/60/1-ph electrical supply with 12.9 amps. Connect the dishwasher to a dedicated, grounded electrical circuit as per local electrical codes.
- Ipese Omi: Connect the dishwasher to a hot water supply. Ensure the water pressure is within the recommended range for commercial dishwashers.
- Imugbẹ Asopọ: Connect the built-in auto-drain pump to a suitable drain line. Ensure proper slope for efficient drainage.
- Detergent ati Iranlọwọ Fi omi ṣan: Connect the built-in detergent and rinse additive pumps to their respective chemical containers. Follow manufacturer guidelines for chemical types and concentrations.
- Ìpele: Level the dishwasher using the adjustable feet to ensure stable operation and proper drainage.
- Ibẹrẹ Ibẹrẹ: After all connections are secure, turn on the water supply and power. The unit will automatically fill the tank.
Awọn ilana Iṣiṣẹ
The F-16DP is designed for user-friendly, automatic operation.
- Awọn ounjẹ ti a ti ṣaju-ṣaaju: Before loading, scrape off large food particles from dishes and glassware.
- Load Racks: Place dishes and glassware into the provided 16" x 16" racks. Ensure items are not overlapping and water can reach all surfaces. Load glasses up to 10" high in the angled glassware rack.
- Titi ilẹkun: Securely close the front-loading door.
- Yan Yiyika: Use the integrated front control panel to select the desired wash cycle. Available options include:
- Deede: For everyday dishware and glassware.
- lekoko: For heavily soiled bakeware and stubborn food residues.
- Fi omi ṣan: For a quick rinse cycle without detergent.
- Ibẹrẹ Yiyika: Press the start button. The dishwasher will automatically proceed through the selected cycle, including pre-wash, high-temperature wash, rinse, and final rinse with booster heater. Analog temperature gauges will display current temperatures.
- Yọọ silẹ: Once the cycle is complete, carefully open the door and allow steam to dissipate before unloading the clean, sanitized items.
Itoju
Itọju deede ṣe idaniloju iṣẹ ṣiṣe to dara julọ ati fa igbesi aye ti ẹrọ ifoso rẹ pọ si.
- Ninu ojoojumọ:
- After the last cycle of the day, activate the auto-drain function to empty the wash tank.
- Remove and clean the filter screens to prevent clogs and ensure proper water circulation.
- Wipe down the interior and exterior stainless steel surfaces with a damp asọ ati ìwọnba, ti kii-abrasive regede.
- Isọmọ ọsẹ:
- Inspect and clean the wash arms for any clogged nozzles.
- Check and refill detergent and rinse aid containers as needed.
- Fifọ: Periodically descale the machine to remove mineral buildup, especially in hard water areas. Consult a qualified technician or your chemical supplier for appropriate descaling procedures and products.
- Iṣẹ Ọjọgbọn: Schedule regular professional maintenance checks to ensure all components, including pumps, heating elements, and seals, are in good working order.
Laasigbotitusita
Ṣaaju ki o to kan si iṣẹ, tunview awọn wọnyi wọpọ oran ati awọn solusan.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Apoti ko bẹrẹ | No power; Door not closed properly; Circuit breaker tripped. | Check power supply; Ensure door is securely latched; Reset circuit breaker. |
| Awọn awopọ ko mọ | Ikojọpọ ti ko tọ; Clogged sokiri apá; Awọn ohun elo ti ko to; Omi otutu kekere ju. | Reload racks correctly; Clean spray arm nozzles; Check detergent levels; Verify booster heater is functioning. |
| Omi ti ko ṣan | Clogged drain filter; Kinked drain hose; Drain pump malfunction. | Ajọ omi ti o mọ; Titọ okun sisan; Iṣẹ olubasọrọ ti fifa soke ba jẹ aṣiṣe. |
| Ariwo ti o pọju | Items obstructing wash arms; Loose components; Pump issue. | Ensure nothing is blocking wash arms; Check for loose parts; Contact service if pump noise persists. |
Ti iṣoro naa ba wa lẹhin igbiyanju awọn ojutu wọnyi, jọwọ kan si awọn oṣiṣẹ iṣẹ ti o peye.
Awọn pato
- Awoṣe: F-16DP
- Okunfa Fọọmu: Built-In, Undercounter
- Ohun elo ikole: Irin ti ko njepata
- Awọn iwọn (D x W x H): 20.25" x 20.25" x 29.5"
- Agbara: 24 agbeko fun wakati kan
- Agbara ojò: 3.0 galonu
- Booster Capacity: 0.79 galonu
- Olugbona Igbega: 2.4 kW electric booster
- Wash Pump: 1 / 2 HP
- Awọn ibeere Itanna: 208-240V/60Hz/1-ph, 12.9 Amps
- Awọn aṣayan Yiyipo: Deede, Kikan, Fi omi wẹ̀
- Awọn ẹya pataki: Built-in detergent and rinse additive pumps, built-in auto-drain pump, analog temperature gauges.
- Awọn iwe-ẹri: ENERGY STAR, CE, cULus, UL-EPH
Atilẹyin ọja ati Support
For specific warranty details, please refer to the warranty card included with your purchase or contact Jet Tech customer service.
For technical support, parts, or service inquiries, please contact your authorized Jet Tech dealer or visit the official Jet Tech website. When contacting support, please have your model number (F-16DP) and serial number ready.
