TYT TH-9000D VHF Mobile Transceiver User Manual

Ọrọ Iṣaaju

The TYT TH-9000D is a robust VHF mono-band mobile transceiver designed for amateur radio use. It offers high output power, extensive channel capacity, and a wide range of features for reliable communication. This manual provides detailed instructions for the proper setup, operation, and maintenance of your TH-9000D transceiver.

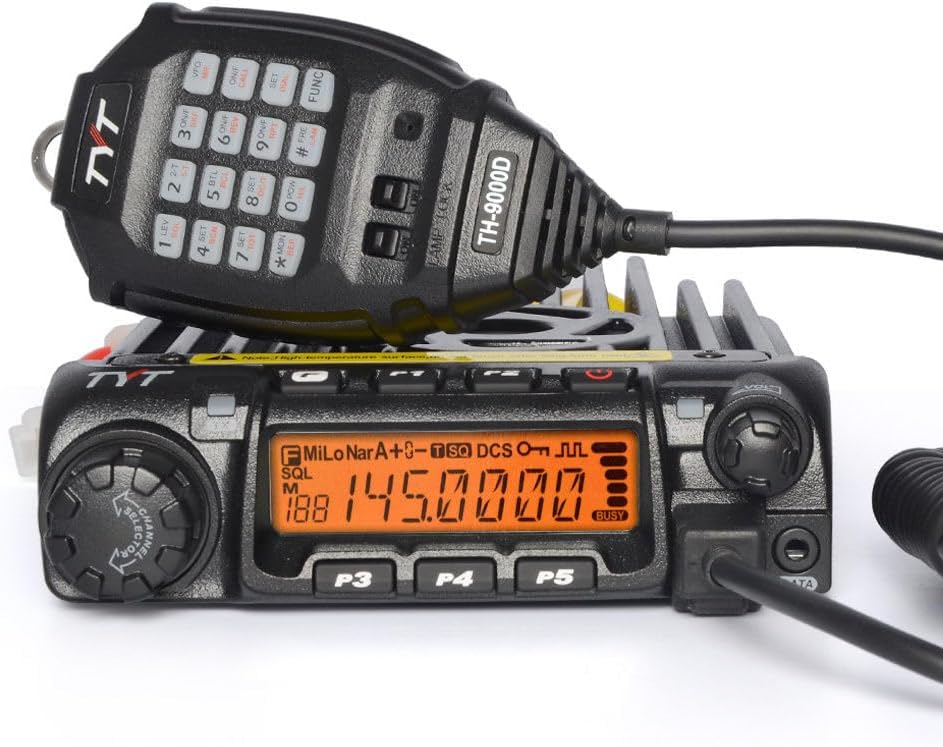

Figure 1: TYT TH-9000D Mobile Transceiver with its handheld microphone.

Alaye Aabo

Please read and understand all safety precautions before operating the transceiver. Failure to do so may result in injury or damage to the equipment.

• Ibi ti ina elekitiriki ti nwa: Use only a stable 13.8V DC power supply with sufficient current capacity (minimum 15A recommended for full power operation).
• Eriali: Always connect a suitable VHF antenna before transmitting. Transmitting without an antenna or with a mismatched antenna can damage the transceiver.
• Ooru: The transceiver's heatsink can become hot during prolonged transmission. Ensure adequate ventilation and avoid touching the heatsink during or immediately after operation.
• Fifi sori ẹrọ: When installing in a vehicle, ensure the mounting location does not obstruct airbags or driver's view. Secure all cables to prevent interference with vehicle controls.
• Ibamu FCC: This device complies with FCC rules. Operation is subject to the condition that this device does not cause harmful interference.

Package Awọn akoonu

Daju pe gbogbo awọn nkan ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ:

• 1x TYT TH-9000D VHF Mobile Transceiver
• 1x Handheld Microphone
• 1x DC Power Cable with Fused Connector
• 1x Fixed Mounting Bracket
• 1x Set of Screws and Accessories for Mounting
• Ìwé Ìtọ́sọ́nà Olùlò 1x (ìwé yìí)

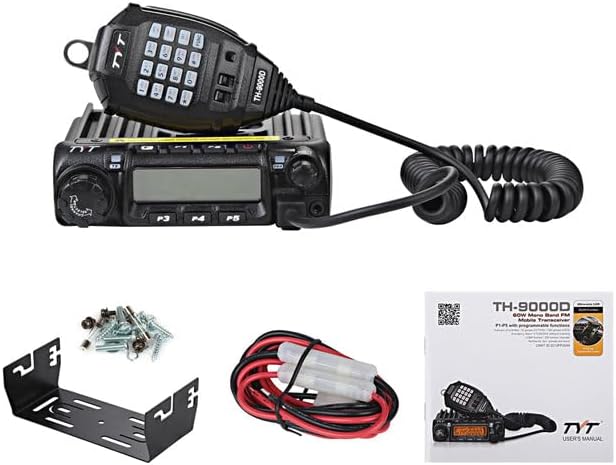

Figure 2: All components included in the TYT TH-9000D package.

Ṣeto

1. Fifi sori ti ara

Choose a stable and well-ventilated location for the transceiver. Use the provided fixed mounting bracket to secure the unit. Ensure there is sufficient space around the heatsink for airflow.

olusin 3: Top view of the TH-9000D, highlighting the heatsink for heat dissipation.

2. Asopọ agbara

Connect the supplied DC power cable to the power input port on the rear of the transceiver. Ensure the red wire connects to the positive (+) terminal and the black wire to the negative (-) terminal of your 13.8V DC power supply. The power cable includes an inline fuse for protection.

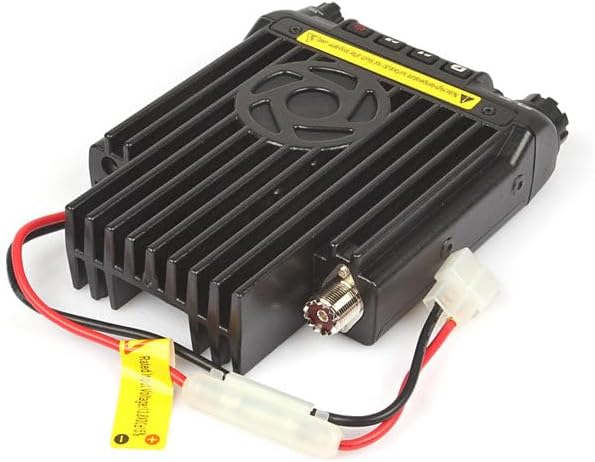

Figure 4: Rear connections of the TH-9000D, including the power cable and antenna port.

3. Eriali Asopọ

Connect a suitable 50-ohm VHF antenna to the SO-239 connector on the rear of the transceiver. Ensure the connection is secure. Never transmit without an antenna connected.

4. Ìsopọ̀ Gbohungbohun

Plug the handheld microphone's RJ45 connector into the microphone port on the front panel of the transceiver. Ensure it clicks into place securely.

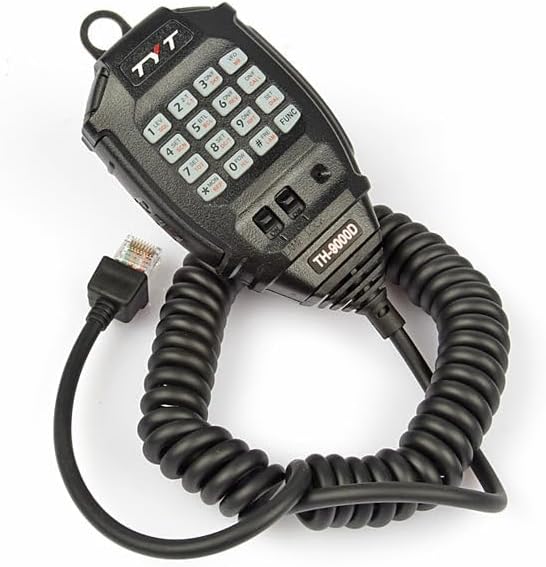

Figure 5: The handheld microphone for the TH-9000D, featuring a full keypad.

Awọn ilana Iṣiṣẹ

1. Agbara Tan / Pa ati Iwọn didun

• Agbara Tan: Tẹ mọlẹ PWR button (usually integrated with the volume knob) for a few seconds until the display illuminates.
• Agbara Pa: Tẹ mọlẹ PWR bọtini lẹẹkansi titi ti ifihan yoo wa ni pipa.
• Atunse iwọn didun: Yiyi awọn VOL tẹ bọtini ni apa aago lati mu iwọn didun pọ si ati ni ọna odi si apa aago lati dinku rẹ.

2. Igbohunsafẹfẹ ati Aṣayan ikanni

• Iwọn Igbohunsafẹfẹ: The transceiver operates within the VHF frequency range: RX: 136-174MHz; TX: 144-148MHz.
• Agbara ikanni: The TH-9000D supports up to 200 alphanumeric channels.
• Frequency/Channel Mode: Lo awọn VFO/Ọgbẹni button on the microphone or front panel to switch between Frequency (VFO) mode and Memory (MR) channel mode.
• Yiyi: In VFO mode, use the main rotary encoder (CHANNEL selector) or the microphone's up/down buttons to adjust the frequency. In MR mode, rotate the encoder to select a stored channel.

3. Output Power Selection

The transceiver offers High, Mid, and Low power output settings. The maximum output power is 65W (VHF). Refer to the user manual for specific button presses to cycle through power levels (often a dedicated AGBARA or HI/LO bọtini).

4. CTCSS/DCS (PL & DPL) Settings

Continuous Tone-Coded Squelch System (CTCSS) and Digital Coded Squelch (DCS) are used to filter out unwanted signals. The TH-9000D supports 1750Hz tone, CTCSS/DCS setting, and scanning. Consult the full user manual for detailed programming steps.

5. Squelch Level (SQL) Setting

Adjust the squelch level from 0 to 9 to control the receiver's sensitivity to background noise. A higher squelch level requires a stronger signal to open the receiver.

6. Keypad Lock Function

To prevent accidental changes, activate the keypad lock. This function typically locks the microphone keypad and some front panel buttons. Refer to the manual for the specific key combination to activate/deactivate.

7. Àwọn Ìgbésẹ̀ Ṣíṣàyẹ̀wò

The transceiver supports frequency and channel scanning. This allows you to monitor multiple frequencies or channels for activity. Activate scanning via the dedicated SCAN button or menu option.

8. Awọn ẹya ara ẹrọ ti ilọsiwaju

• DTMF/2 Tone/5 Tone: For selective calling and control functions.
• ANI ID: Automatic Number Identification for caller identification.
• Remote Kill/Stun/Activate/Revive: Functions for remote control of another transceiver (requires compatible setup).
• Itaniji pajawiri: Activates an audible alarm and transmits a distress signal.
• Wide/Narrow Band Setting: Adjusts the modulation bandwidth for different communication requirements.
• TX Inhibit: Prevents accidental transmission.
• Busy Channel Lock-Out (BCLO): Prevents transmission on an occupied channel.
• Channel Name Editing: Customize channel names for easier identification.
• Yipada Igbohunsafẹfẹ: Swaps transmit and receive frequencies, useful for repeater operation.
• Soro Ni ayika: Allows direct communication on a repeater's output frequency, bypassing the repeater.
• Scrambler (Optional): Encrypts voice for private communication (if equipped).
• Ifọrọranṣẹ: Provides audible feedback for operations.
• Aago Ipari (TOT): Limits continuous transmission time to prevent overheating.
• Pa agbara laifọwọyi (APO): Automatically turns off the transceiver after a period of inactivity.
• Batiri Voltage Ifihan: Shows the current operating voltage.

Itoju

• Ninu: Use a soft, dry cloth to clean the transceiver's exterior. Do not use abrasive cleaners or solvents.
• Awọn isopọ: Periodically check all cable connections (power, antenna, microphone) for security and signs of wear.
• Afẹfẹ: Ensure the heatsink fins are free from dust and debris to maintain optimal cooling.
• Ibi ipamọ: If storing the transceiver for an extended period, disconnect it from the power supply and store it in a dry, cool place.

Laasigbotitusita

Awọn pato

Atilẹyin ọja ati Support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official TYT webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira.

Olupese: SAIN-Import
