Phonocar 4732 Vehicle Connector Cable Instruction Manual

1. Ifihan

This manual provides essential instructions for the proper installation and use of the Phonocar 4732 Vehicle Connector Cable. This cable is designed to facilitate the connection of an aftermarket car radio to specific vehicle models, ensuring compatibility with the vehicle's existing wiring harness.

2. Alaye Aabo

• Máa yọ batiri ọkọ̀ náà kúrò kí o tó ṣe iṣẹ́ iná mànàmáná èyíkéyìí láti dènà ìyípo kúkúrú tàbí ìkọlù iná mànàmáná.
• Rí i dájú pé gbogbo àwọn ìsopọ̀ wà ní ààbò àti pé wọ́n ní ààbò tó yẹ láti yẹra fún ewu iná mànàmáná.
• Ti o ko ba ni idaniloju nipa igbesẹ eyikeyi, kan si onimọ-ẹrọ ọkọ ayọkẹlẹ ti o peye.
• Do not modify the cable or its connectors. Unauthorized modifications can lead to damage or malfunction.

3. Package Awọn akoonu

The Phonocar 4732 package includes:

• 1x Phonocar 4732 Vehicle Connector Cable (ISO adapter)

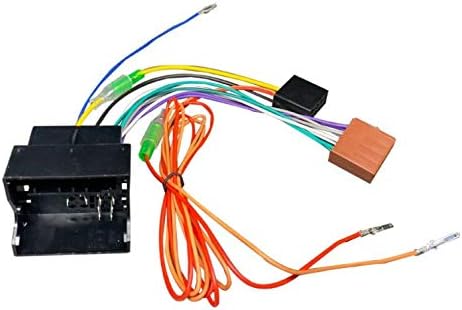

Image 1: Phonocar 4732 ISO Vehicle Connector Cable. This image shows the multi-colored wires and the black and brown ISO connectors.

4. Eto ati fifi sori

The Phonocar 4732 cable is designed to adapt the vehicle's wiring harness to an ISO standard connector for car radio installation. This cable is specifically compatible with Opel Corsa, Astra, and Vectra models.

1. Ṣeto Ọkọ naa: Ensure the vehicle's ignition is off and the battery is disconnected. Remove the existing car radio or access the radio compartment.
2. Ṣe idanimọ asopọ ọkọ ayọkẹlẹ: Wa asopọ waya atilẹba ti ọkọ ayọkẹlẹ naa.
3. So Adapter: Plug the vehicle-specific end of the Phonocar 4732 cable into the vehicle's wiring harness. Ensure a firm and secure connection.
4. Connect to New Radio: Connect the ISO end of the Phonocar 4732 cable to the corresponding ISO connector on your new car radio.
5. Asopọmọra to ni aabo: Mu gbogbo awọn okun waya naa lọ ki o si so wọn mọ ki o má ba fa wahala tabi ki o má ba fa wahala.
6. Batiri Atunso: Nígbà tí gbogbo ìsopọ̀ bá ti wà tí wọ́n sì ti so mọ́ ara wọn, tún so batiri ọkọ̀ náà padà.
7. Iṣe idanwo: Turn on the vehicle's ignition and test the new car radio's functionality (power, audio, etc.).

Aworan 2: alaye view of the Phonocar 4732 cable showing the various colored wires and connectors for proper installation.

5. Awọn ilana Iṣiṣẹ

Once correctly installed, the Phonocar 4732 cable acts as a passive adapter, allowing your aftermarket car radio to receive power and audio signals from the vehicle's electrical system. Operation of the car radio will follow the instructions provided with the radio itself.

6. Itọju

The Phonocar 4732 cable requires minimal maintenance. Ensure that the cable remains free from excessive tension, sharp bends, or exposure to extreme temperatures or moisture. Periodically check connections for looseness, especially if experiencing intermittent issues with the car radio.

7. Laasigbotitusita

• Ko si agbara si redio:
  • Check if the vehicle's battery is properly reconnected and charged.
  • Verify all connections of the Phonocar 4732 cable are secure.
  • Inspect the car radio's fuse.
• Ko si Ijade Olohun:
  • Ensure the audio connections from the Phonocar 4732 to the radio are correct.
  • Check the car radio's settings and volume levels.
• Iṣe-iṣẹ Laarin:
  • Re-check all connections for looseness.
  • Ensure the cable is not damaged or pinched.

8. Awọn pato

9. Atilẹyin ọja ati Support

The Phonocar 4732 Vehicle Connector Cable comes with a manufacturer's warranty of 1 year from the date of purchase. For warranty claims or technical support, please contact your retailer or Phonocar customer service with your proof of purchase.
