Western Digital WD5000HHTZ VelociRaptor Internal Hard Drive User Manual

Ọrọ Iṣaaju

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Western Digital WD5000HHTZ VelociRaptor 500GB 10000RPM SATA 6.0Gb/S 3.5" Internal Hard Drive. Please read this manual thoroughly before proceeding with installation or use to ensure proper functionality and data integrity.

Alaye Aabo

• Always handle the hard drive with care to prevent physical damage.
• Avoid exposing the drive to extreme temperatures, humidity, or strong magnetic fields.
• Ensure your computer is powered off and unplugged before installing or removing the hard drive.
• Use appropriate anti-static precautions (e.g., anti-static wrist strap) to prevent electrostatic discharge (ESD) damage.
• Do not open the hard drive enclosure; doing so will void the warranty and expose sensitive components.

Package Awọn akoonu

Jẹrisi pe package rẹ ni awọn nkan wọnyi ninu:

• Western Digital WD5000HHTZ VelociRaptor 500GB Internal Hard Drive
• (Note: SATA data cables, power cables, and mounting screws are typically sold separately and are not included with a bare drive.)

Eto ati fifi sori

Follow these steps to properly install your internal hard drive into a desktop computer.

1. Múra Sístẹ́mù Rẹ Sílẹ̀

1. Pa kọ̀ǹpútà rẹ kí o sì yọ okùn agbára kúrò nínú ihò ìtajà ògiri.
2. Open the computer case. Refer to your computer's manual for specific instructions on how to open the case.
3. Ground yourself by touching an unpainted metal surface of the computer chassis to discharge any static electricity.

2. Mount the Hard Drive

Locate an available 3.5-inch drive bay in your computer case. The VelociRaptor drive includes a built-in IcePack heat sink, which may require slightly more clearance than a standard 3.5-inch drive.

1. Slide the hard drive into the chosen drive bay. Ensure the SATA connectors face the inside of the computer case.
2. Secure the drive using appropriate mounting screws (not included) on both sides of the drive bay. Ensure it is firmly seated to prevent vibration.

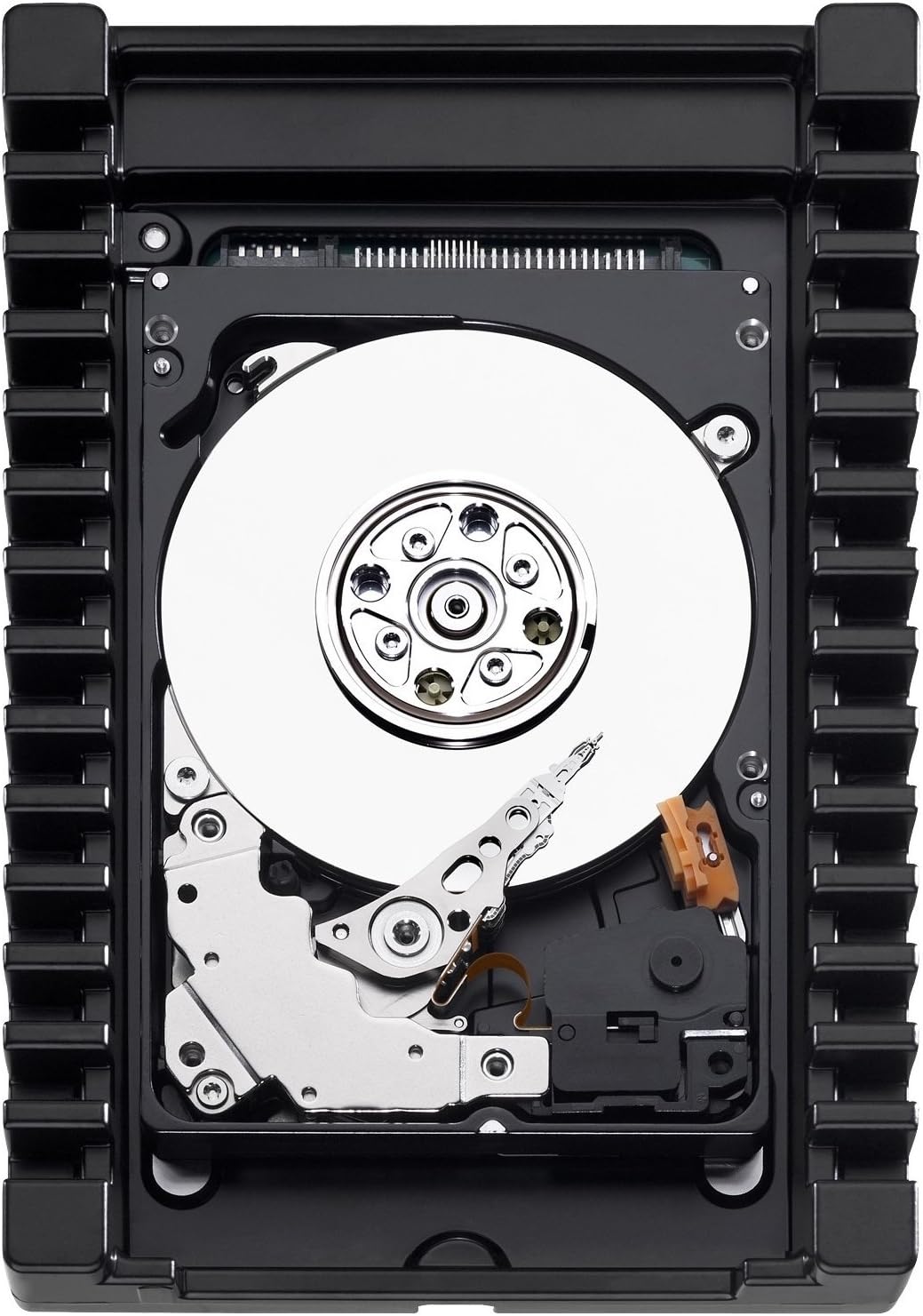

This image displays the internal components of the WD VelociRaptor hard drive, including the shiny data platters, the delicate read/write head assembly, and the robust black heat sink enclosure designed for optimal cooling. The SATA data and power connectors are visible at the top edge.

3. So Cables

1. Connect one end of a SATA data cable (not included) to the data connector on the hard drive.
2. Connect the other end of the SATA data cable to an available SATA port on your computer's motherboard.
3. Connect a SATA power cable (from your computer's power supply, not included) to the power connector on the hard drive.

4. Close and Power On

1. Carefully close your computer case.
2. Pulọọgi okun agbara pada sinu iṣan ogiri ati agbara lori kọnputa rẹ.

Operating the Hard Drive (Initial Setup)

After physical installation, the operating system needs to recognize and prepare the new drive.

1. Initialize and Partition the Drive

For Windows operating systems:

1. Right-click on the "Start" button and select "Disk Management".
2. The "Initialize Disk" dialog box should appear automatically for new drives. Select MBR (Master Boot Record) or GPT (GUID Partition Table) based on your system requirements (GPT is recommended for drives larger than 2TB or for UEFI systems). Click "OK".
3. Locate your new drive, which will appear as "Unallocated Space". Right-click on the unallocated space and select "New Simple Volume".
4. Follow the New Simple Volume Wizard to assign a drive letter, choose a file system (NTFS for Windows), and perform a quick format.

For other operating systems (macOS, Linux), refer to their respective disk utility documentation for initializing and formatting new drives.

2. Data Ibi ipamọ

Once formatted, the drive will appear as a new volume in "This PC" (Windows) or your file manager. You can now use it to store files, install applications, or as a secondary storage device.

Itoju

• Awọn Afẹyinti deede: Ṣe afẹyinti data pataki nigbagbogbo si ẹrọ ipamọ miiran. Ko si dirafu lile ni ajesara si ikuna.
• Abojuto Ilera Wakọ: Use S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) tools to monitor the health status of your drive. Many operating systems and third-party utilities offer this functionality.
• Jeki eto tutu: Ensure adequate airflow within your computer case to prevent overheating, which can reduce the lifespan of the drive. The VelociRaptor's IcePack heat sink assists with cooling, but good case ventilation is still important.
• Iyapa (fun HDDs): While modern operating systems often handle this automatically, occasional defragmentation can help maintain performance on traditional hard drives.

Laasigbotitusita

Wakọ Ko Ri

• Ṣayẹwo Awọn okun: Ensure both the SATA data cable and power cable are securely connected to the drive and the motherboard/power supply.
• Eto BIOS/UEFI: Daju pe ibudo SATA ti dirafu naa ti sopọ mọ ṣiṣẹ ni awọn eto BIOS/UEFI ti kọnputa rẹ.
• Ibi ti ina elekitiriki ti nwa: Ensure your power supply has sufficient wattage ati awọn asopọ agbara SATA ti o wa.
• Isakoso Disiki: For new drives, check "Disk Management" (Windows) or equivalent utility to see if the drive is detected but uninitialized or unformatted.
• Gbiyanju Oriṣiriṣi Ibudo/Cable: Test with a different SATA data cable, power cable, or motherboard SATA port.

O lọra Performance

• Check S.M.A.R.T. Status: A failing drive can exhibit slow performance. Check its S.M.A.R.T. status.
• Pipajẹ: Ensure the drive is not heavily fragmented.
• Awọn orisun eto: Ṣayẹwo boya awọn paati eto miiran (Sipiyu, Ramu) jẹ iṣẹ igo.
• Iwọn otutu: Ensure the drive is not overheating.

Awọn Ariwo Alailẹgbẹ

• Clicking, grinding, or repetitive beeping sounds often indicate a mechanical failure. Immediately back up any accessible data and consider replacing the drive.

Awọn pato

Alaye atilẹyin ọja

Western Digital products are covered by a limited warranty. The specific terms and duration of your warranty may vary based on region and point of purchase. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please visit the official Western Digital website or refer to the warranty statement included with your product at the time of purchase.

Atilẹyin

For technical assistance, product registration, or to access additional resources, please visit the official Western Digital support webojula:

https://support.wdc.com

You may also find helpful information and community forums on the Western Digital webojula.
