Newair G56 5600W Portable Electric Garage Heater

1. Ọja Ipariview

The Newair G56 5600W Portable Electric Garage Heater is designed to provide efficient heating for spaces up to 600 square feet. Its robust construction and portable features make it suitable for various environments, including garages, workshops, bedrooms, dorms, and offices. This heater operates on a 240V, 30 Amp electrical supply and incorporates several safety features for reliable operation.

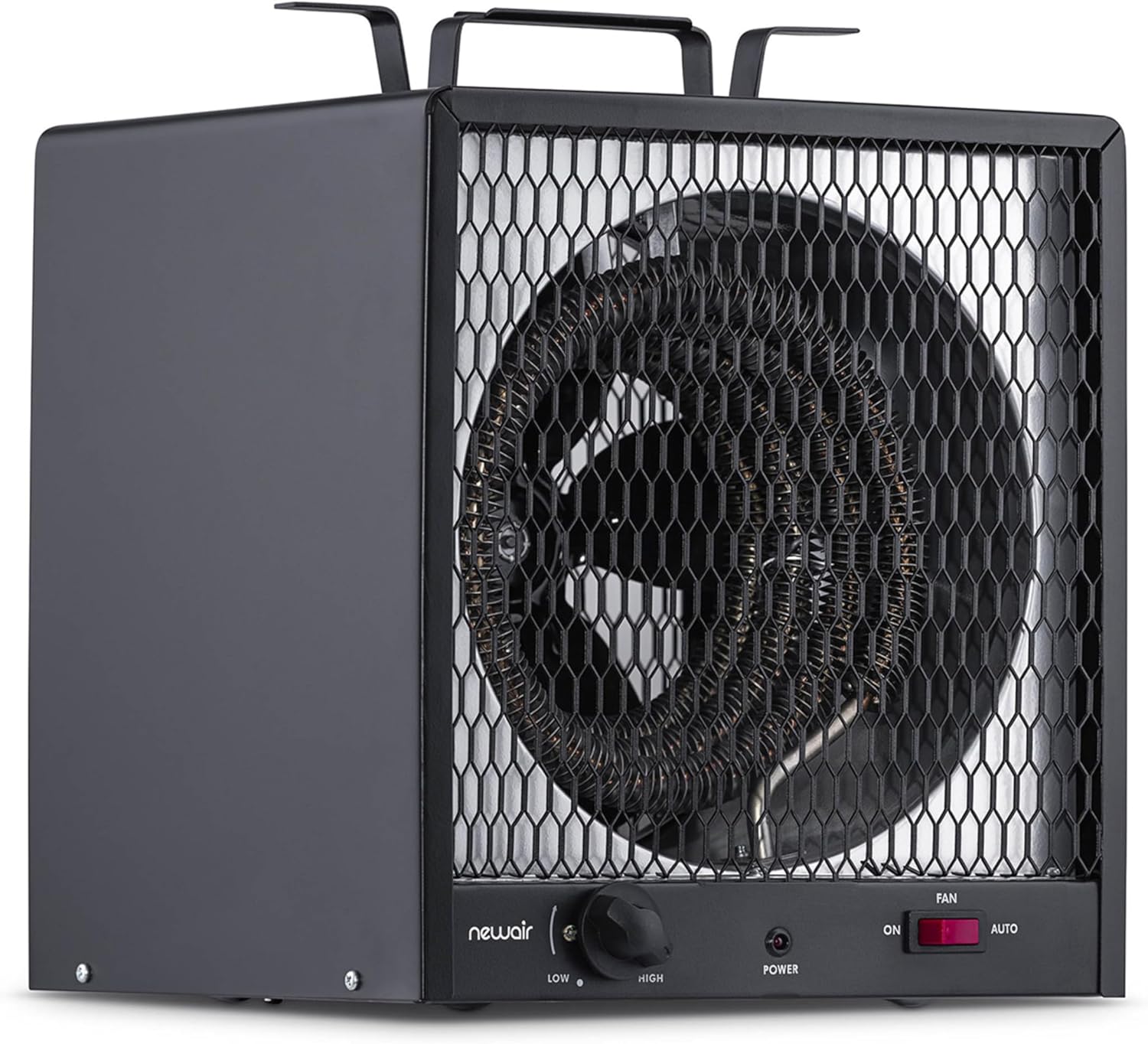

Figure 1: Newair G56 5600W Portable Electric Garage Heater, front view.

2. Alaye Aabo

Please read and understand all safety instructions before operating this heater. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• Awọn ibeere Itanna: This heater requires a dedicated 240V, 30 Amp circuit. Installation should be performed by a qualified electrician if you are not familiar with 240V wiring.
• Idaabobo igbona ju: The heater is equipped with an automatic shut-off function to prevent overheating. If the unit overheats, it will power down automatically. Allow it to cool before restarting.
• Ibugbe Ifọwọkan Tutu: The exterior construction is designed to remain cool to the touch after use, minimizing the risk of accidental burns.
• Ibi: Ensure adequate clearance around the heater. Do not block air intake or exhaust. Do not use in areas where flammable liquids or vapors are stored.
• UL-Ifọwọsi: This heater is UL-certified, ensuring it meets recognized safety standards.

3. Package Awọn akoonu

Rii daju pe gbogbo awọn paati wa lori ṣiṣi silẹ:

• Newair G56 5600W Portable Electric Garage Heater Unit
• Afowoyi eni
• Mounting Bracket (for wall/ceiling installation)
• Isakoṣo latọna jijin

4. Eto ati fifi sori

The Newair G56 heater can be used as a portable unit or permanently mounted on a wall or ceiling. It requires a 240V, 30 Amp itanna asopọ.

4.1 Itanna Asopọ

The heater comes with a 240V, 30 Amp plug (NEMA 6-30P). Ensure you have a compatible 240V outlet (NEMA 6-30R) available. If not, consult a licensed electrician for proper installation.

4.2 Portable Lo

For portable use, simply place the heater on a stable, level surface, ensuring adequate clearance from walls and flammable materials. Utilize the integrated cord wrap and carrying handle for easy relocation.

Figure 2: Heater showing integrated cord wrap and carrying handle for portability.

4.3 Wall or Ceiling Mounting

The heater includes a mounting bracket for permanent installation. Follow these general steps:

1. Select a suitable location on a wall or ceiling, ensuring structural integrity and proper clearance.
2. Securely attach the mounting bracket to the chosen surface using appropriate hardware (not always included).
3. Attach the heater unit to the mounting bracket. The bracket allows for adjustment of the heat direction.
4. Connect the heater to the dedicated 240V, 30 Amp itanna ipese.

5. Awọn ilana Iṣiṣẹ

The Newair G56 heater features intuitive controls for setting temperature and fan operation.

5.1 Iṣakoso igbimo

The control panel is located on the front of the unit and includes a thermostat dial, power indicator, and fan switch.

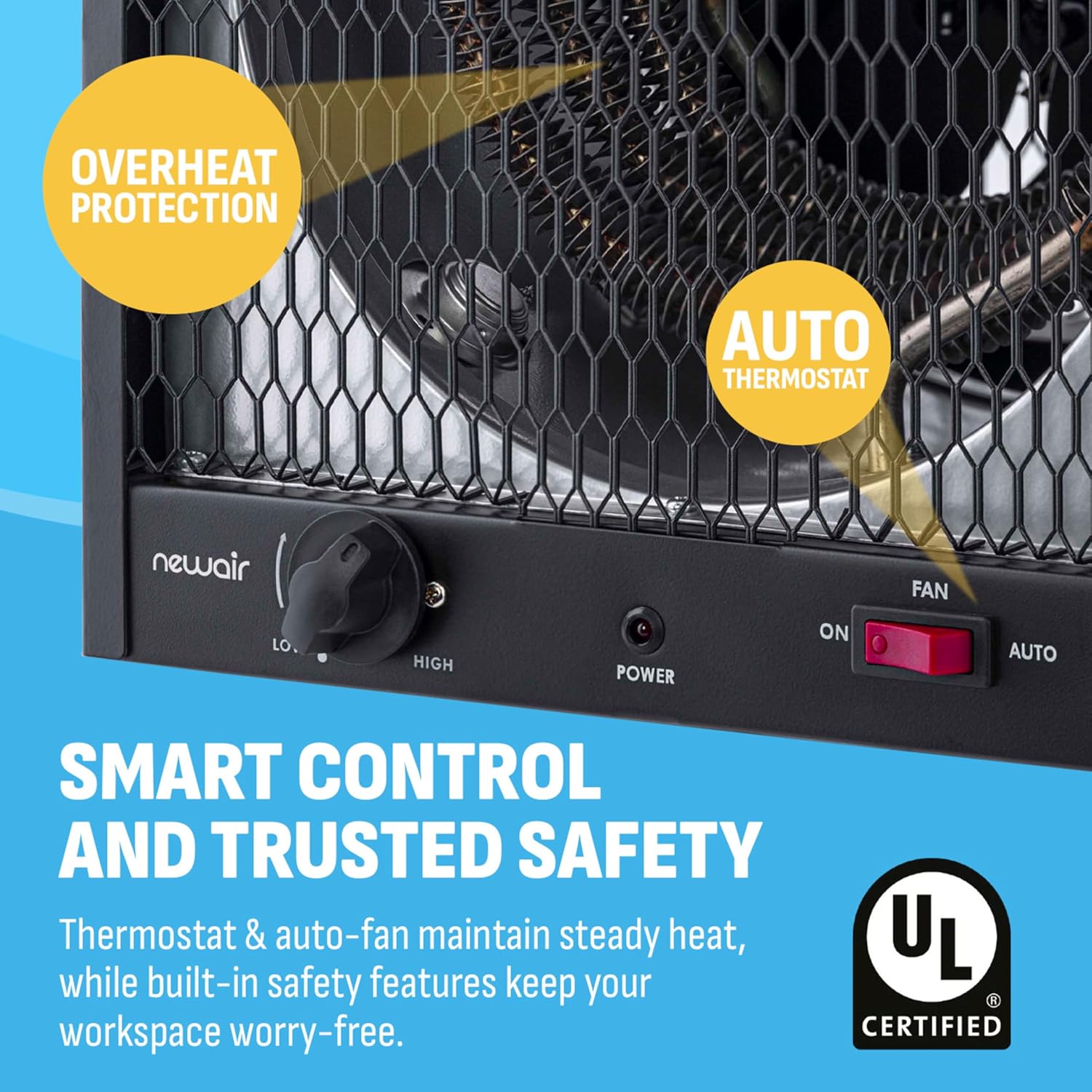

Figure 3: Close-up of the Newair G56 control panel, showing the thermostat dial and fan switch.

5.2 Eto otutu

• Turn the thermostat dial to your desired temperature setting. The heater will automatically activate to reach and maintain this temperature.
• The thermostat range is from 45°F (7°C) to 95°F (35°C).

5.3 Fan isẹ

• The fan can be set to 'ON' for continuous operation or 'AUTO' to run only when heating is required.
• In 'AUTO' mode, the fan will cycle on and off with the heating element to maintain the set temperature.

5.4 Iṣakoso latọna jijin

The included remote control allows for convenient adjustment of settings from a distance. Functions typically include power on/off, temperature adjustment, and fan mode selection.

6. Itọju

Itọju deede ṣe idaniloju iṣẹ ṣiṣe ti o dara julọ ati gigun gigun ti ẹrọ igbona rẹ.

• Ninu: Disconnect the heater from the power supply before cleaning. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or allow water to drip into the heater.
• Ibi ipamọ: If storing the heater for an extended period, ensure it is clean and dry. Use the cord wrap feature to neatly store the power cord.

7. Laasigbotitusita

Tí ẹ̀rọ ìgbóná rẹ kò bá ṣiṣẹ́ dáadáa, wo àwọn ìṣòro àti ìdáhùn tó wọ́pọ̀ wọ̀nyí:

• Alagbona ko tan: Check the power supply and ensure the unit is properly plugged into a 240V, 30 Amp outlet. Verify that the circuit breaker is not tripped.
• Heater overheats and shuts off: This is a safety feature. Ensure there are no obstructions blocking the air intake or exhaust. Allow the unit to cool down before attempting to restart.
• Ijadejade ooru ti ko to: Verify the thermostat is set to a temperature higher than the ambient room temperature. Ensure the fan is operating correctly.

8. Awọn pato

Figure 4: Dimensional diagram of the Newair G56 heater.

9. Atilẹyin ọja ati Support

The Newair G56 5600W Portable Electric Garage Heater comes with a 1-year parts & labor warranty. For support or warranty claims, please contact NewAir customer service.
