Ọrọ Iṣaaju
This manual provides essential information regarding the Exmark 1-513336 Deck Bushing. This component is a genuine Exmark replacement part designed to ensure proper function and longevity of your lawn care equipment. It is crucial for maintaining the stability and smooth operation of the mower deck.
Ọja Pariview

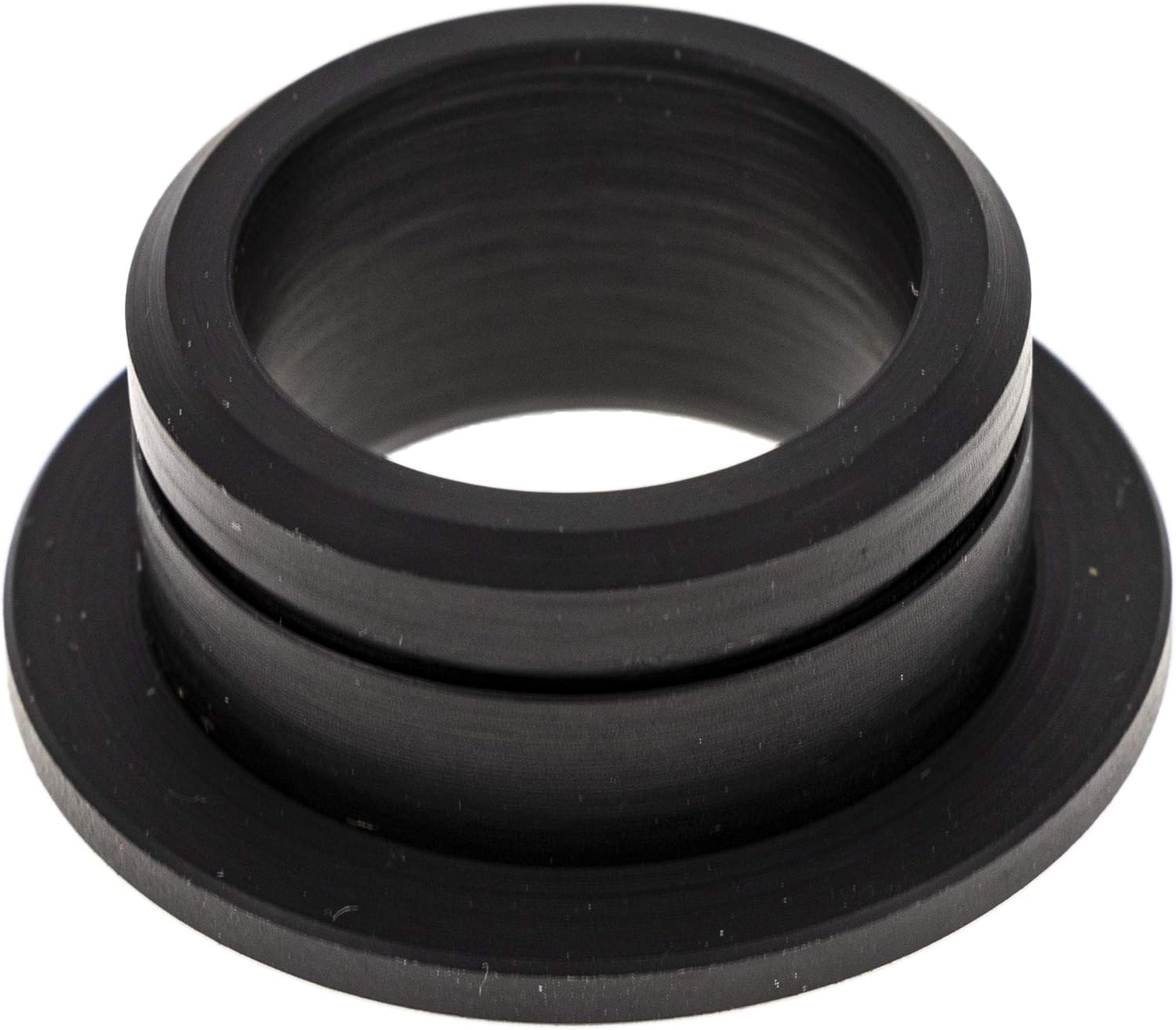

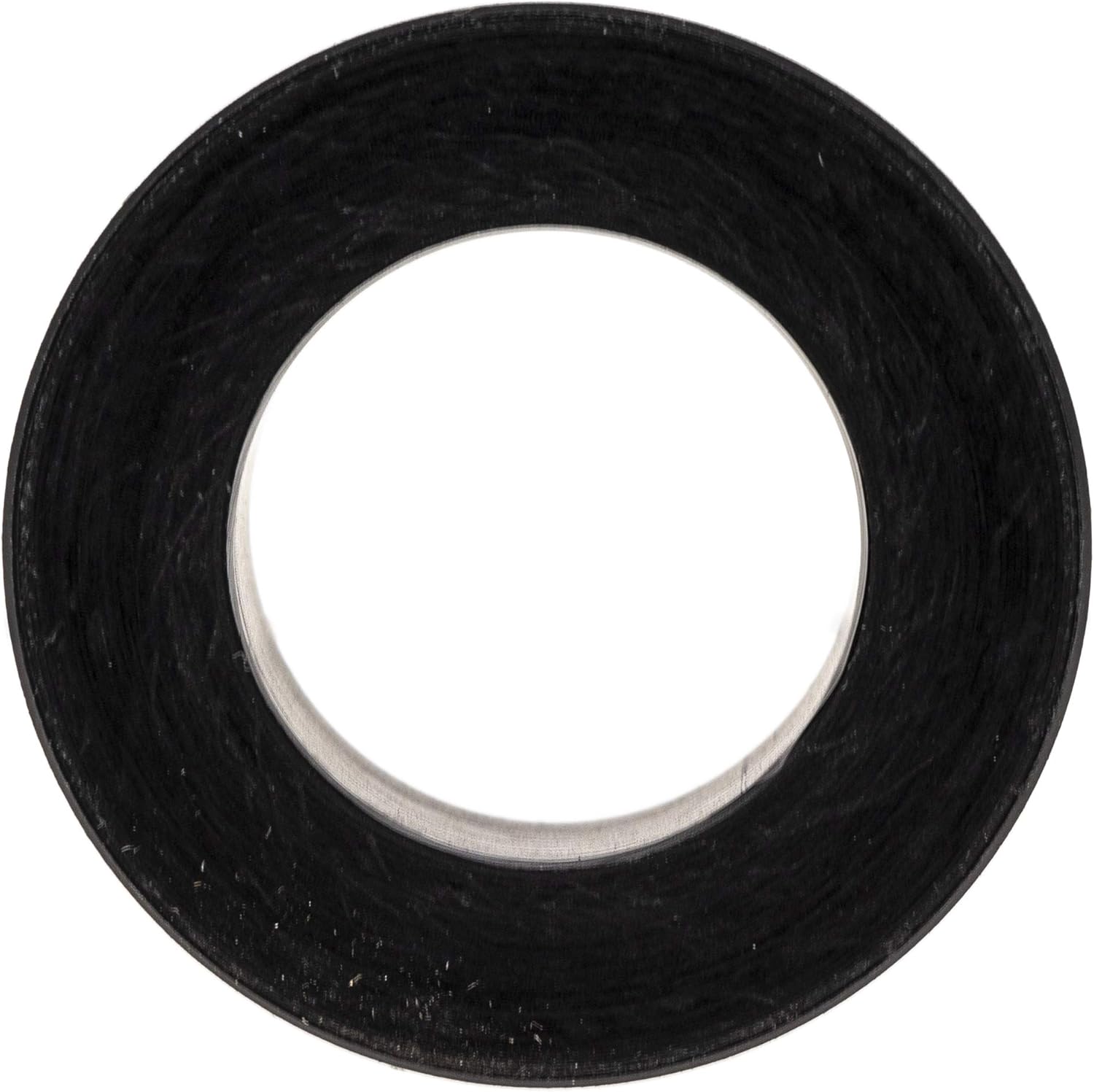

The Exmark 1-513336 Deck Bushing is a critical component in the mower deck assembly. It provides a bearing surface for moving parts, reducing friction and wear, and ensuring precise alignment. Regular inspection and timely replacement are vital for optimal performance.
Ibamu
The Exmark 1-513336 Deck Bushing is compatible with a range of Exmark lawn care equipment. Please refer to your original equipment owner's manual to confirm the correct part for your specific machine, as fitment can vary by sub-model, serial number, and production date.
Awọn awoṣe ibaramu ti a mọ pẹlu:
- Explorer
- Metro HP
- Staris E-Series
- Staris S-Series
- Turf Ranger
- Turf Tracer
- Turf Tracer 1800
- Turf Tracer Five Speed
- Turf Tracer Front Mount Deck
- Turf Tracer HP
- Turf Tracer Hydro
- Turf Tracer S-Series
- Turf Tracer X-Series
Fifi sori (Eto)
Installing the Exmark 1-513336 Deck Bushing requires careful attention to detail. Always consult your specific equipment's service manual for detailed, model-specific instructions and safety precautions before beginning any installation or repair work.
- Aabo Lakọkọ: Ensure the equipment is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting. Engage the parking brake.
- Wọle si Deki: Safely raise and secure the mower deck according to your equipment's manual to gain access to the bushing location.
- Remove Old Bushing: Carefully remove any retaining clips, bolts, or other fasteners holding the old bushing in place. Use appropriate tools to extract the worn bushing without damaging surrounding components.
- Agbegbe mimọ: Thoroughly clean the area where the new bushing will be installed, removing any debris, rust, or old lubricant.
- Install New Bushing: Insert the new Exmark 1-513336 Deck Bushing. Ensure it is seated correctly and fully engaged. Do not force the bushing if it does not fit; verify you have the correct part.
- Awọn eroja to ni aabo: Reinstall any retaining clips, bolts, or fasteners that were removed. Tighten to the manufacturer's specified torque settings.
- Lower Deck and Test: Carefully lower the mower deck. Reconnect the spark plug wire. Perform a functional check to ensure the deck moves freely and operates as expected before resuming normal use.
Iṣẹ ati isẹ
The deck bushing plays a crucial role in the smooth and efficient operation of your Exmark mower deck. It acts as a wear-resistant interface between moving metal parts, typically shafts and housings, within the deck assembly. By providing a low-friction surface, the bushing:
- Reduces Friction: Minimizes resistance between moving components, allowing for smoother articulation and less power loss.
- Prevents Wear: Protects more expensive metal components from direct contact and abrasive wear. The bushing itself is designed to be a sacrificial wear part.
- Maintains Alignment: Helps keep shafts and other parts properly aligned, which is essential for consistent cutting performance and preventing damage to other deck components.
- Dampens Vibration: Contributes to reducing vibrations and noise during operation.
Properly functioning bushings ensure the mower deck can adjust height, pivot, or support spindles effectively, leading to a consistent cut and extended equipment life.
Itoju
Regular maintenance of your Exmark 1-513336 Deck Bushing is essential to prolong its lifespan and ensure optimal performance of your equipment. Follow these general guidelines:
- Ayẹwo deede: Periodically inspect the bushings for signs of wear, such as excessive play, cracks, deformation, or unusual noise during operation. This should be done during routine mower deck cleaning or blade inspection.
- Ninu: Keep the area around the bushings clean from grass clippings, dirt, and other debris that can accelerate wear. Use a brush or compressed air to remove buildup.
- Lubrication: If your equipment's manual specifies lubrication for the bushing area, use the recommended grease or lubricant. Avoid over-lubrication, which can attract more dirt.
- Iyipada ti akoko: Replace worn or damaged bushings promptly. Continuing to operate with a faulty bushing can lead to accelerated wear on other, more costly components of the mower deck.
Laasigbotitusita
If you experience issues with your mower deck, a worn or damaged deck bushing could be a contributing factor. Here are some common symptoms and potential solutions:
| Aisan | Owun to le Fa | Ojutu |
|---|---|---|
| Excessive play or looseness in deck components | Worn bushing, incorrect installation | Inspect and replace worn bushings. Ensure proper installation and secure fasteners. |
| Unusual noises (e.g., squeaking, grinding) from the deck | Lack of lubrication, worn bushing, debris | Lubricate as per manual. Inspect and replace worn bushings. Clean debris from the area. |
| Uneven cut or poor cutting performance | Misaligned deck components due to worn bushings | Inspect and replace worn bushings. Check deck leveling and blade condition. |
| Difficulty adjusting deck height | Seized or worn bushings in height adjustment mechanism | Inspect and replace affected bushings. Lubricate moving parts. |
If troubleshooting steps do not resolve the issue, or if you are unsure about any repair, it is recommended to contact an authorized Exmark service technician.
Awọn pato
Key specifications for the Exmark 1-513336 Deck Bushing:
- Nọmba apakan: 1-513336
- Awọn iwọn ọja: 1.5 x 1.5 x 0.6 inches
- Ìwọ̀n Nkan: 0.32 iwon
- Olupese: Exmark
- Ohun elo: (Typically a durable polymer or composite, though not explicitly stated in provided data)
Awọn fidio ọja osise
The following videos provide additional information and context regarding Exmark parts and maintenance. Please note that some videos may cover a range of parts or general maintenance topics.
Yi fidio pese a visual loriview of a replacement nylon deck support bushing, similar to the Exmark 1-513336. It showcases the part from various angles, highlighting its design and form factor.
An official Exmark video showcasing various genuine lawn and garden replacement parts. This video emphasizes the importance of using authentic parts for maintaining equipment performance and reliability.
Another official Exmark video highlighting the range of genuine replacement parts available. It covers different categories of parts, including those essential for maintenance and repair of Exmark equipment.
Atilẹyin ọja ati Support
As a genuine Exmark part, the 1-513336 Deck Bushing is covered by Exmark's standard warranty policy for replacement parts. For specific warranty details, claims, or technical support, please refer to the warranty information included with your original equipment or visit the official Exmark website. You may also contact an authorized Exmark dealer for assistance.
