1. Ifihan
This manual provides essential information for the proper installation, operation, and maintenance of your Ranco A30-2210 Temperature Control. This device is designed as a refrigeration control with a constant differential, suitable for various applications requiring precise temperature regulation. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
2. Alaye Aabo
IKILO: Electrical shock hazard. Disconnect power before installing or servicing this control. Failure to do so may result in serious injury or death.
- Fifi sori yẹ ki o ṣee ṣe nipasẹ oṣiṣẹ ti o peye nikan.
- Rii daju pe gbogbo onirin ni ibamu pẹlu awọn koodu itanna agbegbe ati ti orilẹ-ede.
- Maa ko koja volum pàtótage and current ratings of the control.
- Protect the capillary tube from sharp bends, kinks, or damage, as this can affect accuracy and performance.
3. Awọn ẹya Ọja
- Iru Iṣakoso: Refrigeration Control, Constant Differential
- Yipada Iru: Single Pole Single Throw (SPST)
- Yipada Iṣe: Closes on temperature rise
- Ibi iṣakoso: 32°F de 61°F
- Gigun Opopona: 48 inches
- Voltage: 120 / 240V AC
- Pẹlu: Dial knob and mounting bracket for installation
4. Awọn pato
| Sipesifikesonu | Iye |
|---|---|
| Nọmba awoṣe | A30-2210 |
| Iṣakoso Iru | Refrigeration, Constant Differential |
| Yipada Iru | SPST (Ọpa Nikan Ju) |
| Yipada Iṣe | Close on Rise |
| Ibiti Iṣakoso | 32°F de 61°F |
| Constant Differential | 8°F |
| Gigun Kapala | 48 inches |
| Voltage | 120 / 240V AC |
| Ni kikun fifuye Amps | 20A |
| Titiipa Rotor Amps | 80/80A |
| Warm On | 42°F |
| Warm Off | 30°F |
| Ni deede | 40°F |
| Normally Off | 32°F |
| Cold Off | 30°F |
| Iwọn Nkan | 5.3 iwon |
| Ọja Mefa | 5 x 5 x 5 inches |
5. Fifi sori (Eto)
The Ranco A30-2210 Temperature Control is designed for straightforward installation, including a dial knob and mounting bracket.
- Ge asopọ agbara: Ensure all power to the refrigeration system is disconnected at the main circuit breaker before beginning installation.
- Iṣagbesori: Use the provided mounting bracket to secure the control unit in a suitable location. The location should be easily accessible for adjustment and away from direct heat sources or excessive vibration.
- Capillary Tube Placement: Carefully route the 48-inch capillary tube to the area where temperature sensing is required. The end of the capillary tube (bulb) must be positioned to accurately reflect the temperature of the controlled space. Avoid kinking or sharply bending the tube.
- Asopọmọra: Connect the electrical wiring according to the wiring diagram provided with your refrigeration system and the specifications of the A30-2210 control (120/240V, SPST, Close on Rise). Ensure all connections are secure and insulated.
- Ṣayẹwo Ipari: Ṣàyẹ̀wò gbogbo àwọn ìsopọ̀ àti ìsopọ̀ lẹ́ẹ̀mejì kí o tó dá agbára padà.
6. Isẹ
Once installed and powered, the Ranco A30-2210 Temperature Control operates by sensing the temperature via its capillary tube and activating/deactivating the refrigeration system based on the set point.

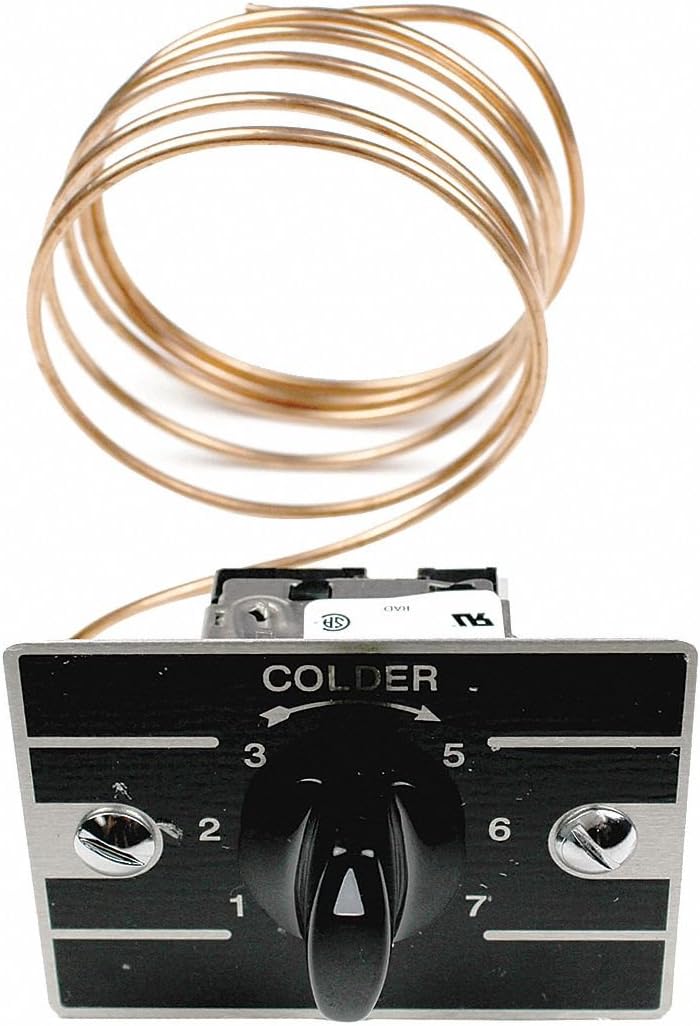

- Atunṣe iwọn otutu: Use the central dial knob on the control panel to set the desired temperature. The dial is typically marked with numbers (e.g., 1-7) and indicators for "Colder" or "Warmer" settings. Turning the knob towards "Colder" will lower the set temperature, causing the refrigeration system to run more frequently or for longer durations.
- Iyatọ: The control operates with a constant differential of 8°F. This means if the set point is, for example, 40°F, the system might turn on when the temperature rises to 44°F and turn off when it drops to 36°F (these are illustrative values, actual cut-in/cut-out will depend on the specific calibration and set point within the 32-61°F range).
- Abojuto: Monitor the temperature of the controlled space to ensure it maintains the desired range. Adjust the dial knob incrementally if further temperature changes are needed.
7. Itọju
Regular maintenance helps ensure the longevity and accurate performance of your Ranco A30-2210 Temperature Control.
- Ninu: Periodically clean the exterior of the control unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Capillary Tube Inspection: Inspect the capillary tube for any signs of damage, kinks, or corrosion. Ensure it remains securely positioned in the temperature-sensing area.
- Awọn Isopọ Itanna: Annually, or as needed, inspect electrical connections for tightness and signs of corrosion. Always disconnect power before inspecting electrical components.
- Ṣayẹwo iwọntunwọnsi: If you suspect inaccurate temperature readings, verify the temperature of the controlled space with a calibrated thermometer and compare it to the control's behavior.
8. Laasigbotitusita
Refer to the following common issues and solutions before contacting technical support.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| System not cooling or heating (depending on application) | No power to the control; Incorrect wiring; Faulty control; Capillary tube damaged or improperly placed. | Check power supply and circuit breaker. Verify wiring against diagram. Inspect capillary tube for damage and correct placement. If all else fails, the control may be faulty and require replacement. |
| System runs continuously or cycles too frequently | Set point too low/high; Capillary tube not sensing temperature correctly; System refrigerant issues (external to control). | Adjust the set point. Ensure the capillary tube is properly located and undamaged. Consult a refrigeration technician for system-related issues. |
| Temperature fluctuates widely or is inaccurate | Capillary tube improperly placed or damaged; Control differential not suitable for application; External drafts or heat sources affecting sensor. | Relocate or inspect the capillary tube. Ensure the control's 8°F differential is acceptable for your needs. Shield the sensor from external influences. |
9. Atilẹyin ọja ati Support
For warranty information, please refer to the documentation provided by Ranco or your product supplier at the time of purchase. Typically, Ranco products carry a manufacturer's warranty against defects in materials and workmanship for a specified period, often one year from the date of installation. Specific terms and conditions may vary.
For technical support or service inquiries, please contact your authorized Ranco distributor or the Ranco customer service department.
