Ìwé Ìtọ́sọ́nà Olùlò Ìmọ́lẹ̀ Àwárí tí a lè gba agbára láti Nitecore TM36 SBT-70 LED

Ọja Pariview

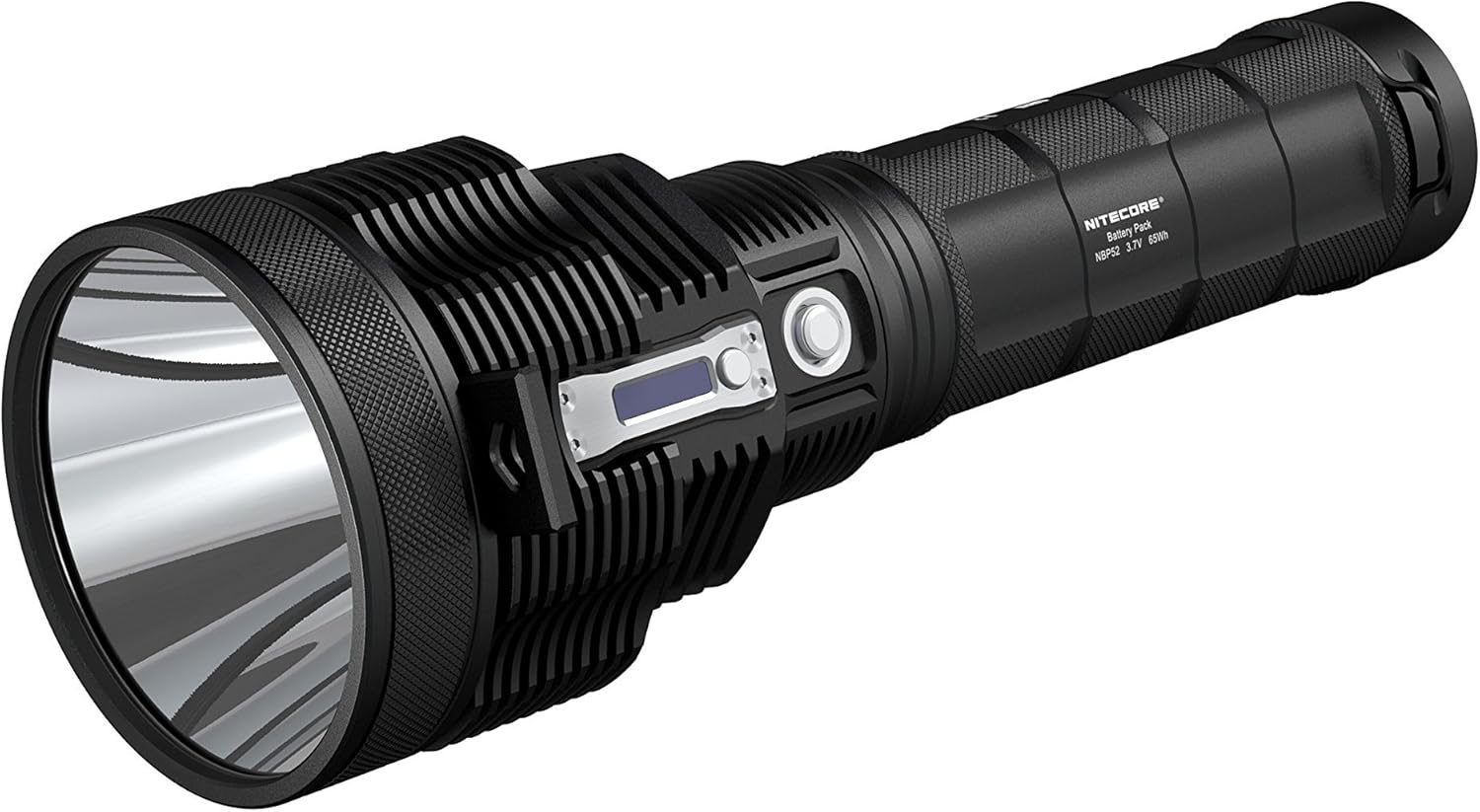

The Nitecore TM36 is a compact yet powerful LED rechargeable searchlight designed for long-range illumination. It features a LUMINUS SBT-70 LED, capable of projecting a beam up to 1100 meters. The integrated multi-function OLED display provides real-time information, enhancing user control and awareness.

Awọn ẹya pataki pẹlu:

• World's smallest LED rechargeable searchlight with an 1100-meter throw.
• Utilizes LUMINUS SBT-70 LED for powerful illumination.
• Integrated multi-function OLED display for real-time data.
• Thermal protection circuit to prevent overheating during extended use.
• Includes ultra-high performance NBP52 battery pack for extended runtime.
• Intelligent charging circuit for safe and rapid charging.
• Eight rapidly switchable brightness levels and modes.
• Innovative single-button two-stage switch for user-friendly operation.
• Integral power indicator in the switch displays remaining battery power.
• Constructed from aerospace-grade aluminum alloy with HAIII military-grade hard-anodized finish.
• Waterproof in accordance with IPX-8 (submersible to two meters).

Alaye Aabo

Please read all safety instructions carefully before using the Nitecore TM36 searchlight to ensure safe operation and prevent damage to the device or injury.

• Aabo oju: Do not shine the light directly into eyes. The high intensity beam can cause temporary vision impairment or permanent eye damage.
• Ikilọ Ooru: The searchlight can become hot during prolonged use, especially in Turbo mode. Handle with care to avoid burns. The thermal protection circuit helps manage temperature.
• Aabo Batiri: Use only the specified NBP52 battery pack. Do not attempt to disassemble, puncture, or expose the battery to extreme temperatures or fire. Dispose of batteries responsibly.
• Gbigba agbara: Use only the provided charger. Ensure the charging port is clean and dry before connecting. Do not charge unattended.
• Omi Resistance: The TM36 is IPX8 rated, meaning it is waterproof and submersible to 2 meters. Ensure all caps and covers are securely fastened before exposing to water. Do not submerge beyond specified depth or duration.
• Awọn ọmọde: Jeki kuro ni arọwọto awọn ọmọde.
• Ilana 65 Ikilọ: Ọja yii le ni awọn kẹmika ti a mọ si Ipinle California lati fa aarun ati awọn abawọn ibimọ tabi ipalara ibisi miiran.

Ṣeto

1. Gbigba agbara akọkọ

Before first use, fully charge the NBP52 battery pack. Connect the charger to the searchlight's charging port and plug it into a power outlet. The OLED display will indicate charging status. A full charge may take several hours.

2. So Sling

The included sling allows for comfortable carrying of the TM36, especially during extended periods of use. Attach the sling to the designated attachment points on the searchlight body. Ensure the sling is securely fastened before carrying.

Awọn ilana Iṣiṣẹ

1. Agbara Tan / Paa

• To turn on the searchlight, press and hold the power button until the light illuminates.
• To turn off the searchlight, press and hold the power button again until the light extinguishes.

2. Awọn Ipele Imọlẹ

The TM36 offers eight rapidly switchable brightness levels. While the light is on, short press the power button to cycle through the modes:

• Turbo: 1800 Lumens (approx. 1h 45mins runtime)
• Ga: 800 Lumens (approx. 5h 30mins runtime)
• Aarin: 400 Lumens (approx. 11h runtime)
• Kekere: 200 Lumens (approx. 21h runtime)
• Ti o kere julọ: 50 Lumens (approx. 67h runtime)

3. Special Modes (Beacon, SOS, Strobe)

To access special modes, perform two quick clicks of the power button while the light is on. Subsequent quick clicks will cycle through Beacon, SOS, and Strobe modes. To exit special modes, press and hold the power button.

4. Ifihan OLED

The integrated OLED display provides crucial information at a glance, including:

• Ijinna tan ina
• Ti o ku aye batiri
• Iwọn otutu inu
• Current lumen output

Itoju

1. Ninu

Wipe the searchlight with a clean, soft cloth. For stubborn dirt, a slightly damp cloth can be used. Do not use abrasive cleaners or solvents.

2. Itọju batiri

• Recharge the NBP52 battery pack regularly, especially if the searchlight will not be used for an extended period.
• Store the searchlight and battery in a cool, dry place away from direct sunlight.
• Yago fun gbigba agbara si batiri ni kikun nigbagbogbo, nitori eyi le dinku igbesi aye rẹ.

3. O-Ring Maintenance

To maintain the IPX8 waterproof rating, periodically inspect the O-rings for wear or damage. Lubricate them with silicone grease as needed. Replace worn O-rings with the included spare O-ring to ensure a proper seal.

Laasigbotitusita

If you encounter issues with your Nitecore TM36, refer to the following common problems and solutions:

Awọn pato

Atilẹyin ọja ati Support

For warranty information and customer support, please refer to the documentation included with your product or visit the official Nitecore webojula. O tun le ṣàbẹwò awọn Nitecore Store on Amazon fun afikun oro.

Manufacturer: Light Junction

Àmì ìtajà: Nitecore
