1. Ifihan
Welcome to your new EdgeStar CBR1501SLD Built-in Stainless Steel Beverage Cooler. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and retain it for future reference.
Figure 1: EdgeStar CBR1501SLD Beverage Cooler with door open, showcasing the interior with blue LED lighting and glass shelves.
Fidio 1: Pariview of the EdgeStar CBR1501SLD Beverage Cooler, highlighting its features and design.
2. Alaye Aabo
Aabo rẹ ati aabo awọn elomiran ṣe pataki pupọ. A ti pese ọpọlọpọ awọn ifiranṣẹ ailewu pataki ninu afọwọṣe yii ati lori ohun elo rẹ. Nigbagbogbo ka ati gbọràn si gbogbo awọn ifiranṣẹ ailewu.
- IKILO: To prevent a child from becoming entrapped, keep this appliance out of reach of children and not in the vicinity of a freezer or refrigerator.
- IKILO: Ọja yii le fi ọ han si awọn kemikali pẹlu Di(2-ethylhexyl) phthalate (DEHP), eyiti o mọ si Ipinle California lati fa akàn ati awọn abawọn ibimọ tabi ipalara ibisi miiran. Fun alaye diẹ sii lọ si www.P65Warnings.ca.gov.
- Nigbagbogbo ge asopọ ohun elo lati ipese agbara ṣaaju ṣiṣe mimọ tabi ṣiṣe itọju eyikeyi.
- Ma ṣe ṣiṣẹ ohun elo ti okun agbara ba bajẹ. Kan si oṣiṣẹ iṣẹ ti o pe fun atunṣe.
- Rii daju pe fentilesonu to dara ni ayika ohun elo lati ṣe idiwọ igbona.
3. Eto & Fifi sori
Proper installation is crucial for the performance and longevity of your beverage cooler.
3.1 Ṣiṣii silẹ
- Fara yọ gbogbo awọn ohun elo apoti kuro.
- Inspect the unit for any shipping damage. If damage is found, contact your retailer immediately.
- Allow the unit to stand upright for at least 24 hours before plugging it in to allow compressor fluids to settle.
3.2 Ibi
This beverage cooler is designed for both built-in and free-standing installation. Ensure adequate clearance for ventilation, especially at the front.
Figure 2: The EdgeStar CBR1501SLD installed under a counter, illustrating key features like the reversible hinge, stainless steel construction, lockable door, and front ventilation.
3.3 Ilẹ̀kùn Àyípadà
The door hinge is reversible, allowing the door to open from either the left or right side. Refer to the detailed instructions in the full product manual for changing the door swing direction.
3.4 Ipele ipele
Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. This helps in proper door alignment and efficient operation.

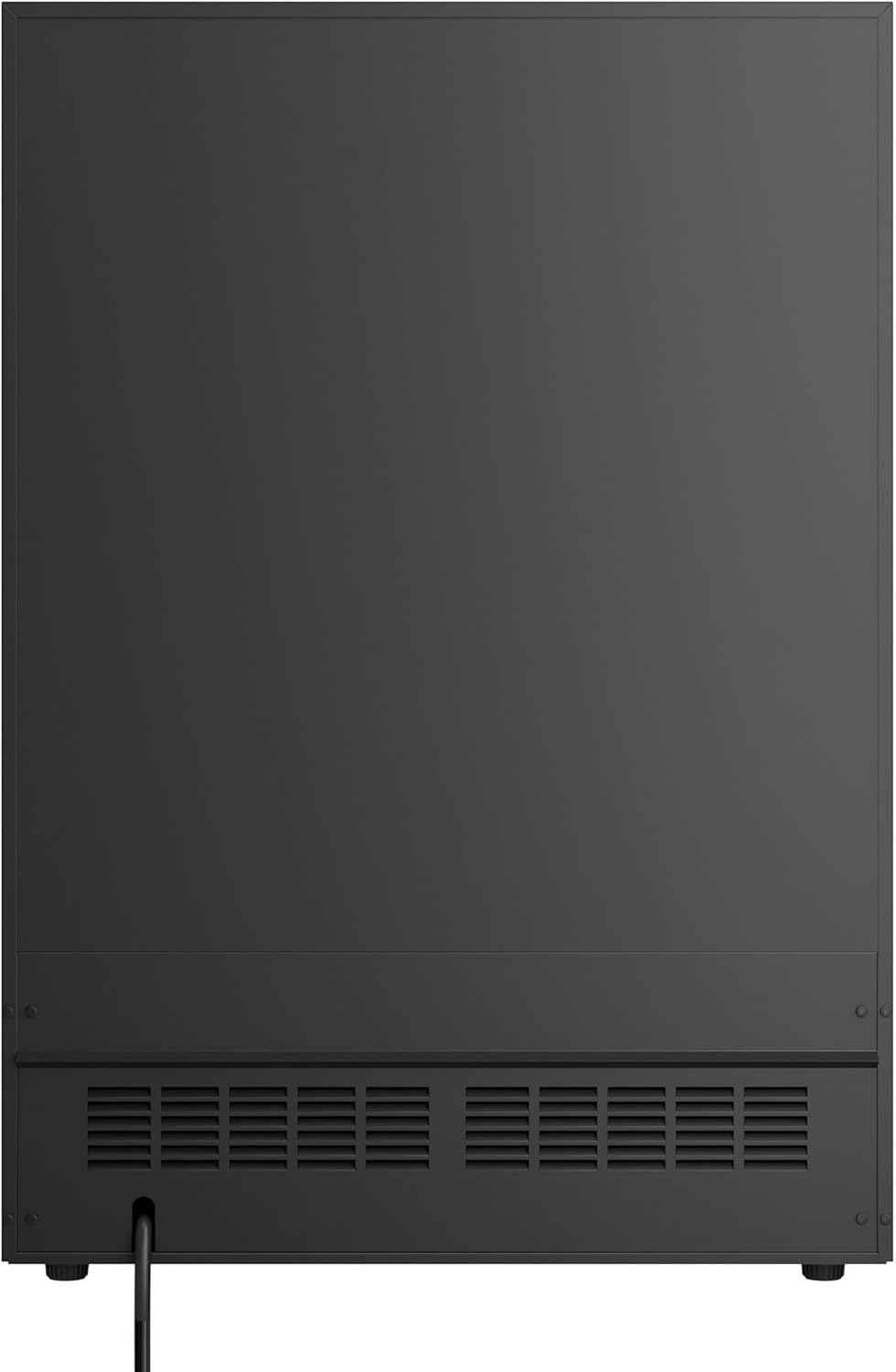

olusin 3: Ẹyìn view of the beverage cooler, showing the power cord connection and bottom ventilation for proper airflow.
4. Awọn ilana Iṣiṣẹ
Familiarize yourself with the controls and features for optimal use of your beverage cooler.
4.1 Digital idari
The unit features an intuitive digital control panel with push-buttons for precise temperature management. The temperature range is between 38°F and 65°F (3°C and 18°C).
- Lo awọn UP ati SILE arrows to adjust the desired temperature.
- Ifihan oni-nọmba naa fihan iwọn otutu inu lọwọlọwọ.
- Tẹ awọn ° C / ° F button to switch between Celsius and Fahrenheit display.
olusin 4: Isunmọ view of the digital control panel, showing the temperature display and control buttons.
4.2 Fan-Circulated Cooling
The internal fan ensures even cooling throughout the unit, preventing hot spots and maintaining consistent temperatures for all your beverages.

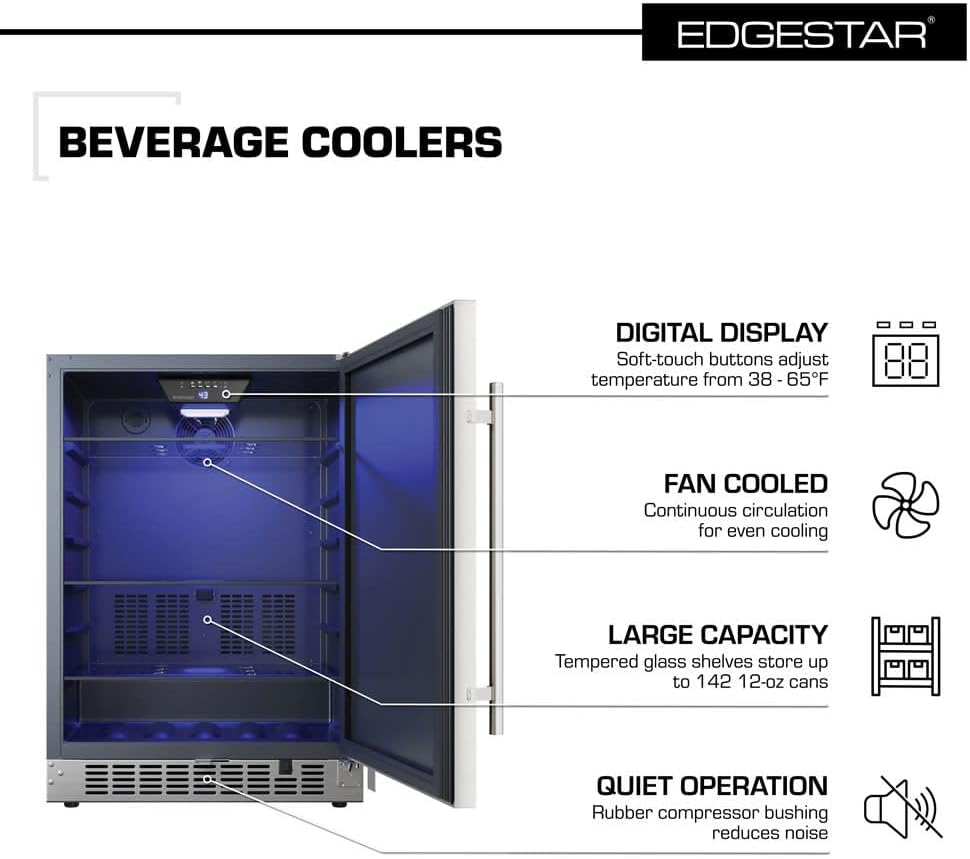

Figure 5: Interior of the cooler, illustrating the fan for air circulation and the digital display.
4.3 Ìmọ́lẹ̀ inú LED
The blue LED interior lighting enhances visibility and adds a modern aesthetic. The light can typically be controlled via a button on the control panel or automatically activates when the door is opened.
4.4 Storage and Shelves
The unit features tempered glass shelves with holes designed to improve cold air circulation. It can store up to 142 standard 12-ounce cans.
Figure 6: The cooler's interior showcasing its capacity with various beverages on the glass shelves.
Figure 7: Detail of a glass shelf, showing the circular holes designed for optimal cold air distribution.
4.5 Titiipa ilekun
The integrated door lock provides security for your stored beverages. Use the provided key to lock and unlock the door.
Figure 8: Close-up of the door lock, ensuring secure storage of contents.
5. Itọju
Regular maintenance ensures the efficient operation and extends the lifespan of your beverage cooler.
5.1 Aifọwọyi Defrost
This unit features an automatic defrost system, which minimizes ice buildup. During the defrost cycle, water may collect at the back of the unit and evaporate. This is normal operation.
5.2 Ninu
- Inu inu: Clean the interior regularly with a mild detergent and warm water. Avoid abrasive cleaners.
- Òde: Wipe the stainless steel exterior with a soft cloth and a stainless steel cleaner.
- Apoti ilẹkun: Clean the door gasket to ensure a tight seal, which is essential for energy efficiency.
- Condenser Coils: Periodically clean the condenser coils located at the back or bottom of the unit to ensure efficient cooling.
6. Laasigbotitusita
Ṣaaju ki o to kan si iṣẹ alabara, jọwọ tunview Awọn iṣoro ti o wọpọ ati awọn solusan wọnyi:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ẹka ko ṣiṣẹ | No power; circuit breaker tripped; power switch off. | Check power supply, reset breaker, ensure unit is switched on. |
| Unit is not cooling sufficiently | Temperature set too high; door not closed properly; excessive door openings; poor ventilation; warm items loaded. | Lower temperature setting; ensure door is sealed; reduce door openings; check for proper airflow; allow warm items to cool before loading. |
| Ariwo ti o pọju | Unit not level; fan obstruction; loose parts. | Adjust leveling legs; check for obstructions around fan; contact support if noise persists. |
| Omi lori pakà | Drainage issue; high humidity. | Check drain pan and hose for blockages; ensure proper ventilation. |
7. Awọn pato
Detailed technical specifications for the EdgeStar CBR1501SLD Beverage Cooler:
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | CBR1501SLD |
| Brand | EdgeStar |
| Agbara | 5.49 Cubic Feet (142 standard 12-oz cans) |
| Iru fifi sori ẹrọ | Built-In, Free Standing |
| Iwọn otutu | 38 - 65°F (3 - 18°C) |
| Iru-iru Defrost | Laifọwọyi |
| Ohun elo ilekun | Irin ti ko njepata |
| Ilekun Mita | Ọtun (Yiyipada) |
| Awọn selifu | 4 gilasi selifu |
| Itanna | Imọlẹ inu ilohunsoke LED |
| Voltage | 115 Volts |
| Wattage | 120 Wattis |
| Iwọn Nkan | 102 iwon |
| Awọn iwọn Ọja (D x W x H) | 22.88 x 23.44 x 33.75 inches |
| Pataki Awọn ẹya ara ẹrọ | Compact, Digital Controls, Fan-Circulated Cooling, Door Lock |
| Ijẹrisi | ETL |
8. Atilẹyin ọja & Atilẹyin
For warranty information, technical support, or to order replacement parts, please contact EdgeStar customer service. Keep your purchase receipt and model number handy when contacting support.
- Iṣẹ onibara: Refer to your product registration card or the official EdgeStar webaaye fun awọn alaye olubasọrọ.
- Awọn orisun Ayelujara: Visit the EdgeStar website for FAQs, troubleshooting guides, and product documentation.
