BLACK+DECKER PAV1205 Handheld Car Vacuum Cleaner User Manual

1. Ọja Ipariview

The BLACK+DECKER PAV1205 is a 12V handheld pivot dustbuster designed for vehicle cleaning. It features cyclonic action for consistent suction, triple action filtration for improved performance and longevity, and a filter cleaning wheel for easy maintenance. The pivoting nose offers 10 settings for enhanced flexibility, allowing access to hard-to-reach areas within your car.

Image 1.1: The BLACK+DECKER PAV1205 vacuum cleaner with its pivoting nozzle extended, ready for use.

2. Awọn Ilana Aabo pataki

Jọ̀wọ́ ka gbogbo ìlànà ààbò kí o sì lóye wọn kí o tó lo ohun èlò yìí. Àìtẹ̀lé àwọn ìlànà wọ̀nyí lè fa ìkọlù iná mànàmáná, iná, tàbí ìpalára ńlá.

• This appliance is intended for car use only and must be powered by a 12V DC accessory outlet.
• Má ṣe lo ẹ̀rọ ìfọṣọ láti kó àwọn ohun èlò tó lè jóná tàbí tó lè jóná, tàbí eérú gbígbóná.
• Do not operate the appliance with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer or an authorized service agent.
• Jeki irun, aṣọ alaimuṣinṣin, awọn ika ọwọ, ati gbogbo awọn ẹya ara kuro lati awọn ṣiṣi ati awọn ẹya gbigbe.
• Rí i dájú pé a fi àlẹ̀mọ́ náà sí i dáadáa kí a tó lò ó.
• Unplug the vacuum from the 12V outlet before performing any maintenance or cleaning.
• Tọju ohun elo naa sinu ile ni aaye gbigbẹ.

3. Bibẹrẹ (Eto)

3.1 Ṣiṣii silẹ

Carefully remove the vacuum cleaner and all accessories from the packaging. Inspect the unit for any damage. Retain the packaging for future storage or transport.

3.2 Nsopọ si Agbara

The PAV1205 is designed to operate from your vehicle's 12V accessory outlet (cigarette lighter socket).

1. Ensure your vehicle's engine is running to provide adequate power and prevent draining the car battery.
2. Insert the 12V adapter plug firmly into your vehicle's accessory outlet.

Image 3.1: The BLACK+DECKER PAV1205 vacuum cleaner showing its integrated 12V power adapter for car use.

3.3 Asopọmọra Awọn ẹya ẹrọ

The vacuum comes with a crevice tool for reaching tight spaces.

1. To attach the crevice tool, align it with the vacuum's nozzle opening and push firmly until it clicks into place.
2. To remove, pull the tool away from the nozzle.

Image 3.2: A hand demonstrating the attachment or detachment of the red crevice tool from the vacuum's nozzle.

4. Isẹ

4.1 Titan / Pa a

Once connected to the 12V accessory outlet, locate the power switch on the handle of the vacuum cleaner.

• Slide the switch to the 'ON' position to start the vacuum.
• Slide the switch to the 'OFF' position to turn off the vacuum.

4.2 Using the Pivoting Nozzle

The PAV1205 features a pivoting nozzle with 10 adjustable settings to reach various angles and tight spaces.

1. To adjust the nozzle angle, press the pivot release button (usually located near the pivot joint) and move the nozzle to the desired position.
2. Tu bọtini naa silẹ lati tii nozzle ni aaye.

Image 4.1: The BLACK+DECKER PAV1205 demonstrating its pivoting nozzle feature, shown in various angled positions.

4.3 Awọn imọran mimọ

• For general cleaning, use the vacuum with the nozzle in a straight or slightly angled position.
• For dashboard and console areas, adjust the nozzle to a comfortable angle for precise cleaning.

Image 4.2: A user cleaning a car dashboard with the BLACK+DECKER PAV1205, demonstrating its maneuverability.

• Utilize the pivoting nozzle and crevice tool to reach tight spots like between seats, under seats, and in door pockets.

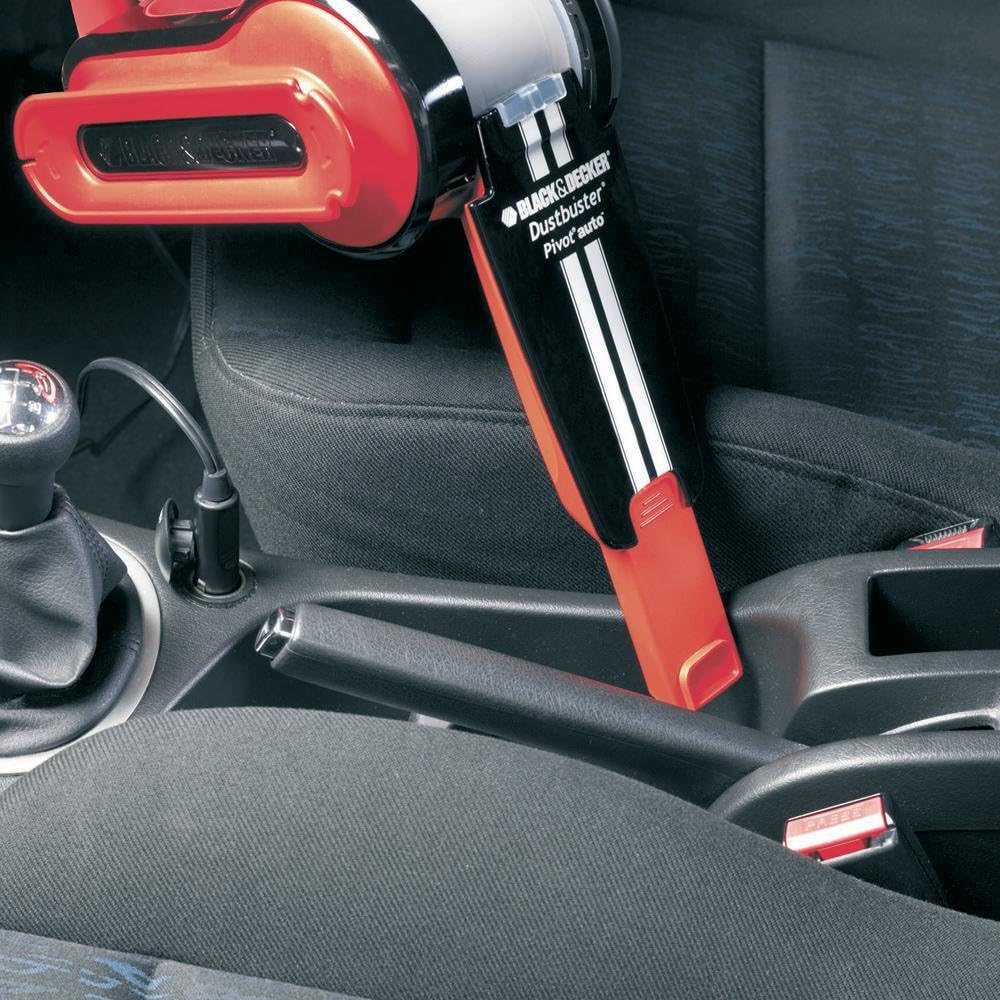

Image 4.3: The BLACK+DECKER PAV1205 being used to clean the narrow space between car seats, highlighting its compact design.

5. Itọju

Itọju deede ṣe idaniloju iṣẹ ṣiṣe ti o dara julọ ati fa igbesi aye ẹrọ mimọ igbale rẹ pọ si.

5.1 Ṣofo Apoti Eruku

Empty the dust container regularly, especially when the debris reaches the 'MAX FILL' line, to maintain suction power.

1. Ensure the vacuum is turned off and unplugged from the 12V outlet.
2. Locate the dust container release button/latch and press it to detach the dust container from the main unit.
3. Hold the dust container over a waste bin and open the lid to empty the collected debris.

Image 5.1: A user emptying the dust and debris from the BLACK+DECKER PAV1205's transparent dust container into a waste bin.

5.2 Ninu Ajọ

The PAV1205 features a filter cleaning wheel for hands-free filter maintenance and triple action filtration.

1. After emptying the dust container, locate the filter cleaning wheel.
2. Rotate the filter cleaning wheel several times to dislodge dust and debris from the filter. This debris will fall into the dust container.
3. For a more thorough cleaning, remove the filter from the dust container and tap it gently over a bin to remove fine dust. The filter can also be rinsed with warm, soapy water. Ensure the filter is completely dry before reinserting it into the vacuum.

Aworan 5.2: A sunmọ-soke view of the filter cleaning wheel on the BLACK+DECKER PAV1205, designed for easy filter maintenance.

6. Laasigbotitusita

If you encounter issues with your BLACK+DECKER PAV1205, refer to the following common problems and solutions:

7. Imọ ni pato
