Ọrọ Iṣaaju
This manual provides instructions for the installation, operation, and maintenance of the OSRAM LEDambient Tuning Lights Extension Kit (Model LEDINT202). This kit is designed to expand the existing OSRAM LEDambient Tuning Lights Basic Kit, offering enhanced customization for vehicle interior lighting.
Ọja Pariview

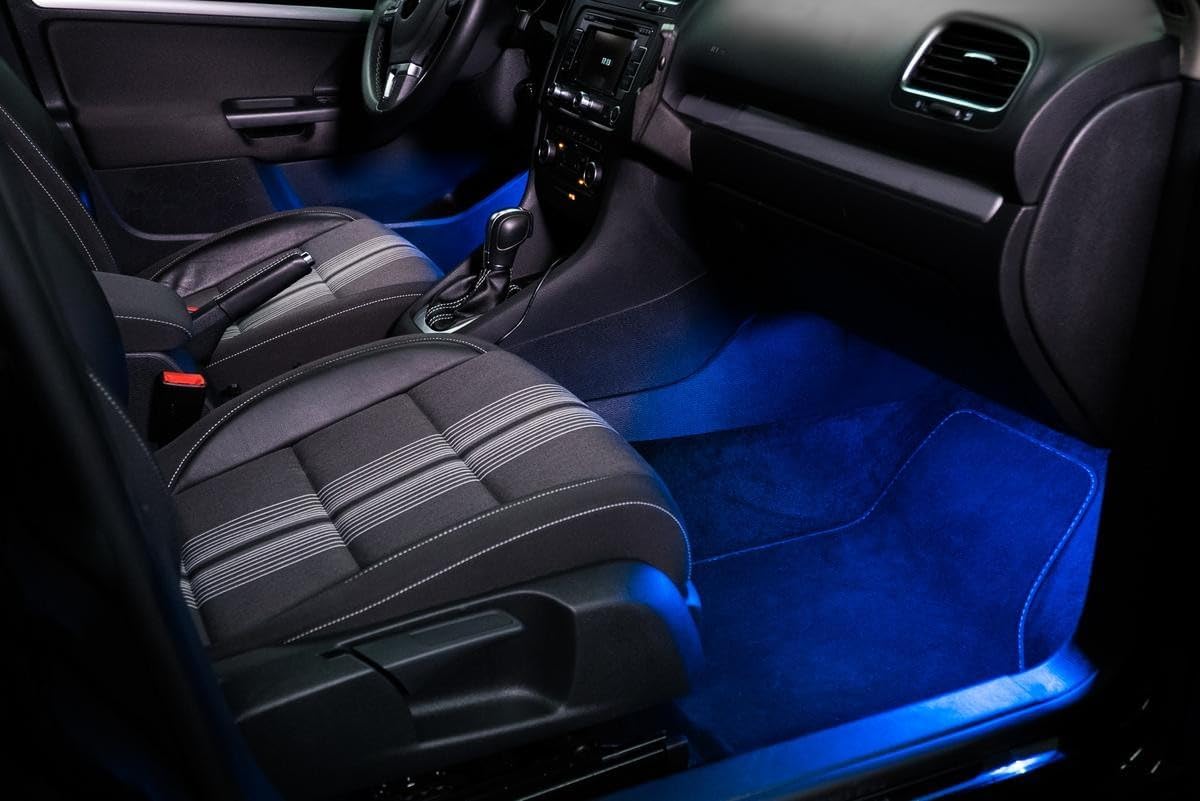

The OSRAM LEDambient Tuning Lights Extension Kit provides additional self-adhesive LED strips and a distributor to expand your vehicle's interior lighting system. It integrates with the basic kit to offer a wider range of lighting possibilities.
Ohun ti o wa ninu Apoti
- Two LED strips, each 30.5 cm in length.
- Three wires, each 12.7 cm in length.
- One distributor for connecting up to three strips.
- Alcohol prep pads for surface cleaning.
- Additional adhesive strips.
Ọja irinše
Eto ati fifi sori
This extension kit requires the OSRAM LEDambient Tuning Lights Basic Kit for operation. Ensure the basic kit is already installed and functioning before proceeding.
- Igbaradi: Identify desired locations for the additional LED strips within your vehicle's interior. Ensure surfaces are clean and dry. Use the provided alcohol prep pads to thoroughly clean the installation areas.
- Adhesion: Peel the backing from the self-adhesive strips on the LED lights and firmly press them onto the prepared surfaces.
- Asopọmọra: Connect the new LED strips to the distributor. The distributor allows for connecting up to three strips. Connect the distributor to the existing basic kit's control unit.
- USB Management: Route all cables neatly and securely to avoid interference with vehicle operation or passenger movement.
Awọn ilana Iṣiṣẹ
The LEDambient Tuning Lights are controlled via the remote control included with the basic kit.
Awọn iṣẹ
- Aṣayan awọ: Choose from 16 distinct color variants to match your preference or vehicle interior.
- Atunṣe Imọlẹ: Adjust the brightness across 16 settings to achieve the desired ambient light level.
- Awọn ọna itanna: Select from 5 different modes:
- Filaṣi: Rapid flashing of selected color.
- Strobe: Quick, intermittent flashes.
- Parẹ: Gradual transition between colors.
- Dan: Smooth, continuous color changes.
- ri to: Constant illumination in a single selected color.
Itoju
The OSRAM LEDambient Tuning Lights Extension Kit requires minimal maintenance.
- Ninu: Gently wipe the LED strips with a soft, dry cloth to remove dust. Avoid using abrasive cleaners or solvents.
- Ṣayẹwo alemora: Periodically check the adhesive strips to ensure the LED lights remain securely attached. Reapply new adhesive if necessary.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| LED rinhoho ko imọlẹ soke | Asopọ alaimuṣinṣin | Ensure all connections to the distributor and basic kit are secure. |
| LED rinhoho ko imọlẹ soke | Faulty strip | If connections are secure and other strips work, the individual strip may be faulty. Contact customer support. |
| Isakoṣo latọna jijin ko dahun | Battery low/dead | Rọpo batiri isakoṣo latọna jijin. |
| Isakoṣo latọna jijin ko dahun | Idilọwọ | Ensure a clear line of sight between the remote and the basic kit's receiver. |
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | OSRAM |
| Awoṣe | LEDINT202 |
| Awọn Iwọn Nkan (L x W x H) | 3.5 x 6.89 x 2.52 inches |
| Iwọn Nkan | 0.08 kilogram (2.85 iwon) |
| Voltage | 12 Volts |
| Imọlẹ Orisun Orisun | LED |
| Fọọmù ifosiwewe | Sisọ |
| Àwọ̀ | Dudu |
| Ohun elo | Plastic, rubber |
| Omi Resistance Ipele | Omi sooro |
| Pataki Awọn ẹya ara ẹrọ | Individually adjustable color lighting, Wireless control |
| Awọn irinše to wa | 1 (unit, referring to the kit) |
Atilẹyin ọja ati Support
OSRAM offers a two-year guarantee on the LEDambient Tuning Lights Extension Kit. For warranty claims or technical support, please refer to the contact information provided with your basic kit or visit the official OSRAM webojula.
Fidio ọja
This video demonstrates the dynamic lighting capabilities of OSRAM LEDambient products, showing how they enhance vehicle interiors with various colors and modes.
