Lasco 31675OB Universal Trim Kit Instruction Manual

Ọrọ Iṣaaju

Thank you for choosing the Lasco 31675OB Universal Trim Kit. This kit is designed to replace existing bath or shower trim, offering a fresh, oil rubbed bronze finish. This manual provides detailed instructions to ensure a smooth installation process, proper operation, and effective maintenance, helping you maximize the lifespan and performance of your new trim kit.

Ọja Pariview

Awọn eroja

• Ọwọ Lever
• Knob Handle
• Escutcheon (Faceplate)
• Iṣagbesori skru

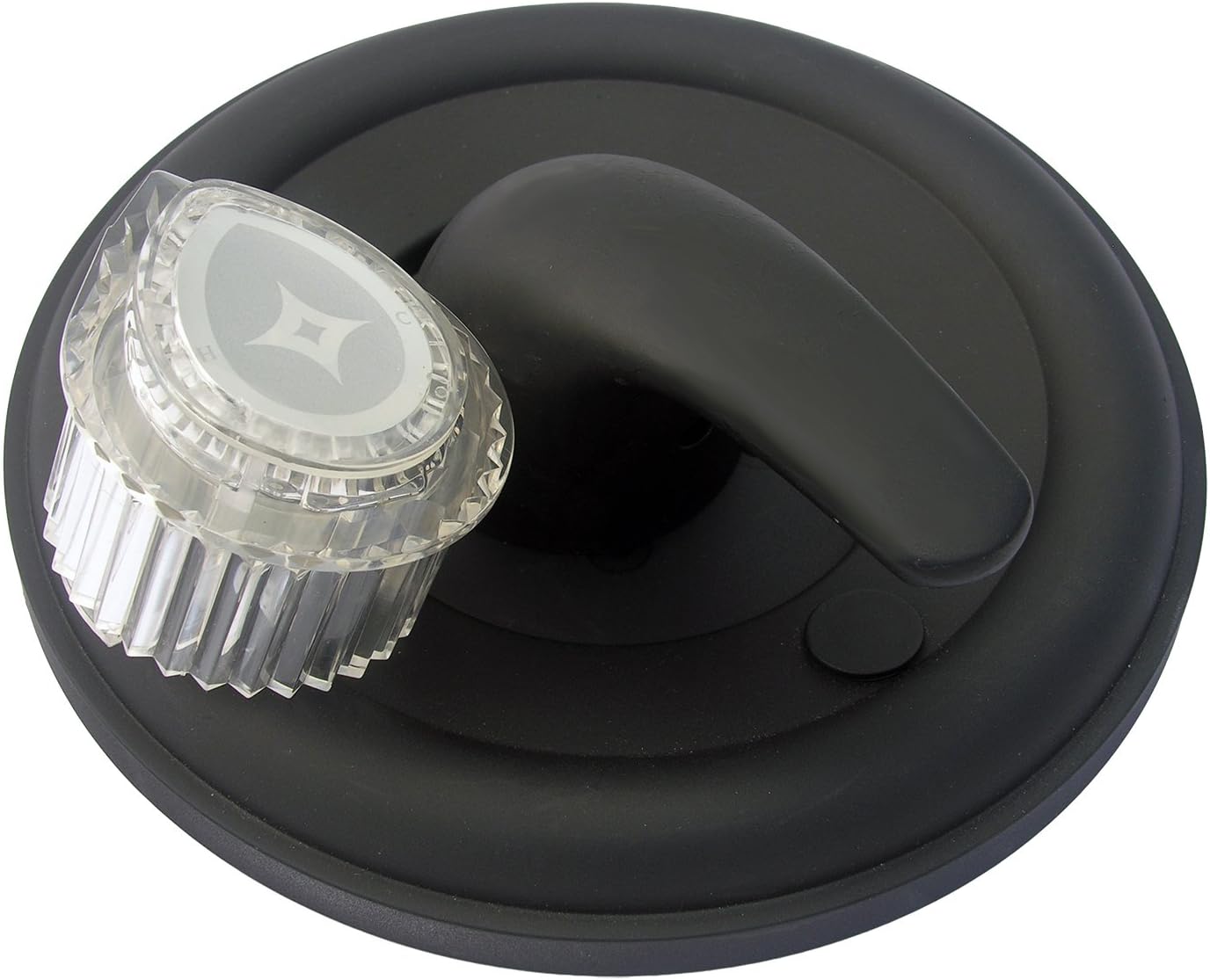

Nọmba 1: The Lasco 31675OB Universal Trim Kit, featuring both a lever handle and a knob handle, along with the circular escutcheon plate, all in an oil rubbed bronze finish. The clear knob handle is visible on the left, and the dark lever handle is on the right, mounted on the dark circular escutcheon.

Ṣeto

Awọn irinṣẹ ti a beere

• Wrench adijositabulu
• Phillips Head screwdriver
• Alapin Head Screwdriver
• Plumber's Putty tabi Silikoni Sealant
• Ninu Asọ

Awọn Igbesẹ fifi sori ẹrọ

1. Pa Ipese Omi: Locate the main water shut-off valve for your home or the specific bathroom and turn it off. Open the existing faucet to drain any remaining water.
2. Remove Old Trim: Carefully remove the existing handles, escutcheon, and any other visible trim components. You may need a screwdriver to loosen retaining screws.
3. Ilẹ mimọ: Thoroughly clean the area around the valve body on the wall to ensure a smooth and secure installation of the new escutcheon.
4. Install Escutcheon: Apply a thin bead of plumber's putty or silicone sealant around the back edge of the new escutcheon plate. Position the escutcheon over the valve body and secure it to the wall using the provided mounting screws. Ensure it is level and tight.
5. Fi sori ẹrọ Awọn ọwọ: Attach the desired handle (lever or knob) to the valve stem. Secure it with the set screw, typically located on the underside of the handle. Test for proper engagement.
6. Tan Ipese Omi: Slowly turn the main water supply back on. Check for any leaks around the newly installed trim.
7. Iṣiṣẹ Idanwo: Operate the handles to ensure proper water flow and temperature control.

Awọn ilana Iṣiṣẹ

Isẹ ipilẹ

The Lasco 31675OB Universal Trim Kit allows for easy control of water flow and temperature. Depending on the handle type installed:

• Ọwọ́ ìfàmọ́ra: Typically, rotating the lever handle controls water temperature (e.g., counter-clockwise for hot, clockwise for cold), while pulling it outwards or pushing it inwards controls water flow (on/off).
• Knob Handle: Rotating the knob handle controls water temperature, and pulling it outwards or pushing it inwards controls water flow.

Familiarize yourself with the specific movement of your installed handle to achieve the desired water temperature and pressure.

Itoju

Ninu

To maintain the oil rubbed bronze finish and overall appearance of your trim kit, follow these cleaning guidelines:

• Lo asọ, damp cloth and mild soap (non-abrasive) for regular cleaning.
• Yẹra fún lílo àwọn ohun ìfọṣọ, àwọn kẹ́míkà líle, tàbí àwọn pádì ìfọṣọ, nítorí pé wọ́n lè ba ìparí rẹ̀ jẹ́.
• Fi omi ṣan daradara pẹlu omi mimọ lẹhin mimọ ati gbẹ pẹlu asọ asọ lati ṣe idiwọ awọn aaye omi.

Itọju idena

• Periodically check for any signs of leaks around the escutcheon or handle base. Address any leaks promptly to prevent water damage.
• Ensure all screws and connections remain tight. Do not overtighten.

Laasigbotitusita

This section addresses common issues you might encounter with your trim kit.

Awọn pato

Atilẹyin ọja ati Support

Lasco warrants all its merchandise to be free from manufacturing defects. If you encounter any issues that you believe are due to a manufacturing defect, please return the product to the place of retail purchase for assistance.

For any plumbing-related questions, warranty claims, or defective parts replacement, it is recommended to contact the retailer where the product was purchased. They can provide accurate information and facilitate any necessary support or replacements.
