Uniden BT-905 BBTY0663001 Cordless Phone Battery Instruction Manual

Ọrọ Iṣaaju

This manual provides essential information for the proper installation, operation, and maintenance of your Uniden BT-905 BBTY0663001 rechargeable cordless phone battery. Please read these instructions carefully to ensure optimal performance and longevity of your battery.

Ọja Pariview

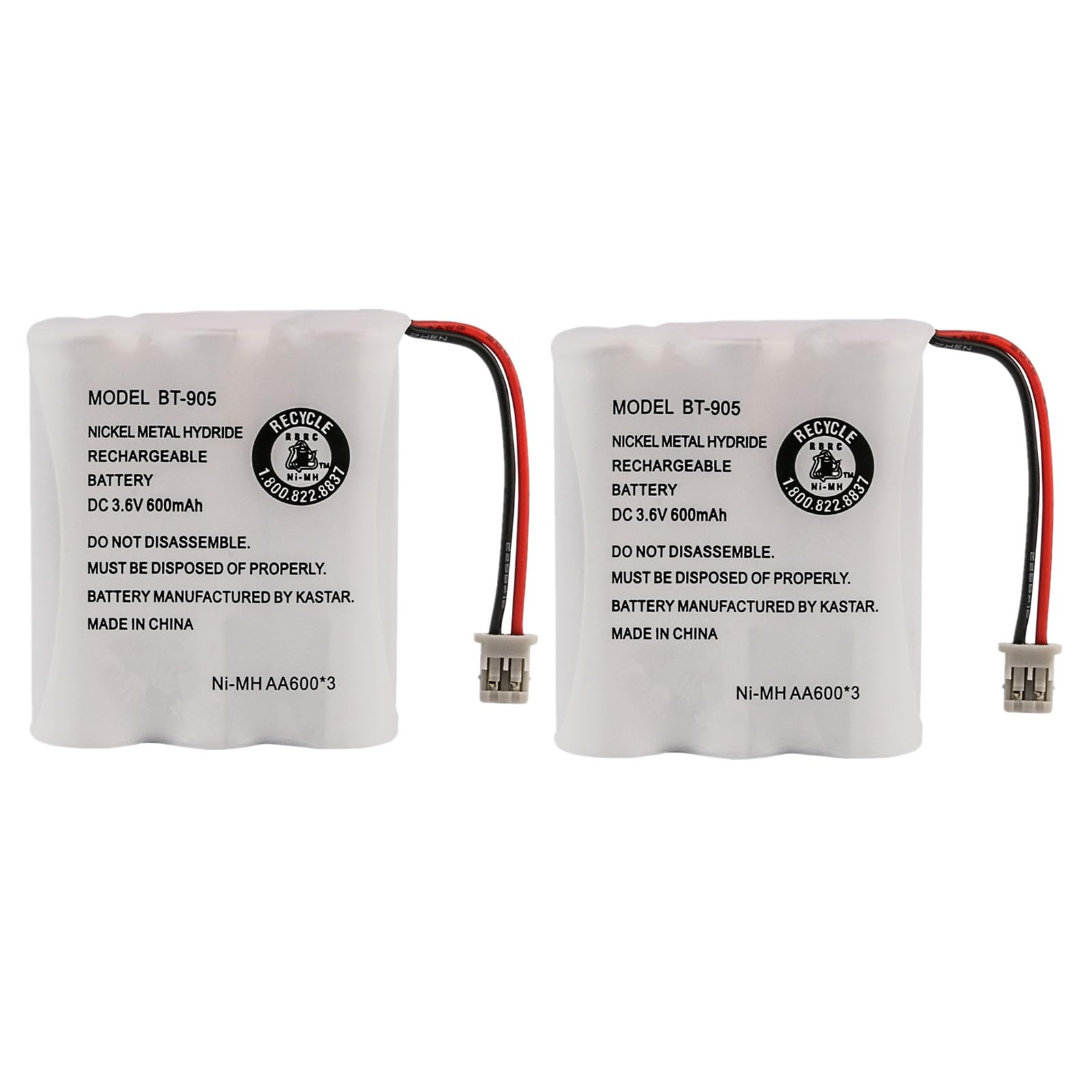

The Uniden BT-905 BBTY0663001 is a genuine replacement battery designed for various Uniden cordless telephone models. It is a Nickel-Metal Hydride (NiMH) battery, known for its reliability in cordless phone applications.

Awọn alaye pataki:

• Voltage: 3.6V
• Agbara: 600mAh
• Àkópọ̀: NiMH

Compatible Replacement Battery Models:

• BT-1006
• BT800
• GE-TL26154
• CPB-400B

Compatible Uniden Cordless Telephone Models:

This battery is compatible with a wide range of Uniden cordless phones across 900MHz, 2.4GHz, and 5.8GHz frequencies. A partial list includes:

• 900MHz Models: DXI386-2, DXI986-2, EHD1200, EXA2950, EXA2955, EXA3955, EXAI2980, EXAI2980i, EXAI378, EXAI378i, EXAI398, EXAI398i, EXAI7980, EXAI918, EXAI978, EXAI985HS, EXI376, EXI960, EXI976, EXI2926, EXI2960, EXI3965, EXI7926, EXI7960, EXI8965, EXI8966, EXL8900, EXLI8962, EXP2800, EXP2905, EXP6900, EXP7900, EWCI936, EXP7901, EXS2080, EZI996
• 2.4GHz Models: DXAI3288-2, DXAI4288-2, DXAI4588-2, DXAI7288-2, DXI3286-2, DXI4286-2, DXI4560-2, DXI4561-2, DXI7286-2, EXA3245, EXAI2248, EXAI3248, EXAI3248i, EXAI4248, EXAI4248i, EXAI4580, EXI2246, EXI3226, EXI3246, EXI4246, EXP2240, EXP2243, EXP3240, EXP3241, EXP4240, EXP4241, EXI4560, EXI4561, TRU3466
• 5.8GHz Models: CEZAI998, CXAI5198, CXAI5698, DXAI5188-2, DXAI5588-2, DXAI5588-3, DXAI5588-4, DXAI5688-2, DXAI5688-3, DXAI5688-4, DXAI8580-2, DXAI8580-3, DXI5186-2, DXI5586-2, DXI5586-3, DXI5586-3T, DXI5586-3TA, DXI5686-2, DXI5686-3, DXI8560-2, DXI8560-3, EXAI5180, EXAI5580, EXAI5680, EXI8560, EXAI8580, EXI5160, EXI5560, EXI5660

Fifi sori ẹrọ

Follow these steps to correctly install the new battery in your cordless phone handset:

1. Wa Iyẹwu Batiri naa: Turn your cordless phone handset over. The battery compartment is typically located on the back, secured by a cover.
2. Yọ Ideri Batiri naa kuro: Slide or unclip the battery compartment cover. You may need a small screwdriver for some models.
3. Ge asopọ batiri atijọ: Carefully disconnect the old battery pack from the phone's connector. Note the orientation of the connector.
4. Fi Batiri Tuntun sii: Connect the new Uniden BT-905 battery pack to the phone's connector, ensuring it is oriented correctly. Do not force the connection.
5. Position the Battery: Place the new battery pack into the compartment. Ensure the wires are not pinched. Note: In some cases, you may need to slightly adjust or trim the battery pack's wrapper where the wires exit to allow the battery cover to close properly. This ensures the wires are not obstructing the cover.
6. Rọpo Ideri Batiri naa: Tun ideri yara batiri so ni aabo.

Initial Charging and Operation

After installing the new battery, it is crucial to perform an initial charge cycle.

1. Place Handset on Charger: Place the handset with the new battery into its charging cradle. Ensure the charging indicator on the handset or base station illuminates.
2. Idiyele Ibẹrẹ: Allow the battery to charge continuously for at least 12-15 hours before its first use, even if the phone indicates a full charge sooner. This conditions the battery for optimal performance.
3. Ise deede: After the initial charge, the phone is ready for normal use. For best battery life, return the handset to the charger when not in use.

Itọju ati Itọju

Proper care can extend the life of your NiMH battery:

• Gbigba agbara deede: Always return the handset to the charging cradle when not in use. NiMH batteries do not suffer from a 'memory effect' as severely as NiCd batteries, but consistent charging is beneficial.
• Yago fun Sisọ Jijinlẹ: While occasional full discharge and recharge cycles can be beneficial for NiMH batteries, frequently allowing the battery to completely drain can shorten its lifespan.
• Iwọn otutu: Store and operate the battery at room temperature. Extreme heat or cold can degrade battery performance and life.
• Àwọn Olùbáṣepọ̀ Tí Ó Wọlé: Periodically clean the charging contacts on both the handset and the charging cradle with a dry cloth to ensure a good connection.

Laasigbotitusita

If you experience issues with your battery, consider the following:

• Batiri Ko Ngba agbara:
  • Rii daju pe foonu ti joko ni deede ni ijoko gbigba agbara.
  • Verify the charging cradle is properly connected to power.
  • Clean the charging contacts on both the handset and cradle.
  • Confirm the battery is correctly installed and connected inside the handset.
• Short Talk Time/Poor Battery Life:
  • Ensure the initial 12-15 hour charge cycle was completed.
  • The battery may require several charge/discharge cycles to reach full capacity.
  • If the battery is old, its capacity may have naturally degraded over time, requiring replacement.
• Foonu Ko Tii:
  • Ṣàyẹ̀wò bóyá bátìrì náà so pọ̀ dáadáa tí ó sì ti gba agbára.
  • Verify the phone's power adapter is working.
  • If the issue persists, the phone itself may have a fault.

Awọn pato

Alaye Aabo

Ṣe akiyesi awọn iṣọra ailewu wọnyi:

• Má ṣe tú batiri náà ká, fọ́ ọ, gé e lulẹ̀, tàbí kí o fi ẹ̀rọ gé e kúrú.
• Ma ṣe fi batiri han si awọn iwọn otutu giga tabi ina.
• Jeki awọn batiri kuro ni arọwọto awọn ọmọde.
• Sọ awọn batiri ti a lo ni ibamu si awọn ilana agbegbe. Ma ṣe sọ sinu egbin ile.
• Use only with compatible Uniden cordless telephone models as specified.

Atilẹyin ọja ati Support

For warranty information and customer support regarding your Uniden BT-905 BBTY0663001 battery, please refer to the documentation provided with your purchase or contact the seller directly. You may also visit the official Uniden Store fun alaye gbogbogbo nipa ọja naa.
