Snow Joe SJ619E Electric Single Stage Snow Thrower User Afowoyi

1. Ifihan

The Snow Joe Ultra SJ619E Electric Single Stage Snow Thrower is designed for efficient snow removal on mid-sized driveways and walkways. This electric unit offers the power required to tackle heavier snowfall without the need for gas, oil, or frequent tune-ups, ensuring effortless starting and maintenance. It is equipped with a powerful 14.5-amp motor capable of moving up to 650 lbs of snow per minute.

Its durable steel auger, fitted with two rubber blades, clears a path 18 inches wide and 8 inches deep in a single pass. The adjustable discharge chute rotates a full 180 degrees, providing complete control over the direction and height of the snow stream. Easy-glide all-terrain wheels enhance maneuverability, while a scraper blade at the base clears snow to the ground without damaging surfaces.

2. Alaye Aabo pataki

Always prioritize safety when operating the Snow Joe SJ619E. Read and understand all instructions before use.

• Ayẹwo okun agbara: Ensure the power cord is in good condition and not damaged before each use. Do not operate the snow blower with a frayed or damaged cord.
• Yago fun Olubasọrọ Omi: Do not operate the snow blower in standing water or on wet surfaces where electrical hazards may be present. Keep the power cord away from the clearing path to prevent accidental damage.
• Ohun elo Idaabobo Ti ara ẹni: Wear appropriate safety gear, including eye protection, hearing protection, and non-slip footwear.
• Ko Agbegbe kuro: Before starting, clear the area of any objects (rocks, toys, debris) that could be thrown by the auger.
• Ṣe abojuto Iṣakoso: Always maintain a firm grip on the handles and walk, do not run, while operating the unit.
• Discharge Chute Safety: Never direct the discharge chute towards people, animals, or property. Keep hands and feet away from moving parts.

3. Eto ati Apejọ

The Snow Joe SJ619E is designed for straightforward assembly. Refer to the included manual for detailed, step-by-step instructions and diagrams.

3.1 mu Apejọ

Attach the upper handle to the lower handle using the provided hardware. Ensure all bolts are securely tightened. The handle features a quick-release latch system for adjusting the handle angle or folding it down for storage.

3.2 Chute Crank Assembly

Install the chute crank rod according to the manual. This rod connects to the discharge chute, allowing you to adjust the snow throwing direction from the operator's position.

3.3 Asopọ agbara

Connect a suitable outdoor-rated extension cord to the snow thrower's power inlet. Ensure the extension cord is of the correct gauge for its length to prevent power loss and potential damage to the motor. A 12-gauge, 100-foot cord is often recommended for optimal performance.

olusin 1: Ẹyìn view of the Snow Joe SJ619E, showing the handle assembly and the power inlet for the extension cord.

Figure 2: Close-up of the handle, illustrating the power button and the integrated 3W LED light for nighttime operation.

4. Awọn ilana Iṣiṣẹ

The Snow Joe SJ619E is designed for ease of use. Follow these steps for effective snow removal:

4.1 Starting the Snow Thrower

1. Ensure the unit is plugged into a suitable outdoor-rated extension cord.
2. Tẹ mọlẹ bọtini aabo ti o wa lori mimu.
3. While holding the safety button, pull the trigger lever towards the handle. The motor will start.
4. Tu bọtini aabo silẹ ni kete ti mọto naa ba n ṣiṣẹ.

4.2 Pípalẹ̀ Yìnyín Mọ́

• Push the snow thrower forward at a steady pace. Avoid forcing the unit through heavy snow; allow the auger to work.
• For deep snow, it may be necessary to make multiple passes, clearing a partial width or depth each time.
• Use the chute crank to adjust the direction of the snow discharge as needed, ensuring snow is thrown away from cleared areas, people, and property.
• The integrated 3W LED light can be activated for improved visibility during low-light conditions or nighttime operation.

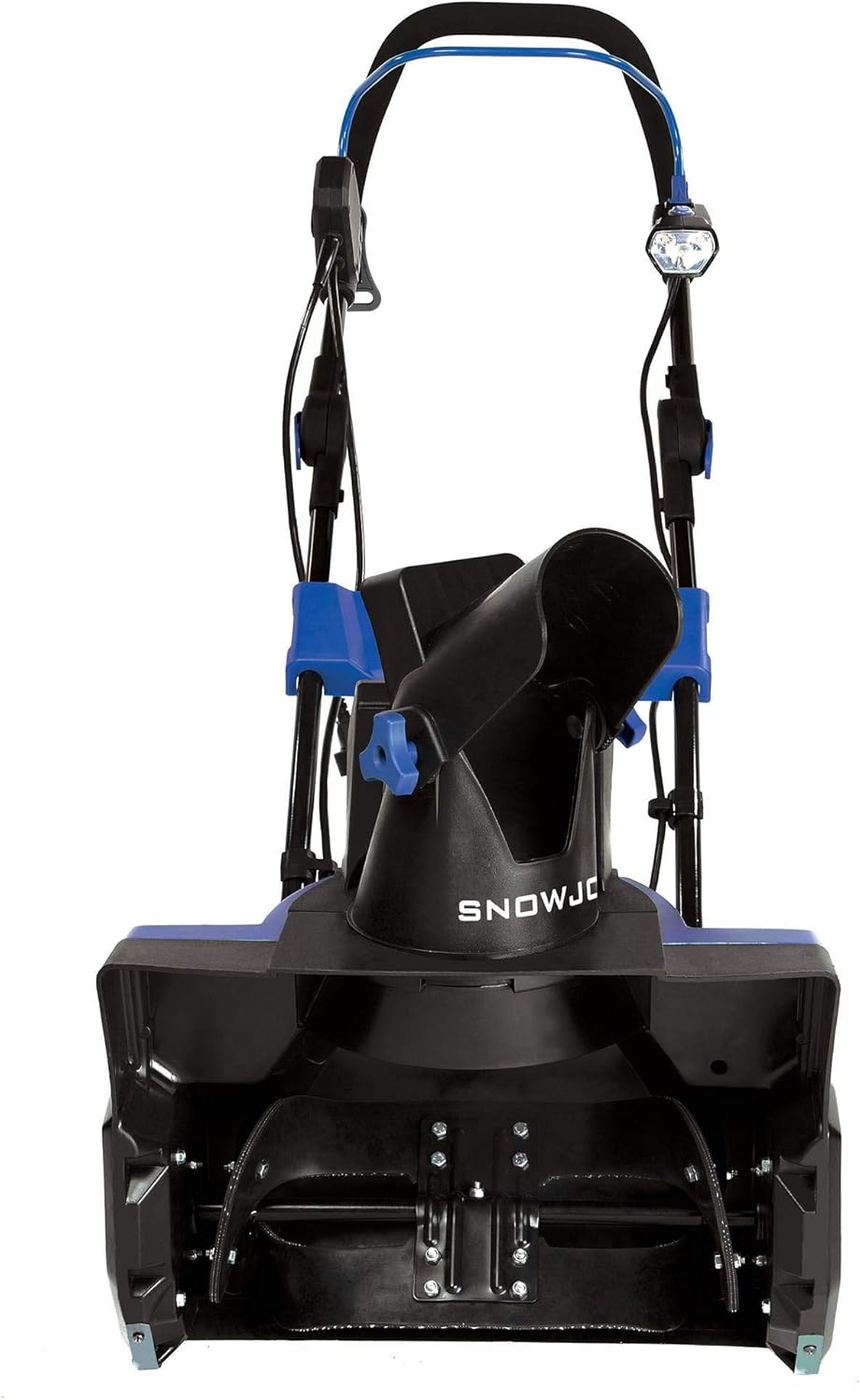

olusin 3: Iwaju view of the Snow Joe SJ619E, showcasing the auger and discharge chute. The 18-inch clearing width is visible.

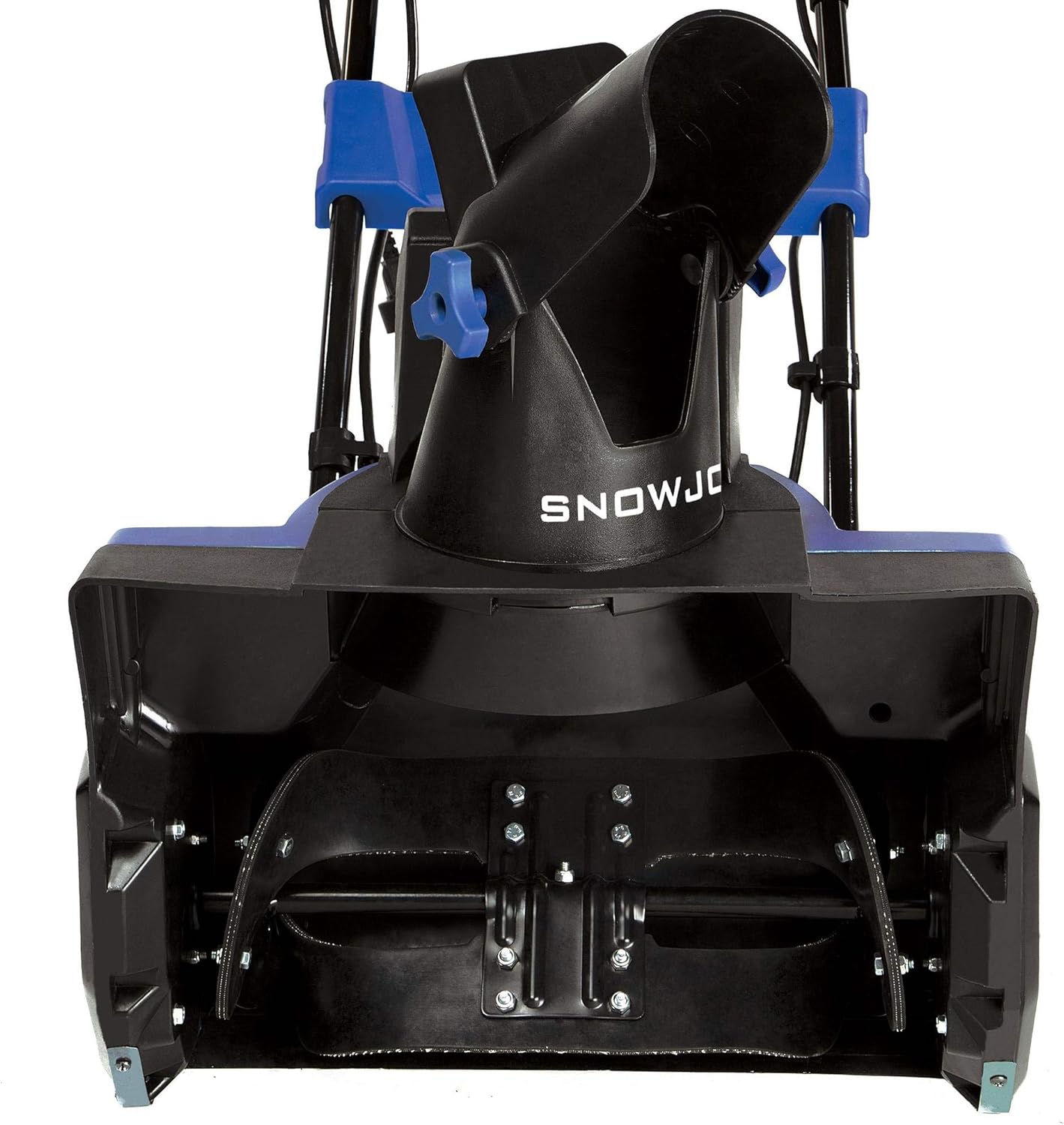

Nọmba 4: Alaye view of the durable steel auger with two rubber blades, designed to efficiently cut through snow.

5. Itọju

The Snow Joe SJ619E is designed for low maintenance. Regular care will ensure optimal performance and longevity.

• Ninu: After each use, disconnect the power and clean any snow or debris from the unit, especially around the auger and discharge chute. Use a non-abrasive cloth.
• Ayẹwo okun: Periodically inspect the power cord for any signs of wear, cuts, or damage. Replace immediately if damaged.
• Ibi ipamọ: Store the snow thrower in a dry, protected area when not in use. The handle can be folded down for compact storage.
• No Gas/Oil: As an electric unit, it requires no gas, oil, or spark plug maintenance.

6. Laasigbotitusita

If you encounter issues with your Snow Joe SJ619E, consult the following basic troubleshooting tips:

• Ẹyọ kan ko bẹrẹ:
  • Rii daju pe okun agbara ti wa ni edidi ni aabo sinu ẹyọkan ati iṣan itanna ti n ṣiṣẹ.
  • Check if the safety button and trigger lever are being engaged correctly.
  • Daju pe ẹrọ fifọ Circuit ko ti kọlu.
• Ijinna Sisun Yinyin Ti o Dínkù:
  • The discharge chute may be clogged. Always disconnect power before attempting to clear any clogs. Use a clean-out tool, not your hands.
  • Ensure you are not pushing the unit too quickly through heavy or wet snow. Reduce your pace.
• Ariwo dani tabi gbigbọn:
  • Immediately stop the unit and disconnect power.
  • Inspect the auger area for any foreign objects or damage to the blades.
  • Ti ọrọ naa ba wa, kan si atilẹyin alabara.

7. Awọn pato

8. Atilẹyin ọja ati Support

The Snow Joe Ultra SJ619E is ETL-approved and comes with a full two-year warranty. For warranty claims, technical support, or to purchase replacement parts, please contact Snow Joe customer service or visit their official webojula.

Fun alaye diẹ sii, ṣabẹwo si osise naa Snow Joe Store.
