Generac 6922 Gas Powered Pressure Washer User Manual

Awọn Itọsọna Aabo pataki

Before operating the Generac 6922 pressure washer, read and understand all safety warnings and instructions in this manual. Failure to follow these instructions may result in serious injury or property damage.

• Always wear appropriate personal protective equipment, including eye protection, hearing protection, and protective footwear.
• Never point the spray gun at people, pets, or electrical devices. The high-pressure spray can cause severe injury.
• Ensure all connections are secure before starting the unit to prevent leaks and loss of pressure.
• Operate the pressure washer in a well-ventilated area to avoid carbon monoxide poisoning from engine exhaust.
• Do not operate the unit if any parts are damaged or missing. Contact Generac customer support for replacement parts.
• Jeki awọn ọmọde ati awọn aladuro kuro ni agbegbe iṣẹ.
• Use only approved fuels and oils as specified in this manual. Store fuel in approved containers and away from ignition sources.
• Always engage the spray gun trigger safety lock when not spraying to prevent accidental discharge.

Ọja Pariview

The Generac 6922 is a gas-powered pressure washer designed for medium-duty residential cleaning tasks. It delivers 2800 PSI and 2.4 GPM, making it suitable for cleaning decks, siding, driveways, and vehicles. Key features include an ergonomic spray gun, integrated detergent tank, and quick-change nozzle tips.

olusin 1: Iwaju view of the Generac 6922 Gas Powered Pressure Washer.

Awọn paati bọtini

• Enjini: Generac OHV horizontal-shaft engine provides reliable power.
• Fifa: Delivers high-pressure water for effective cleaning.
• Sokiri Gun: Ergonomic design with cushion grip and easy-to-pull trigger for reduced fatigue.
• Iwọn Ipa-giga: 25-foot hose for extended reach.
• Awọn imọran Nozzle: Includes 0-degree, 25-degree, 40-degree, and soap nozzles for various applications.
• Ojò ìdọ̀tí: Integrated 0.5-gallon tank for convenient on-board detergent storage.
• Awọn kẹkẹ: 10-inch never-flat wheels for easy maneuverability across different terrains.
• Ibi iwaju alabujuto: User-friendly controls for on/off, choke, and fuel shutoff.

olusin 2: Iwaju view of the pressure washer, showing the control panel and spray gun holder.

olusin 3: Apa view of the pressure washer, highlighting the engine and pump assembly.

olusin 4: Ẹyìn view of the pressure washer, showing the hose connection point.

Figure 5: Close-up of the integrated hose storage on the handle.

Figure 6: Close-up of the Generac OHV engine, showing the fuel cap and pull start.

Figure 7: Close-up of the integrated 0.5-gallon detergent tank.

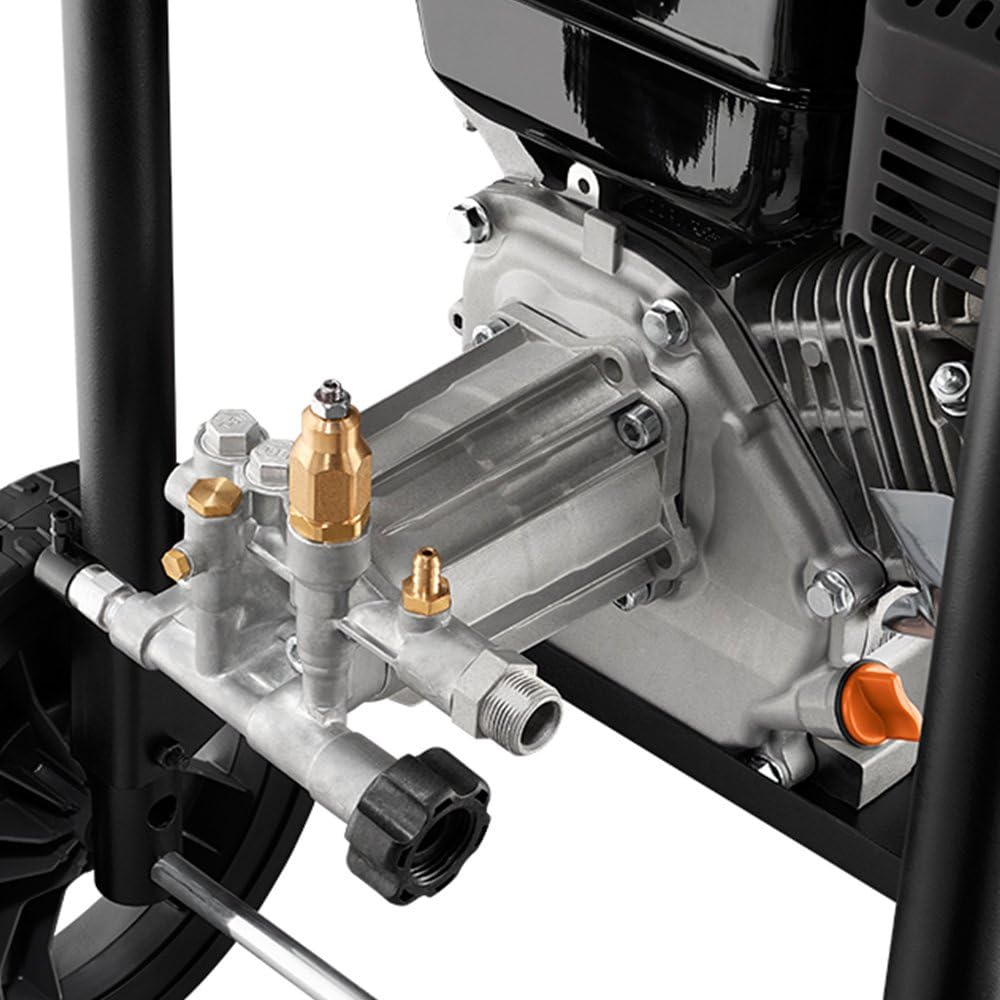

Figure 8: Close-up of the pump connections, including the water inlet and high-pressure outlet.

Eto ati Apejọ

1. Unpacking

Carefully remove all components from the packaging. Inspect for any damage during shipping. Ensure all parts listed in the packing list are present.

2. mu Apejọ

1. Slide the upper handle assembly onto the lower frame until the spring buttons engage.
2. Secure the handle with the provided knobs or bolts, ensuring it is firmly in place.

3. Connecting the Spray Gun and Hose

1. Connect the high-pressure hose to the pump outlet. Tighten securely, preferably with a wrench to prevent leaks.
2. Connect the other end of the high-pressure hose to the spray gun. Ensure a tight connection.
3. Insert the desired quick-change nozzle tip into the spray gun wand until it clicks into place.

4. Fifi Engine Epo

The engine may be shipped without oil. Refer to the engine manual for specific oil type and capacity. Typically, 10W-30 oil is recommended. Do not overfill.

1. Gbe ẹrọ ifoso titẹ sori ipele ipele kan.
2. Yọ epo kun fila / dipstick.
3. Slowly add the recommended engine oil until it reaches the full mark on the dipstick.
4. Replace the oil fill cap/dipstick.

5. Fifi epo

Use fresh, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 fuel. Always add fuel in a well-ventilated area away from ignition sources.

1. Rii daju pe ẹrọ naa wa ni pipa ati dara.
2. Yọ epo epo kuro.
3. Fill the fuel tank, leaving some space for expansion. Do not overfill.
4. Ni aabo rọpo fila epo.

6. Nsopọ Ipese Omi

Connect a standard garden hose to the water inlet on the pump. Ensure the garden hose is free of kinks and has sufficient flow. Turn on the water supply completely before starting the engine.

Isẹ

1. Pre-Start Checklist

• Ṣayẹwo ipele epo engine.
• Ṣayẹwo ipele epo.
• Rii daju pe ipese omi ti sopọ ati titan.
• Select and install the appropriate nozzle.
• Rii daju pe gbogbo awọn asopọ okun wa ni ṣinṣin.

2. Bibẹrẹ Engine

1. Ṣí fáìlì epo (tí ó bá wà ní ìpèsè).
2. Gbé ìdènà ìdènà náà sí ipò 'CHOKE' (ẹ̀rọ tutu).
3. Ṣeto iyipada ẹrọ si 'ON'.
4. Fa awọn Starter okun ìdúróṣinṣin titi engine bẹrẹ.
5. Ni kete ti ẹrọ ba bẹrẹ, maa gbe lefa choke si ipo 'RUN'.
6. Jẹ́ kí ẹ̀rọ náà gbóná fún ìgbà díẹ̀.

3. Using Detergent

The integrated 0.5-gallon detergent tank allows for easy application of cleaning solutions.

1. Fill the detergent tank with pressure washer safe detergent.
2. Install the black soap nozzle onto the spray gun. This nozzle activates the detergent injector.
3. Spray the detergent onto the surface to be cleaned. Allow it to soak for a few minutes (do not let it dry).
4. Switch to a high-pressure nozzle (e.g., 25-degree) to rinse the surface thoroughly.

4. Nozzle Yiyan

The Generac 6922 includes four quick-change nozzle tips:

• 0-degree (Red): Pin-point stream for intense cleaning of small, tough spots. Use with extreme caution.
• 25-degree (Green): Fan spray for general cleaning of most surfaces.
• 40-degree (White): Wide fan spray for gentle cleaning of delicate surfaces.
• Ọṣẹ (dudu): Low-pressure stream for applying detergents.

5. Cleaning Awọn ilana

• Always start spraying with the nozzle a safe distance from the surface and move closer as needed.
• Use overlapping strokes to ensure even cleaning.
• Work from top to bottom when cleaning vertical surfaces to prevent streaking.

6. Títìpa

1. If using detergent, flush the system with clean water by running the pressure washer with the soap nozzle in a bucket of clean water until all detergent is cleared.
2. Pa engine yipada.
3. Pa ipese omi.
4. Fun pọ fun sokiri ibon okunfa lati tu eyikeyi ti o ku titẹ ninu awọn eto.
5. Ge asopọ ọgba ọgba ati okun titẹ-giga.

Itoju

Regular maintenance ensures optimal performance and extends the life of your pressure washer. Always perform maintenance with the engine off and cool, and the spark plug wire disconnected.

1. Àyípadà epo ẹ̀rọ

Change the engine oil after the first 5 hours of operation, then every 50 hours or annually, whichever comes first. Refer to the engine manual for detailed instructions.

2. Air Filter Cleaning / Rirọpo

Inspect the air filter regularly and clean or replace it as needed, especially in dusty conditions. A dirty air filter can reduce engine performance.

3. Àyẹ̀wò Púlọ́gì Spark

Inspect the spark plug annually or every 100 hours. Clean or replace if fouled or damaged. Ensure proper gap setting.

4. Pump Maintenance

After each use, flush the pump with clean water. For extended storage, use a pump protector to prevent freezing and corrosion.

5. Ibi ipamọ

Before storing the pressure washer for an extended period:

• Drain all fuel from the tank or add a fuel stabilizer.
• Sisan awọn carburetor.
• Yi epo engine pada.
• Apply pump protector.
• Store in a clean, dry, and frost-free area.

Laasigbotitusita

Imọ ni pato

Alaye atilẹyin ọja

This Generac pressure washer is covered by a manufacturer's limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Generac webojula. Jeki ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.

Onibara Support

For technical assistance, replacement parts, or service inquiries, please contact Generac customer support. You can find contact information on the Generac website or in the documentation provided with your pressure washer. Have your model number (6922) and serial number ready when contacting support.
