Supersonic IQ-1428BT Bluetooth Active Portable Hi-Fi Speaker User Manual

1. Ifihan

O ṣeun fun riraasing the Supersonic IQ-1428BT Bluetooth Active Portable Hi-Fi Speaker. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

The IQ-1428BT is a versatile 2.1 channel outdoor Bluetooth speaker designed to deliver clear sound and heavy bass. It features Bluetooth 3.0 connectivity, USB/SD inputs, FM radio, 3.5mm Aux input, and two microphone inputs, all powered by a rechargeable battery.

2. Alaye Aabo pataki

• Ma ṣe fi agbọrọsọ si awọn iwọn otutu to gaju, ọriniinitutu, tabi imọlẹ orun taara.
• Yago fun sisọ tabi tẹriba agbọrọsọ si awọn ipa to lagbara.
• Má ṣe gbìyànjú láti tú tàbí yí agbọ́hùnsọ náà padà. Èyí yóò sọ àtìlẹ́yìn náà di òfo.
• Keep the speaker away from water and other liquids. While it is listed as waterproof, prolonged submersion or exposure to high-pressure water jets should be avoided.
• Lo okun gbigba agbara ti a pese nikan tabi iwe-ẹri deede.
• Jeki kuro ni arọwọto awọn ọmọde.
• Rii daju pe fentilesonu to dara nigbati o nṣiṣẹ agbọrọsọ.

3. Package Awọn akoonu

Jọwọ ṣayẹwo pe gbogbo awọn ohun kan wa ninu apo rẹ:

• Supersonic IQ-1428BT Bluetooth Active Portable Hi-Fi Speaker
• Micro USB Ngba agbara USB
• 3.5mm Aux USB
• Afowoyi Olumulo (iwe-ipamọ yii)

4. Ọja Ipariview

Mọ ararẹ pẹlu awọn paati ati awọn idari ti agbọrọsọ.

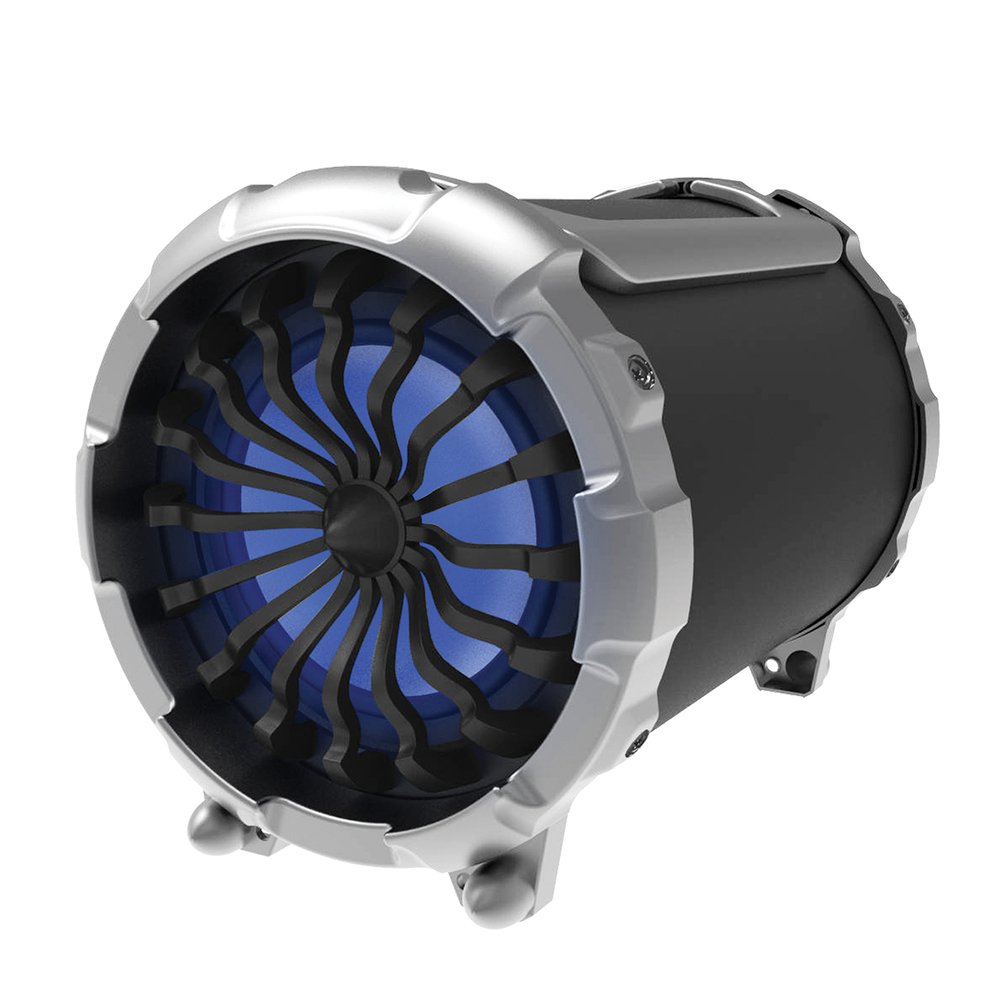

Aworan: Iwaju view of the Supersonic IQ-1428BT speaker, showing the main speaker grille and control panel.

4.1. Control Panel and Ports

• Bọtini agbara: Yipada agbọrọsọ si tan tabi paa.
• Bọtini Ipo: Switches between Bluetooth, FM Radio, USB, SD, and Aux input modes.
• Bọ́tìnnì Ṣíṣe/Sánu duro: Ṣiṣẹ tabi daduro ṣiṣiṣẹsẹhin ohun.
• Ti tẹlẹ/Awọn bọtini orin atẹle: Skips to the previous or next track. Also used for FM station tuning.
• Iṣakoso iwọn didun: Ṣatunṣe iwọn didun oluwa.
• Input USB: Fun gbigba ohun lati awọn awakọ filasi USB.
• Iho kaadi SD: For playing audio from SD memory cards.
• Iṣawọle AUX (3.5mm): Fun sisopọ awọn ẹrọ ohun afetigbọ ita nipasẹ okun 3.5mm kan.
• Microphone Inputs (x2): Fun pọ ti firanṣẹ microphones.
• Ibudo gbigba agbara USB Micro: Fun gbigba agbara ti abẹnu batiri.

5. Eto

5.1. Gbigba agbara akọkọ

1. Ṣaaju lilo akọkọ, gba agbara si agbọrọsọ ni kikun.
2. So okun gbigba agbara Micro USB pọ mọ ibudo gbigba agbara agbọrọsọ naa.
3. Connect the other end of the cable to a DC5V USB power adapter (not included) or a computer USB port.
4. The charging indicator light will illuminate. Charging takes approximately 6 hours.
5. Nígbà tí iná ìtọ́ka bá ti gba agbára tán, ó lè yípadà tàbí kí ó pa. Gé okùn gbigba agbára náà kúrò.

5.2. Agbara lori / Paa

• Láti tan agbára, tẹ bọ́tìnnì Agbára náà kí o sì di í mú títí tí agbọ́hùnsọ̀ náà yóò fi ṣiṣẹ́.
• Lati pa agbara, tẹ mọlẹ Bọtini Agbara lẹẹkansii titi ti agbọrọsọ yoo ti ku.

6. Awọn ilana Iṣiṣẹ

6.1. Ipo Bluetooth

1. Power on the speaker. It will automatically enter Bluetooth pairing mode, indicated by an audible prompt or flashing LED.
2. Lori ẹrọ Bluetooth ti o ṣiṣẹ (foonuiyara, tabulẹti, kọǹpútà alágbèéká), mu Bluetooth ṣiṣẹ ki o wa awọn ẹrọ to wa.
3. Yan "IQ-1428BT" lati akojọ awọn ẹrọ.
4. Once paired, the speaker will confirm with an audible prompt. You can now stream music wirelessly.
5. Ibiti o n ṣiṣẹ fun Bluetooth jẹ isunmọ awọn mita 10 (ẹsẹ 33).

6.2. USB / SD Kaadi Sisisẹsẹhin

1. Insert a USB flash drive or SD card into the corresponding slot.
2. Agbọrọsọ naa yoo yipada laifọwọyi si ipo USB/SD ati bẹrẹ si dun ohun naa files. If not, press the Mode button to select the correct input.
3. Lo awọn bọtini Play/Duro ati Tẹlẹ/Next Track lati ṣakoso ṣiṣiṣẹsẹhin.

6.3. Redio FM

1. Tẹ bọtini Ipo lati yipada si ipo Redio FM.
2. Tẹ mọlẹ bọtini Play/Sinmi lati ṣe ọlọjẹ laifọwọyi ati fi awọn ibudo FM ti o wa pamọ.
3. Lo awọn bọtini Orin Išaaju/Niwaju lati lọ kiri laarin awọn ibudo ti a fipamọ.

6.4. Apọju AX

1. Connect one end of the 3.5mm Aux cable to the speaker's AUX input port.
2. So opin miiran pọ si jaketi agbekọri tabi iṣelọpọ ohun ti ẹrọ ita rẹ.
3. Press the Mode button to switch to AUX input mode.
4. Ṣakoso ṣiṣiṣẹsẹhin ati iwọn didun lati ẹrọ ita rẹ.

6.5. Lilo Gbohungbohun

1. Connect up to two wired microphones (not included) to the microphone input jacks.
2. Ṣàtúnṣe iwọn didun gbohungbohun nipa lilo iṣakoso ti a yasọtọ (ti o ba wa) tabi iṣakoso iwọn didun akọkọ.

7. Gbigba agbara Agbọrọsọ

The speaker is equipped with a 2200mAh rechargeable Lithium Ion battery. Follow these guidelines for charging:

• Ibudo gbigba agbara: Micro USB
• Ngba agbara Voltage: DC5V
• Gbigba agbara lọwọlọwọ: 400mA
• Akoko gbigba agbara: O fẹrẹ to awọn wakati 6 fun idiyele ni kikun.
• Igbesi aye batiri: Approximately 6 hours at 50% volume, or 4 hours at 80% volume.
• Always use the provided Micro USB cable for charging.

8. Itọju

• Ninu: Lo asọ ti o rọ, ti o gbẹ lati nu ita ti agbọrọsọ. Ma ṣe lo abrasive ose tabi epo.
• Ibi ipamọ: When not in use for extended periods, store the speaker in a cool, dry place. It is recommended to charge the battery at least once every three months to maintain its lifespan.
• Omi Resistance: The speaker is waterproof. However, ensure all port covers are securely closed before exposure to water. Do not submerge for long periods or expose to high-pressure water.

9. Laasigbotitusita

10. Awọn pato

11. Atilẹyin ọja ati Support

Supersonic products are designed and manufactured to the highest quality standards. For detailed warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Supersonic website. Do not attempt to repair the product yourself, as this may void the warranty.

For customer service inquiries, please contact your retailer or the manufacturer directly.
