Rowenta Compact Power RO3927EA Bagged Vacuum Cleaner User Manual

1. Ifihan

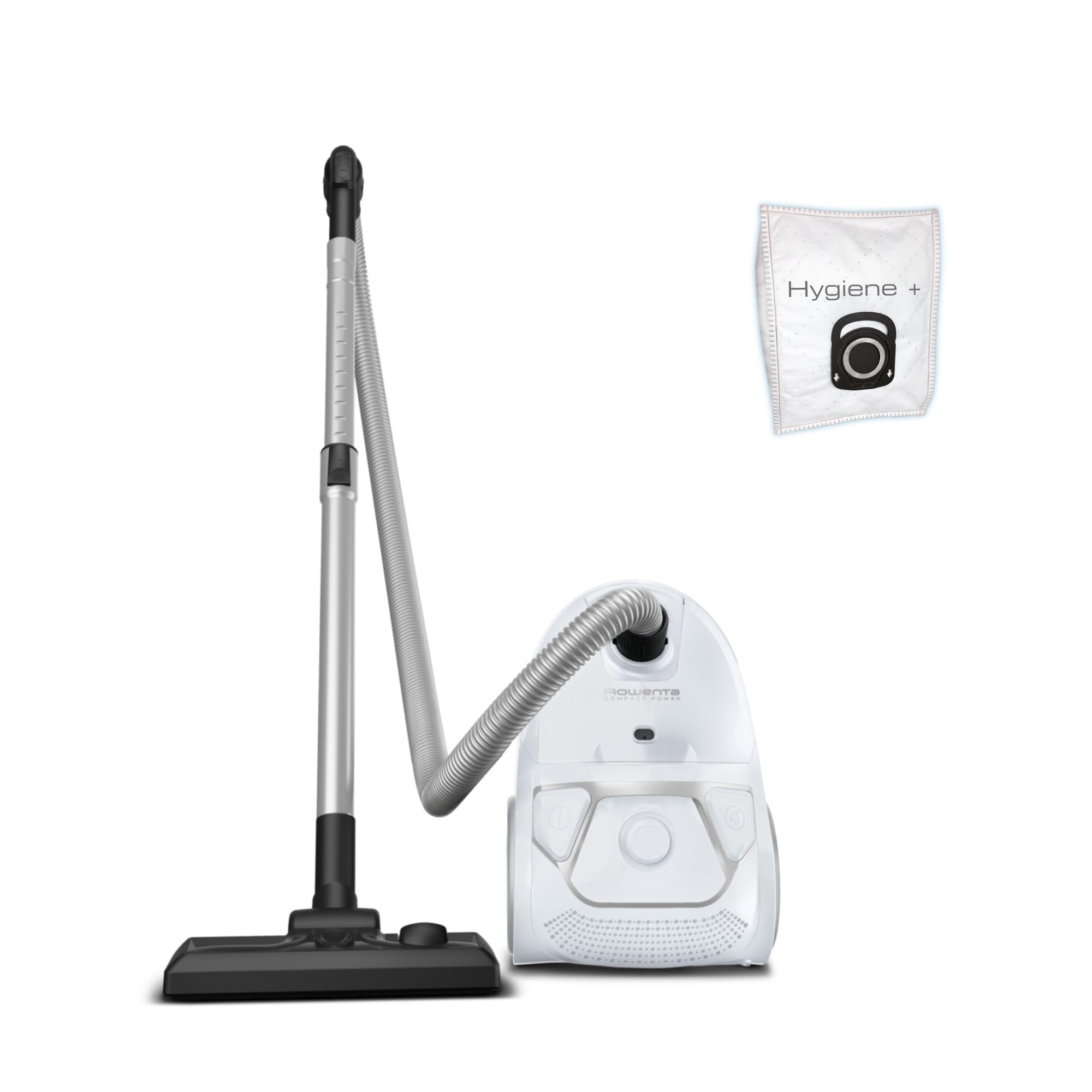

The Rowenta Compact Power RO3927EA is a high-performance bagged vacuum cleaner designed for efficient cleaning of various surfaces in your home. Featuring a powerful 900W max motor, a 3-liter dust bag capacity, and advanced filtration, this compact appliance ensures thorough dirt collection and cleaner air output. Its ergonomic design and extended operating radius make it convenient for everyday use.

Awọn ẹya pataki:

• Optimal Cleaning Power: Equipped with a 900W max low-consumption motor for excellent results on all floor types.
• High Filtration System: Features a hygienic filter and 2 filtration stages for effective dust retention.
• Apẹrẹ Iwapọ: Lightweight and easy to store, ideal for smaller living spaces.
• Large Dust Bag Capacity: A 3-liter dust bag minimizes the frequency of bag changes.
• Ti o gbooro sii: A 6.2-meter cable provides an 8.8-meter operating radius.

2. Awọn Ilana Aabo pataki

Before using your Rowenta Compact Power vacuum cleaner, please read all instructions carefully and keep them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ohun èlò yìí wà fún lílo ilé nìkan. Má ṣe lò ó fún lílo ìṣòwò tàbí iṣẹ́ ilé-iṣẹ́.
• Do not vacuum water, liquids, or damp materials. This vacuum cleaner is designed for dry cleaning only.
• Maṣe yọ ẽru gbigbona kuro, sisun siga, tabi awọn ohun mimu.
• Always unplug the appliance from the power outlet before performing any maintenance, cleaning, or changing accessories.
• Do not operate the vacuum cleaner with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• Jeki irun, aṣọ alaimuṣinṣin, awọn ika ọwọ, ati gbogbo awọn ẹya ara kuro lati awọn ṣiṣi ati awọn ẹya gbigbe.
• Do not allow children to play with the appliance. Close supervision is necessary when the appliance is used by or near children.
• Use only Rowenta recommended attachments and replacement parts.
• Ensure the dust bag and filters are correctly installed before use.

3. Ọja irinše

Familiarize yourself with the main components of your Rowenta Compact Power vacuum cleaner:

1. Main Unit (Motor body with dust bag compartment)
2. Rọ okun
3. Tube Irin Telescopic
4. Floor Nozzle (for carpets and hard floors)
5. Crevice Tool (usually stored on board or separately)
6. Upholstery Brush (usually stored on board or separately)
7. Okun agbara pẹlu Plug
8. Dust Bag (inside the main unit)
9. Filters (motor protection filter, exhaust filter)

4. Eto

Follow these steps to assemble and prepare your vacuum cleaner for first use:

1. So okun ti o rọ: Insert the end of the flexible hose into the suction inlet on the main unit until it clicks securely into place. To remove, press the release button and pull.
2. Ṣe apejọ Tube Telescopic: Connect the handle end of the flexible hose to the telescopic metal tube. Then, attach your desired floor nozzle or accessory to the other end of the telescopic tube. Adjust the length of the telescopic tube by pressing the adjustment button and sliding it to your preferred height.
3. Check Dust Bag Installation: Open the dust bag compartment cover. Ensure a dust bag is correctly inserted and sealed. If not, insert a new Rowenta Hygiene+ dust bag, making sure the cardboard collar is properly seated in the holder. Close the compartment cover firmly.
4. Sopọ si Agbara: Unwind the power cord and plug it into a suitable electrical outlet. The power cord has an automatic rewind function; gently pull the cord to extend it and press the rewind button to retract it after use.

5. Awọn ilana Iṣiṣẹ

Your Rowenta Compact Power vacuum cleaner is now ready for use.

1. Titan / Pipa: Press the On/Off button located on the main unit to start or stop the vacuum cleaner.
2. Ṣatunṣe Agbara mimu: The suction power can be adjusted using the electronic power variator on the main unit. For delicate surfaces or light cleaning, reduce the power. For heavily soiled areas or carpets, increase the power.
3. Managing Suction Effect (Ventosa Effect): On very smooth surfaces, the floor nozzle might create a strong suction effect, making it difficult to move. To alleviate this, open the air valve located on the handle of the flexible hose. This reduces the suction at the nozzle, allowing for easier movement while maintaining effective cleaning.
4. Lilo Awọn Asomọ:
   • Ikun Ilẹ: Use for general cleaning of carpets and hard floors. Some nozzles have a brush selector for different surfaces.
   • Irinṣẹ Crevice: Ó dára fún àwọn àlàfo tóóró, igun àti etí.
   • Fẹlẹ Aṣọ: Suitable for cleaning furniture, curtains, and other fabric surfaces.
5. Radius ti nṣiṣẹ: The 6.2-meter power cord provides an 8.8-meter operating radius, allowing you to clean large areas without frequently changing power outlets.

6. Itọju

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner. Always unplug the appliance before performing any maintenance.

6.1. Rírọ́pò Àpò Eruku

The dust bag full indicator on the main unit will illuminate when the dust bag needs to be replaced. The 3-liter capacity ensures fewer changes.

1. Yọọ ẹrọ igbale kuro ni iṣan agbara.
2. Ṣii ideri apo apo eruku.
3. Carefully remove the full dust bag by pulling the cardboard collar. The bag's closing system will automatically seal to prevent dust leakage.
4. Jọ́ gbogbo àpò eruku náà sínú àpótí ìdọ̀tí.
5. Insert a new Rowenta Hygiene+ dust bag, ensuring the cardboard collar is fully seated in the bag holder.
6. Close the dust bag compartment cover firmly until it clicks.

6.2. Filter Itọju

Your vacuum cleaner is equipped with a motor protection filter and a high-efficiency exhaust filter (HEPA filter). These filters should be checked and cleaned/replaced regularly.

• Ajọ Idaabobo mọto: This filter is located between the dust bag and the motor. Check it every 3-5 dust bag changes. If it is visibly dirty, tap it gently to remove dust or rinse it under cold water (ensure it is completely dry before reinserting). Replace it if it shows signs of wear.
• Exhaust Filter (HEPA Filter): This filter is usually located at the rear of the vacuum cleaner. It should be replaced approximately once a year, or more frequently with heavy use. Refer to your specific model's instructions for exact replacement intervals and filter type. Do not wash HEPA filters unless explicitly stated by the manufacturer.

6.3. Gbogbogbo Cleaning

• Mu ese ita ti ẹrọ igbale kuro pẹlu asọ, damp asọ. Ma ṣe lo abrasive ose tabi epo.
• Clean the floor nozzle and other attachments regularly to remove tangled hair, threads, and debris.
• Check the flexible hose for any blockages.

7. Laasigbotitusita

Ti o ba ba pade awọn ọran pẹlu ẹrọ mimọ igbale rẹ, tọka si awọn iṣoro ati awọn ojutu ti o wọpọ wọnyi:

Ti iṣoro naa ba wa lẹhin igbiyanju awọn ojutu wọnyi, jọwọ kan si atilẹyin alabara Rowenta.

8. Imọ ni pato

9. Atilẹyin ọja ati Support

Rowenta is committed to providing quality products and support. Your Rowenta Compact Power RO3927EA vacuum cleaner comes with a manufacturer's warranty, details of which can be found in the separate warranty document included with your purchase.

Àtúnṣe: Rowenta is dedicated to ensuring the reparability of its products. Spare parts for the majority of Rowenta products, including this model, are available for 15 years after purchase at a fair price.

For technical assistance, spare parts, or warranty claims, please contact Rowenta customer support through their official website or the contact information provided in your product documentation. When contacting support, please have your model number (RO3927EA) and purchase date ready.
