Hilti DX 5 SM Powder-Actuated Tool Instruction Manual

1. Ifihan

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Hilti DX 5 SM powder-actuated tool. Please read this manual thoroughly before initial use and keep it for future reference. Adherence to these instructions is crucial for preventing accidents and ensuring optimal performance of the tool.

2. Alaye Aabo

IKILO: Powder-actuated tools are powerful and can cause serious injury or death if not used correctly. Always follow all safety precautions.

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and safety gloves.
• Rí i dájú pé ibi iṣẹ́ náà kò sí àwọn tó ń wòran, àti pé kò sí àwọn ohun èlò tó lè jóná nínú rẹ̀.
• Maṣe tọka ohun elo naa si ararẹ tabi awọn miiran.
• Only use fasteners and powder loads specifically designed for the Hilti DX 5 SM tool.
• Before use, inspect the tool for any damage or wear. Do not use a damaged tool.
• Keep children and unauthorized persons away from the tool.
• Store the tool and powder loads securely and out of reach of children.
• Refer to local regulations and safety standards for powder-actuated tools.

3. Package Awọn akoonu

Daju pe gbogbo awọn nkan ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ:

• 1x DX 5_01 Basic unit
• 1x MX SM Steel magazine assembly
• 2x X-5-460-PSM Piston
• 1x 13 Round brush
• 1x X-5-460-Clean Cleaning kit
• 1x nla

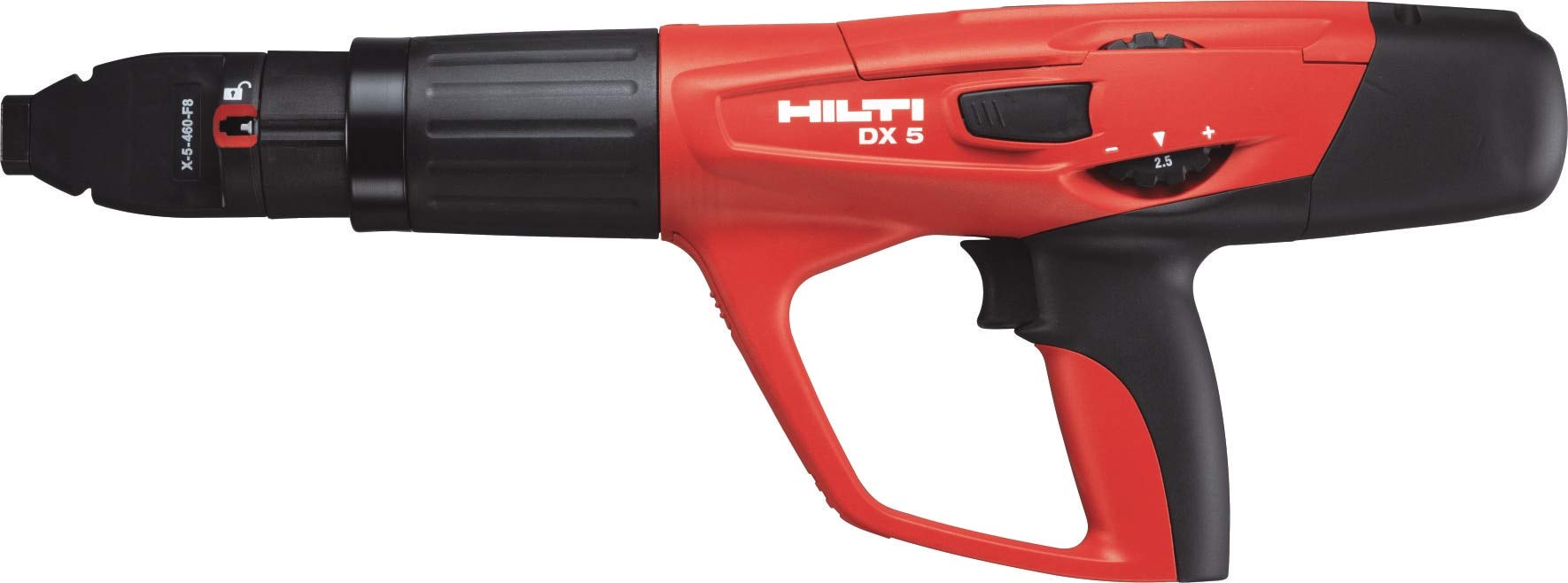

Image 1: Hilti DX 5 SM Powder-Actuated Tool with its components and carrying case.

4. Eto

1. Yọọ Irinṣẹ naa: Fi ìṣọ́ra yọ gbogbo àwọn ohun èlò kúrò nínú àpótí ẹrù náà.
2. Ṣayẹwo Awọn ohun elo: Check all parts for any signs of damage or missing pieces.
3. Assemble Magazine: Attach the MX SM Steel magazine assembly to the basic unit according to the diagrams in the full Hilti user manual (not provided here). Ensure it is securely fastened.
4. Load Fastener: Insert the appropriate fastener into the tool's guide.
5. Load Powder Cartridge: Insert the correct powder cartridge strip into the magazine. Refer to the Hilti powder load selection chart for the appropriate load for your application.
6. Ṣayẹwo Aabo: Before each use, perform a functional check to ensure all safety mechanisms are working correctly.

5. Awọn ilana Iṣiṣẹ

Tẹle awọn igbesẹ wọnyi fun ailewu ati iṣẹ ṣiṣe to munadoko:

1. Mura oju iṣẹ: Ensure the base material is suitable for powder-actuated fastening and free from obstructions.
2. Gbe Irinṣẹ naa: Place the tool firmly and perpendicularly against the work surface. Ensure the fastener guide is flush with the material.
3. Waye Ipa: Apply firm, consistent pressure to the tool handle to engage the safety mechanism.
4. Actuate the Tool: Once the tool is fully compressed against the surface, pull the trigger to drive the fastener.
5. Release and Reload: Release pressure, remove the tool from the surface, and allow the magazine to advance to the next powder cartridge.
6. Clear Misfires: In case of a misfire, keep the tool pressed against the surface for at least 30 seconds, then carefully remove the powder cartridge according to Hilti's safety guidelines. Never attempt to re-fire a misfired cartridge.

6. Itọju

Regular maintenance ensures the longevity and safe operation of your Hilti DX 5 SM tool.

• Ninu ojoojumọ: After each use, clean the tool thoroughly using the provided X-5-460-Clean Cleaning kit and 13 Round brush. Remove all powder residue and debris.
• Piston Inspection: Regularly inspect the X-5-460-PSM Piston for wear or damage. Replace pistons as needed to maintain optimal performance and safety.
• Lubrication: Apply Hilti-approved lubricant to moving parts as specified in the detailed Hilti maintenance guide.
• Ibi ipamọ: Store the tool in its original case in a dry, secure location, away from extreme temperatures and unauthorized access.
• Iṣẹ Iṣẹ Ọjọgbọn: For complex repairs or annual inspections, contact an authorized Hilti service center.

7. Laasigbotitusita

This section addresses common issues you might encounter. For problems not listed here, contact Hilti customer support.

8. Awọn pato

9. Atilẹyin ọja ati Support

For detailed warranty information, product support, or to locate an authorized service center, please visit the official Hilti website or contact Hilti customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

Hilti Official Webojula: www.hilti.com
