LASTBUS Backup Camera Instruction Manual

1. Ifihan

The LASTBUS Backup Camera is a professional-grade reversing camera designed for heavy-duty vehicles such as RVs, campers, trucks, trailers, buses, and vans. Engineered with advanced imaging technology and robust construction, this camera provides clear and wide-angle views to enhance safety during driving and parking maneuvers, both day and night.

2. Awọn ẹya Ọja

• Bright & Clear Picture: Equipped with a CMOS image sensor and 700 TV lines, this camera delivers clear and detailed color images, ensuring no details on the road are overlooked.
• Imudara Iranran Alẹ: Features 18 built-in IR LEDs that automatically activate in low-light conditions, providing clear visibility up to 50 feet (25 meters) at night.
• Wide Angle Vision: Ó fúnni ní ìwọ̀n 130° tó fẹ̀ viewing angle with 360-degree adjustment capability, helping to eliminate blind spots.
• Ikole ti o tọ: Built with a full metal shell and a glass screen, ensuring waterproof (IP69 rating), shockproof, and long-lasting performance in various weather conditions.
• Ibamu Agbaye: Designed with a standard 4-pin GX12-4 connector for broad compatibility with 12-24V DC vehicle systems.

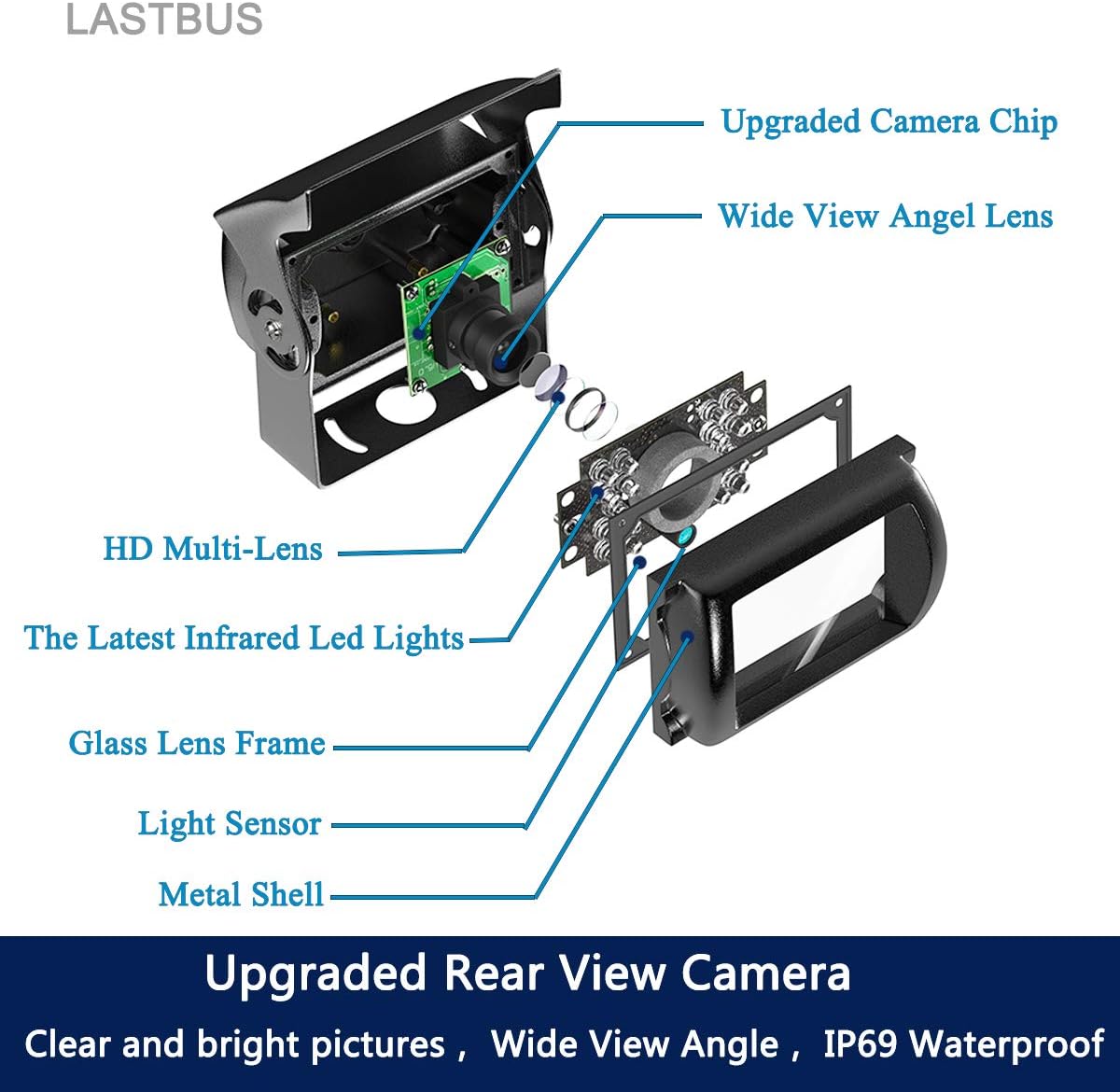

Figure 2.1: Internal components of the LASTBUS Backup Camera, highlighting the upgraded camera chip, wide view angle lens, HD multi-lens, infrared LEDs, glass lens frame, light sensor, and metal shell.

Figure 2.2: The camera's IP69K waterproof rating ensures reliable operation in all weather conditions.

3. Awọn pato

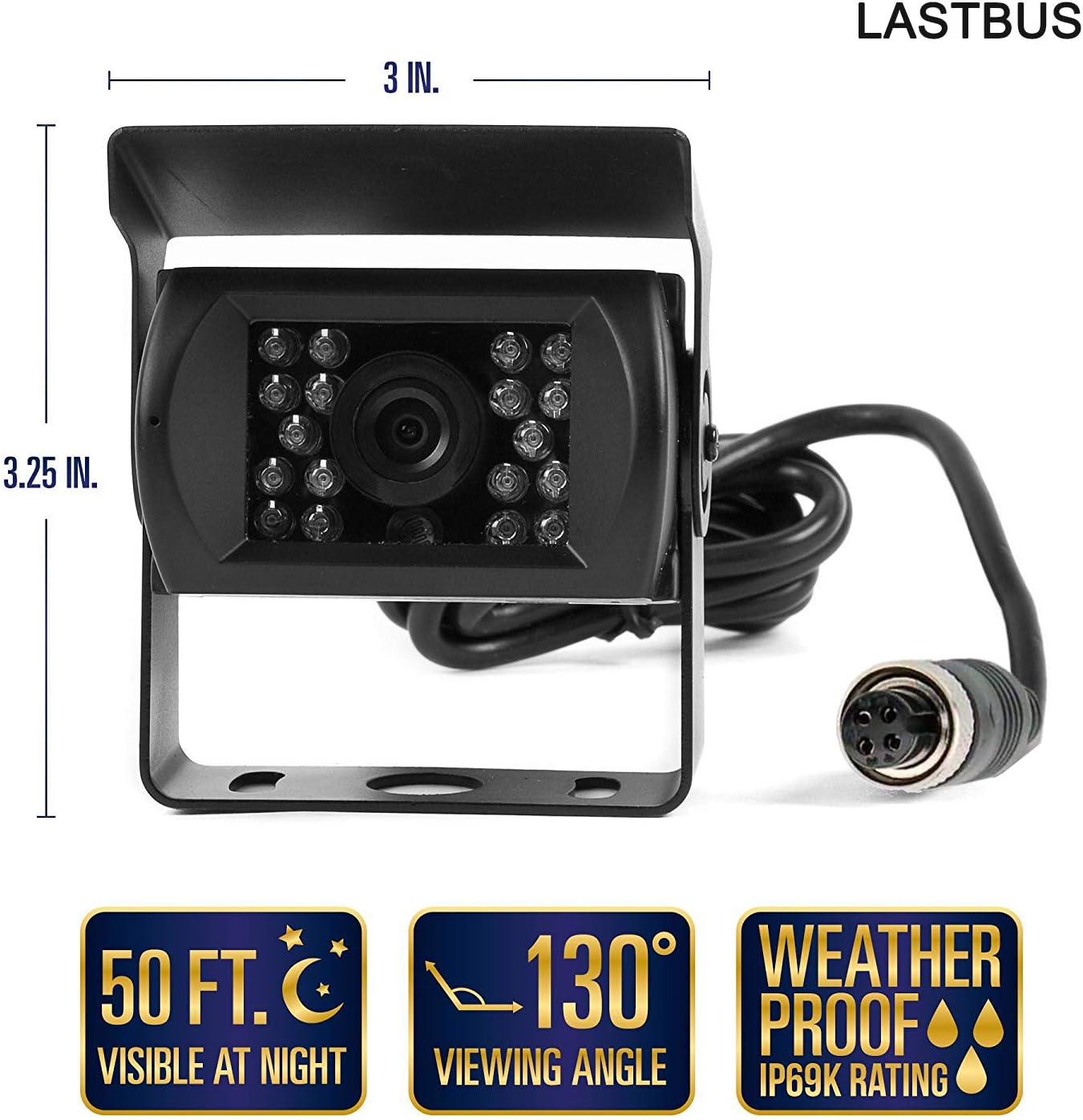

Figure 3.1: Key specifications including dimensions, 50 ft night vision, 130° viewing angle, and IP69K waterproof rating.

Figure 3.2: Additional dimensions and illustration of the 360-degree adjustable mounting bracket with 18 LED night lens.

4. Package Awọn akoonu

Ni ṣiṣi package, jọwọ rii daju pe gbogbo awọn nkan wa ati ni ipo to dara:

• LASTBUS Backup Camera (x1)

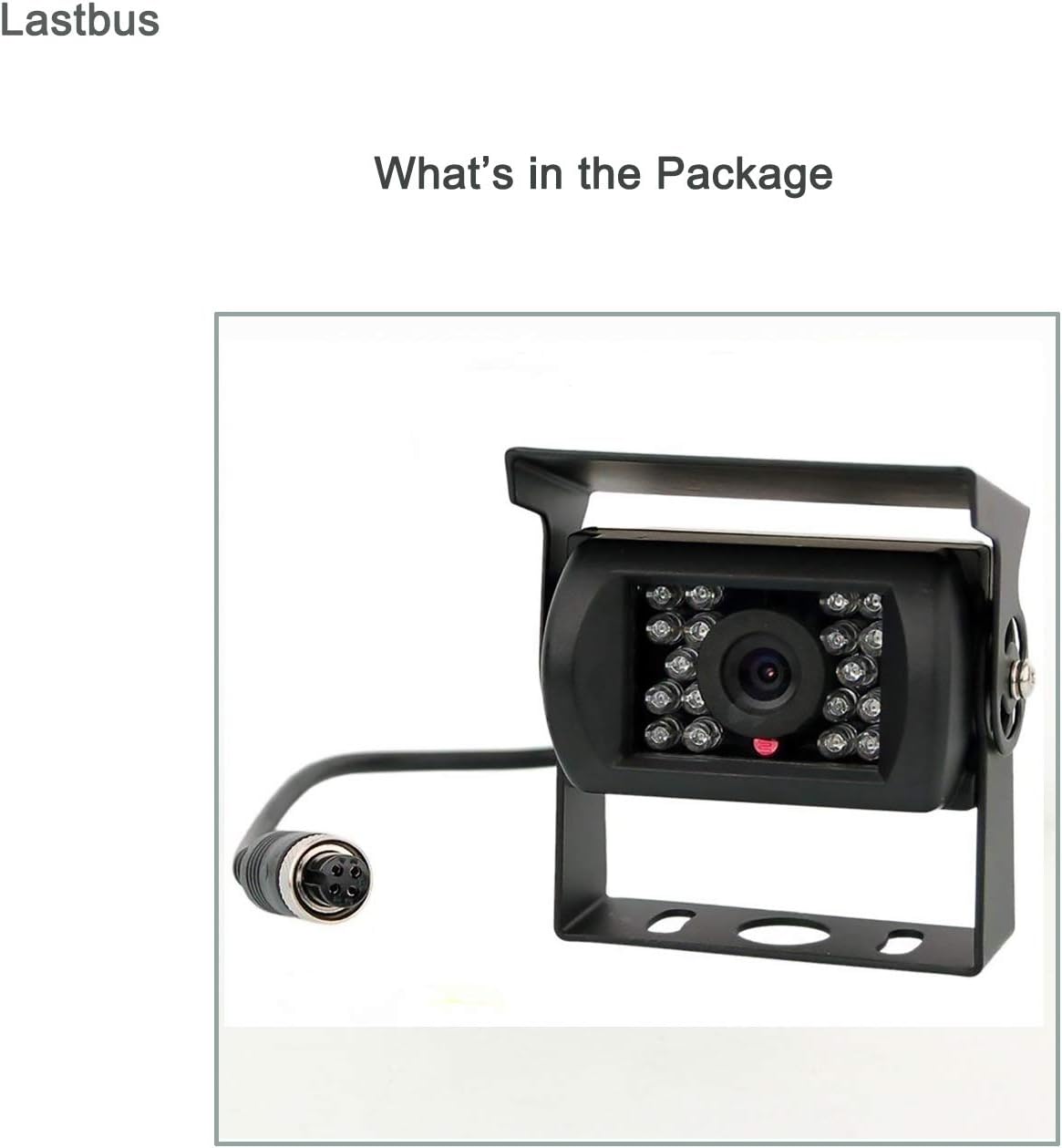

Figure 4.1: Contents of the package, showing the backup camera with its integrated cable.

5. Itọsọna fifi sori ẹrọ

This camera is designed for straightforward installation on 12-24V DC vehicle systems. Please follow these guidelines for proper setup:

5.1. Ayẹwo ibamu

Ikilọ pataki: The camera utilizes a standard GX12-4 (or M12 4-pin) connector. Before installation, confirm that your monitor or existing wiring system uses compatible GX12-4 or M12 4-pin connectors. Incompatible connectors will prevent the camera from functioning correctly with your system. Additionally, this camera is not compatible with monitors that only support AHD format.

5.2. Aworan aworan

Figure 5.1: Pinout diagram for the GX12-4 connector. Pin 1: Positive Pole (12-24V), Pin 2: Negative Pole/GND, Pin 3: Null, Pin 4: Video Cord.

5.3. Iṣagbesori Kamẹra

Mount the camera securely at the desired rear location of your vehicle. The camera features a 360-degree adjustable bracket, allowing you to optimize the viewing angle for your specific application. Ensure the camera has a clear line of sight and is protected from direct impact.

Olusin 5.2: Example of the camera mounted on a vehicle, providing a clear rear view lori atẹle.

6. Isẹ

Once properly installed and connected to a compatible monitor, the LASTBUS Backup Camera operates automatically. When the vehicle is put into reverse, the camera will transmit its video feed to the connected display, providing a real-time view ti agbegbe lẹhin ọkọ rẹ.

• Isẹ ọjọ: The 700 TV lines and CMOS sensor provide clear, color images in well-lit conditions.
• Isẹ Alẹ: The integrated 18 IR LEDs will automatically activate as ambient light decreases, switching the camera to night vision mode to ensure clear black-and-white visibility in dark environments.

7. Itọju

The LASTBUS Backup Camera is designed for durability and minimal maintenance. To ensure optimal performance and longevity:

• Ninu igbagbogbo: Fọ lẹnsi kamẹra lẹẹkọọkan pẹlu asọ, damp aṣọ láti yọ ẹrẹ̀, eruku, tàbí àwọn ibi omi tí ó lè dí i lọ́wọ́ kúrò view. Yago fun abrasive ose.
• Ṣayẹwo Asopọmọra: Occasionally inspect the 4-pin connector and cable for any signs of wear, corrosion, or damage. Ensure connections remain secure.
• Atako oju ojo: The IP69 waterproof rating protects the camera from water ingress and dust. No special weatherproofing is required for the camera unit itself, but ensure cable entry points into the vehicle are sealed.

8. Laasigbotitusita

If you encounter issues with your LASTBUS Backup Camera, please refer to the following common problems and solutions:

• Ko si ifihan agbara / Iboju Dudu:
  • Verify that the camera's 4-pin GX12-4 connector is securely plugged into the monitor or wiring harness.
  • Ensure the camera is receiving proper 12-24V DC power. Check power connections and fuses.
  • Confirm that your monitor system is compatible with the GX12-4 connector and does not exclusively support AHD video format.
  • Test the camera with a known working monitor or test the monitor with a known working camera, if possible, to isolate the issue.
• Unclear or Distorted Picture:
  • Nu lẹnsi kamẹra naa daradara.
  • Check for any physical damage to the lens or camera housing.
  • Ensure proper power supply; unstable voltage can affect image quality.
• Night Vision Not Activating:
  • Ensure the camera is in a sufficiently dark environment for the IR LEDs to activate automatically.
  • Ṣayẹwo fun eyikeyi idilọwọ awọn IR LED.

9. Atilẹyin ọja ati Support

LASTBUS is committed to providing excellent customer service and support for your product.

• Iṣẹ onibara: 24-Hour Online Customer Service is available to assist with any questions or concerns.
• Ẹri Owo-pada: Enjoy a 60-Day Money-Back Guarantee from the date of purchase.
• Atilẹyin Ayipada: A 12-Month Replacement Warranty covers manufacturing defects.
• Atilẹyin igbesi aye: LASTBUS provides lifetime technical support for the product.

For any inquiries, assistance, or to report an issue, please contact LASTBUS customer service directly. We are dedicated to ensuring your satisfaction.
