1. Ifihan
Thank you for choosing the Sunlite 85409 48-Inch LED Linear Dual Strip Light Fixture. This fixture is designed for energy efficiency and long-lasting performance, providing 3900 lumens of 3000K Warm White light while consuming only 30 watts. It is an ideal lighting solution for various commercial and residential applications, including offices, workshops, garages, and basements.
This manual provides essential information for the safe installation, operation, and maintenance of your new LED fixture. Please read it thoroughly before installation and retain it for future reference.

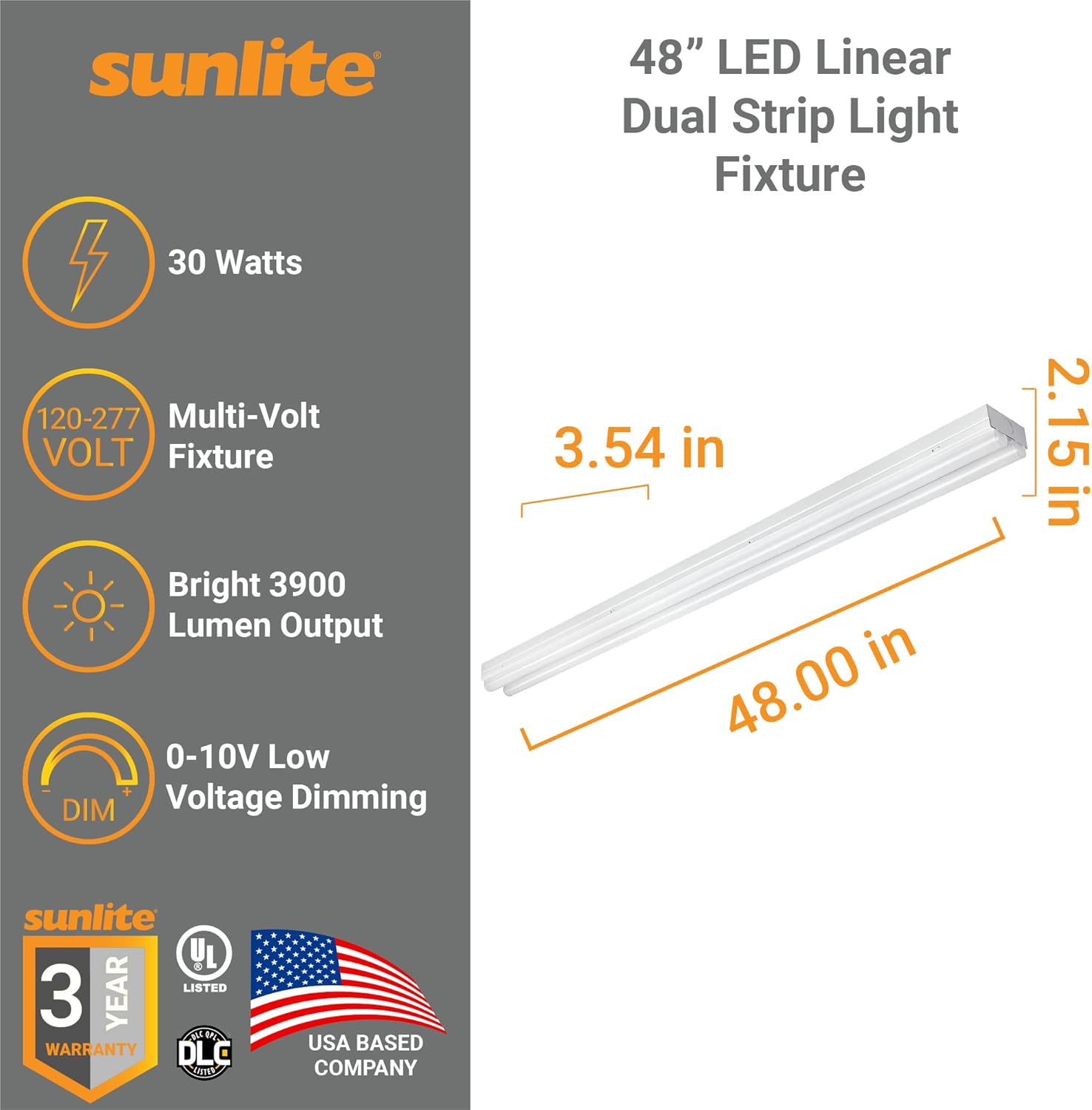

Image 1.1: Key features of the Sunlite 85409 LED Linear Dual Strip Light Fixture, including power consumption, voltage, lumen output, and dimming capability.
Image 1.2: Additional benefits of the Sunlite 85409 LED fixture, such as its chemical-free design, warm white color temperature, extended lifespan, and high Color Rendering Index.
2. Alaye Aabo
- IKILO: Ewu ti ina-mọnamọna. Ge asopọ agbara ni fiusi tabi fifọ Circuit ṣaaju fifi sori ẹrọ tabi iṣẹ.
- Ọja yii gbọdọ wa ni fifi sori ẹrọ ni ibamu pẹlu koodu fifi sori ẹrọ ti o wulo nipasẹ eniyan ti o faramọ ikole ati iṣẹ ti ọja ati awọn eewu ti o kan.
- Rii daju pe ipese voltage ni ibamu pẹlu imuduro (120-277V).
- Ma ṣe fi sori ẹrọ nitosi awọn orisun ooru eyikeyi.
- Má ṣe yí ohun èlò náà padà. Èyíkéyìí àtúnṣe lè sọ àtìlẹ́yìn náà di òfo kí ó sì fa ewu ààbò.
- This fixture is UL Listed for damp location installation. Do not use in locations where it will be directly exposed to water.
- The fixture contains no harmful chemicals and features a shatter-resistant light diffuser.
3. Eto & Fifi sori
The Sunlite 85409 fixture is designed for easy surface mounting on walls or ceilings. Installation hardware and wiring instructions are included. Multiple knockouts are provided to simplify wiring connections.
3.1 Akojọ aṣyn fifi sori ẹrọ tẹlẹ
- Verify that the power supply is turned OFF at the circuit breaker.
- Tú ohun èlò náà sílẹ̀ kí o sì ṣàyẹ̀wò bóyá ó ti bàjẹ́.
- Ensure all necessary installation hardware is present.
- Confirm the installation location is suitable for a damp-ti won won imuduro.
3.2 Iṣagbesori imuduro
- Position the fixture at the desired mounting location on the ceiling or wall.
- Mark the locations for mounting screws through the fixture's mounting holes.
- Drill pilot holes if necessary, suitable for the provided mounting hardware.
- Secure the fixture to the surface using the appropriate screws.
Image 3.1: Dimensional drawing of the Sunlite 85409 fixture, indicating its length, width, and height for installation planning.
3.3 Itanna onirin
- Route the electrical supply wires through one of the fixture's knockouts.
- Connect the supply wires to the fixture's wires according to local electrical codes:
- Connect the black (hot) wire from the supply to the black wire of the fixture.
- Connect the white (neutral) wire from the supply to the white wire of the fixture.
- Connect the green or bare copper (ground) wire from the supply to the green or bare copper wire of the fixture.
- If using a 0-10V dimmer, connect the purple (dimming +) and gray (dimming -) wires from the fixture to the corresponding wires on the dimmer. Ensure the dimmer is compatible with 0-10V low voltage dimming.
- Secure all wire connections with appropriate wire connectors.
- Fi pẹ̀lẹ́pẹ̀lẹ́ so gbogbo wáyà náà mọ́ inú àpótí ìsopọ̀ tàbí ibi ìdúró ohun èlò.
Akiyesi: This fixture operates on 120-277 volt service. Consult a qualified electrician if you are unsure about wiring procedures.
4. Awọn ilana Iṣiṣẹ
Once properly installed and wired, the Sunlite 85409 LED Linear Dual Strip Light Fixture is ready for operation.
- Agbara Tan: Restore power at the circuit breaker. The fixture will illuminate instantly at 100% brightness without any warm-up time.
- Dimming: If connected to a compatible 0-10V low voltage dimmer, use the dimmer control to adjust the light output. Ensure the dimmer is specifically designed for 0-10V LED dimming.
- Ijade Imọlẹ: The fixture provides 3900 lumens of light with a 3000K Warm White color temperature, suitable for creating a comfortable and inviting atmosphere.
Aworan 4.1: Example of the Sunlite LED fixture installed in a modern workspace, demonstrating its application as an efficient lighting upgrade.
Image 4.2: Visual representation of various color temperatures, highlighting the 3000K Warm White output of this fixture and its suitability for relaxing settings.
5. Itọju
The Sunlite 85409 LED Linear Dual Strip Light Fixture is designed for minimal maintenance due to its integrated LED technology.
- Ko si rirọpo boolubu: The fixture features built-in LEDs, eliminating the need for bulb or ballast replacements.
- Igbesi aye gigun: With an estimated lifespan of 50,000 hours, this fixture provides years of reliable service.
- Ninu: To clean the fixture, ensure power is disconnected. Wipe the exterior with a soft, dry, or slightly damp asọ. Ma ṣe lo abrasive ose tabi epo.
Image 5.1: The Sunlite LED fixture providing bright, maintenance-free lighting in a garage workshop setting.
6. Laasigbotitusita
If you experience issues with your Sunlite LED fixture, refer to the following common troubleshooting steps:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ohun èlò ìṣiṣẹ́ kì í tan ìmọ́lẹ̀. | Ko si ipese agbara. Loose onirin asopọ. Aṣiṣe iyipo fifọ. | Check if the circuit breaker is ON. Verify all wire connections are secure (ensure power is OFF before checking). Test the circuit breaker. |
| Ijade ina jẹ baibai tabi flickers. | Dimmer ti ko ni ibamu. Loose dimming wires. Voltage iyipada. | Ensure a 0-10V compatible dimmer is used. Check dimming wire connections (purple and gray). Kan si onimọ ina lati ṣayẹwo iduroṣinṣin ipese agbara. |
| Unusual noise from fixture. | Iṣagbesori alaimuṣinṣin. Ti abẹnu paati oro. | Rii daju pe imuduro ti gbe sori ẹrọ ni aabo. If noise persists, disconnect power and contact customer support. |
If these steps do not resolve the issue, please contact Sunlite customer support for further assistance.
7. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | 85409-SU |
| Awọn iwọn (L x W x H) | 48 x 3.54 x 2.15 inches (121.92 x 8.99 x 5.46 cm) |
| Wattage | 30 Wattis |
| Ijade Lumen | 3900 Lumens |
| Iwọn otutu awọ | 3000K Gbona White |
| Atọka Rendering Awọ (CRI) | 80 |
| Voltage | 120-277 Awọn folti |
| Dimmable | Yes, with 0-10V low voltage dimmer |
| Igba aye | Awọn wakati 50,000 |
| Ohun elo | Metal (Aluminum), Plastic (Shatter-resistant diffuser) |
| Iru fifi sori ẹrọ | Surface Mount (Ceiling or Wall) |
| inu ile / ita gbangba Lilo | Ninu ile, Damp Ibi Ti won won |
| Awọn iwe-ẹri | UL Listed, DLC Listed |
| Iwọn Nkan | 4.9 iwon |
8. Atilẹyin ọja & Atilẹyin
8.1 atilẹyin ọja Alaye
This Sunlite LED fixture comes with a 3-odun atilẹyin ọja. For specific warranty terms and conditions, please refer to the packaging or contact Sunlite customer support. The warranty covers defects in materials and workmanship under normal use.
8.2 Onibara Support
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Sunlite customer support. Please have your model number (85409-SU) and purchase information ready when contacting support.
You can visit the official Sunlite website for contact details and additional product information: Sunlite Official Store
