JOPIX PT31 Mobile CB/27 MHz Transmitter

1. Ifihan

This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your JOPIX PT31 Mobile CB/27 MHz Transmitter. Please read this manual thoroughly before using the device to ensure safe and efficient operation.

The JOPIX PT31 is a compact, multimode CB radio designed for mobile use, offering AM and FM modulation, a multi-function LCD display, and various features for reliable communication.

2. Alaye Aabo

• Ibi ti ina elekitiriki ti nwa: Operate the device only with a 12 Volts DC power supply. Incorrect voltage le ba awọn kuro ki o si sofo atilẹyin ọja.
• Eriali: Always connect a properly tuned CB antenna before transmitting. Transmitting without an antenna or with a poorly tuned antenna can damage the transmitter.
• Fifi sori: Ensure the device is securely mounted in a stable location, away from excessive heat, moisture, and direct sunlight.
• Omi Resistance: The device has an IP67 international protection rating, indicating it is waterproof. However, avoid submerging the unit unnecessarily and ensure all connections are secure to maintain water resistance.
• Itọju: Ma ṣe gbiyanju lati ṣii tabi tun ẹrọ naa funrararẹ. Tọkasi gbogbo iṣẹ si oṣiṣẹ oṣiṣẹ.
• Aabo awakọ: Do not operate the radio in a manner that distracts you from driving. Prioritize road safety.

3. Package Awọn akoonu

Jẹrisi pe gbogbo awọn ohun kan wa ninu package:

• JOPIX PT31 Mobile Transmitter Unit
• Handheld Microphone with UP/DOWN buttons
• Iṣagbesori akọmọ ati Hardware
• Okun agbara
• Afowoyi Olumulo (iwe-ipamọ yii)

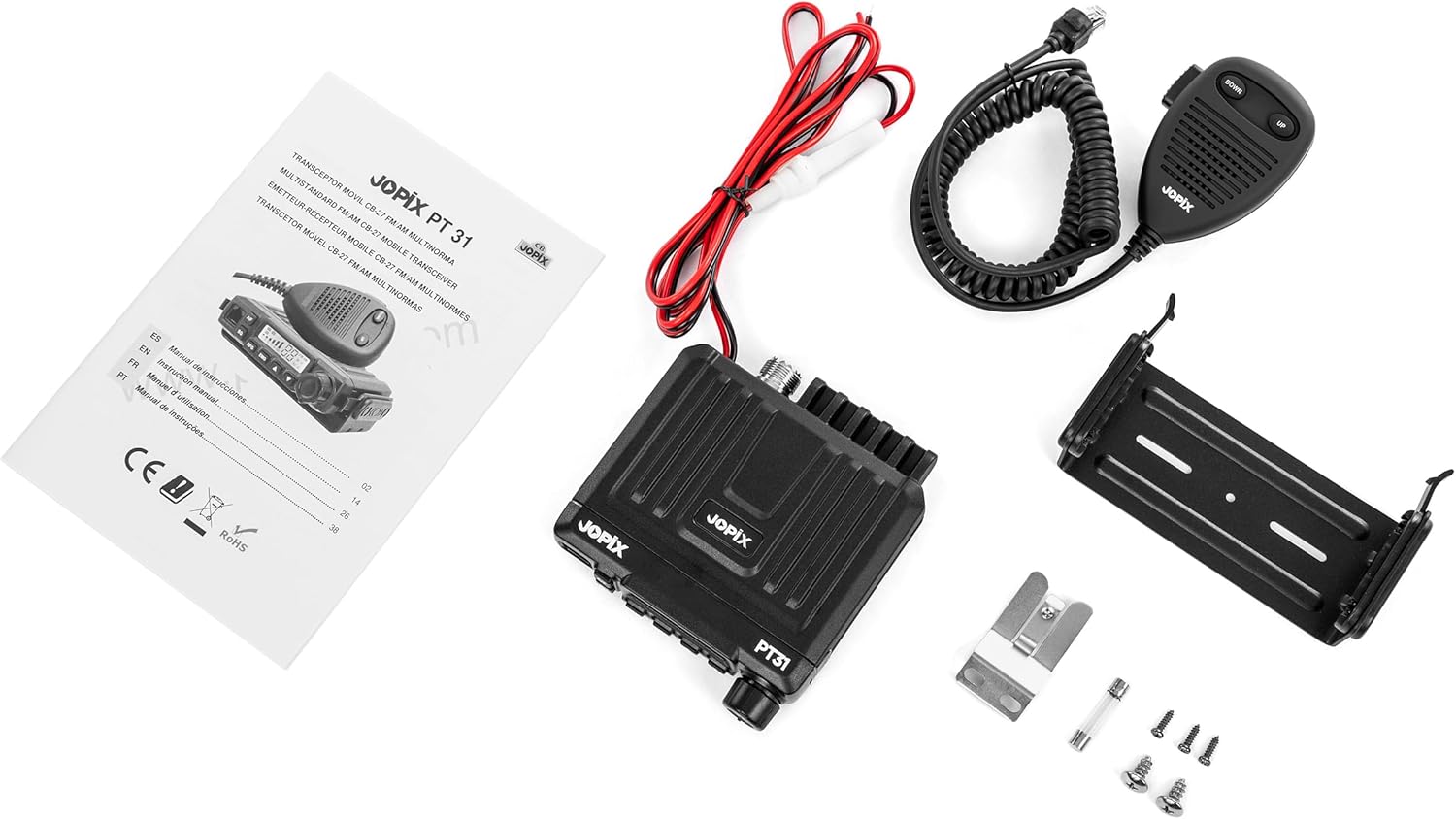

Aworan 3.1: Contents of the JOPIX PT31 package, showing the main unit, microphone, power cable, mounting accessories, and instruction manual.

4. Ọja Ipariview

The JOPIX PT31 is a compact and versatile CB radio. Key features include:

• Multi-normal operation with approved channels for various countries.
• 40 channels within the 26.965 MHz to 27.405 MHz frequency range.
• 4W transmission power.
• Handheld microphone with detachable RJ45 connector and channel UP/DOWN buttons.
• Backlit LCD display showing channel and operational status.
• Manual and Automatic Squelch (ASQ) functions.
• Scanner function for monitoring channels.
• Compact design for easy installation in vehicles.

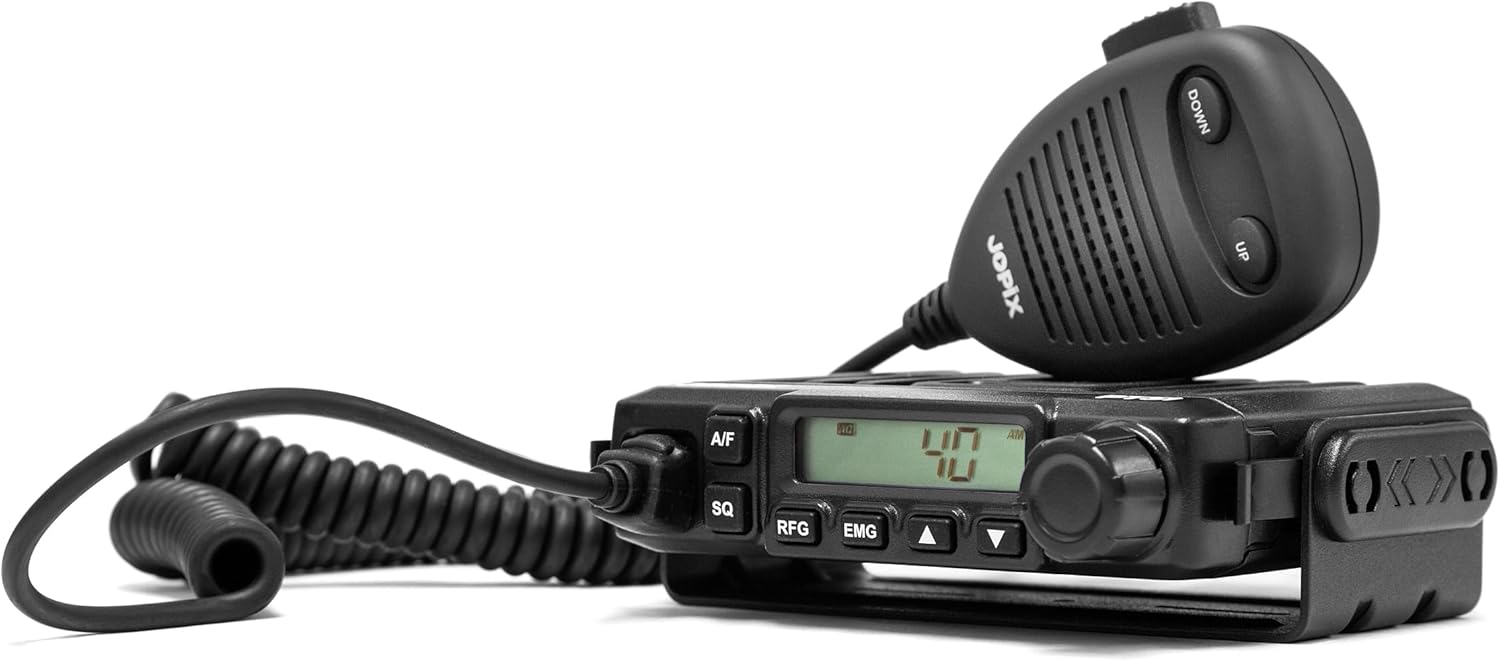

Aworan 4.1: Iwaju view of the JOPIX PT31 unit with the microphone connected, showing the display and control buttons.

Aworan 4.2: The compact size of the JOPIX PT31 transmitter, shown resting in a hand.

Aworan 4.3: Apa view of the JOPIX PT31, highlighting its profile and microphone connection.

5. Eto ati fifi sori

1. Gbigbe Ẹka naa:

   Use the provided mounting bracket and hardware to securely install the JOPIX PT31 in your vehicle. Choose a location that allows easy access to controls and the microphone, without obstructing your view or interfering with vehicle operation.

2. Asopọ agbara:

   Connect the red wire of the power cable to the positive (+) terminal of your vehicle's 12V DC power source, and the black wire to the negative (-) terminal or chassis ground. Ensure a secure connection to prevent power fluctuations.
3. Asopọmọra Antenna:

   Connect your CB antenna cable to the antenna connector on the rear of the JOPIX PT31 unit. Ensure the antenna is properly tuned for the 27 MHz band to prevent damage to the transmitter and ensure optimal performance.



   Aworan 5.1: Rear panel of the JOPIX PT31, illustrating the antenna connector and power input.

4. Asopọ gbohungbohun:

   Plug the RJ45 connector of the handheld microphone into the designated port on the front of the transmitter.
5. Agbọrọsọ ita (Àṣàyàn):

   If desired, connect an external speaker to the dedicated external speaker jack on the unit for enhanced audio output.

6. Awọn ilana Iṣiṣẹ

6.1. Agbara lori / Paa

Turn the volume knob clockwise to power on the unit. The LCD display will illuminate. Turn counter-clockwise until it clicks to power off.

6.2. Aṣayan ikanni

• Awọn bọtini Igbimo iwaju: Lo awọn UP ati SILE arrow buttons on the front panel to change channels.
• Microphone Buttons: The handheld microphone also features UP ati SILE buttons for convenient channel changing.

6.3. Modulation Type (AM/FM)

Tẹ awọn A/F button on the front panel to switch between AM (Amplitude Modulation) and FM (Frequency Modulation) modes. The selected mode will be indicated on the LCD display.

6.4. Ìṣàkóso Squelch (SQ / ASQ)

Squelch eliminates background noise when no signal is being received.

• Squelch afọwọ́ṣe (SQ): Tẹ awọn SQ button. Use the rotary knob (often combined with volume) or specific squelch control if available, to adjust the squelch level. Turn it clockwise to increase the squelch threshold (reduce noise, but may miss weak signals) and counter-clockwise to decrease it.
• Squelch Aifọwọyi (ASQ): The JOPIX PT31 features an Automatic Squelch (ASQ) function. This automatically adjusts the squelch level for optimal performance. Refer to the specific button or menu option for ASQ activation, usually by pressing the SQ button briefly or holding it.

6.5. Scanner Function

Activate the scanner function to automatically scan through active channels. This feature is useful for monitoring multiple channels for activity. Consult the display for scanner activation and control, typically via a dedicated button or a combination of buttons (e.g., RFG or EMG buttons might have secondary scanner functions).

6.6. Ifihan LCD

The backlit LCD display shows the current channel number, modulation type (AM/FM), signal strength, and other operational indicators. Familiarize yourself with the icons and readings for effective use.

6.7. Gbigbe

To transmit, press and hold the PTT (Push-To-Talk) button on the side of the microphone. Speak clearly into the microphone. Release the PTT button to listen.

7. Itọju

• Ninu: Lo asọ asọ ti o gbẹ lati nu ode ti ẹyọ naa. Ma ṣe lo abrasive ose tabi epo.
• Awọn isopọ: Máa ṣàyẹ̀wò gbogbo àwọn ìsopọ̀ okùn (agbára, eriali, gbohùngbohùn) láti rí i dájú pé wọ́n wà ní ààbò àti pé wọn kò ní ìbàjẹ́.
• Iṣatunṣe Antenna: Regularly check your antenna's SWR (Standing Wave Ratio) to ensure it remains properly tuned for optimal performance and to prevent damage to the transmitter.
• Idaabobo Ayika: While the unit is waterproof (IP67), prolonged exposure to extreme conditions should be avoided. Ensure the unit is dry before making or breaking connections.

8. Laasigbotitusita

Ti iṣoro naa ba wa lẹhin igbiyanju awọn iṣeduro wọnyi, jọwọ kan si atilẹyin alabara.

9. Awọn pato

10. Atilẹyin ọja ati Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please contact Jopix customer service through their official webaaye tabi alaye olubasọrọ ti a pese pẹlu ọja rẹ.

Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.
