1. Ọja Ipariview
This manual provides detailed instructions for the Sidiwen 2.4GHz Backlit Mini Keyboard Touchpad Mouse, model SDW-US-I8. This compact wireless device integrates a QWERTY keyboard, a multi-touch touchpad, and LED backlighting, designed for versatile use across various operating systems and devices.
Image: The Sidiwen 2.4GHz Backlit Mini Keyboard, showcasing its compact design and various backlight color options. The USB receiver is also visible.
2. Package Awọn akoonu
- 1 x Mini Wireless Keyboard
- 1 x USB Dongle (Wireless receiver, located in the back of the remote inside the battery compartment)
- 1 x Okun Ngba agbara USB
- 1 x Afọwọṣe olumulo (Iwe-ipamọ yii)
- Batiri gbigba agbara 1 x
3. Awọn ẹya ara ẹrọ
- Iṣẹ́-pupọ 3-in-1: Integrates a 2.4GHz wireless QWERTY keyboard, touchpad, and LED backlit functions.
- Multi-Touch Touchpad: Supports various gestures:
- Single finger click: Left mouse function.
- Double finger click: Right mouse function.
- Double finger drag: Scrolling screen.
- Changeable Backlight: Features 7 different backlight colors. Hold "Fn" and press "F2" to cycle through colors or turn on/off. Long press "Fn" and move two fingers up/down on the touchpad to switch colors.
- Awọn bọtini Ọna abuja Multimedia: Includes 8 dedicated multimedia function keys for quick access to functions like on/off switch, mail, mute, search, my computer, and browser home page.
- Auto Sleep and Wake Mode: Designed for power conservation.
- DPI ti o le ṣatunṣe: Touchpad DPI can be adjusted using "Fn" and "Space" keys.
- Apẹrẹ Ergonomic: Handheld design for comfortable operation.
- Batiri gbigba agbara: Removable rechargeable battery for extended standby time.
- Ibamu gbooro: Compatible with PC, Tablets, Windows, Mac OS, Android, Linux systems, TV Box, Smart TV, HTPC, PS3, Smart Phone, Raspberry Pi, etc. (Note: For Amazon Fire TV 4K and Fire Stick, a Micro USB host OTG cable is required).
- Iwọn Alailowaya: Operational range up to 10 meters.
Aworan: Alaye view of the Sidiwen Mini Keyboard, highlighting the layout of keys, touchpad, and multimedia function buttons, along with a diagram explaining various shortcut combinations.

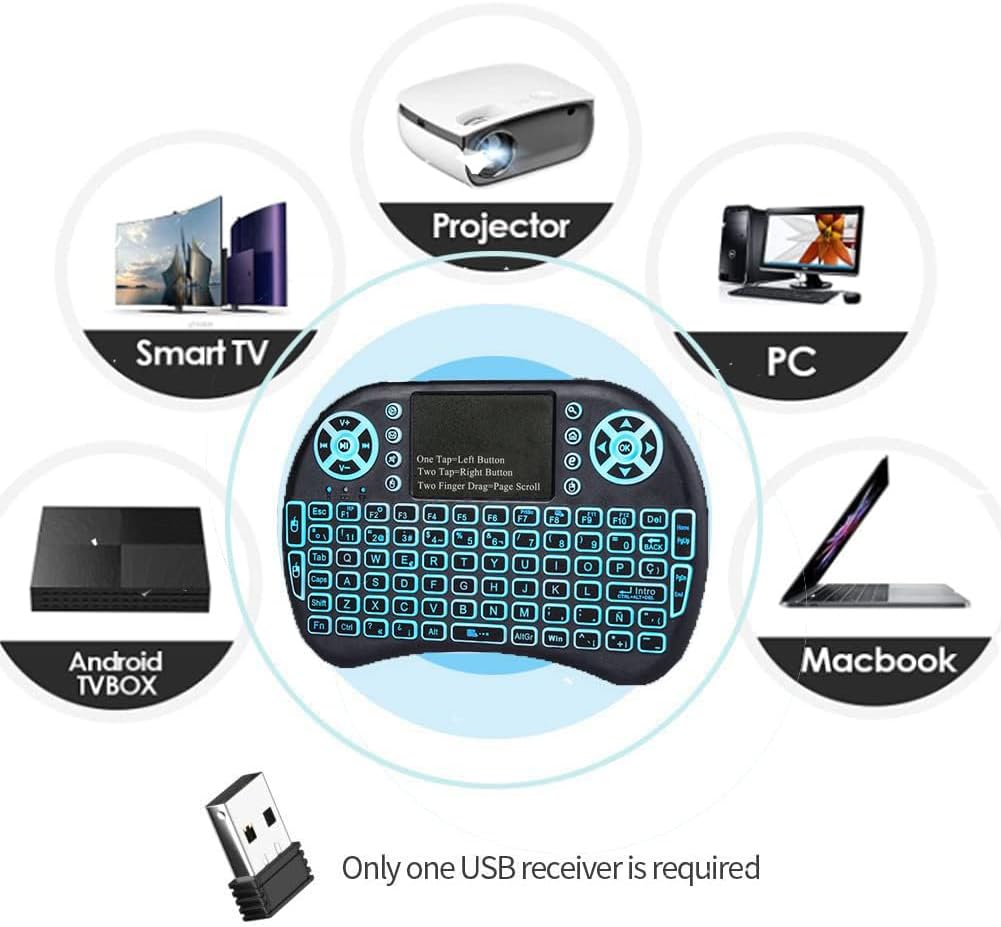

Image: Illustration showing the broad compatibility of the Sidiwen Mini Keyboard with devices such as Smart TVs, Projectors, PCs, Macbooks, and Android TV Boxes.
4. Eto Itọsọna
4.1 Ngba agbara si Batiri naa
- Locate the Mini USB Port on the keyboard.
- Connect the provided USB Charging Cable to the keyboard and a USB power source (e.g., computer USB port, USB wall adapter).
- Ina Atọka gbigba agbara yoo tan imọlẹ. Ni kete ti o ti gba agbara ni kikun, ina le yipada awọ tabi paa.
- A full charge is recommended before first use.
4.2 Connecting the Wireless Receiver
- Open the battery compartment on the back of the mini keyboard.
- Remove the USB wireless receiver (dongle) stored inside.
- Insert the USB wireless receiver into an available USB port on your target device (e.g., Smart TV, PC, Android TV Box).
- The device should automatically recognize the receiver and install necessary drivers.
4.3 Titan / Pa a
- Locate the ON/OFF switch on the side of the keyboard.
- Slide the switch to the "ON" position to power on the keyboard.
- Slide the switch to the "OFF" position to power off the keyboard when not in use to conserve battery.
Aworan: A view of the Sidiwen Mini Keyboard illustrating its compact dimensions and the location of the ON/OFF switch, Mini USB port, and the internal storage for the wireless receiver.
5. Awọn ilana Iṣiṣẹ
5.1 Keyboard Lilo
The keyboard functions like a standard QWERTY keyboard. Press keys to input characters. Use the "Shift", "Fn", and "AltGr" keys for special characters and functions.
5.2 Lilo Pádì Ifọwọkan
- Tẹ osi: Tap the touchpad once with a single finger.
- Tẹ-ọtun: Tap the touchpad once with three fingers.
- Yi lọ: Drag two fingers up or down on the touchpad.
- Mouse Sensitivity (DPI) Adjustment: Press and hold the "Fn" key, then press the "Space" key repeatedly to cycle through DPI settings.
5.3 Backlight Iṣakoso
- Tan/Pa ina Back: Hold "Fn" and press "F2".
- Yi awọ imọlẹ ẹhin pada: While the backlight is on, long press the "Fn" button, then move two fingers up or down on the touchpad to switch between the 7 available colors.
5.4 Multimedia Awọn bọtini
The keyboard features dedicated multimedia keys for quick access:
- Email Icon: Ṣí ìkànnì ìmeeli àìfọwọ́ṣe.
- Magnifying Glass Icon: Opens search function.
- Aami ile: Returns to browser home page.
- Speaker Icon (Mute): Mutes/mu ohun silẹ.
- Play/Pause, Next, Previous Track: Standard media controls.
- Iwọn didun Soke/Isalẹ: Ṣe àtúnṣe iwọn didun eto naa.
6. Itọju
- Ninu: Lo aṣọ rírọrùn tí ó gbẹ láti nu ojú kọ̀ǹpútà náà. Fún èérí líle, a lè fi díẹ̀ sí i.amp a le lo aṣọ, ki a rii daju pe omi ko wọ inu ẹrọ naa.
- Ibi ipamọ: Tọju keyboard ni itura, aye gbigbẹ kuro lati orun taara ati awọn iwọn otutu to gaju.
- Itọju Batiri:
- Gba agbara batiri nigbagbogbo, paapaa ti ko ba si ni lilo nigbagbogbo, lati ṣetọju ilera batiri.
- Yago fun gbigba agbara si batiri ni kikun nigbagbogbo.
- Tí o bá ń tọ́jú rẹ̀ fún ìgbà pípẹ́, gba agbára bátìrì náà sí ìwọ̀n 50% kí o tó tọ́jú rẹ̀.
- Olugba USB: When not in use, store the USB receiver in its designated slot within the battery compartment to prevent loss.
7. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Keyboard ko fesi. | Low battery; Keyboard is off; USB receiver not connected or recognized; Out of range. | Charge the keyboard; Turn on the keyboard; Ensure USB receiver is properly inserted and recognized by the device; Move closer to the receiver (within 10m). |
| Touchpad erratic or unresponsive. | Dirty touchpad surface; Interference; Incorrect DPI setting. | Clean the touchpad surface; Move away from other wireless devices; Adjust DPI setting (Fn + Space). |
| Imọlẹ afẹyinti ko ṣiṣẹ tabi yi awọn awọ pada. | Backlight off; Low battery; Incorrect key combination. | Press Fn + F2 to turn on/off; Charge the keyboard fully; Ensure correct key combination (Fn + F2 for on/off, long press Fn + two-finger swipe on touchpad for color change). |
| Keys not typing correctly or repeating. | Low battery; Interference; Software issue on host device. | Charge the keyboard; Reduce interference; Restart the host device; Try on another device to isolate the problem. |
| Cannot connect to Amazon Fire TV/Stick. | Requires OTG cable. | Ensure you are using a Micro USB host OTG cable for connection. |
8. Awọn pato
| Awoṣe: | SDW-US-I8 |
| Brand: | Sidiwen |
| Asopọmọra: | Alailowaya 2.4 GHz (olugba USB) |
| Isẹ Voltage: | 3.3V |
| Nṣiṣẹ lọwọlọwọ: | 50mA (on), 1mA (sleep mode) |
| Ijinna Iṣakoso: | Ti o to awọn mita 10 |
| Awọn iwọn: | Approx. 14.7 x 9.8 x 1.9 cm (5.8 x 3.8 x 0.75 inch) |
| Ìwúwo: | Isunmọ. 116 g |
| Ohun elo: | Plastic and Silicone (Acrylonitrile Butadiene Styrene) |
| Iru Batiri: | Rechargeable Lithium-ion (included) |
| Awọn awọ Atẹyin: | 7 Colors (RGB) |
| OS ibaramu: | Android, Linux, Mac OS, Windows |
9. Atilẹyin ọja ati Support
For warranty information and technical support, please refer to the seller's policy on the platform where the product was purchased or contact Sidiwen customer service directly. Keep your purchase receipt as proof of purchase.
Ibi iwifunni: Please refer to the official Sidiwen store page on Amazon or the contact details provided with your purchase for the most up-to-date support information.
