Ọrọ Iṣaaju
Thank you for choosing a Beko appliance. This instruction manual provides essential information for the safe and efficient operation of your DFN39533G freestanding dishwasher. Please read this manual thoroughly before installation and use to ensure proper function and to prevent potential hazards. Keep this manual for future reference.
Alaye Aabo pataki
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for household use only. Do not allow children to play with the dishwasher. Ensure the appliance is properly grounded. Do not operate the dishwasher if it is damaged. Use only detergents and rinse aids specifically designed for automatic dishwashers. Keep all detergents and rinse aids out of reach of children.
- Ka gbogbo awọn ilana ṣaaju lilo ohun elo naa.
- Maṣe fi ọwọ kan eroja alapapo lakoko tabi lẹsẹkẹsẹ lẹhin lilo.
- Ẹ kó àwọn nǹkan tó mú gan-an sínú àpótí kí wọ́n má baà ba èdìdì ilẹ̀kùn tàbí inú ilé jẹ́.
- Ma ṣe fo awọn nkan ṣiṣu ayafi ti o ba samisi "ailewu apẹja".
- Maṣe tamper pẹlu idari.
- Nigbagbogbo ge asopọ ohun elo lati ipese agbara ṣaaju ṣiṣe mimọ tabi itọju.
Eto ati fifi sori
Unpacking ati Placement
Carefully remove all packaging materials. Place the dishwasher on a flat, stable surface. Ensure there is adequate space around the appliance for ventilation and door opening. The dishwasher dimensions are approximately 60D x 59.8W x 85H centimeters.

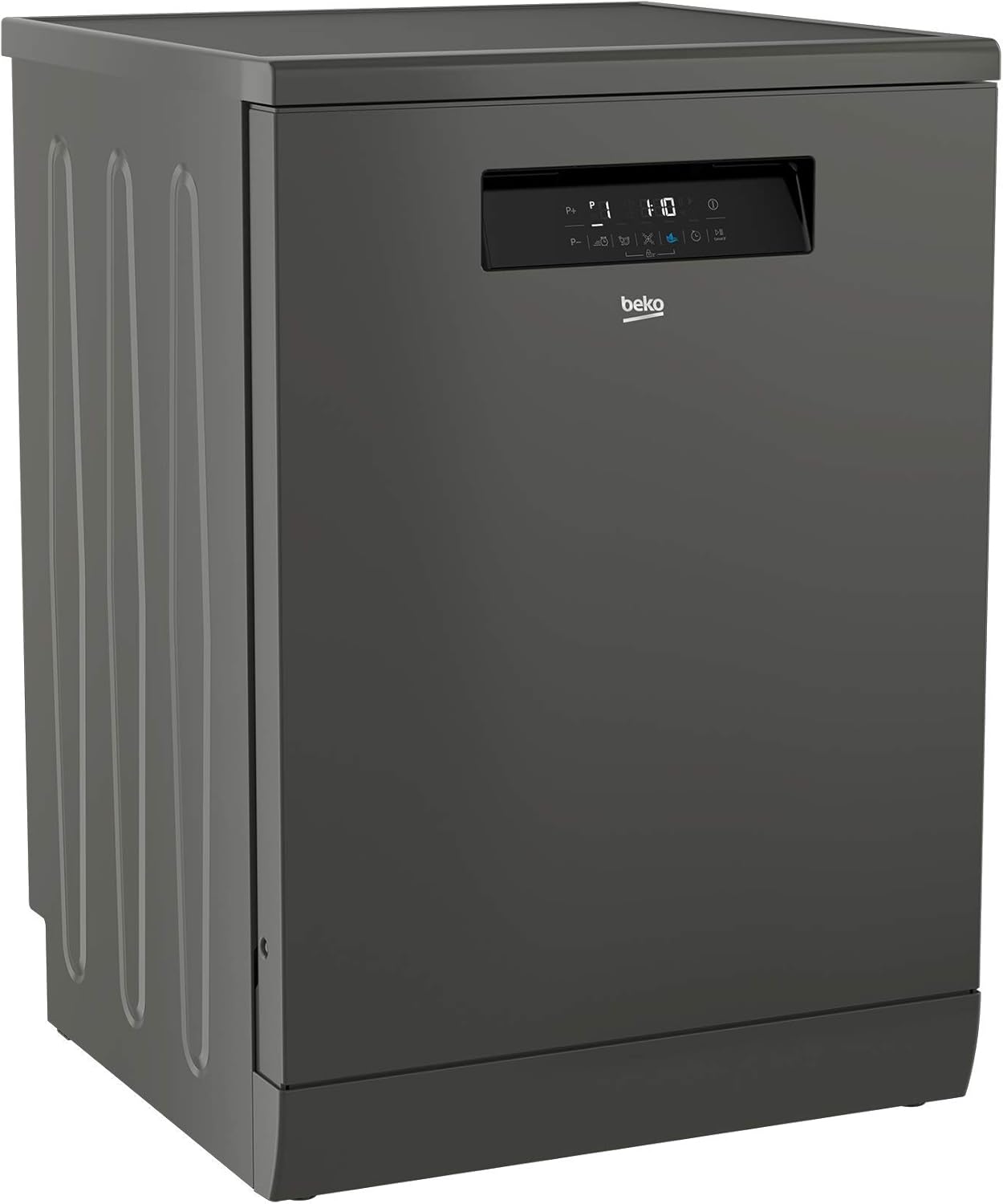

Aworan: Iwaju view of the BEKO DFN39533G Freestanding Dishwasher in Manhattan Grey.
Image: Diagram showing the dimensions of the BEKO DFN39533G Dishwasher.
Omi Asopọ
Connect the water inlet hose to a cold water tap with a 3/4 inch thread. Ensure the connection is tight to prevent leaks. The drain hose should be connected to a drain pipe or the sink trap, ensuring it is not kinked or obstructed.
Asopọ Itanna
Connect the dishwasher to a grounded electrical outlet. The appliance operates on 220 Volts. Do not use extension cords or adapter plugs. Ensure the electrical supply meets the requirements specified on the rating plate of the appliance.
Awọn ilana Iṣiṣẹ
Ibi iwaju alabujutoview
The control panel features program selection buttons, a display, and indicator lights for various functions such as salt, rinse aid, and selected program. Familiarize yourself with the layout before first use.
Image: Close-up of the control panel on the BEKO DFN39533G Dishwasher, showing program indicators and digital display.
Nkojọpọ ẹrọ ifọṣọ
Load dishes carefully to ensure water can reach all surfaces. Place larger items in the lower basket and smaller items, glasses, and cups in the upper basket. The dishwasher has a capacity of 15 place settings. Utilize the adjustable racks and cutlery basket for optimal loading.
Image: The lower rack of the BEKO DFN39533G Dishwasher, showing plates and bowls arranged for washing.
Image: The upper rack of the BEKO DFN39533G Dishwasher, showing glasses and cups arranged for washing.
Image: The removable cutlery basket of the BEKO DFN39533G Dishwasher, filled with various utensils.
Fifi Detergent ati Iranlọwọ Fi omi ṣan
Open the detergent dispenser and add the recommended amount of dishwasher detergent. Close the dispenser lid securely. Check the rinse aid indicator and refill the rinse aid dispenser if necessary. The rinse aid helps with drying and prevents water spots.
Image: The detergent and rinse aid dispenser inside the BEKO DFN39533G Dishwasher door.
Program Selection and Starting a Cycle
Your dishwasher offers 9 programs. Select the appropriate program based on the soil level and type of dishes. Options like "Half Load" can be selected for smaller loads to save water and energy. Press the Start button to begin the wash cycle. The ProSmart Inverter Motor ensures quiet and efficient operation (43 dB noise level).
Refer to the program chart in your full user manual for detailed descriptions of each of the 9 programs and their recommended uses.
Itọju ati Itọju
Ninu awọn Ajọ
Regularly clean the filter system located at the bottom of the dishwasher tub. Remove the coarse filter, fine filter, and microfilter, rinse them under running water to remove food particles, and reassemble them correctly. A clogged filter can lead to poor washing results.
Aworan: Isunmọ view of the filter assembly and spray arm at the bottom of the BEKO DFN39533G Dishwasher tub.
Ninu sokiri Arms
Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clean the holes with a thin wire or toothpick. Ensure they rotate freely after reinstallation.
Ita ati inu ilohunsoke Cleaning
Pa ode ti ẹrọ ifoṣọ nu pẹlu ipolowoamp cloth. For the interior, periodically run a dishwasher cleaning cycle with a specialized cleaner to remove grease and limescale buildup.
Laasigbotitusita Itọsọna
Ṣaaju ki o to kan si iṣẹ alabara, tunview Awọn ọran ti o wọpọ wọnyi ati awọn solusan ti o pọju wọn:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Apoti ko bẹrẹ | Ọrọ ipese agbara, ilẹkun ko tii dada, eto ko yan. | Ṣayẹwo asopọ agbara, rii daju pe ilẹkun ti di, yan eto kan ki o tẹ bẹrẹ. |
| Awọn abajade mimọ ti ko dara | Clogged filters, blocked spray arms, incorrect loading, insufficient detergent. | Clean filters and spray arms, reload dishes correctly, use appropriate detergent. |
| Omi ti o ku ninu iwẹ | Pọ́ọ̀pù ìṣàn omi tàbí àlẹ̀mọ́ tí ó dí, àìṣiṣẹ́ pọ́ọ̀pù ìṣàn omi. | Check and clean drain hose and filters. If issue persists, contact service. |
| Ariwo ti o pọju | Àwọn àwo tí ó ń dí àwọn apá ìfọ́, ohun àjèjì tí ó wà nínú fifa omi, fífi sori ẹrọ tí kò tọ́. | Ṣe atunto awọn ounjẹ, ṣayẹwo fun awọn nkan ajeji, rii daju pe ẹrọ fifọ jẹ ipele. |
Imọ ni pato
- Brand: Beko
- Awoṣe: DFN39533G
- Iru: Sisọ-wiwẹ Freestanding
- Àwọ̀: Manhattan Grey
- Eto Ibi: 15
- Nọmba Awọn eto: 9
- Iru mọto: ProSmart ẹrọ oluyipada
- Awọn ẹya pataki: Aqua Intense, Half Load
- Ipele Ariwo: 43 Decibels
- Awọn iwọn (D x W x H): 60D x 59.8W x 85H
- Ìwọ̀n Nkan: 50.6 kilo
- Voltage: 220 Volts
- Ohun elo: Irin Alagbara (Inu)
Alaye atilẹyin ọja
This Beko DFN39533G Dishwasher comes with a 1-Odun olupese atilẹyin ọja. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal household use. For specific terms and conditions, refer to the warranty card included with your appliance or visit the official Beko webojula.
Onibara Support
Should you encounter any issues not resolved by the troubleshooting guide, or require technical assistance, please contact Beko customer service. You can find contact details on the official Beko website or in your warranty documentation. When contacting support, please have your model number (DFN39533G) and serial number ready.
