Ìwé Ìtọ́sọ́nà Olùlò Gítà Oníná 5-Okùn Jackson JS. Spectra Bass.

1. Ifihan

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Jackson JS Series Spectra Bass JS3QV 5-String Electric Bass Guitar. Please read this manual thoroughly to ensure proper use and care of your instrument.

olusin 1.1: Iwaju view of the Jackson JS Series Spectra Bass JS3QV in Purple Phaze.

olusin 1.2: Angled iwaju view ifihanasing the body shape and finish.

2. Eto

2.1 Unpacking ati Ibẹrẹ ayewo

Carefully remove the bass from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Retain all packaging materials for future transport or storage.

2.2 Fifi sori batiri

The Spectra Bass JS3QV features an active circuit for its 3-band EQ, which requires a 9V battery. The battery compartment is located on the back of the instrument.

1. Locate the battery compartment cover on the back of the bass.
2. Ṣii iyẹwu naa.
3. Insert a fresh 9V alkaline battery, observing the correct polarity.
4. Pa ideri iyẹwu naa ni aabo.

olusin 2.1: Pada view of the bass, showing the battery compartment.

2.3 Atunse

The JS3QV is a 5-string bass, typically tuned B-E-A-D-G (low to high). Use a reliable electronic tuner for accurate tuning. The sealed die-cast tuners are located on the headstock.

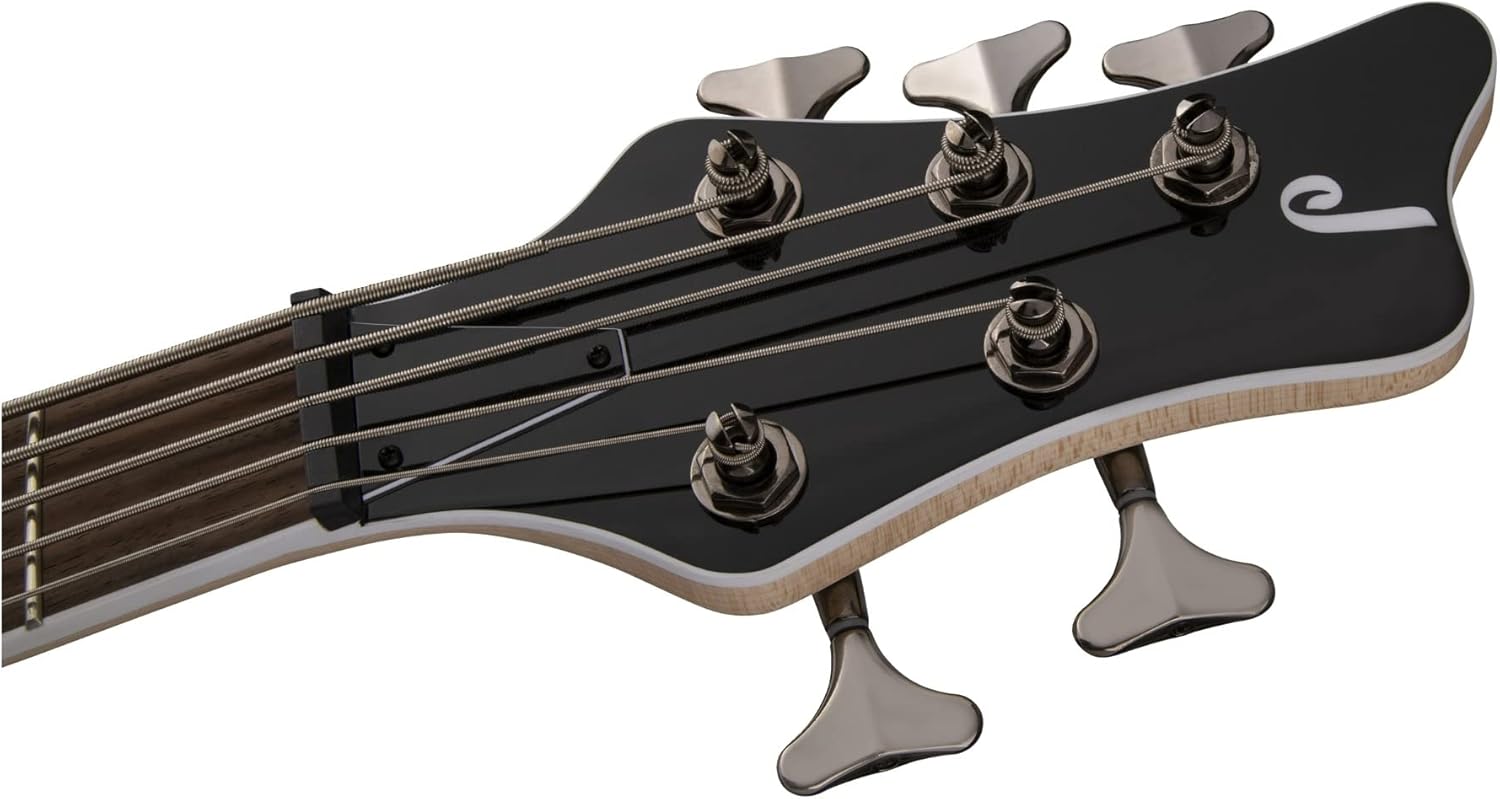

olusin 2.2: Iwaju view of the headstock with tuning machines.

olusin 2.3: Ẹyìn view of the headstock, showing the Jackson sealed die-cast tuners.

3. Ṣiṣẹ Awọn Irinṣẹ

3.1 Iṣakoso Pariview

The Jackson JS Series Spectra Bass JS3QV features a versatile control layout designed for a wide range of tonal options.

olusin 3.1: Isunmọ view of the control knobs and switches.

• Volume Control (Push/Pull): This knob controls the overall output volume. Pulling the knob bypasses the active circuit, allowing the bass to operate in passive mode without battery power. Pushing it in engages the active circuit for the 3-band EQ.
• Iṣakoso idapọmọra: This knob allows you to blend between the neck and bridge humbucking pickups. Turn it towards the neck for more neck pickup tone, or towards the bridge for more bridge pickup tone.
• 3-Band EQ (Active Only): These three knobs (Bass, Mid, Treble) provide active equalization when the active circuit is engaged. Adjust them to shape your tone.
• Two-Way Toggle Switch: This switch allows for pickup coil splitting, offering additional tonal variations from the dual passive Jackson medium-output humbucking pickups.

Figure 3.2: Close-up of the Jackson HiMass bridge and humbucking pickups.

4. Itọju

4.1 Ninu

Regular cleaning helps preserve the finish and playability of your bass.

• Wipe down the body, neck, and strings with a soft, lint-free cloth after each use.
• For the body finish, use a guitar-specific polish sparingly.
• Clean the laurel fingerboard with a suitable fretboard conditioner when changing strings.

4.2 String Replacement

Replace strings regularly to maintain optimal tone and playability. When replacing, change one string at a time to maintain neck tension.

4.3 Truss Rod Adjustment

The truss rod adjusts the neck relief. Adjustments should be made carefully and incrementally. A truss rod wrench is included with your bass. If you are unsure, consult a qualified guitar technician.

4.4 Bridge Adjustment

The Jackson HiMass bridge allows for individual string height (action) and intonation adjustments. A saddle height wrench is included for adjusting string height. For intonation, adjust the saddle position forward or backward.

4.5 Batiri Rirọpo

If the active circuit's output becomes weak or distorted, replace the 9V battery as described in Section 2.2. Remember, you can always switch to passive mode by pulling the volume knob if the battery dies during use.

5. Laasigbotitusita

• Ko si Ijade ohun:
  • Check if the instrument cable is securely connected to both the bass and the amplifier.
  • Ensure the volume knob on the bass and amplifier ti wa ni titan soke.
  • If using the active circuit, check the 9V battery. If the battery is dead, pull the volume knob to switch to passive mode.
• Alailagbara tabi Ohun Daru:
  • Replace the 9V battery if using the active circuit.
  • Check instrument cable for damage.
  • Adjust EQ settings on the bass and amplifier.
• String Buzzing:
  • Check string action (height) at the bridge. Adjust using the saddle height wrench if necessary.
  • Inspect neck relief. Minor adjustments can be made with the truss rod wrench, but significant adjustments should be performed by a professional.
  • Ensure frets are level.
• Controls Not Functioning Properly:
  • If a knob feels loose or unresponsive, it may require professional inspection.
  • For volume issues, ensure the push/pull function is fully engaged or disengaged as intended.

6. Awọn pato

7. Atilẹyin ọja ati Support

Jackson products are manufactured to high standards. For information regarding warranty coverage and terms, please refer to the warranty card included with your purchase or visit the official Jackson Guitars website. For technical support or service inquiries, please contact Jackson customer service through their official channels.
