1. Ifihan
This manual provides instructions for the Energizer Rechargeable LED Multi-Panel Work Light, Model E302278200. This versatile work light is designed to provide bright, reliable illumination for various tasks, including work, outdoor activities, and emergency situations. It features a high lumen output, a rechargeable lithium-ion battery, and a built-in USB port for charging other devices. The multi-panel design and adjustable handle offer flexible positioning and hands-free operation.
2. Ọja Ipariview
The Energizer Multi-Panel Work Light is engineered for durability and functionality. Key features include:
- Ijade Lumen giga: Delivers up to 1100 lumens of bright, wide-range light.
- Batiri gbigba agbara: Powered by a built-in lithium-ion battery, eliminating the need for disposable batteries.
- Bank agbara USB: Integrated USB port allows charging of external devices like phones and tablets.
- Multi-Panel Design: Two adjustable LED panels provide 180-degree lighting flexibility.
- Versatile Handle/Stand: The large handle can be used for carrying, hanging, or folded out to create a stable stand for hands-free use.
- Ikole ti o tọ: IPX4 water-resistant and impact-resistant up to 2 meters, suitable for various indoor and outdoor environments.
Ọja Visuals
Nọmba 2.1: The Energizer Rechargeable LED Multi-Panel Work Light in its primary configuration.
Nọmba 2.2: The two adjustable LED panels can rotate 180 degrees to direct light precisely where needed.
Nọmba 2.3: The work light provides up to 1100 lumens of super-bright illumination in high mode.
Nọmba 2.4: The light features both High and Low modes for varying brightness requirements.
Nọmba 2.5: The integrated handle folds out to form adjustable legs, enabling hands-free lighting.

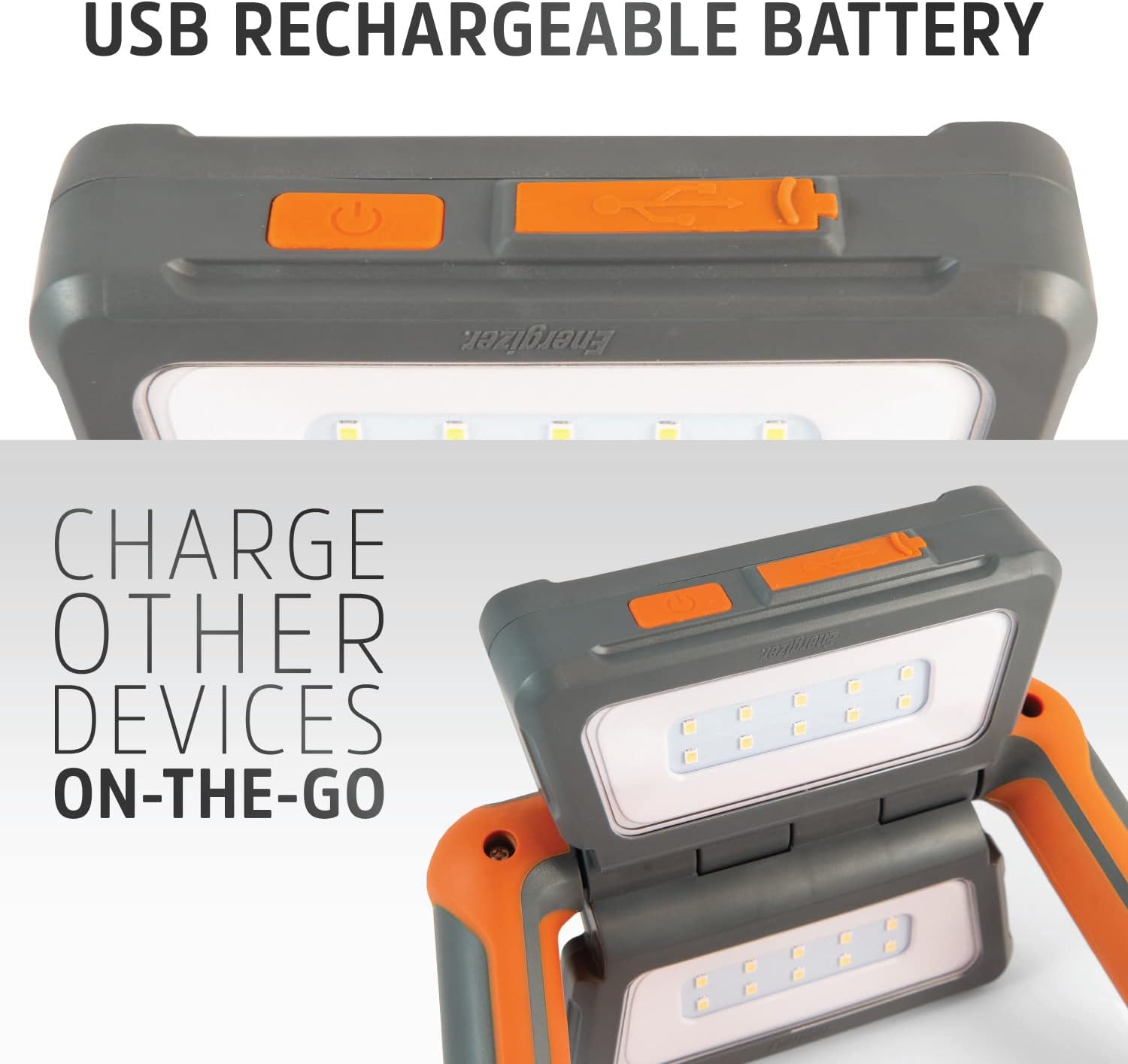

Nọmba 2.6: The work light includes a USB port for recharging its internal battery and for charging other devices on the go.
Official ọja Video
Fidio 2.1: An official video demonstrating the features and versatility of the Energizer Multi-Panel Rechargeable LED Lantern, including its adjustable panels and various uses.
3. Eto
Ibere idiyele
- Locate the micro-USB charging port on the side of the light, typically protected by a rubber flap.
- Connect the included micro-USB charging cable to the light's charging port.
- So opin keji okun USB sinu adapter agbara USB ti o baamu (ko si ninu rẹ) tabi ibudo USB ti o ni agbara.
- The battery indicator lights (usually small LEDs) will illuminate to show the charging status. Allow the light to charge fully before first use.
Gbigbe Imọlẹ naa
- Amusowo: Use the large, ergonomic handle for comfortable carrying.
- Ominira: Fold out the handle to create a stable stand, allowing the light to be placed on flat surfaces.
- Idile: The handle design also allows the light to be hung from hooks, ropes, or other suitable fixtures for overhead illumination.
4. Awọn ilana Iṣiṣẹ
Titan / Paa ati Yiyan Ipo
- Locate the power button on the light.
- Press the power button once to turn on the light in High mode (both panels illuminated at full brightness).
- Press the power button a second time to switch to Low mode (reduced brightness).
- Press the power button a third time to turn off the light.
Siṣàtúnṣe Light Panels
The two LED panels can be independently adjusted to direct light. Gently pivot each panel to achieve the desired angle, up to 180 degrees of rotation.
Lilo bi Bank Power
- Open the rubber flap covering the USB output port (Type-A) on the side of the light.
- Connect your device's charging cable (not included) to the USB output port on the work light.
- Connect the other end of the cable to your device. The work light will begin charging your device.
- Close the rubber flap when not in use to protect the port from dust and moisture.
5. Itọju
- Ninu: Mu ina naa nu pẹlu asọ, damp cloth. Do not use abrasive cleaners or solvents. Ensure all ports are closed before cleaning.
- Ibi ipamọ: Store the light in a cool, dry place away from direct sunlight when not in use for extended periods.
- Itọju Batiri: To maintain battery health, recharge the light at least once every 3-6 months, even if not in regular use.
- Omi Resistance: The light is IPX4 rated, meaning it is resistant to splashing water from any direction. It is not designed for submersion. Ensure all port covers are securely closed to maintain water resistance.
6. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Imọlẹ ko tan. | Batiri ti dinku. | Charge the light using the provided micro-USB cable. |
| Imọlẹ jẹ baibai tabi flickers. | Kekere batiri idiyele. | Gba agbara si ina ni kikun. |
| Ẹrọ naa ko gba agbara lati inu okun USB. | Work light battery is low or depleted. Incorrect cable or device. | Ensure the work light has sufficient charge. Verify your device's charging cable is correctly connected and functional. |
| Ibẹrẹ omi lẹhin ifihan. | Port covers not securely closed. | Always ensure all rubber port covers are firmly sealed when using the light in wet conditions. The light is splash-resistant (IPX4), not waterproof for submersion. |
7. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Orukọ awoṣe | Panel Lantern (E302278200) |
| Brand | Agbara |
| Imọlẹ Orisun Orisun | Diode Emitting Light (LED) |
| Imọlẹ | 1100 lumens (High Mode) |
| Orisun agbara | Agbara Batiri (Litiumu-Ion gbigba agbara) |
| Igbesi aye batiri | Up to 5 Hours (on a full charge) |
| Omi Resistance | IPX4 (Atako Asesejade) |
| Atako Ipa | Ti o to awọn mita 2 |
| Awọn iwọn Ọja (LxWxH) | 2.17" x 8.07" x 7.87" |
| Iwọn Nkan | 0.56 kilo |
| Awọn irinše to wa | Flashlight Pack, Micro-USB Charging Cable |
| Ilu isenbale | China |
8. Atilẹyin ọja ati Support
For specific warranty information, please refer to the documentation included with your product or contact Energizer customer support. The product's warranty description is noted as "Not applicable" in some specifications, but standard consumer rights and return policies apply.
If purchased from Amazon, a 30-day return policy typically applies. For further assistance or inquiries, please visit the official Energizer webojula tabi kan si wọn onibara iṣẹ Eka.
Olupese: Agbara
Webojula: www.energizer.com
