Ọrọ Iṣaaju
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Globber GO.UP Sporty Lights scooter. Please read this manual thoroughly before first use and retain it for future reference.
The Globber GO.UP Sporty Lights is a versatile product designed to adapt to your child's growth, transforming from a ride-on with parental handle to a balance bike, and finally to a three-wheel scooter.
Alaye Aabo
Always ensure your child wears appropriate safety gear, including a helmet, knee pads, and elbow pads, when using the product. Adult supervision is required at all times.
- Do not use on public roads or in heavy traffic.
- Rii daju pe gbogbo awọn ọna titiipa ti ṣiṣẹ ni aabo ṣaaju lilo.
- Ṣayẹwo nigbagbogbo fun awọn ẹya alaimuṣinṣin tabi ibajẹ.
- Maximum weight limit: 50 kg.
- Recommended age: 12 months+ (ride-on), 3+ years (scooter).
Ọja Pariview
The Globber GO.UP Sporty Lights features a durable aluminum frame and light-up wheels. It transitions through three main modes:
- Ride-on Mode: For young children (12 months+) with a seat and parental handle.
- Balance Bike Mode: With the parental handle removed, allowing children to propel themselves while seated.
- 3-Wheeled Scooter Mode: For children aged 3 years and up, with height-adjustable handlebars.

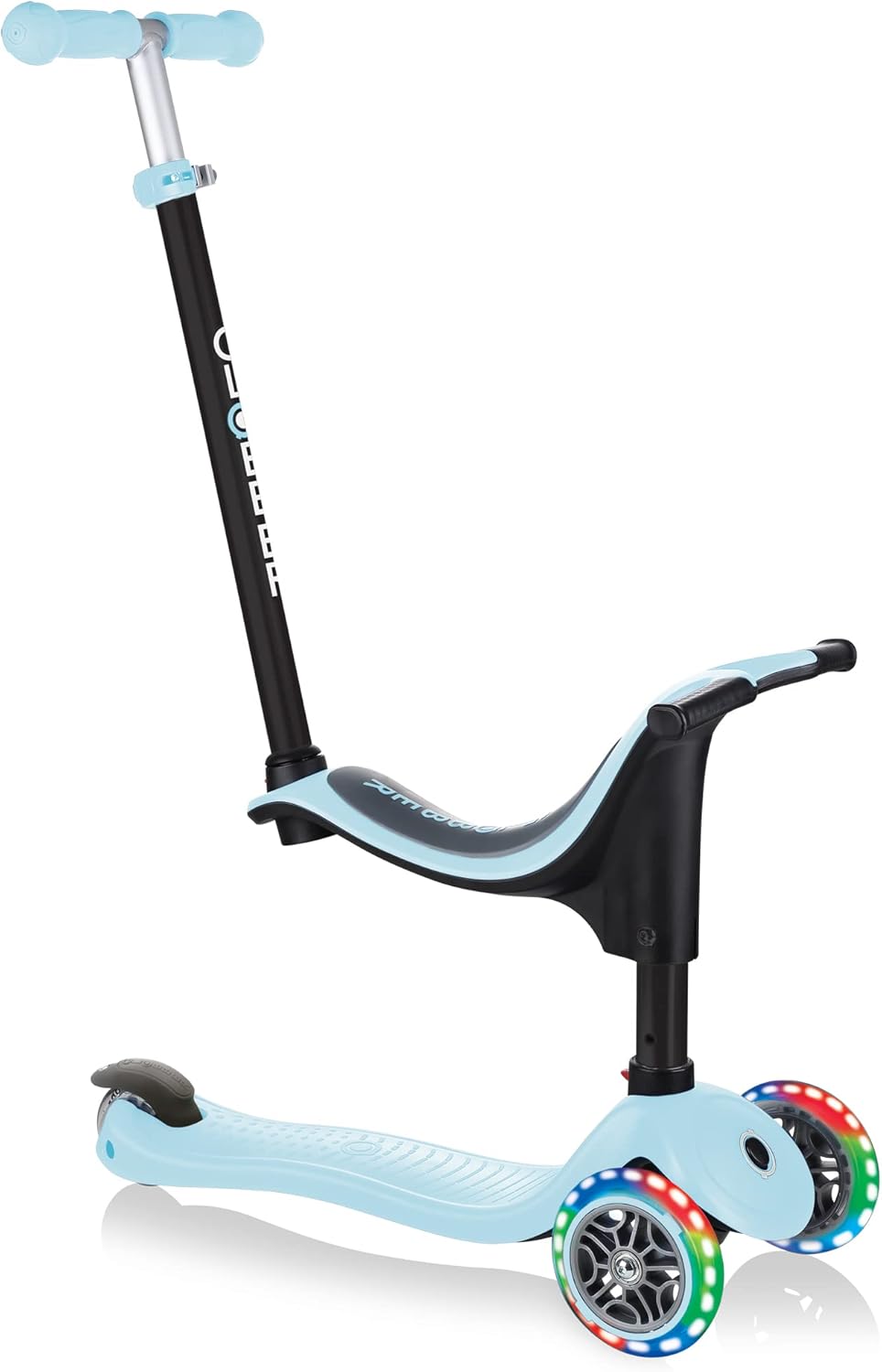

Image: The Globber GO.UP Sporty Lights in its ride-on configuration, featuring a seat, parental handle, and light-up wheels. This mode is suitable for younger children.
Eto ati Apejọ
Assembly requires minimal tools and should be performed by an adult.
1. Ride-on Mode Assembly
- Attach the seat to the scooter deck, ensuring it clicks securely into place.
- Insert the parental handle into the designated slot at the rear of the seat.
- Ensure the footrest is properly positioned if desired.
Aworan: Apa view of the Globber GO.UP Sporty Lights in ride-on mode, highlighting the seat and the low footboard design.
2. Balance Bike Mode Conversion
- Remove the parental handle by pressing the release button and pulling it out.
- The seat remains attached, allowing the child to use their feet for propulsion.
3. 3-Wheeled Scooter Mode Conversion
- Remove the seat by pressing the release button and lifting it off.
- Insert the T-bar handlebar into the front steering column until it locks.
- Adjust the handlebar height to the appropriate level for the child (see Operating section).
Image: The Globber GO.UP Sporty Lights configured as a three-wheeled scooter, showing the height-adjustable T-bar handlebar.
Awọn ilana Iṣiṣẹ
Steering (Scooter Mode)
The Globber GO.UP Sporty Lights uses a lean-to-steer mechanism. To turn, the rider leans their body in the desired direction, which causes the wheels to turn. This helps develop balance and coordination.
Braking (Scooter Mode)
To brake, press down firmly on the rear fender brake with your foot.
Atunse Iga Handlebar
- Wa itusilẹ iyara clamp on the T-bar stem.
- Ṣii clamp, adjust the handlebar to the desired height, ensuring the child can comfortably reach the grips.
- Pa clamp securely. Ensure the handlebar is firmly locked in place before each use.
Aworan: Iwaju view of the Globber GO.UP Sporty Lights in scooter mode, showcasing the T-bar handlebar and the light-up front wheels.
Itoju
- Ninu: Pa ẹlẹsẹ-awọ kuro pẹlu ipolowoamp asọ. Yago fun awọn kẹmika lile.
- Awọn kẹkẹ: The light-up wheels are powered by motion. No batteries are required for the lights. Regularly check wheels for wear and tear.
- Awọn Beere: Keep bearings clean and free of dirt. Avoid riding through water or sand.
- Awọn ohun mimu: Periodically check all screws, bolts, and quick-release mechanisms to ensure they are tight and secure.
- Ibi ipamọ: Store the scooter in a dry place away from direct sunlight and extreme temperatures.

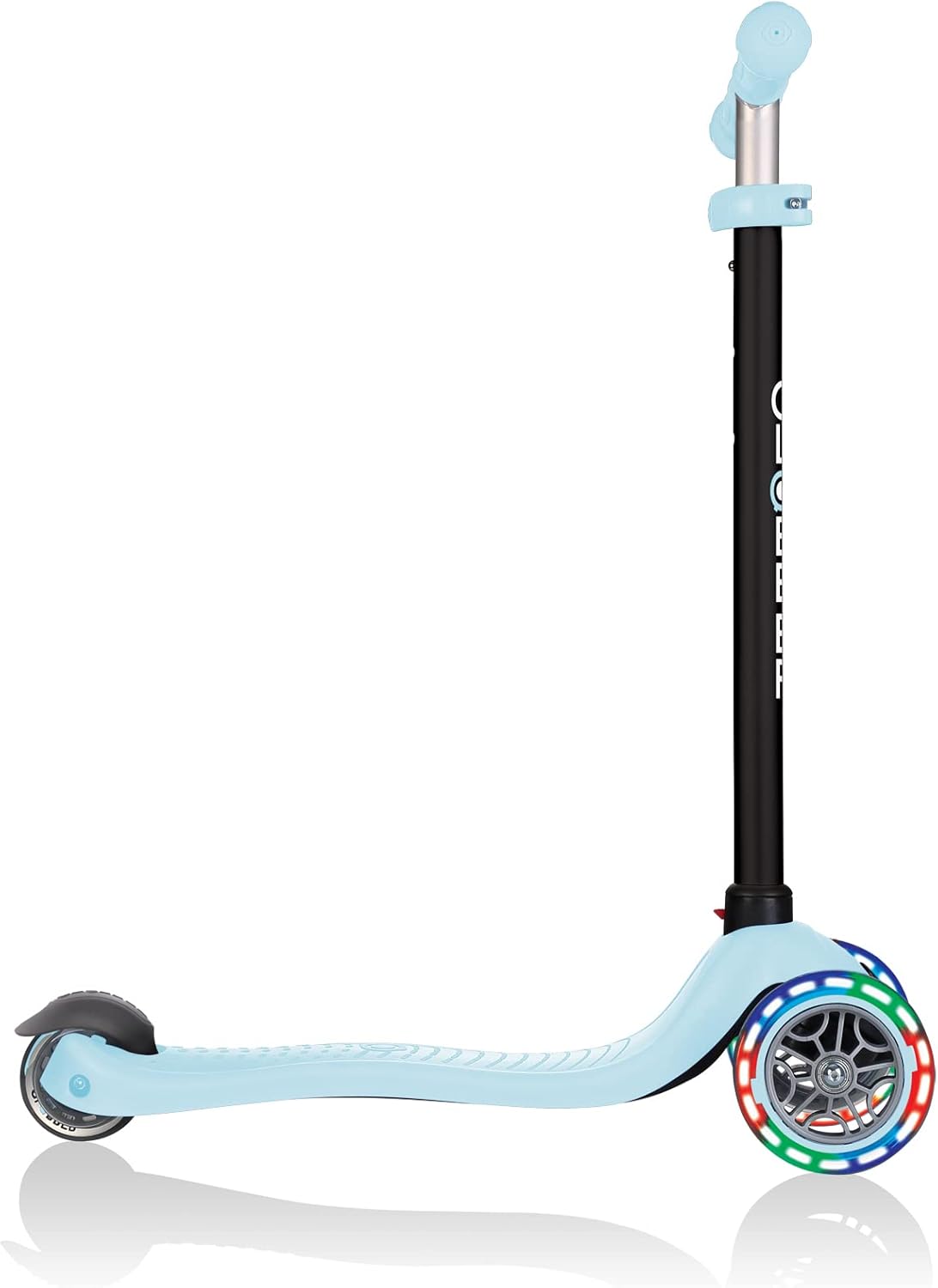

Aworan: Apa view of the Globber GO.UP Sporty Lights in scooter mode, showing the full profile of the deck and wheels.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Àwọn kẹ̀kẹ́ kò tan ìmọ́lẹ̀. | Insufficient speed or motion. | Ensure the wheels are spinning fast enough. The lights are motion-activated and do not require batteries. |
| Handlebar feels loose. | Itusilẹ ni kiakia clamp not fully secured. | Ṣii itusilẹ iyara clamp, push the handlebar down firmly, and re-secure the clamp. |
| Seat not locking into place. | Improper alignment or obstruction. | Ensure the seat post is correctly aligned with the slot and press down firmly until it clicks. Check for any debris. |
Awọn pato
- Awoṣe: 452-200-3
- Awọn iwọn ọja: 59.5 x 14.5 x 24.5 cm
- Ìwúwo: 3.5 kg
- Ohun elo: Aluminiomu
- Àwọ̀: pastel Blue
- Ọjọ ori ti a ṣeduro: 12 months+ (ride-on/balance bike), 3+ years (scooter)
- O pọju iwuwo: 50 kg
- Awọn ẹya pataki: Seat, Height-adjustable handlebars, Motion-activated light-up wheels
Atilẹyin ọja ati Support
For warranty information and customer support, please refer to the official Globber webaaye tabi kan si olupin agbegbe rẹ. Jeki ẹri rira rẹ fun eyikeyi awọn ibeere atilẹyin ọja.
Globber Official Webojula: www.globber.com
