Peerless Elmhurst Two-Handle Centerset Bath Faucet

Ọrọ Iṣaaju

This manual provides instructions for the installation, operation, and maintenance of your Peerless Elmhurst Two-Handle Centerset Bath Faucet. Please read all instructions carefully before beginning installation and keep this manual for future reference.

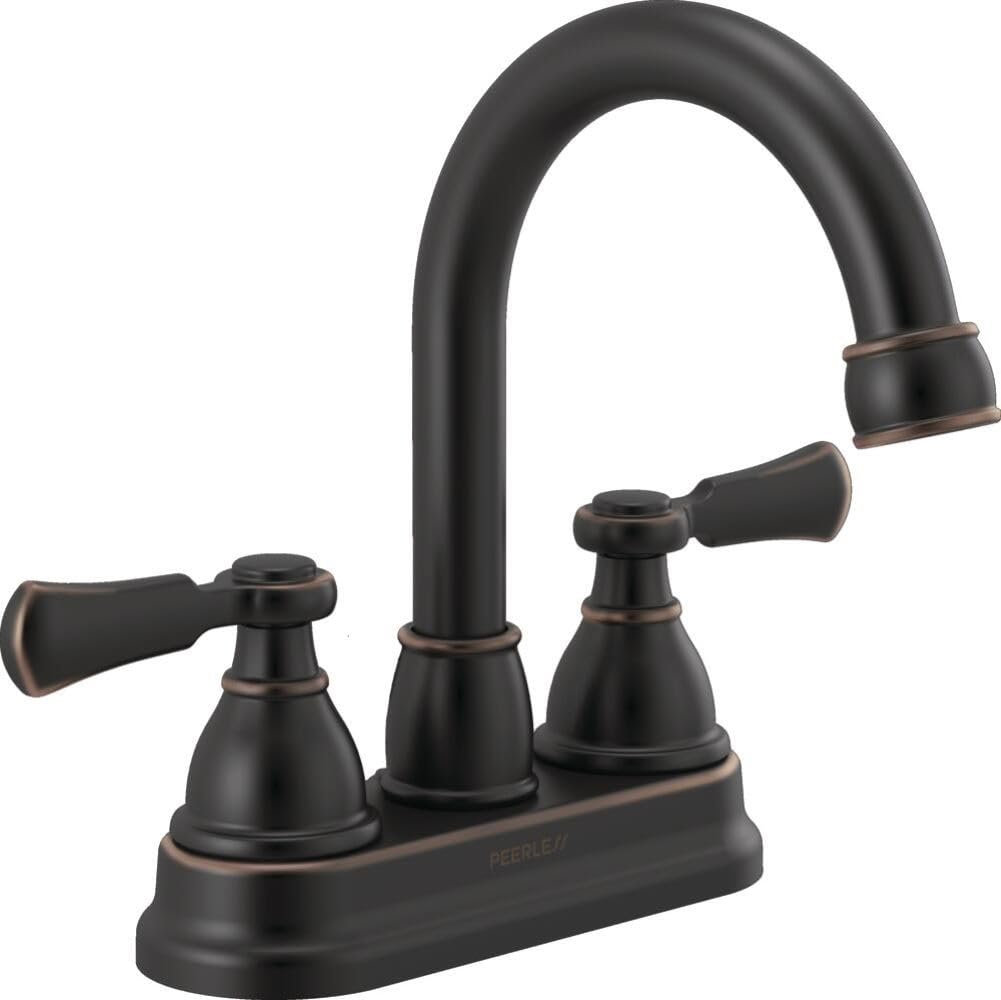

Image: Peerless Elmhurst Two-Handle Centerset Bath Faucet in Oil-Rubbed Bronze, shown installed on a bathroom vanity with a mirror and plant.

Alaye Aabo

• Always turn off the water supply to the faucet before beginning any work.
• Wọ awọn gilaasi ailewu lakoko fifi sori ẹrọ.
• Ti o ko ba ni idaniloju nipa eyikeyi apakan ti ilana fifi sori ẹrọ, kan si alagbawo plumber ti o peye.
• Rii daju pe gbogbo awọn asopọ wa ni aabo lati ṣe idiwọ awọn n jo.

Ohun ti o wa ninu Apoti

Daju pe gbogbo awọn paati wa ṣaaju ki o to bẹrẹ fifi sori:

• Faucet Apejọ
• Awọn ọwọ (2)
• Push Pop-Up Drain Assembly
• Iṣagbesori Hardware

Awọn pato

Image: Diagram illustrating key dimensions and features of the Peerless Elmhurst Two-Handle Centerset Lavatory Faucet, including 3-hole installation, ceramic disc valve, 7.6 inch height, 5 inch spout reach, 9.3 inch width, and 2.5 inch minimum clearance to backsplash.

Eto ati fifi sori

This faucet is designed for 3-hole, 4-inch centerset installations. Refer to the included installation guide for detailed step-by-step instructions and diagrams.

1. Mura agbegbe fifi sori ẹrọ: Turn off the water supply at the main shut-off valves. Clear the area under the sink.
2. Remove Old Faucet (if applicable): Disconnect water lines and mounting nuts from the old faucet. Clean the sink surface.
3. Fi Ara Faucet sori ẹrọ: Place the faucet body onto the sink holes. Secure it from underneath with the provided mounting hardware.
4. So Awọn Laini Ipese Omi: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Hand-tighten, then use a wrench for a quarter turn. Do not overtighten.
5. Install Pop-Up Drain: Follow the instructions for installing the push pop-up drain assembly into the sink drain hole. Ensure a watertight seal.
6. Idanwo fun Leaks: Turn on the water supply slowly and check all connections for leaks. Operate the faucet to ensure proper function.

Awọn ilana Iṣiṣẹ

The Peerless Elmhurst faucet features two handles for precise control of water temperature and flow.

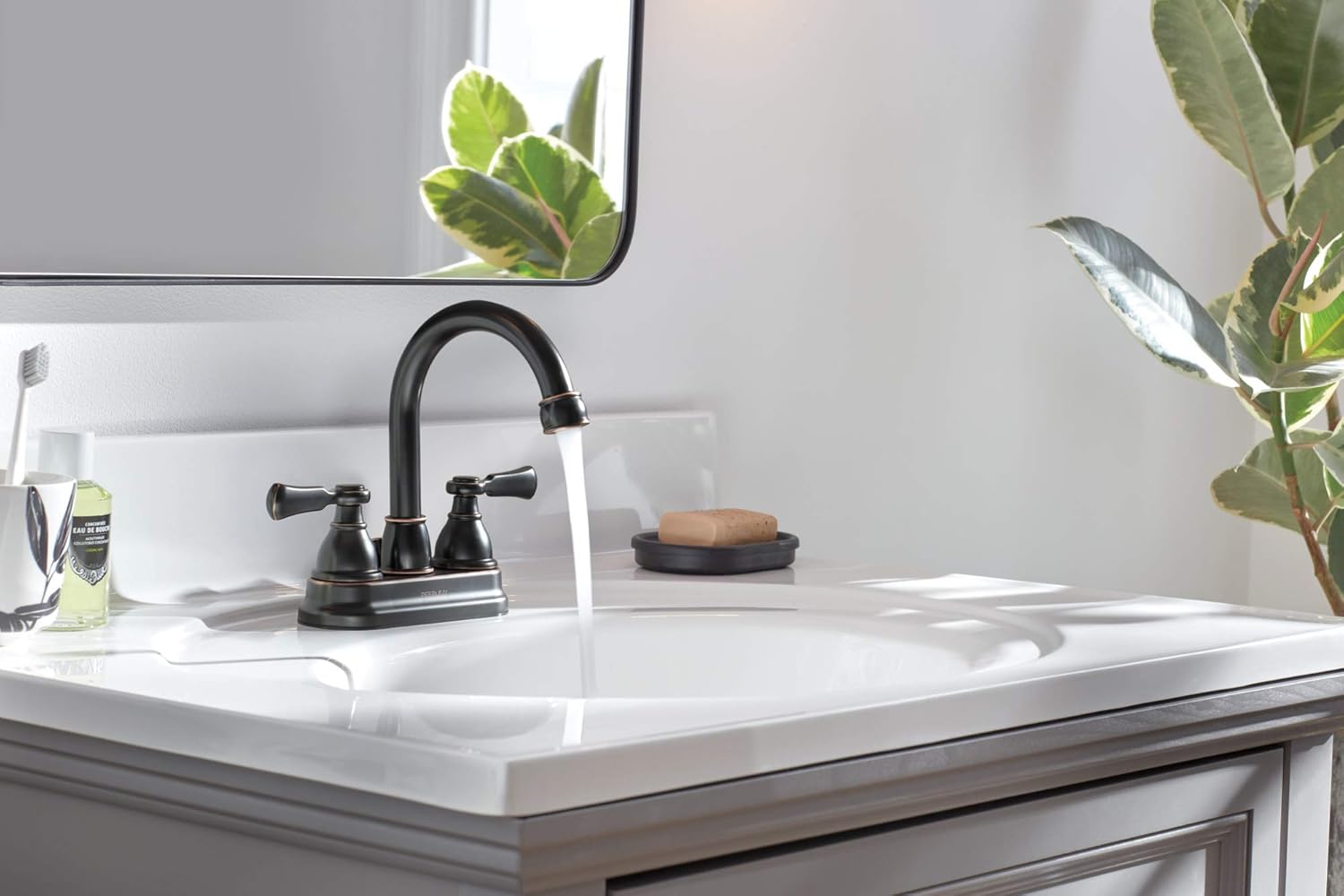

Image: The Peerless Elmhurst Two-Handle Centerset Bath Faucet in Oil-Rubbed Bronze with water flowing from its high-arc spout into a white sink.

• Omi tutu: Turn the right handle counter-clockwise a quarter turn to activate cold water.
• Omi Gbona: Turn the left handle counter-clockwise a quarter turn to activate hot water.
• Iṣakoso iwọn otutu: Adjust the mix of hot and cold water by rotating both handles simultaneously.
• Iṣakoso Sisan: The handles feature 1/4 turn stops for easy on/off and flow adjustment.
• Spout Swivel: The high-arc spout can swivel 360 degrees for increased flexibility.
• Ìṣàn omi tí ó ń yọ jáde: Press the top of the drain stopper to open or close the drain.

Itoju

Proper care will ensure the longevity and appearance of your faucet.

• Ninu: Nu faucet nigbagbogbo pẹlu asọ, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes that could damage the finish.
• Awọn ohun idogo erupẹ: For hard water spots, use a solution of equal parts white vinegar and water. Apply with a soft cloth, let sit briefly, then rinse thoroughly and dry.
• Itoju Aerator: Ti sisan omi ba dinku, aerator le ti di. Yọ aerator kuro ninu itọ, nu eyikeyi idoti, ki o tun so mọ.

Laasigbotitusita

Tọkasi awọn ọran ti o wọpọ ati awọn solusan:

• Sisan Omi Kekere: Check if the aerator is clogged. Ensure water supply valves are fully open.
• Njo lati Ipilẹ Faucet: Ensure mounting nuts are tightened securely. Check for proper seating of gaskets.
• Leaks from Handles: This may indicate a worn O-ring or cartridge. Consult the full installation guide or contact customer support for replacement parts.
• Awọn oran iwọn otutu omi: Verify that both hot and cold water supply lines are connected correctly and that the water heater is functioning.

Alaye atilẹyin ọja

Peerless products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty details and terms, please refer to the warranty card included with your product or visit the official Peerless webojula.

Atilẹyin

For further assistance, technical support, or to order replacement parts, please contact Peerless customer service or visit their official webojula:

• Webojula: Visit the Peerless Store on Amazon (for product information) or search for the official Peerless Faucet webojula.
• Iṣẹ onibara: Refer to the contact information provided in your product packaging or on the official Peerless webojula.
