ASIAHORSE WD-001 Series 120mm ARGB Case Fan with Controller

1. Ifihan

Thank you for choosing the ASIAHORSE WD-001 Series 120mm ARGB Case Fan. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new computer cooling fans. Please read this manual thoroughly before installation and retain it for future reference.

2. Awọn ẹya Ọja

• Integrated ARGB Controller: Ideal for compact PC cases or motherboards lacking dedicated ARGB headers. Offers 100 preset color options (including red, green, blue, white, rainbow 1.0, rainbow 2.0), 8 selectable LED modes (wave, full light, RGB spectrum, off, flow, ripple, pulse, blink), and 4 adjustable LED speeds for customizable lighting.
• Motherboard ARGB Synchronization: Features 12 addressable LEDs with 16.8 million colors, providing balanced lighting coverage and brightness. Compatible with 5V addressable RGB motherboards and mainstream motherboard software for synchronized lighting control.
• Durable Gold Wire LED Beads: Utilizes gold wire material for LED beads to enhance durability, effectively reducing LED exhaustion and maintaining optimal brightness over extended periods.
• Optimized 9-Blade Fan Design: Engineered for balanced airflow and static pressure. The notched design of each 120mm fan blade edge reduces wind noise, providing up to 53.38 CFM of airflow, suitable for case or radiator applications.
• Iṣẹ Ariwo Kekere: Designed for quiet performance, with noise levels ranging from 16dB to 34.3dB.
• Anti-Vibration Foot Pads: Equipped with shock absorbers to minimize vibration and further reduce operational noise.

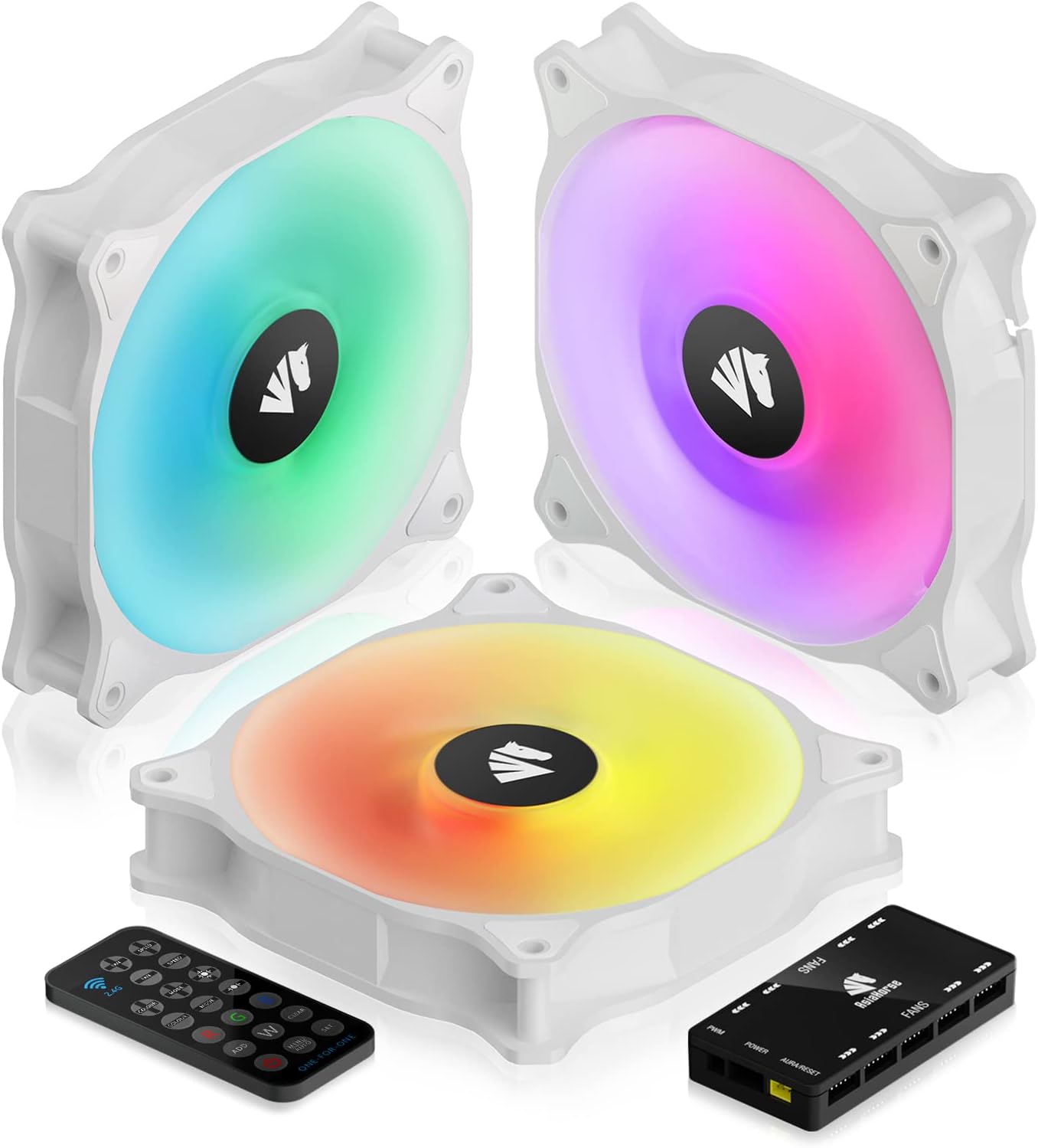

Figure 1: ASIAHORSE WD-001 Series 120mm ARGB Case Fans with Controller.

Nọmba 2: Alaye view of the 9-blade fan design.

Figure 3: Illustration of the fan's low noise operation.

Figure 4: Anti-vibration foot pads for reduced noise.

3. Package Awọn akoonu

Jẹrisi pe gbogbo awọn paati wa ninu package rẹ:

• ASIAHORSE WD-001 120mm ARGB Case Fans (Quantity as per pack)
• ARGB Controller Hub
• Alailowaya isakoṣo latọna jijin
• Iṣagbesori skru
• SATA Power Cable
• Motherboard ARGB Sync Cable (3-pin, 5V)
• Awọn ọna Fi Itọsọna

Figure 5: Complete package contents of the WD-001 fan kit.

4. Eto ati fifi sori

Follow these steps to install your ASIAHORSE WD-001 fans:

1. Mount Fans: Securely mount the 120mm fans to your PC case or radiator using the provided mounting screws. Ensure correct airflow direction (typically, the side with the fan frame/support structure is the exhaust side).
2. Connect Fans to Controller: Connect each fan's proprietary cable to the 'FANS' ports on the ARGB Controller Hub. Note that these are proprietary connections and cannot be used with other hubs.
3. Connect Controller to Power: Connect the SATA power cable from your power supply unit (PSU) to the 'POWER' port on the ARGB Controller Hub. Ensure a secure connection.
4. Motherboard ARGB Sync (Optional): If your motherboard supports 5V ARGB (3-pin header), connect the included motherboard ARGB sync cable from the 'AURA/RESET' port on the controller to your motherboard's 5V ARGB header. This allows software control of lighting.
5. Motherboard PWM Sync (Optional): Connect the PWM cable from the controller to a PWM fan header on your motherboard. This allows the motherboard to control fan speed based on system temperature.

Awọn akọsilẹ fifi sori ẹrọ pataki:

• The fan hub uses proprietary connections. Do not attempt to connect these fans directly to standard fan headers or other brand hubs.
• For motherboard detection and control, ensure fans are plugged into the hub starting from the right corner after the ARGB plug, with the hub logo facing up.
• If using multiple hubs, ensure all necessary SATA power connections are made as per the controller's design.

Olusin 6: Pariview of the fan hub and remote control connections.

5. Awọn ilana Iṣiṣẹ

Lilo Iṣakoso Latọna jijin Alailowaya:

The included wireless remote control allows for easy adjustment of fan speed and lighting effects.

• Titan/Apapa: Use the designated power button to turn the fan lighting on or off.
• Aṣayan awọ: Choose from 100 preset color options, including static colors and various rainbow effects.
• Awọn ọna LED: Select from 8 distinct LED modes (e.g., wave, full light, RGB spectrum, flow, ripple, pulse, blink).
• LED Speed Adjustment: Adjust the speed of dynamic lighting effects across 4 levels.
• Atunse Iyara Fan: Control the fan's rotational speed.
• Motherboard Sync Activation: To switch RGB control to your motherboard software, double-tap the power button on the remote. To set fans to PWM mode, press the 'W' button three times on the remote.

Iṣakoso Sọfitiwia Modabọọdu:

If connected to a 5V ARGB header on your motherboard, you can control the fan lighting and speed through your motherboard's native RGB software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, ASRock Polychrome Sync).

• Ensure the motherboard sync cable is correctly connected.
• Activate motherboard control via the remote (double-tap power button).
• Open your motherboard's RGB software to customize lighting effects and fan speeds.

Figure 7: Illustration of software control for ARGB lighting synchronization.

6. Itọju

Regular maintenance ensures optimal performance and longevity of your fans:

• Yiyọ eruku kuro: Periodically clean the fan blades and grilles using compressed air or a soft brush to prevent dust buildup, which can impede airflow and increase noise.
• Iṣakoso USB: Rí i dájú pé gbogbo àwọn okùn náà wà ní ọ̀nà tó dára tí a sì so wọ́n mọ́ láti dènà ìdènà pẹ̀lú àwọn abẹ́ afẹ́fẹ́ tàbí àwọn èròjà mìíràn.
• Ayewo: Occasionally inspect fan cables for any signs of wear or damage.

7. Laasigbotitusita

If you encounter issues with your ASIAHORSE WD-001 fans, refer to the following common solutions:

• Awọn onijakidijagan Ko Yiyi:
  • Check if the SATA power cable is securely connected to both the fan hub and the PSU.
  • Ensure all fan cables are properly connected to the fan hub.
  • Verify that the fan hub is receiving power.
• RGB Lighting Not Working/Syncing:
  • Ensure the motherboard ARGB sync cable (3-pin, 5V) is correctly connected to both the fan hub and the motherboard.
  • If using the remote, ensure it's not in motherboard sync mode (double-tap power button to toggle).
  • If using motherboard software, ensure the software is running and correctly configured for the ARGB header.
  • Confirm that the fan hub is receiving power.
• Fans Not Detected by Motherboard (for speed control):
  • Ensure the PWM cable from the controller is connected to a PWM fan header on your motherboard.
  • In the remote control, press the 'W' button three times to enable PWM mode.
  • Check your motherboard's BIOS/UEFI settings to ensure the fan header is configured for PWM control.
  • Verify that the fans are plugged into the hub in the correct order, starting from the right corner after the ARGB plug, with the hub logo facing up, as this can affect motherboard detection.
• Ariwo/ Ariwo Pupọ:
  • Ṣayẹwo fun eyikeyi awọn kebulu tabi awọn idena ti o kan awọn abẹfẹfẹ afẹfẹ.
  • Ensure mounting screws are tightened securely.
  • Nu eyikeyi eruku kọ lori awọn abẹfẹlẹ àìpẹ.
  • If rattling persists, it may indicate a mechanical issue with the fan bearing.

8. Awọn pato

Figure 8: Fan dimensions (120mm x 120mm).

9. Alaye Aabo

Jọwọ ṣe akiyesi awọn iṣọra ailewu wọnyi:

• Always disconnect power from your computer before installing or performing maintenance on any internal components.
• Mu awọn paati pẹlu iṣọra lati yago fun ibajẹ.
• Ensure proper grounding to prevent electrostatic discharge (ESD) damage.
• Pa awọn ẹya kekere ati awọn ohun elo apoti kuro lọdọ awọn ọmọde.

10. Atilẹyin ọja ati Support

For warranty information and technical support, please refer to the official AsiaHorse webojula tabi kan si wọn onibara iṣẹ. Tọju iwe-ẹri rira rẹ bi ẹri rira.
