ANRAN AR-W657 Wireless Security Camera System User Manual

1. Ifihan

This ANRAN AR-W657 Wireless Security Camera System offers advanced surveillance features for home and business use. It includes 3MP high-definition cameras, a built-in 1TB HDD for extensive recording, and supports expansion up to 8 cameras. The system is designed for easy installation and provides robust protection with IP66 waterproof rating, night vision, motion detection, and remote monitoring capabilities.

2. Ohun ti o wa ninu Apoti

Jọwọ rii daju pe gbogbo awọn eroja ti a ṣe akojọ si isalẹ wa ninu package rẹ:

• 8-channel WiFi NVR (1 unit)
• 1TB HDD (ti a ṣe sinu)
• 3MP Cameras (4 units)
• Camera Power Adapters (4 units)
• NVR Power Adapter (1 unit)
• Strong Adhesive Tape (4 pieces)
• Asin USB (ẹyọ kan)
• Japanese Instruction Manual (1 copy)
• Security Sticker (1 piece)
• 1m LAN Cable (1 piece)
• Camera Mounting Screws (4 sets)

Image: Contents of the ANRAN AR-W657 Wireless Security Camera System package.

3. Awọn ilana iṣeto

Follow these steps to set up your ANRAN wireless security camera system:

1. So NVR pọ: Connect the NVR to a power source and a display (monitor/TV) using an HDMI or VGA cable.
2. Sopọ Awọn kamẹra: Power on each camera using its dedicated power adapter. The cameras will automatically pair with the NVR.
3. Gbé Àwọn Kámẹ́rà Sílẹ̀: Use the provided mounting screws and adhesive tape to securely install the cameras in your desired outdoor or indoor locations. Refer to the installation video for detailed guidance.
4. Network Connection (Optional for Remote Access): Connect the NVR to your router using the provided LAN cable for remote viewing via the mobile app.
5. Eto Alagbeka App: Download the 'ARCCCTV' app from your smartphone's app store. Register an account, then add your device by scanning the QR code or manually entering the device ID.

Image: Diagram showing the connection of the NVR to a display, router, and cameras.

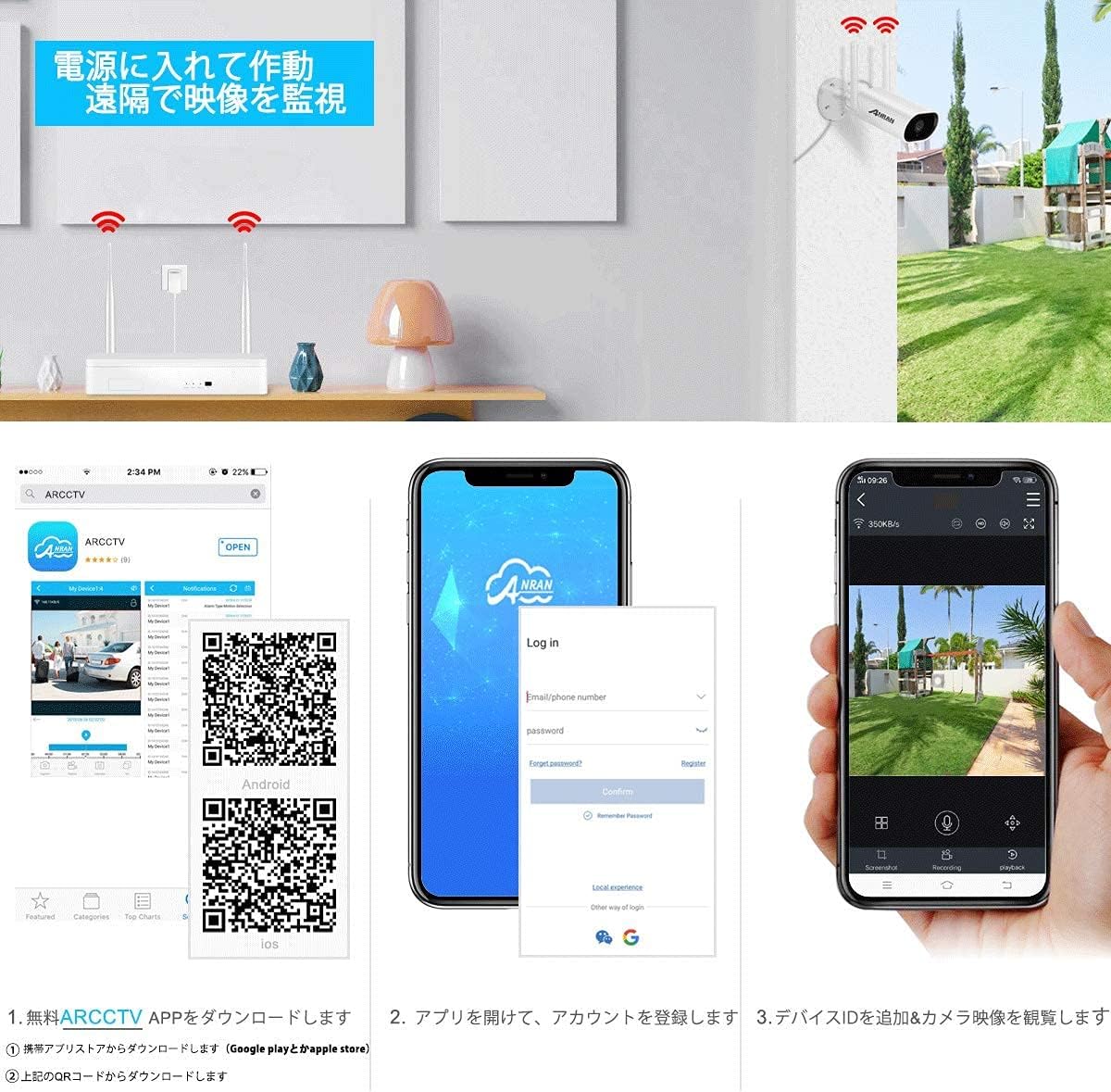

Image: Visual guide for downloading the ARCCCTV app, registering, and adding a device for remote viewing.

Download the ARCCCTV app: Google Play | Apple App itaja

4. Awọn ilana Iṣiṣẹ

4.1. Gbe View ati Sisisẹsẹhin

Ni kete ti o ti sopọ, o le view gbe footage from your cameras on the connected display or via the ARCCCTV mobile app. The 1TB HDD allows for continuous recording, and you can easily playback recorded footage through the NVR interface or the app.

Image: Illustration of the NVR with a built-in 1TB hard disk drive for 24/7 recording.

4.2. Àbójútó Látọ̀ọ́nà

With the ARCCCTV app, you can remotely monitor your property from anywhere using your smartphone, tablet, or PC. The system supports multi-screen viewing, allowing you to see footage lati ọpọ awọn kamẹra ni nigbakannaa.

Image: Depicts remote monitoring of the camera system via smartphone, tablet, and PC.

4.3. išipopada erin

The cameras feature motion detection. When motion is detected, you will receive push notifications via the app and email alerts, ensuring you are immediately aware of any activity.

Image: Illustrates how motion detection triggers app notifications and email alerts, showing a person being detected.

5. Key Awọn ẹya ara ẹrọ

• 3MP High-Definition Video: Capture clear and detailed images with 3-megapixel resolution.
• Ìfúnpọ̀ H.264+: Advanced compression technology saves storage space while maintaining video quality.
• IP66 Mabomire: Cameras are built with IP66-rated weather-resistant casing, suitable for outdoor use in various conditions.
• Iran Alẹ: Equipped with high-sensitivity CMOS sensors and HDR technology for clear imaging in low-light conditions and at night.
• Front Microphone Audio: Built-in audio pickup allows for recording sound within a 20-meter range, providing valuable evidence.
• Eto ti o le gbooro: The 8-channel NVR supports up to 8 cameras, allowing you to expand your surveillance coverage.

Image: Demonstrates the camera's night vision capabilities, showing clear footage ninu awọn ipo dudu.

Image: Compares H.264 and H.264+ compression, highlighting the storage efficiency and improved image clarity of H.264+.

Image: Shows the system's expandability, allowing up to 8 cameras to be connected to the NVR.

6. Itọju

To ensure optimal performance and longevity of your security system, regular maintenance is recommended:

• Awọn lẹnsi Kamẹra mimọ: Lẹẹkọọkan nu awọn lẹnsi kamẹra nu pẹlu asọ, damp asọ lati yọ eruku ati smudges ti o le ni ipa lori aworan wípé.
• Ṣayẹwo Awọn isopọ: Rii daju pe gbogbo agbara ati awọn kebulu nẹtiwọọki ti sopọ ni aabo ati laisi ibajẹ.
• Awọn imudojuiwọn famuwia: Ṣayẹwo awọn olupese ká website or app for any available firmware updates to improve system stability and features.
• Ilera Wakọ lile: Monitor the health of the 1TB HDD and ensure sufficient storage space for recordings.

7. Laasigbotitusita

If you encounter any issues with your ANRAN security camera system, please refer to the following common solutions:

• Ko si aworan lori Ifihan: Ensure the NVR is powered on and correctly connected to the display via HDMI or VGA. Check the display input source.
• Àwọn Kámẹ́rà Tí Kò Sopọ̀: Verify that cameras are powered on and within range of the NVR. If issues persist, try resetting the cameras and re-pairing them with the NVR.
• Latọna jijin ViewAwọn oran: Confirm the NVR is connected to the internet via LAN cable. Check your router's internet connection and ensure the ARCCCTV app is properly configured and updated.
• Didara Aworan Ko dara: Clean camera lenses. Ensure cameras are installed in well-lit areas or that night vision is functioning correctly. Check for obstructions.
• Iwari išipopada Ko Ṣiṣẹ: Verify motion detection settings in the NVR or app. Adjust sensitivity and detection zones as needed.

For further assistance, please contact ANRAN customer support.

8. Imọ ni pato

9. Atilẹyin ọja ati Support

The ANRAN AR-W657 Wireless Security Camera System comes with a 1-odun atilẹyin ọja. All electrical components, including the power adapter, are certified according to Japanese Electrical Appliance and Material Safety Law (PSE). The product has also passed GITEKI radio wave law inspection, ensuring safe use.

ANRAN offers Japanese language support for after-sales service. For any questions during consideration or use, or in case of malfunctions, please feel free to contact us. Contact information can be found on the last page of the physical instruction manual.

Phone Support Hours: Monday - Friday, 10:00 - 13:00 and 14:30 - 19:30

Imeeli Atilẹyin: 24-hour response
